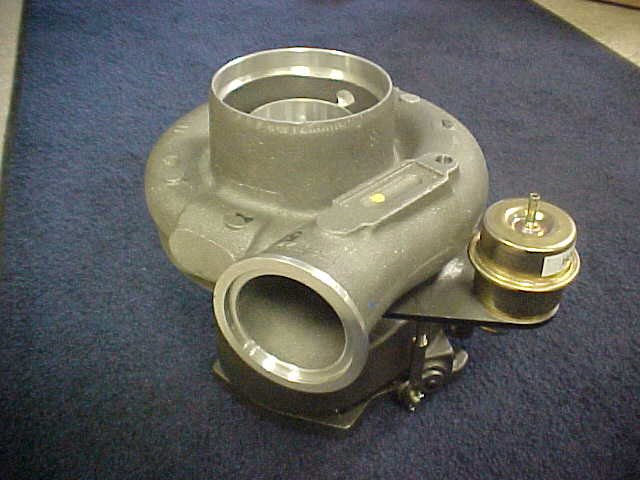

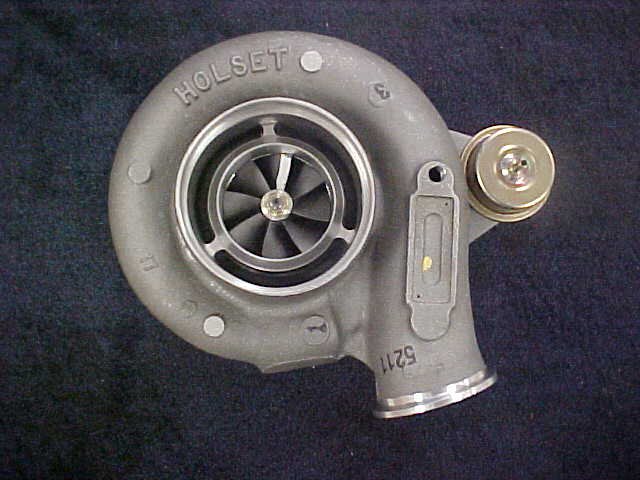

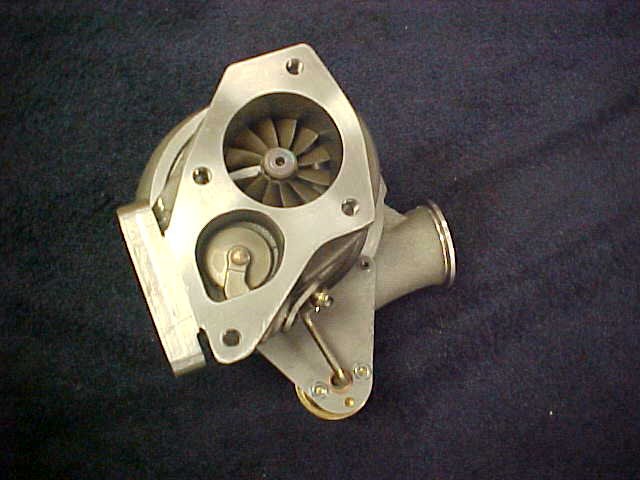

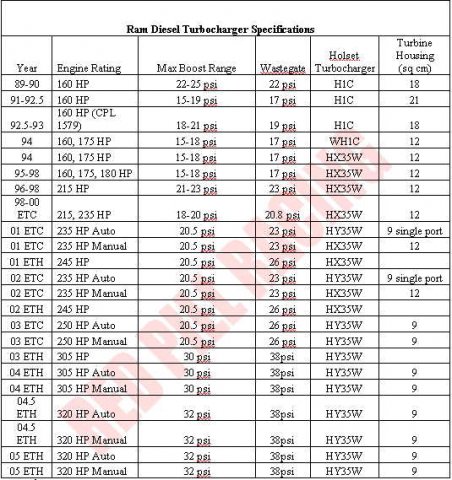

OlderThanMe Posted December 1, 2006 Share Posted December 1, 2006 Well since it is pretty much impossible to find any graphs for any holset I figured that I would write this FAQ so that all the Holset info is in one place. The HY35W seems to be the turbo of choice for several L6 Z guys. Here are some graphs and charts. From what I have seen they are good to around 550 horsepower. The graph shows what holsets came when on the dodge trucks. Then there are three pics of a HX-35 that has aftermarket parts on it. Specifically an aftermarket 38mm internal wastegate and aftermarket wheels. The picture with the measuring tape is a HY35(W) Companies dealing with Holsets Upgrades proper cool down times for a holset turbo This is from the Ram Service Manual Stop & Go, Load - Empty, Turbocharger temp - Cool, Idle Time...Less than 1 min. Stop & Go, Load - Medium, Turbocharger temp - Warm, Idle Time - 1 min Highway Spds., Load - Medium, Turbocharger temp - Warm, Idle Time - 2 min. City Traffic, Load - Max GCWR, Turbocharger temp - Warm, Idle Time - 3 min Highway Spds., Load - Max GCWR, Turbocharger temp - Warm, Idle Time - 4 min. Uphill Grade, Load - Max GCWR, Turbocharger temp - Hot!!, Idle Time - 5 min. I will keep adding to this FAQ as I get more info. I will get a flow graph up in a little bit for the HY35. Link to comment Share on other sites More sharing options...
savageskaterkid Posted January 11, 2007 Share Posted January 11, 2007 You haven't come across an H1E map have you? Link to comment Share on other sites More sharing options...
mtcookson Posted January 15, 2007 Share Posted January 15, 2007 Taking contributions? Here's an interesting map I found for either the HX35 or HY35, not sure which... of all places its on Garrett's site. What's interesting is it follows what everyone says about it being a very wide map. Take a look here: http://www.turbobygarrett.com/turbobygarrett/products/turbo_kits/turbo_kit_pdfs/CompmapCummins.pdf Link to comment Share on other sites More sharing options...
OlderThanMe Posted June 21, 2007 Author Share Posted June 21, 2007 Finally found an HY35 flow chart. Not perfect but it is better than nothing. Link to comment Share on other sites More sharing options...
Drop_Team_Z Posted June 24, 2007 Share Posted June 24, 2007 I found another one for the Holset HY35 anybody have one for the HX35 or HX40? Link to comment Share on other sites More sharing options...
Drop_Team_Z Posted June 24, 2007 Share Posted June 24, 2007 I found another compressor map for the HY35, anybody have one for the HX35 or HX40? Link to comment Share on other sites More sharing options...
hoohaa Posted June 25, 2007 Share Posted June 25, 2007 Are you guys sure about those compressor maps? I've heard there are lots of mislabeled Holset maps floating around. If that's really a HY-35 map then thanks very much for posting it! Just wanted to make sure you are certain it's authentic. Link to comment Share on other sites More sharing options...
rustrocket Posted June 26, 2007 Share Posted June 26, 2007 this is for a h1e, which is pretty similar. sorry for the quality, i had to take a pic of my comp. screen. I sent an e-mail to holset a while ago with the tag # on my hx35 and they sent me back a map for a hx30 in pdf form. I can send it to somebody if they want to convert it and upload it. Shameless plug: I'm also selling my hx35 soon. it's got a bullseye 12 cm housing setup for external wastegate and has a fresh rebuild. ZERO shaft play. Stock hotside housing also available, with internal wastegate setup included. Link to comment Share on other sites More sharing options...
mtcookson Posted June 28, 2007 Share Posted June 28, 2007 Going by airflow, the first map is definitely not a 35 map but the second map may be very, very close. The ~52 lbs/min in the first map roughly equals .42 kg/sec and Holset rates the HX35 at .46 kg/sec, which is closer to 60 lbs/min like in the second map. Also, the first map seems awful inefficient for a 35, the 79% of the second map would make much more sense to me. Link to comment Share on other sites More sharing options...
hoohaa Posted June 28, 2007 Share Posted June 28, 2007 this is for a h1e, which is pretty similar. sorry for the quality, i had to take a pic of my comp. screen. I sent an e-mail to holset a while ago with the tag # on my hx35 and they sent me back a map for a hx30 in pdf form. I can send it to somebody if they want to convert it and upload it. HX30e or HX30W? From what I've heard they are very different. I've seen an HX30E map, but I don't know where you would buy one of those. Never seen an authentic HX30W map. Link to comment Share on other sites More sharing options...
OlderThanMe Posted June 29, 2007 Author Share Posted June 29, 2007 This is a verified set of HY35 maps and an HX35 map from HOLSET over the years. Pre 2003 HX35 in green 2003-04.5 HY35 in black 2004.5-present HY35 in red Link to comment Share on other sites More sharing options...
Drop_Team_Z Posted July 2, 2007 Share Posted July 2, 2007 Here is the map for the HX30 from Holset courtesy of rustrocket. If anybody needs a bigger copy in .pdf or JPEG form just send me a PM. vbmenu_register("postmenu_782169", true); Link to comment Share on other sites More sharing options...
OlderThanMe Posted February 13, 2008 Author Share Posted February 13, 2008 The smallest map is an HX40 The standard high flow HX40 shows 80 or 60 lbs/min The tallest is a "super 40" from Holset's aftermarket division. The super 40 map shows a little over 90 for the "massflow perameter" or 68 lbs/min The wide one is a Holset HX52 The HX52 is 115. This corresponds to 87 lbs/min. Here is another H1E map. Link to comment Share on other sites More sharing options...
a6t8vw Posted February 15, 2008 Share Posted February 15, 2008 here's one similar to above but this is from holset This map shows the pro-52 flowing damn near 120 The compressor wheel is 71mm and comes with a 16/cm2 exhaust housing with 70mm turbine wheel. basicly a hx55/hx40 hybrid but has newly designed wheels (2004?)and a special high flowing turbine trim. Diesel guys push this turbo to over 50 psi on a regular basis about 600hp.. but thats diesel HP. On a gas motor this is a 1000+hp turbo. There is also another hx52 turbo non "PRO" that came on volvo diesel trucks. it has a 67mm compressor wheel and a smaller shaft than the PRO52 so it cant be pushed as hard. I have a pro-52 for sale in classifieds if anyones interested Link to comment Share on other sites More sharing options...
Drop_Team_Z Posted February 20, 2008 Share Posted February 20, 2008 I found some more Holset Maps Hope this helps some of you guys! Link to comment Share on other sites More sharing options...
erehemantresni Posted May 18, 2008 Share Posted May 18, 2008 Are you guys seeing high egt's with the hy35's tiny exhaust housing? Will the hx35 exhaust housings fit? I havent found an alternative for the hy 35 yet.. Link to comment Share on other sites More sharing options...
big-phil Posted September 14, 2008 Share Posted September 14, 2008 on my first hy35 from an 06 dodge running 20-25lbs boost and had the oil pump set a bit higher than stock oil psi the turbo started smoking after about a year, so rebuilt it lowered the oil psi back to stock put it back in. Installed turbo timer, set at 3min at every shutdown holset started smoking again after about 4 months. Bought hy35 #2 running 25lbs boost, stock oil psi, 3min cool down at shutdown, turbo started smoking again after about 3-4 months! Rebuilt this one and now only run 10lbs boost. The chart above shows a waste gate of 36lbs? With my boost controller open ALL the way the most I could get from this turbo was 26lbs boost. I think I've been maxing this baby out. I never really noticed that the controller was maxed out. I was just driving and setting it to 25, which was just a %$#@ hair from maxed. Morel of the story Holset hy35 good for 10-17lbs, but your pushing it if you go higher. Now I DRIVE my car, this is my daily driver. I love this car, I love to drive it, I love the thumbs up I get down the road, I love the power, and I use the power ALLOT! I'm going to buy a Garrett GT35R next week $1300 brand new ball bearing. My first hy was $500, the 2nd was $400. I'm done with them. Link to comment Share on other sites More sharing options...
SmogSUX Posted November 28, 2008 Share Posted November 28, 2008 Since this is the FAQ I figure I'd post my question in here: How well do the internal wastegates work on these turbos? I'm thinking of putting the H1E with the T4 flange on my Rx7.. Link to comment Share on other sites More sharing options...
bluedragon436 Posted December 17, 2008 Share Posted December 17, 2008 Well I know the wastegate seem to work pretty well on the ones that are installed on Dodge Trucks. As most of them are run hard, run at semi high RPM's while towing and they never seem to leak on those vehicles, I mean a lot of the guys that do the tractor pulls with their trucks are running pretty much stock turbos and wastegates when they first get started before they start upgrading!! Link to comment Share on other sites More sharing options...
duder280z Posted December 19, 2008 Share Posted December 19, 2008 Morel of the story Holset hy35 good for 10-17lbs, but your pushing it if you go higher. Now I DRIVE my car, this is my daily driver. I love this car, I love to drive it, I love the thumbs up I get down the road, I love the power, and I use the power ALLOT! I'm going to buy a Garrett GT35R next week $1300 brand new ball bearing. My first hy was $500, the 2nd was $400. I'm done with them. I've seen the stock holsets run 30-35psi on the cummins no problem, plenty reliable. I think maybe the issue is related to higher exhaust temps more than boost pressure. It sure will be cool to see what Phil's car can do with a GT35R on it though! Link to comment Share on other sites More sharing options...
