Firewall Measurements Needed


  • Please log in to reply
5 replies to this topic

#1 LLave

LLave

    Member

  • Members
  • PipPipPipPip
  • 497 posts
  • LocationRohnert Park, CA

Posted 07 February 2017 - 12:35 PM

I am hoping someone can take a few measurements for me. I need to repair the battery tray area of my firewall and inner fender. But the sheemetal has already (poorly) been replaced and I have nothing to reference to.



Can someone give me the dimensions of the square/rectangular features that are on the firewall? And their distance from the horizontal and vertical round beads? I want to get it close to factory.



Also, the height of the tray and wheel well from the frame, or the top of the firewall.



Thanks!



#2 88dangerdan

88dangerdan

    Always Here

  • Donating Members
  • PipPipPipPip
  • 255 posts
  • LocationStockton Ca

Posted 07 February 2017 - 07:19 PM

What year is your Z. I have a '75 currently with a stripped engine bay but it might be different than yours.
Daniel

#3 rturbo 930

rturbo 930

    Porschephile

  • Donating Members
  • PipPipPipPipPipPip
  • 1599 posts
  • LocationNJ

Posted 07 February 2017 - 07:47 PM

What year is your Z. I have a '75 currently with a stripped engine bay but it might be different than yours.
Daniel

Should be the same.


Owen | 1976 280Z | 1986 Jetta | 1953 CJ3B

A car is a hole in the air, suspended there by four rubber doughnuts which you can not eat.
Into this hole, you throw money, which you will never see again.

Buy my stuff: CLICK HERE


#4 LLave

LLave

    Member

  • Members
  • PipPipPipPip
  • 497 posts
  • LocationRohnert Park, CA

Posted 08 February 2017 - 09:10 AM

What year is your Z. I have a '75 currently with a stripped engine bay but it might be different than yours.
Daniel



If you can snag a few measurements or take a couple of pics with a tape measure in it, that would be awesome!



#5 grannyknot

grannyknot

    Always Here

  • Members
  • PipPipPipPip
  • 212 posts
  • LocationOntario

Posted 08 February 2017 - 03:37 PM

Hopefully these will help, sorry they are crooked but I was clicking the camera with my left hand,

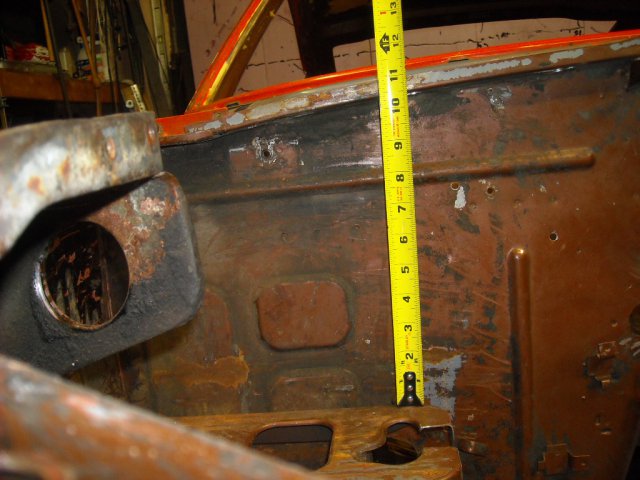

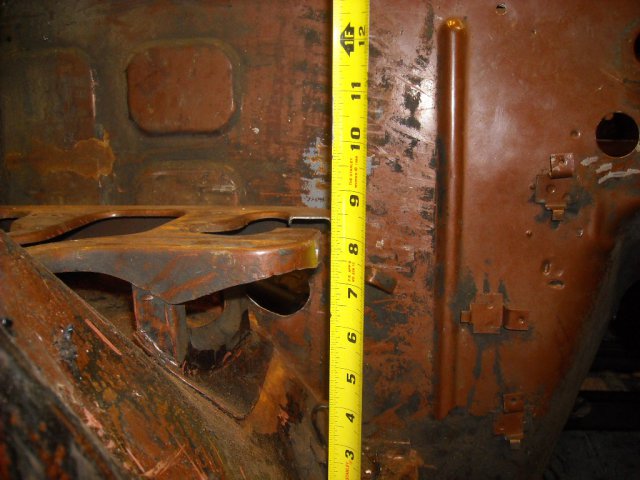

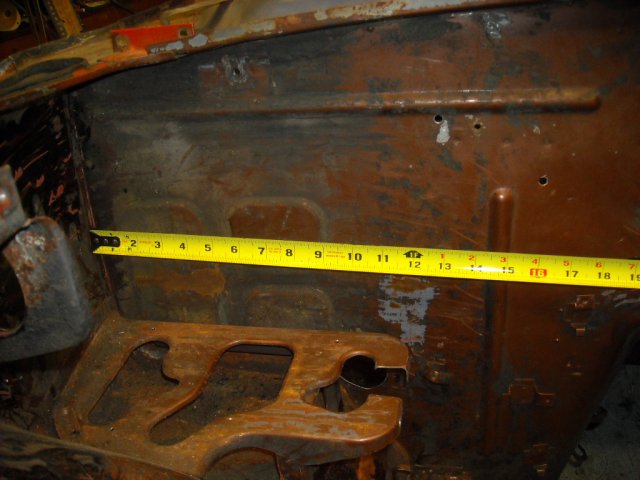

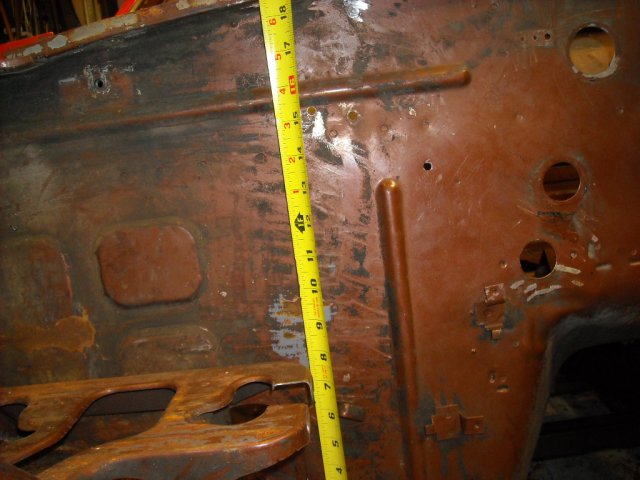

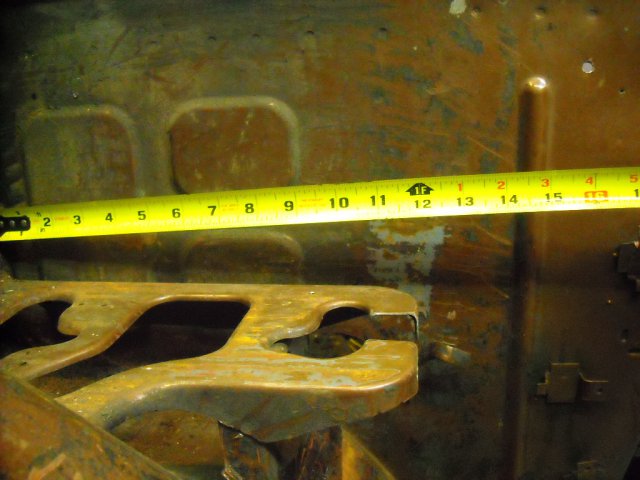

Attached File  DSCN1070.JPG   232.51KB   0 downloadsAttached File  DSCN1074.JPG   232.57KB   0 downloadsAttached File  DSCN1071.JPG   233.86KB   0 downloadsAttached File  DSCN1073.JPG   230.71KB   0 downloadsAttached File  DSCN1075.JPG   233.91KB   0 downloads





#6 LLave

LLave

    Member

  • Members
  • PipPipPipPip
  • 497 posts
  • LocationRohnert Park, CA

Posted 08 February 2017 - 04:38 PM

Grannyknot, much appreciated! That is very helpful.
