Dead Roman Posted June 20, 2005 Share Posted June 20, 2005 My chasis is going to prison for a while for some fab and paint work(stitch welding,roll cage, and paint) Do any of you guys have a diagram of some of your rollcages that you would be willing to let me use in my z? I want as much protection as possible. I dunno if this is too tall an order but im looking for a something that incorporates the cage as an actual part of the chasis. In other words, i want the cage to be connected to all the major suspension mounting points in the car, to stiffen it up a bit. If you guys have any info,links, actual diagrams you can spare it would be greatly appreiciated. if you send me a diagram of your personal cage and its the one i use, ill throw you some free powdercoating for my trouble. Thanx Quote Link to comment Share on other sites More sharing options...
rc's240z Posted June 20, 2005 Share Posted June 20, 2005 http://www.pdkfabrication.bravepages.com/bre_replica.htm http://www.classiczcars.com/photopost/showphoto.php?photo=6558&cat=500&page=5 Hope this helps.... R Quote Link to comment Share on other sites More sharing options...
Dead Roman Posted June 21, 2005 Author Share Posted June 21, 2005 thank you very much, thats exactly what i was looking for. Quote Link to comment Share on other sites More sharing options...
Here comes trouble Posted June 21, 2005 Share Posted June 21, 2005 here are some Z roll bar cage details to go with the other photos and diagrams http://pg.photos.yahoo.com/ph/larryjohnson97438/album?.dir=/a6b1&urlhint=actn,ren%3as,1%3af,0 Quote Link to comment Share on other sites More sharing options...
grumpyvette Posted June 21, 2005 Share Posted June 21, 2005 http://www.nhra.com/contacts/tech_faq.html always use slightly thicker chromemoly steel in case the rules change gusset the angles and exceed the gusset sizes, base plates should bolt and weld with grade 8 bolts to frame sections or backing plates http://www.pdkfabrication.bravepages.com/bre_replica.htm http://pg.photos.yahoo.com/ph/larryjohnson97438/album?.dir=/a6b1&urlhint=actn,ren%3as,1%3af,0 http://www.rollcagecomponents.com/index.htm http://www.rollcagecomponents.com/kits/rollcagekits.htm http://www.stu-offroad.com/guards/sportbar/roll-1.htm http://www.burningcage.com/roll-cage.shtml http://www.stockcarproducts.com/rollcage.htm http://www.racefabinc.com/rollcages.htm Quote Link to comment Share on other sites More sharing options...
Al Keller Posted June 22, 2005 Share Posted June 22, 2005 Hello, If you're interested, I've got a Jeg's 10 point cage that I will not be using. I think I paid around $250. I'm in Ohio and can ship via UPS (I believe - fairly cheap). Let me know if you're interested. Al al_keller@earthlink.net Quote Link to comment Share on other sites More sharing options...
74_5.0L_Z Posted June 22, 2005 Share Posted June 22, 2005 Here are the dimensions of the main hoop used in my car: This roll bar fits VERY tight to the pillar (trimming of the interior plastic around the quarter windows is required). I should also mention that the bottom of the hoop is cut a ten degree angle to lean the hoop backwards parallel to the pillar. Quote Link to comment Share on other sites More sharing options...
JaysZ Posted June 23, 2005 Share Posted June 23, 2005 74_5.0L_Z, would you happen to have the dimensions for the other bars? nice cage you have there Quote Link to comment Share on other sites More sharing options...
rc's240z Posted June 23, 2005 Share Posted June 23, 2005 Here comes trouble, the photos you included are mostly from Bob Sharp's cars not BRE cars. R Quote Link to comment Share on other sites More sharing options...
Here comes trouble Posted June 23, 2005 Share Posted June 23, 2005 The pictures attribute BRE and tend to simulate the BRE replica photos in the other post. BRE and Bob Sharp cages maybe very similar. What ever they are.... a good 30 year old design Quote Link to comment Share on other sites More sharing options...

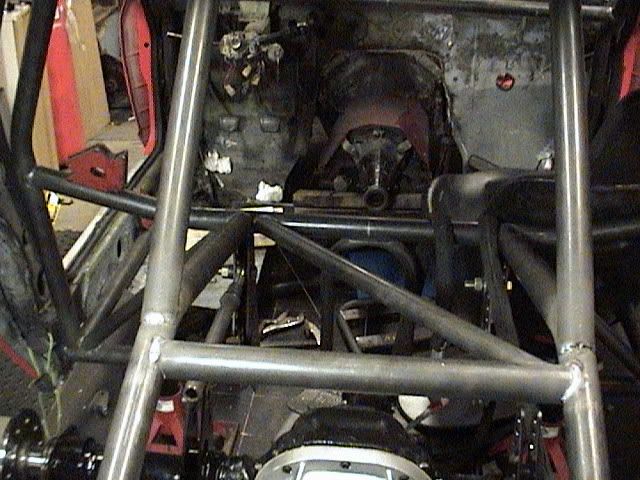

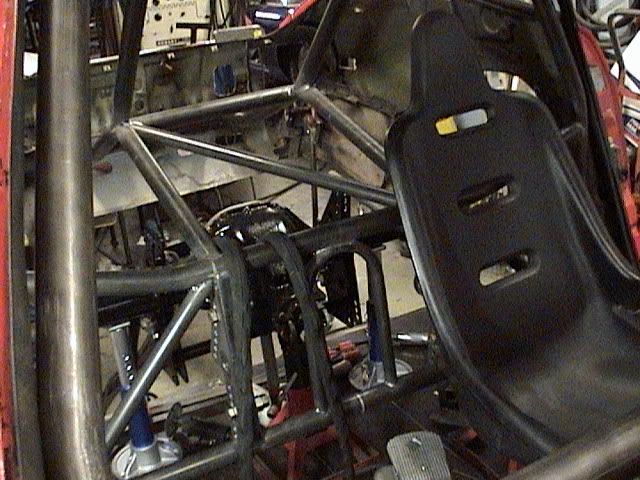

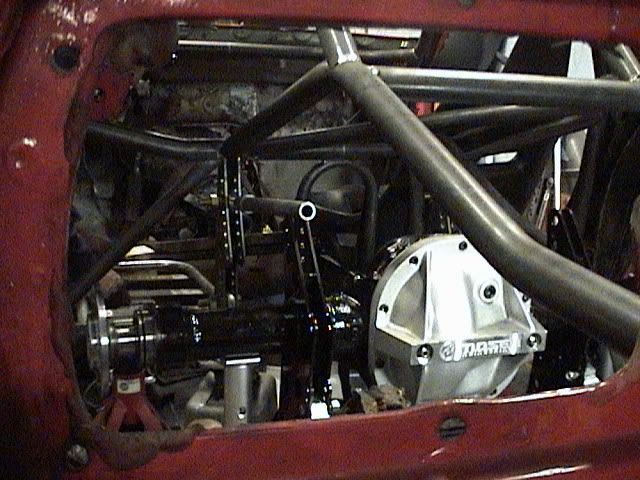

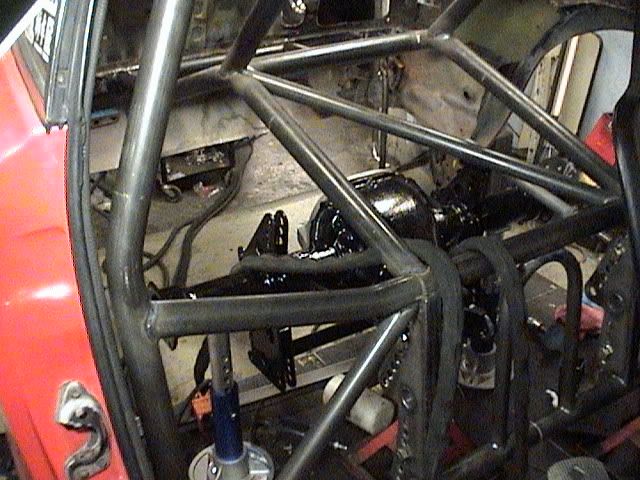

stony Posted June 23, 2005 Share Posted June 23, 2005 Probably not what your looking for but here is my cage... it’s about 85 % done. But I saw an opportunity to show it off Quote Link to comment Share on other sites More sharing options...
preith Posted June 23, 2005 Share Posted June 23, 2005 Make it like this one! But seriously, keep in mind if you plan on doing any type of sanctioned racing be sure to check the rule book out. I have heard of cases where an SCCA caged car didn't pass NHRA tech, etc. Quote Link to comment Share on other sites More sharing options...
Dead Roman Posted June 23, 2005 Author Share Posted June 23, 2005 the odds of me doing any typ of nhra events are slim, no worried about that. Iwould like to be able todo some SCCA events. Thank you to everyone who has contibuted thus far. Quote Link to comment Share on other sites More sharing options...
preith Posted June 23, 2005 Share Posted June 23, 2005 the odds of me doing any typ of nhra events are slim' date=' no worried about that. Iwould like to be able todo some SCCA events.[/quote'] If that's the case, then the older Sharp pictures, and Ron's BRE replica probably would not pass SCCA tech for wheel to wheel. Don't get me wrong, they're good designs and Ron was going for period correctness, but it's just not in compliance with their rules, specifically with the main hoop. Quote Link to comment Share on other sites More sharing options...
karay240 Posted June 24, 2005 Share Posted June 24, 2005 Hey Al Keller, I was wondering why you were selling the JEGS cage? Does it have anything to do w/ the quality or fitment? The reason being, I'm thinking about getting a JEGS cage down the line, and modify it to suit my needs. I'd rather not spend $600+ on crap, so I'd appreciate any feedback on the JEGS cage. Thanks Kenny http://www.rbmotoring.com Quote Link to comment Share on other sites More sharing options...
JaysZ Posted June 24, 2005 Share Posted June 24, 2005 not to hijack your thread, but what kind of cage would be necessary for NASA events and other track day type events? maybe a few autocrosses here and there, nothing too serious. i'm ini it mostly for fun, not competition (not a hugely competitive guy lol) would the JEGS suit my needs? S&W? or Autopower... Quote Link to comment Share on other sites More sharing options...
preith Posted June 24, 2005 Share Posted June 24, 2005 not to hijack your thread' date=' but what kind of cage would be necessary for NASA events and other track day type events? maybe a few autocrosses here and there, nothing too serious. i'm ini it mostly for fun, not competition (not a hugely competitive guy lol) would the JEGS suit my needs? S&W? or Autopower...[/quote'] I beleive NASA uses the SCCA GCR as a guidline. If you're looking to run HPDE's or Solo 1 events, I think you can get away with just a roll bar, but check the rule book. If a full cage is required, and you're looking for a bolt in, I'd go with Autopower only because it looks like the NHRA based cages have some fundamental differences which may not pass SCCA tech. Quote Link to comment Share on other sites More sharing options...
