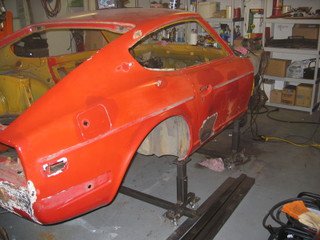

er34gtt2000jp Posted February 12, 2007 Share Posted February 12, 2007 OK guys, here it is in all its glory. It started life as a steal of a deal 1970 240Z that turned out to be a reclaimed total loss (major damage to rear) and now it's becoming a SBF powered bracket car. Little run down on parts: 1969 Ford 302 .030 over (soon to have AFR 185's on it) KB hyper domed pistons Performer manifold Performer 600 CFM carb Comp Cams .512 lift cam Jegs 1.6 roller rockers Gear Drive MSD Pro billet distributor MSD 6AL (still have to buy) $98 summit F-150 full length headers C4 trans (soon to have full manual valve body w/brake) Ford 8.8 inch rear (narrowed 54.5" flange to flange) 4.10 gears Jegs SS ladder bars w/ track rod Alston's full cage Gonna run 15x10 rims in the back with 29x12.5x15 slicks. Here are some pics thus far, all fab work was done by my buddy and I in my garage. Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 12, 2007 Author Share Posted February 12, 2007 More Photos Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 12, 2007 Author Share Posted February 12, 2007 And a couple more. Quote Link to comment Share on other sites More sharing options...
Sven Posted February 12, 2007 Share Posted February 12, 2007 My buddy tried the same header, but his car has been sitting for 8 years. Yours really look like they're working out great. How did you modify them? What are your steering shaft plans? Quote Link to comment Share on other sites More sharing options...
MY77Z Posted February 12, 2007 Share Posted February 12, 2007 heey nice combo and great job on the 8.8 rear....keep us posted and cant wait to see the finished project Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 12, 2007 Author Share Posted February 12, 2007 My buddy tried the same header, but his car has been sitting for 8 years. Yours really look like they're working out great. How did you modify them? What are your steering shaft plans? We had to heat the tubes and slightly massage them for clearance, we will probably end up notching the frame rail a little on the passengers side after we pull the motor out to send it to the machine shop. Quote Link to comment Share on other sites More sharing options...
dr_hunt Posted February 13, 2007 Share Posted February 13, 2007 That looks nice, keep us posted. Quote Link to comment Share on other sites More sharing options...
v8dats Posted February 13, 2007 Share Posted February 13, 2007 wow nice project! interested in the solid rear! care to do a write up? Quote Link to comment Share on other sites More sharing options...
cup Posted February 18, 2007 Share Posted February 18, 2007 do you have any detailed build up picks on the rear end.. im boucing options around but am thinking of a back 1/2 car.. true 4 link.. any ideas? Quote Link to comment Share on other sites More sharing options...
Guest whitesmoke Posted February 19, 2007 Share Posted February 19, 2007 OK guys, here it is in all its glory. 1969 Ford 302 .030 over (soon to have AFR 185's on it) KB hyper domed pistons Performer manifold Performer 600 CFM carb Comp Cams .512 lift cam Jegs 1.6 roller rockers Gear Drive MSD Pro billet distributor MSD 6AL (still have to buy) $98 summit F-150 full length headers C4 trans (soon to have full manual valve body w/brake) Ford 8.8 inch rear (narrowed 54.5" flange to flange) 4.10 gears Jegs SS ladder bars w/ track rod Alston's full cage Gonna run 15x10 rims in the back with 29x12.5x15 slicks. Here are some pics thus far, all fab work was done by my buddy and I in my garage. just a quick note, if/when you go to AFR 185s you will need to get a better carb and will probably want a better intake as well. like a vic jr. or at least thats what im running on my AFR 185 headed 306 is a vic jr and a holly DP. i dont know a a thought but that me over kill for you too as i have plans to add the giggle juce to what i already have. Quote Link to comment Share on other sites More sharing options...

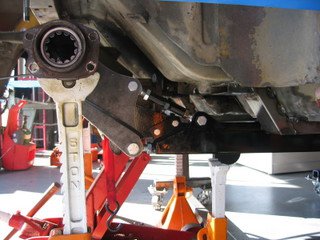

er34gtt2000jp Posted February 19, 2007 Author Share Posted February 19, 2007 Thanks for the replies everybody! We started out as a ultra low budget bracket car looking for 12's and now it's turned into a full on race car that we suspect will break into the 10's. The carb and intake are what we have laying around, and I know they will be our choke point. But we are gonna run them ans see where it gets us. As for the rear, I have some more photos but have to resize them. It is a simple set up, very similar to Mike Kz's. We are using a Ford 8.8 out of a 1994 Mazda B4000 4x4 (Ford Ranger) that we cut 3 7/8 inches out of the drivers tube. This was so we could use another passengers side axle from a ranger on the drivers side. Worked out great, the pinion is 1/2" off center and flange to flange is a hair over 54 1/2". We swapped the stock Mazda 3.73 gear set with some 4.10's as well. The ladder bars are the Jegs SS bars and we bought the Jegs crossmember to mount it. We are also using the Jegs track bar kit. For shocks we are using the Competition Engineering coil over kit with 100 in/lb springs. I will try to get more diff pics up for you guys. This was pretty easy to do, I had ZERO fabrication experience and my buddy and I built this all ourselves. Just don't look at the welds too closely eh!. Quote Link to comment Share on other sites More sharing options...
cup Posted February 20, 2007 Share Posted February 20, 2007 Thanks for the replies everybody! We started out as a ultra low budget bracket car looking for 12's and now it's turned into a full on race car that we suspect will break into the 10's. The carb and intake are what we have laying around, and I know they will be our choke point. But we are gonna run them ans see where it gets us. As for the rear, I have some more photos but have to resize them. It is a simple set up, very similar to Mike Kz's. We are using a Ford 8.8 out of a 1994 Mazda B4000 4x4 (Ford Ranger) that we cut 3 7/8 inches out of the drivers tube. This was so we could use another passengers side axle from a ranger on the drivers side. Worked out great, the pinion is 1/2" off center and flange to flange is a hair over 54 1/2". We swapped the stock Mazda 3.73 gear set with some 4.10's as well. The ladder bars are the Jegs SS bars and we bought the Jegs crossmember to mount it. We are also using the Jegs track bar kit. For shocks we are using the Competition Engineering coil over kit with 100 in/lb springs. I will try to get more diff pics up for you guys. This was pretty easy to do, I had ZERO fabrication experience and my buddy and I built this all ourselves. Just don't look at the welds too closely eh!. wow.. you didnt have to have the tubes shortened or the axles cut? wow.. what about the weld in points of the 4 link? hard to align? im new to chassis stuff so forgive the ignorance.. Quote Link to comment Share on other sites More sharing options...
jnjdragracing Posted February 20, 2007 Share Posted February 20, 2007 looks good, keep up the good work and looks to be a clean install. Good luck on your project. John Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 25, 2007 Author Share Posted February 25, 2007 Quick update, Fabed up the fuel cell and battery mounting area. Also finished the track rod install which completes the rear end. Also the motor is back out and going the the machine shop on Monday. Front cross member has been notched for oil pan clearance and the front suspension is torn down for clean up. Next comes the TC rod relocation, pretty simple setup. We are using short swagged tubes with rod ends in one end. We cut the original TC rods down and threaded them to run inside the tubes. Also picked up some pre fabed Moroso "u" brackets to weld to the frame in place of the original TC buckets. Got one side mocked up and tacked in place, gonna make the other side now and then finish boxing it all in with plate. Here are a few photos of our progress. Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 25, 2007 Author Share Posted February 25, 2007 More Photos Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 25, 2007 Author Share Posted February 25, 2007 And a couple more. Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 25, 2007 Author Share Posted February 25, 2007 looks good, keep up the good work and looks to be a clean install. Good luck on your project. John Thanks man we appreciate everyones kind words. Quote Link to comment Share on other sites More sharing options...
er34gtt2000jp Posted February 27, 2007 Author Share Posted February 27, 2007 Picked up a brand new set of AFR 185's tonight from a local guy off craigslist. $1100.00 Here are some pics. Quote Link to comment Share on other sites More sharing options...
Z-Gad Posted February 27, 2007 Share Posted February 27, 2007 Nice work guys!! Thanks for the diff photos as well, I am toying with ideas for rear end optons, and the Ford 8.8 is a consideration at this point. Regards, mike Quote Link to comment Share on other sites More sharing options...
MY77Z Posted February 27, 2007 Share Posted February 27, 2007 Picked up a brand new set of AFR 185's tonight from a local guy off craigslist. $1100.00 is it possible that i get a set for the same price? Quote Link to comment Share on other sites More sharing options...
