Gollum's Never Ending 280Z

Recommended Posts

Ok, so people (drummingpariah namely) have been bugging me about getting a project thread going, so here it is. This car isn't exactly "road worthy" to many people's opinions, but that doesn't stop me. My rear tires are bald on the outside, the front tires are insanely bald due to a past camber issue. The car likes to hydroplane quite easily, but predictably. The car also likes to make lots of vibrational noise above 65mph, I think due to wheel bearing issues.

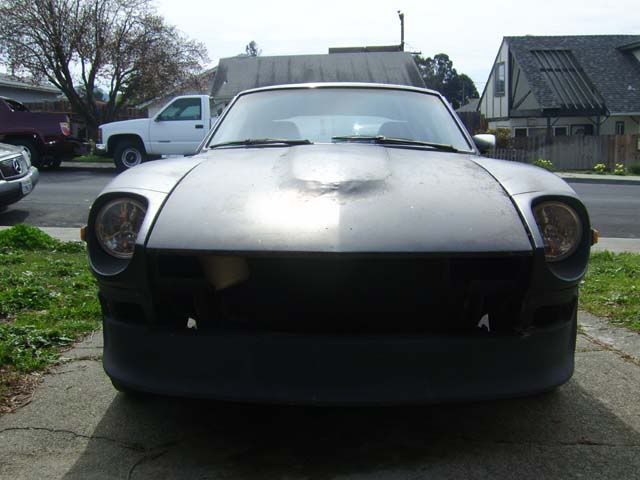

So here's the car as it sits now:



(I personally love the overflow tank, it looks like a loose tooth to me. It's getting moved soon)

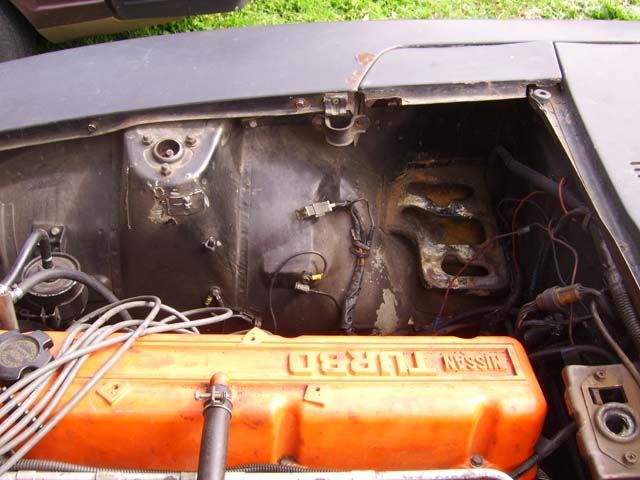

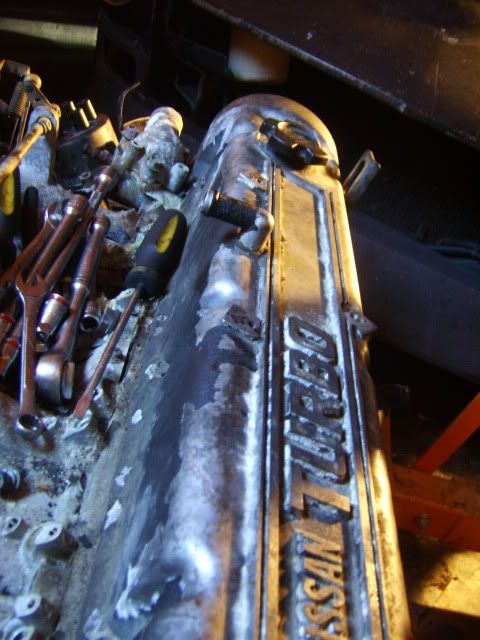

And here's the engine currently:





I've been slowly working on removing unused wires lying around, making things a bit neater, grinding off brackets that aren't being used, etc. When I got the car it had the earlier N47 intake manifold and not the stock intake J pipe. Instead it had several pieces of pipe hacked together with multiple couplers... so I installed the turbo, intake, and pipe off of my spare L28ET engine. I'm going to change that valve cover soon...


Notice anything missing in those pics though? Here it is:

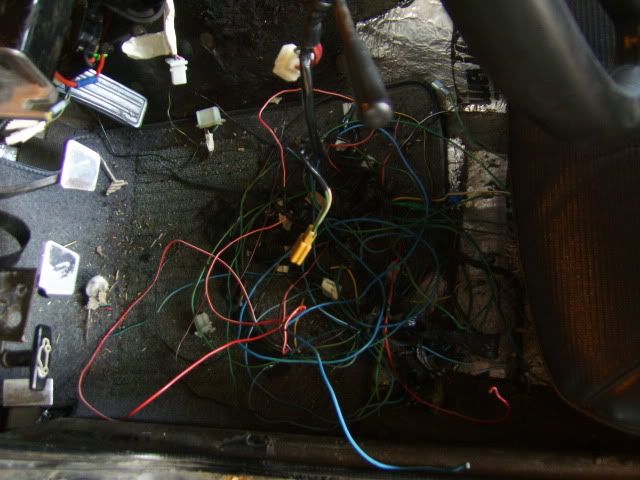

I was working on cleaning up the wiring one day, and I'd pulled the battery out in order to gain some room to work on it. While it was out I realized I had plenty of cable length to just put the battery in the passenger foot well... So I did it. It moved approx. 20lbs down by more than 12 inches, and inboard a good 6 inches. Win win win right? No worries, I'm going to move it to the back and get it sealed up sometime this summer, probably when I make my dash:




That's some spare stainless my dad had lying around, so I stole it and brought it to my place. I'm not sure if it's enough, and if I've got the dough I'll just order some ali instead.


Also in the near future I'm going to get around to installing my rust free doors:




Which have now been painted the future color of my car - semigloss black w/clear. Should cost me about $75 in rattle can supplies. I might be driving around with some nice doors before I get the rest of the car painted at my current rate....


I really want to get my dash started soon though, because this wiring has been a nightmare, leading to patch work such as this:




I just keep telling myself it's temporary.

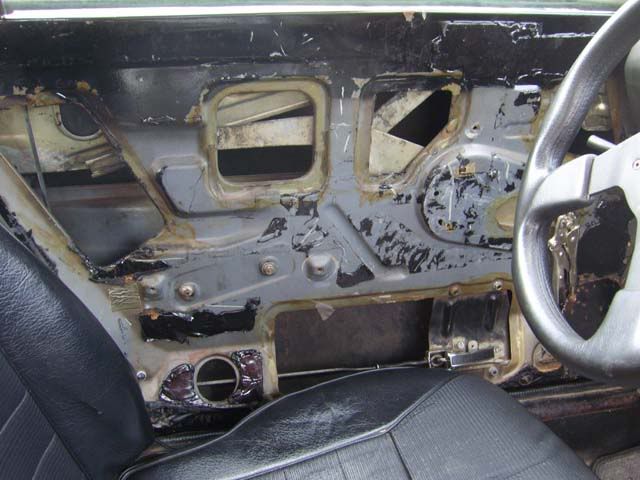

I also need to get all this damned dynomat crap off the car. I don't care about noise that much, and it's been a pita getting it off. It's leaving it's goo behind:






So that's that for my first post. The car is my daily driver when the weather is good, and when I'm driving it (instead of the 280ZX) I tend to work on it a lot more, so this summer should bring lots of improvements. The car isn't forever going to be my daily driver. Eventually it's just going to be a fun car that I'll be building to take to HPDE events once I've got the money to pursue racing as a serious hobby, not just working on potential cars... This isn't a SCCA racer, an autox car, just a fun car. I don't want more than 250 wheel HP with this engine, and if I do ever want more I've been toying with the idea of the LSx engines since they do everything so stinkin' well.


But first things first. I need tires BAD. Then I need to make the wiring safe. Then I need to dump some money into good struts, springs, and bushings everywhere. Then I can start talking about power.

Link to comment
Share on other sites

  • 2 weeks later...
  • Replies 125
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

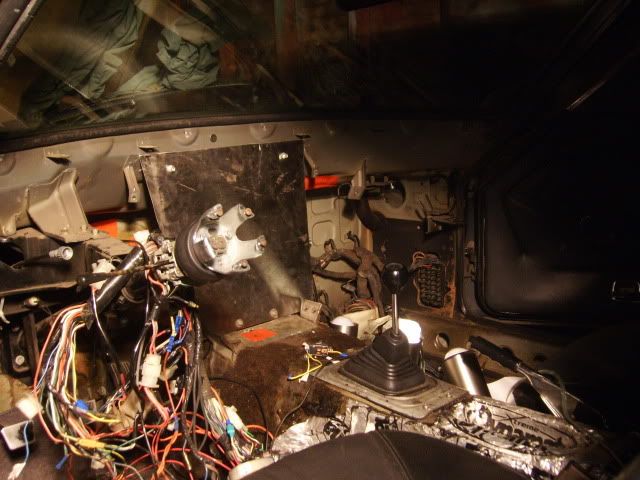

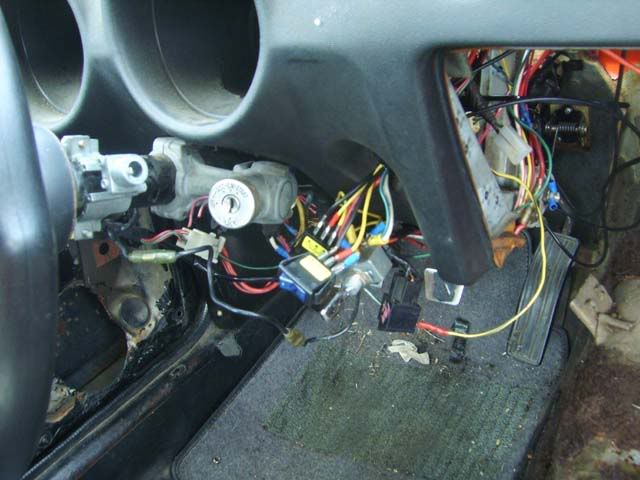

I don't have pics, but I've pulled my dash and I'm working on rewiring a lot of stuff. I'm still working out what all I do and don't need, and how I want to go about some of the wiring. The nastiest part of the wiring is the ignition key wiring, as it was pretty badly hacked up by a PO. There's wire leads going everywhere to everything. So I'm considering just adding some manual switches for the various ignition positions, and putting in a push start button.


I'll be working on the car monday most likely, despite my finger accident (posted in the non-tech section) so I'll get some pics then.


I'm also trying to figure out what I want to do for a dash. I'm thinking just like half of mikekelly's dash. Just a simple 2 angle dash, maybe with some sun visors for the gauges. I'll most likely add a switch panel closer to the driver than the dash so reach isn't a problem if/when I get seat harnesses.

Link to comment
Share on other sites

  • 2 months later...

Well I'm out of school (yay) so time to start cracking down on the laziness that's been my car. I want to get this thing back on the road for the summer so I'm using our upcoming meet as motivation to get it done. That means it needs to be drivable again by Saturday, so I've got 4 days to make it happen.

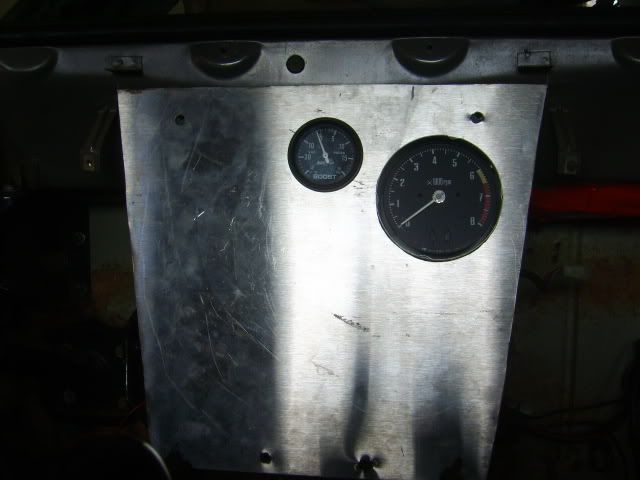

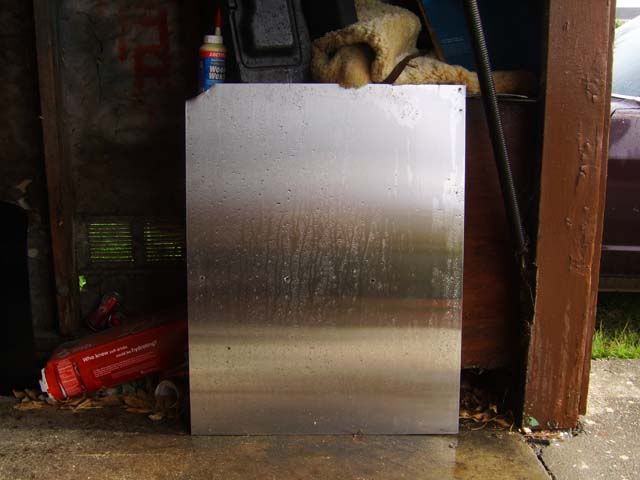

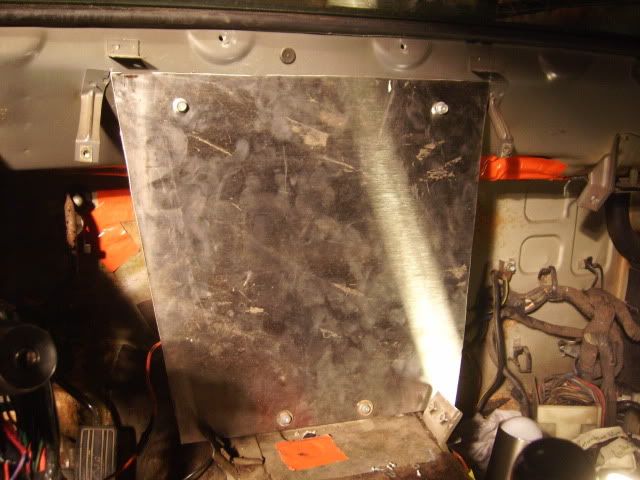

Here's the new dash panel I just fabb'ed up tonight with that piece of stainless I had sitting around. I've decided it'll do until I eventually start working with composites and I'll make a new dash then.





Link to comment
Share on other sites

Wow, two updates in two days! Expect another tonight.


I'm debating leaving it like this for now. The OEM gauges aren't round, kinda kidney bean shaped, so I'm considering leaving them out for now. Besides, Tach and Boost, what else do you need?



Link to comment
Share on other sites

Ok, second update for the day, and I'm not done yet today! I need to get over to my other cars to scavenge some parts off of them. I'm almost to the point of starting her up again once I get a few more wires hooked up and the battery back in again.

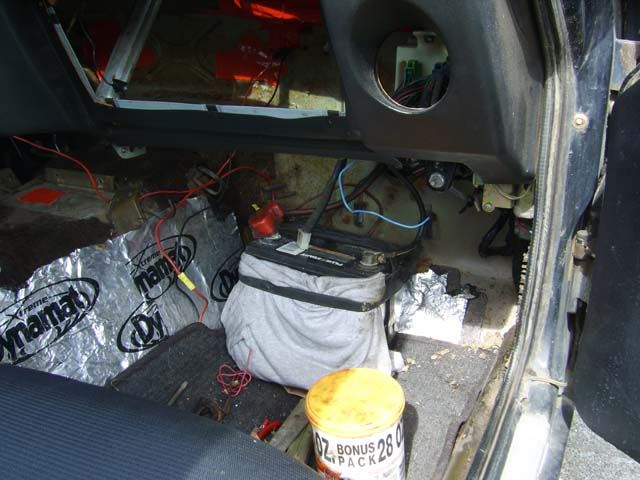

I've moved the battery back to the engine bay for the time being, I needed the space for the wiring that's all too long with nowhere to go.


So here's the current interior shot as it stands:




(shot was my second attempt at a HDR image for you photo geeks out there)

Link to comment
Share on other sites

No pictures, but she runs again! Took me a while to get it all sorted out, but she runs, and I've got almost all the wiring in place for the time being.


Only problems - No brake lights and no headlights


My headlights were already sketchy before, with only the brights working, so I'm going to bust out the multimeter and see if I can find the culprit. As far as the brakelights, I'm not too sure. It seems kinda odd because the wiring seems to be pretty simple and I don't think anything I deleted could have caused the circuit to stop working, but obviously something happened. So I'll have to diagnose that as well.


Could be a lot worse. I'm happy it's only those two issues.

Link to comment
Share on other sites

Well I got the brake lights fixed, morning of the meet I was so anxious about. Woohoo!


Headlights are still down... I'm quite angered by the complexity of the stock system and in the frustration of it all I just started hacking away. I started pulling out all the unused wires I've now completely confirmed I don't need. Hack Hack Hack.

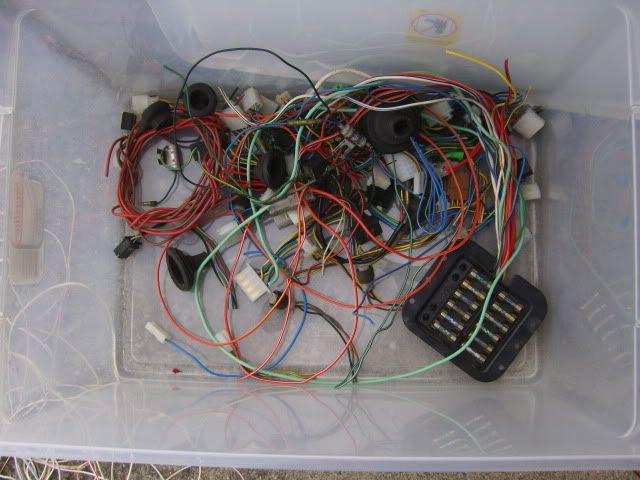

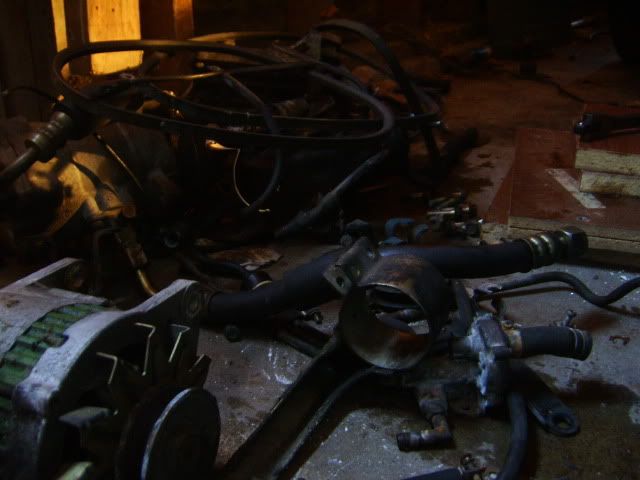

Some of the remains:




I'm still far from done removing all the needless crap, but it's a start. I've decide that instead of getting the stock headlight wiring to work I'm just going to wire up a system with a relay from scratch. Should be better off this way anyways.

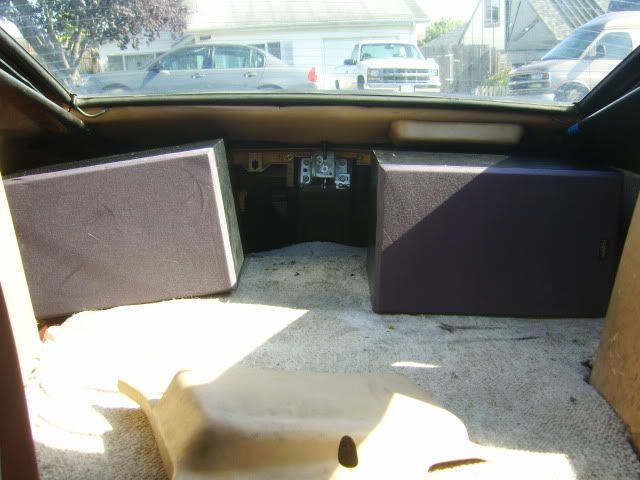

I also got a little bored and decided to "fix" the crappy sound problem in my ZX...




Now it just looks crappy. But that's a lot better than sounds crappy. Didn't cost me a cent!

Link to comment
Share on other sites

So today I worked on stripping an old wiring harness of one of my cars that I had lying around. I'm going to use it as a resource bin to wire up a friend's Z car (SBC 350). It's going to be rather simple, so paired with some relays + sockets we should be good to go. Hopefully I'll even have a start up video to share.

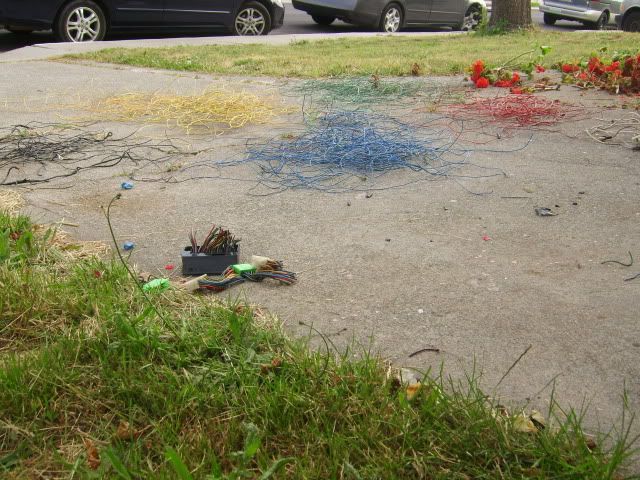

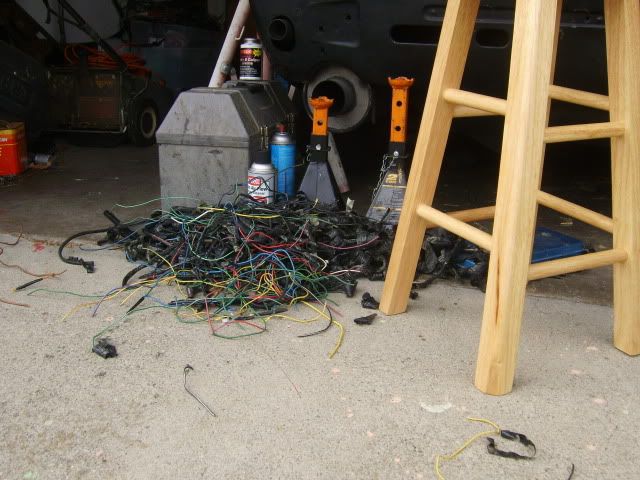

And this is what a harness from a 81' 280ZX looks like disassembled. (and I mean HARNESS, not just engine harness. I don't think this is all of it as I don't have the wires that plug into the other end of the junction box and go to the dash, as I couldn't seem to figure out where it ran off to. So let's say it's 70% of all the wiring in a 280ZX.
