In 2009, I felt the need for a street/strip/and track car build. I wanted something light, powerful and good handling. It would also be nice for it to be a cool classic. I went to the local import repair place and told the owner what I was up to. He said he had just the thing for me. He took me to the corner of the shop and showed me a 1972 240z rolling chassis he said, "$420 and you borrow my trailer to get it home." I said SOLD!!! The car was a started project partially sand blasted and a really bad floor replacement job, but it had a few goodies with it. Well, for the next year or so I just couldn't get started on it the car went from storage place to storage place and to the street for multiple times for sale. The car's was nickname was "The Orphan." Then at the end of 2010, I was finally able to use a corner of the shop that I work for to work on the car. It was just what i needed to get going on the project. (more to post later)

Attached Files


Edited by ckrell, 21 January 2012 - 11:08 AM.

Thinking outside the box? I didn't even know there was a box

#2 S30Mark

S30Mark

    Moving Up

  • Members
  • PipPip
  • 35 posts
  • LocationCincinnati, OH

Posted 21 January 2012 - 03:30 PM

Very cool project. I'll be watching the progress. It's hard to beat a 4G63... 4G + Auto trans setup + light weight car = killer drag car setup.
Posted Image Posted Image
74 260Z (future L28ET w/Z31 ECU/MAF swap)
93 NX2000 11.39@127MPH SR20DET powered
03 VW Jetta TDI 45+MPG :)

#3 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 21 January 2012 - 08:45 PM

early 2011 stuff

Attached Files


Edited by ckrell, 22 January 2012 - 11:18 AM.

Thinking outside the box? I didn't even know there was a box

#4 cheeze

cheeze

    Newbie

  • Members
  • Pip
  • 14 posts
  • LocationFresno, California

Posted 22 January 2012 - 09:48 AM

Looking forward to the orphan build.

#5 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 22 January 2012 - 11:12 AM

more chassis stuff

Attached Files


Thinking outside the box? I didn't even know there was a box

#6 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 23 January 2012 - 07:24 PM

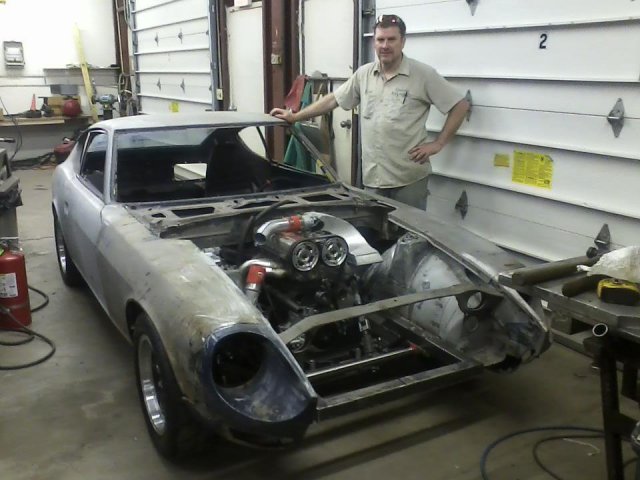

this is just a mockup motor 5 liter+ intake, 60mm HX40

Attached Files


Edited by ckrell, 23 January 2012 - 07:26 PM.

Thinking outside the box? I didn't even know there was a box

#7 sq_creations

sq_creations

    Member

  • Members
  • PipPipPipPip
  • 429 posts
  • LocationAlbuquerque NM

Posted 27 January 2012 - 10:17 AM

Love the build. I will be subscribing so i can follow the progress. The floor looks nice. Are you going to run beams front to back for strength?
73 240z - LQ4, BW S480, AEM EMS, Glide, Moser 8.8 - 770whp/703wtq - 9.56 @ 147mph
97 Integra - Built B16, SC61, SQC Chip - 11.8@125 (sold)
97 Buick Regal GS - Supercharged Daily
http://www.sq-creations.com/240z.html - My Turbo V8 240z build

#8 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 02 February 2012 - 05:59 AM

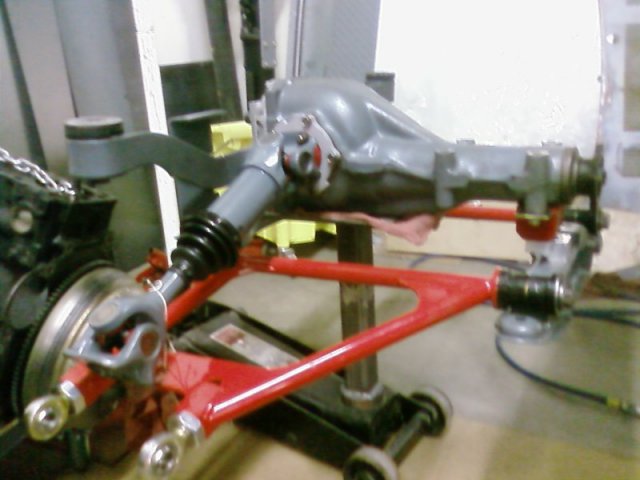

Rear RCA (weld on) The car is being lowered 3". The Front LCA pivot is moved up 2" and rear out control arm pivot is lowered 1 3/4" (thats all I could go with 14" wheels) to help roll centers, The car will be flat bottomed the lowest part will be the rocker seams

Attached Files


Edited by ckrell, 05 February 2012 - 09:22 AM.

Thinking outside the box? I didn't even know there was a box

#9 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 02 February 2012 - 06:02 AM

Love the build. I will be subscribing so i can follow the progress. The floor looks nice. Are you going to run beams front to back for strength?

Kinda will post pics later
Thinking outside the box? I didn't even know there was a box

#10 75zcar

75zcar

    Regular

  • Members
  • PipPipPip
  • 94 posts
  • LocationChampaign, IL

Posted 02 February 2012 - 03:01 PM

What trans do you use with the 4g63?

#11 75zcar

75zcar

    Regular

  • Members
  • PipPipPip
  • 94 posts
  • LocationChampaign, IL

Posted 02 February 2012 - 03:01 PM

Double post fml.
Sorry

Edited by 75zcar, 02 February 2012 - 03:02 PM.


#12 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 02 February 2012 - 05:25 PM

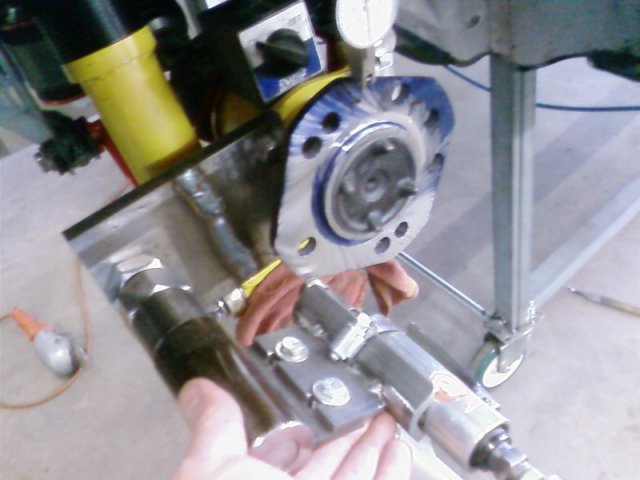

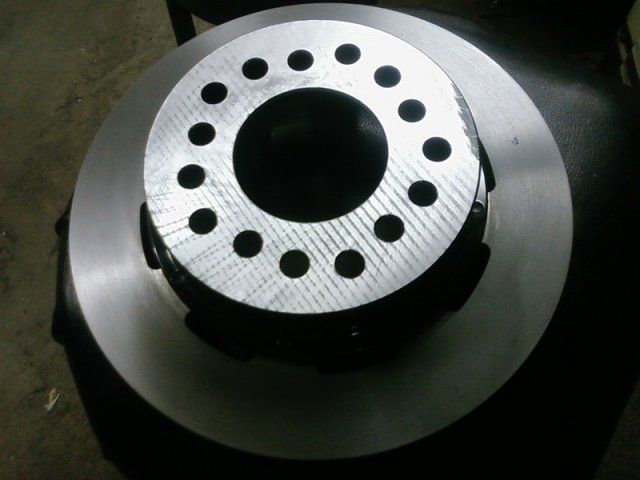

8351209737 wilwood billet dynapro 4 /1.750' piston slightly open mounting holes add .5" spacer and machine down rotor to 11.250" I got this all stuffed into a 14" wheel

Attached Files


Thinking outside the box? I didn't even know there was a box

#13 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 14 February 2012 - 05:48 PM

.

Edited by ckrell, 14 February 2012 - 05:56 PM.

Thinking outside the box? I didn't even know there was a box

#14 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 14 February 2012 - 05:54 PM

steering rack mockup mid 90s BMW M3 rack

Attached Files


Edited by ckrell, 14 February 2012 - 05:58 PM.

Thinking outside the box? I didn't even know there was a box

#15 SUNNY Z

SUNNY Z

    Junior Member

  • Donating Members
  • PipPipPipPipPipPip
  • 1643 posts
  • LocationIowa - "The great potato state!"

Posted 25 February 2012 - 09:39 AM

You should get to work in that shop and get some brackets for those brakes built! Haha. Good talking with you the other day man.


1978 280Z - LS1 / T56





#16 nick-james

nick-james

    Newbie

  • Members
  • Pip
  • 24 posts
  • LocationBoise

Posted 25 February 2012 - 12:04 PM

I love the 4g! I put one in a mightymax truck and its my daily driver. I can only imagine how much room you will have under that hood.

#17 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 25 February 2012 - 06:00 PM

BMW M3 rack mounted (3turns lock to lock stock). The steering knuckels are shortened 3/4" lock to lock is about 2 1/4 turns now. The LCAs are proped at 4" ride hieght.

Attached Files


Edited by ckrell, 25 February 2012 - 06:16 PM.

Thinking outside the box? I didn't even know there was a box

#18 rsicard

rsicard

    Member

  • Members
  • PipPipPipPipPip
  • 863 posts
  • LocationTucson Arizona

Posted 25 February 2012 - 07:35 PM

Is there something special in using the BMW M3 rack? This is a first seen for myself. Very interested. Which model Datsun is this going into? Is it a Variable Assist Rack? Please advise. Thanks.

#19 ckrell

ckrell

    Regular

  • Members
  • PipPipPip
  • 78 posts
  • Locationkearney NE.

Posted 26 February 2012 - 07:00 PM

Is there something special in using the BMW M3 rack? This is a first seen for myself. Very interested. Which model Datsun is this going into? Is it a Variable Assist Rack? Please advise. Thanks.

First the rack needs to be a front steer type. The inner tierod distance on the M3 rack is about 24 1/2" and the S30(72 240z)LCA pivots are about 23 3/4 These two number need the same or close. Some would say there close enough but I moved the LCA pivots out .300" pre side and then shortend the control arms .300" per side(there adjustable)to reduce the chance of bumpsteer I belive there are 3 types from the mid 90s two from sedans 3.5 & 3 turns lock to lock and the Z3 rack is 2.5 lock to lock they will interchange mine is the 3 turn. Also mine is a 1995 variable rack
Thinking outside the box? I didn't even know there was a box

#20 SUNNY Z

SUNNY Z

    Junior Member

  • Donating Members
  • PipPipPipPipPipPip
  • 1643 posts
  • LocationIowa - "The great potato state!"

Posted 27 February 2012 - 10:15 AM

Can you post some more info on the brake setup? I've thus far been unable to find a blank Wilwood hat, to be drilled for a 4 bolt, in the correct offset. I think the setup you have is amazing, and would like to duplicate it, but probably using the full 11.75" rotors, and adding .5" vertical offset to the caliper mount (if possible).

I would also like to see some pictures of the brackets that you built (are they done?) for the rear. If I could get the correct hats in the correct offset, what would be the chances of me slipping you a couple greenbacks and having you machine a set of brackets for the rears? PM me to keep from diluting your thread if you'd like.

Josey


1978 280Z - LS1 / T56
