280Z Restomod Progress


  • Please log in to reply
141 replies to this topic

#1 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 03:40 AM

Having had the pleasure of owning a new 1977 280Z (Zap edition) as a sophomore in college and wanting to own another 280Z for the last 25 years I finally got what I wanted this April: a 1978 survivor 280Z in amazing shape (no rust whatsoever!, perfect maintenance records, few and well executed upgrades such as cams, header, exhaust, struts, wheels and tires. Paint and upholstery were totally original and in great shape (not perfect, but great). Now, I know purists will cringe (and that's why my write up is not on the Classic Z Forum) but I wanted to do to this Z what I would have done back in '77 to my first 280Z had I had the money: lower it, bigger and better wheels/tires, upgrade my upholstery, get a killer paint job and tweek my engine to get the most out of it without going turbo or swap.

This was my starting point:

Exterior%201.jpg?psid=1

Attached File  Exterior 1.jpg   10.1KB   10 downloadsAttached File  Exterior 21.jpg   80.68KB   3 downloadsAttached File  Exterior 27.jpg   179.66KB   3 downloadsAttached File  Engine Bay 7.jpg   11.93KB   3 downloadsAttached File  Interior 1.jpg   223.56KB   2 downloads


Edited by dmoralesbello, 12 November 2016 - 07:36 AM.

05/78 280Z HLS30-465628


#2 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 03:48 AM

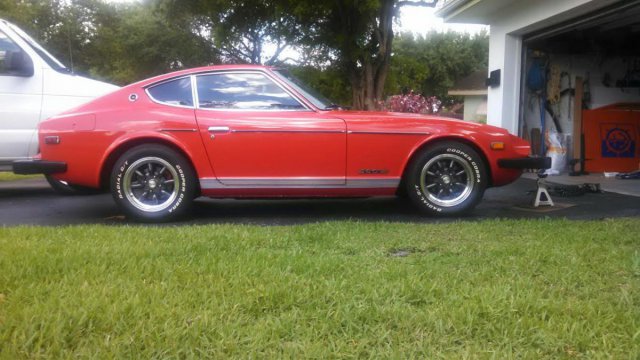

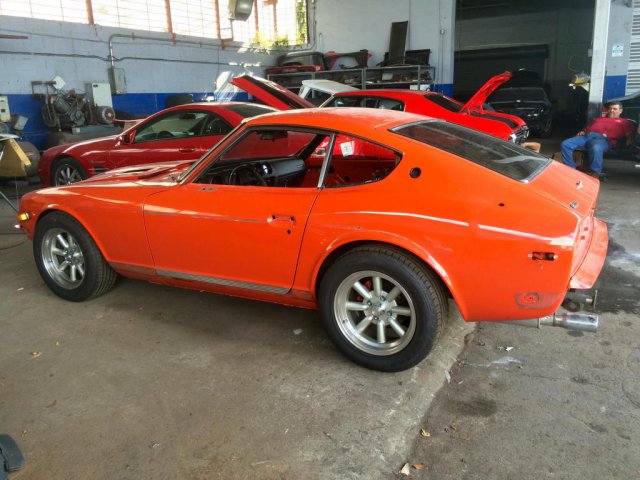

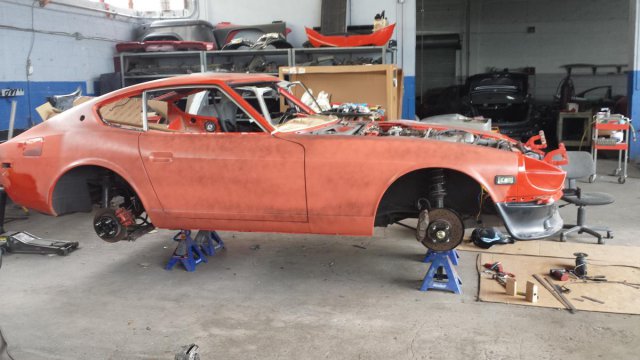

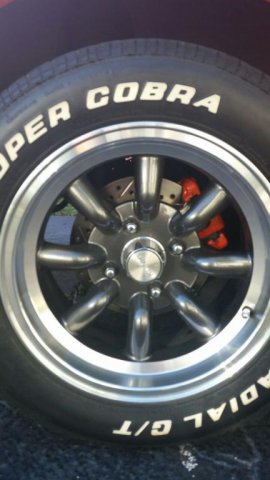

Rear brake disc conversion, upgraded rotors and calipers up front, larger MC, and Eibach lowering springs took my stance to where I wanted it.

Attached File  IMG-20150403-WA0008.jpg   40.64KB   15 downloadsAttached File  Eibach lowering springs installed.jpg   123.53KB   8 downloads


Edited by dmoralesbello, 31 October 2015 - 04:53 AM.

05/78 280Z HLS30-465628


#3 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 04:03 AM

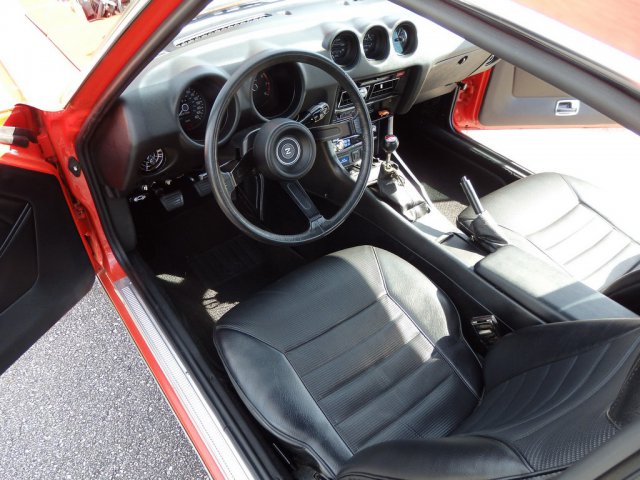

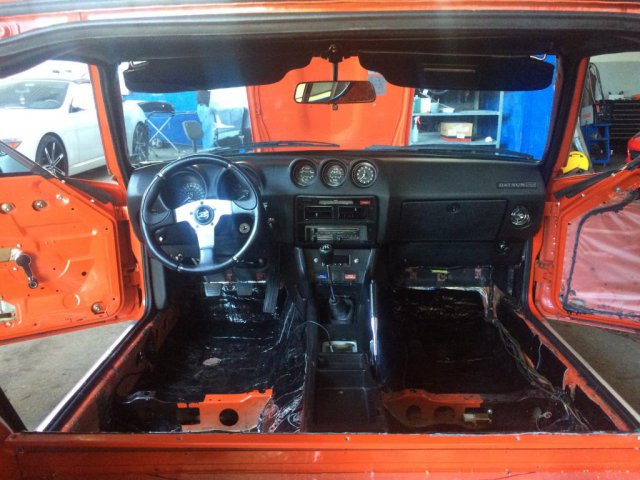

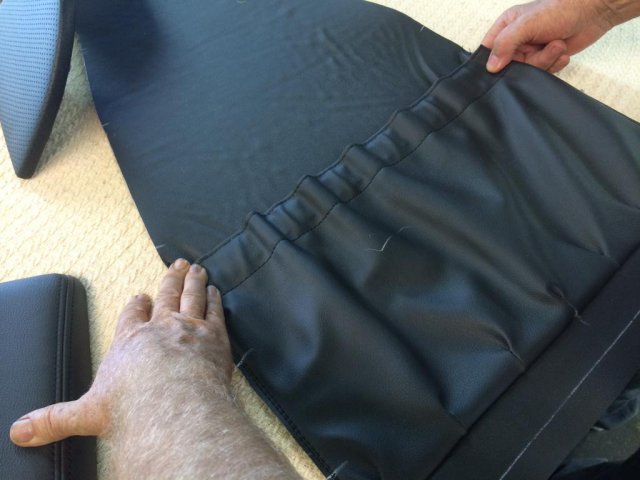

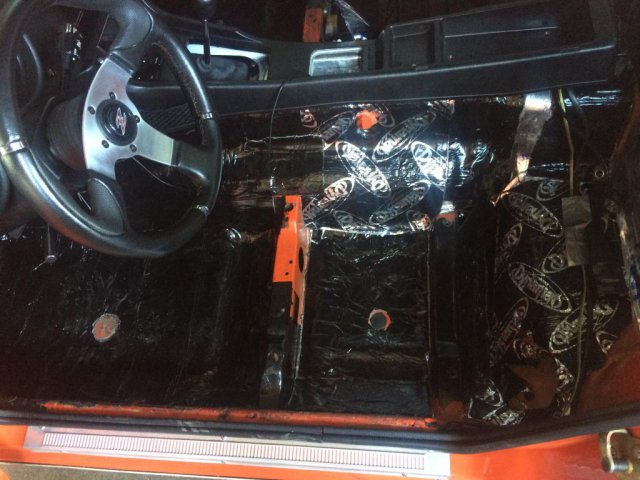

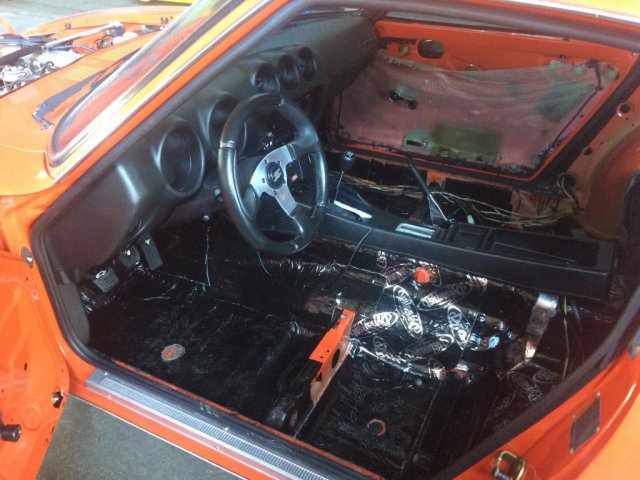

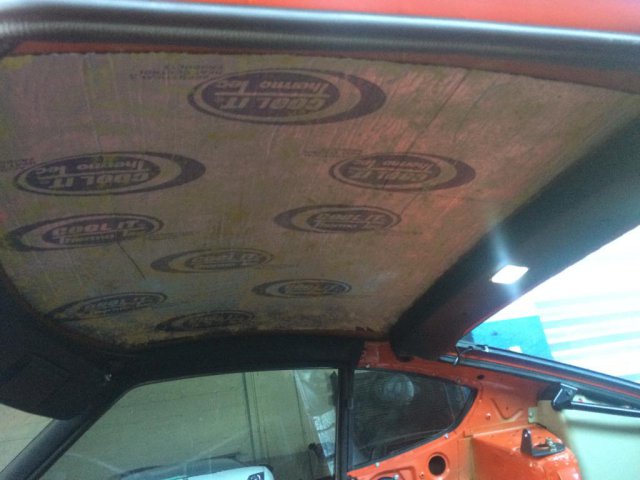

Carefully took out all the upholstery and confirmed that there was absolutely no rust anywhere  :D . Applied Dynamat, updated the original seats with hi performance modern foam padding, freshly painted frames and rails, best available vinyl with a fresh new design that combines smooth black and textured graphite grey on the seats, door panels, roof liner and rear speaker box. Mercedes Benz black carpet will go on the floors soon (hopefully next week).

Attached File  IMG_4158.JPG   116.07KB   7 downloadsAttached File  IMG_4160.JPG   114.08KB   6 downloadsAttached File  IMG_4157.JPG   98.06KB   4 downloadsAttached File  IMG_4161.JPG   95.83KB   5 downloadsAttached File  IMG_4162.JPG   80.33KB   6 downloadsAttached File  IMG_4168.JPG   117.91KB   7 downloads


05/78 280Z HLS30-465628


#4 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 04:07 AM

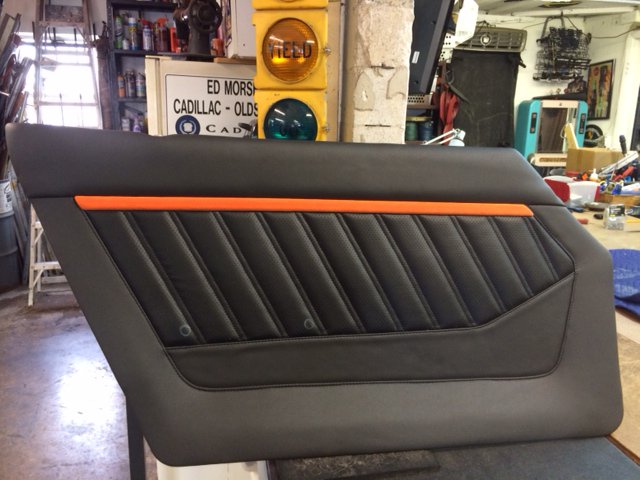

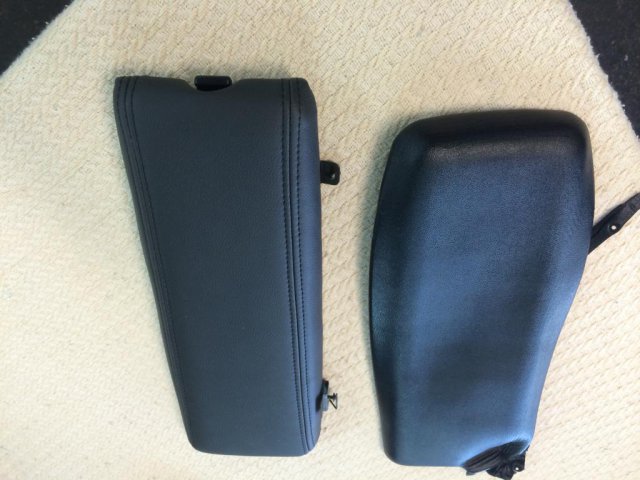

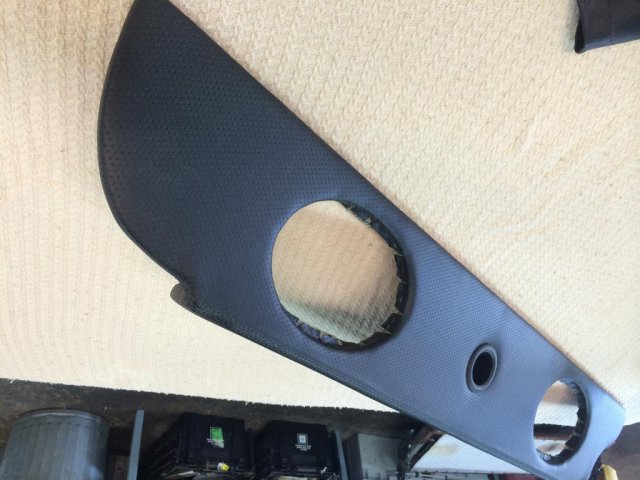

New seats, door panels, arm rest and rear speaker box.

Attached Files


05/78 280Z HLS30-465628


#5 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 04:21 AM

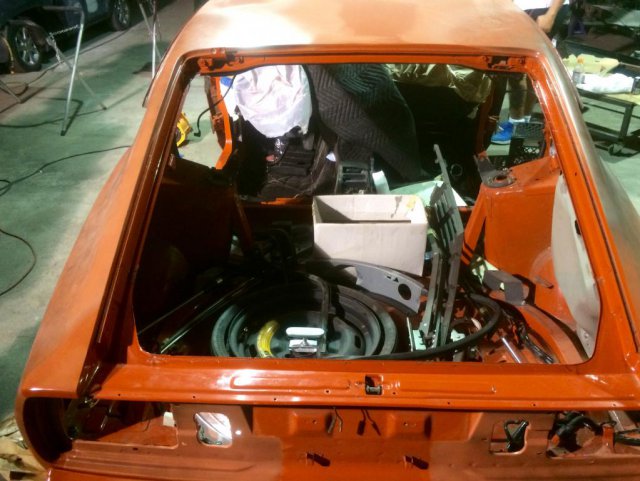

In the meantime the bodywork progressed removing the lower panels and trim molding and filling all 64 holes  :o , smoothing out all imperfections, replacing lower valance with an MSA polyurethane airdam and rolling the fenders to fit new 16x7 Konigs and new rubber.

Attached File  FullSizeRender-7.jpg   98.75KB   4 downloadsAttached File  FullSizeRender-2.jpg   102.93KB   4 downloadsAttached File  FullSizeRender-5.jpg   119.81KB   3 downloadsAttached File  FullSizeRender-2 3.jpg   106.93KB   4 downloads

Attached Files


Edited by dmoralesbello, 09 December 2015 - 08:04 AM.

05/78 280Z HLS30-465628


#6 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 04:37 AM

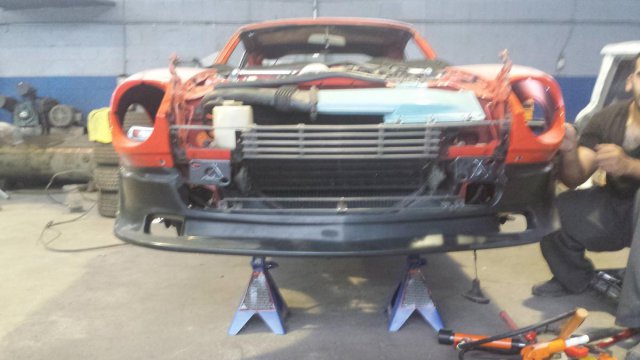

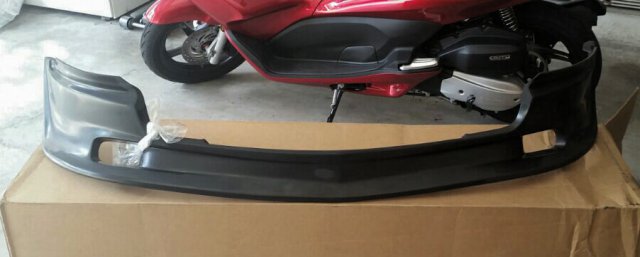

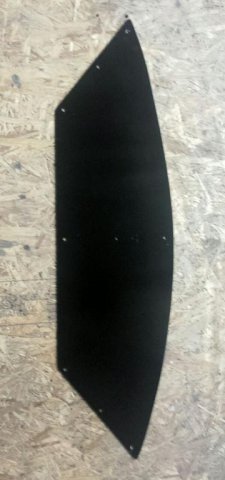

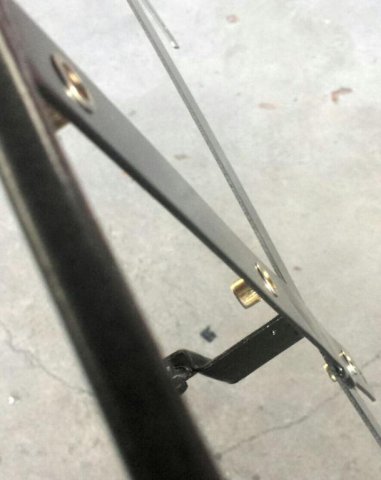

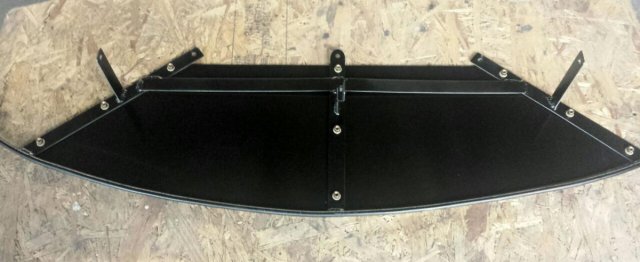

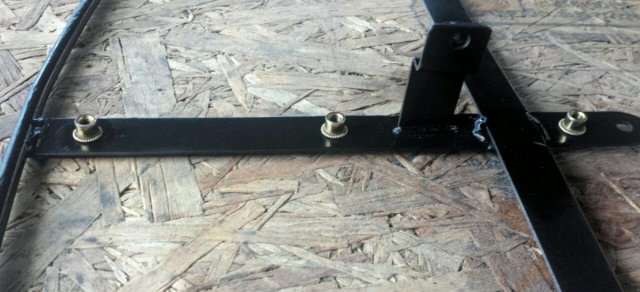

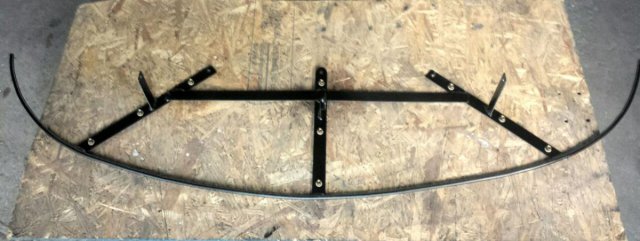

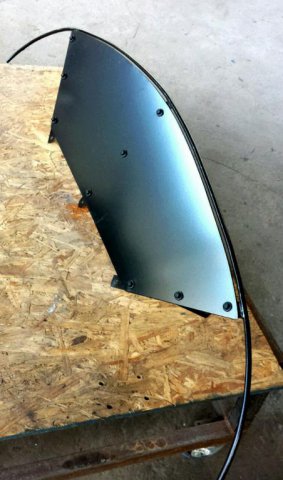

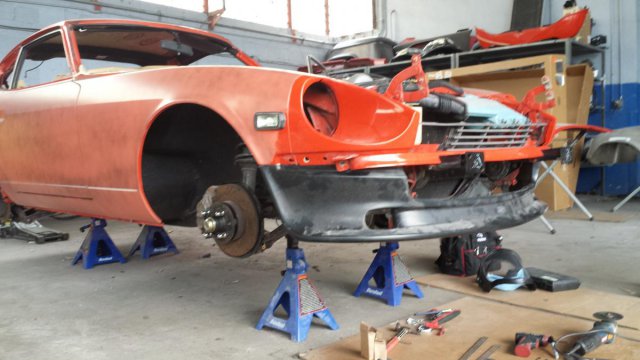

Airdam install included fabricating a steel and aluminum frame. The steel rod fits right behind the airdam lower lip. The aluminum floor that's attached to the frame is intended to look like a continuation of the OEM underside protector, increase airflow through the radiator and reinforce the whole set up.

Attached File  20150526_154547.png   204.67KB   5 downloadsAttached File  20150730_194555.jpg   85.72KB   4 downloadsAttached File  20150724_183249.jpg   98.08KB   3 downloadsAttached File  IMG-20150807-WA0003.jpg   84.18KB   3 downloadsAttached File  IMG-20150807-WA0004.jpg   40.56KB   3 downloadsAttached File  IMG-20150807-WA0005.jpg   98.76KB   2 downloadsAttached File  IMG-20150807-WA0007.jpg   33.95KB   1 downloadsAttached File  IMG-20150807-WA0006.jpg   71.24KB   2 downloadsAttached File  IMG-20150807-WA0008.jpg   55.05KB   1 downloads




05/78 280Z HLS30-465628


#7 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 05:10 AM

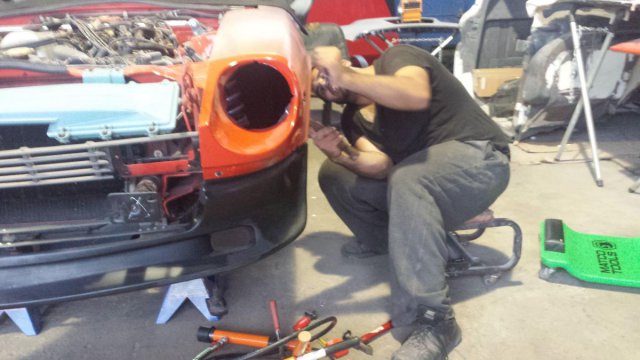

Fenders got rolled by hammering:

Attached File  20150730_194532.jpg   99.66KB   4 downloads

And the fenders were pushed out about 1/2 inch to better line up with the shape of the airdam as well as create more clearance for the tires.

Attached File  20150730_194542.jpg   80.09KB   3 downloadsAttached File  20150730_194555.jpg   85.72KB   3 downloads

Attached File  IMG_7946.JPG   73.32KB   3 downloadsAttached File  IMG_7947.JPG   72.59KB   2 downloadsAttached File  FullSizeRender-5 1.jpg   104.85KB   4 downloads





Attached Files


Edited by dmoralesbello, 22 August 2015 - 05:28 AM.

05/78 280Z HLS30-465628


#8 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 05:22 AM

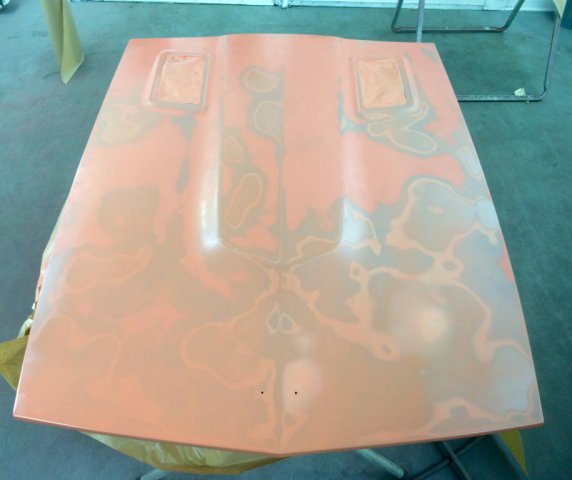

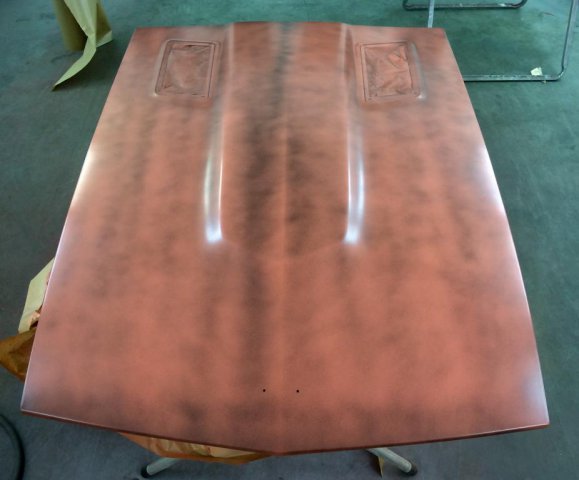

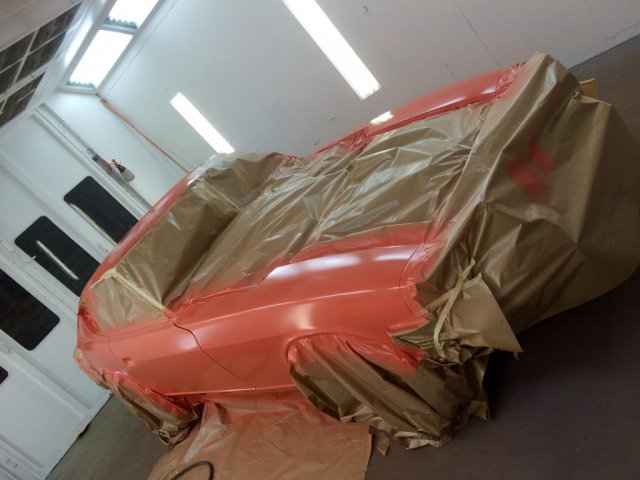

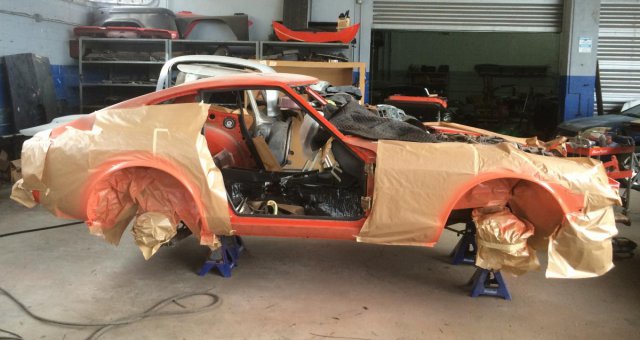

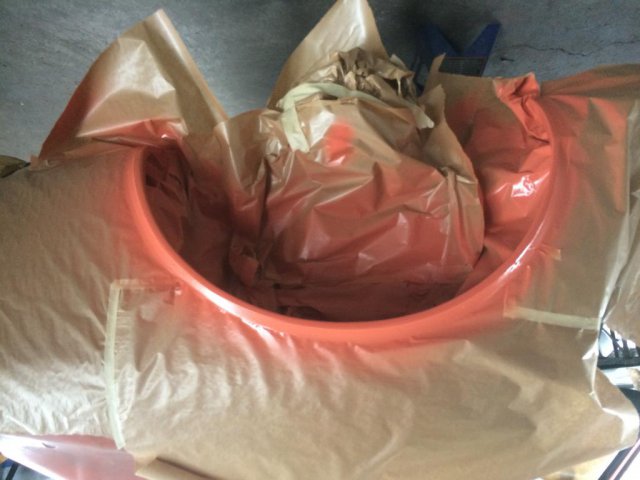

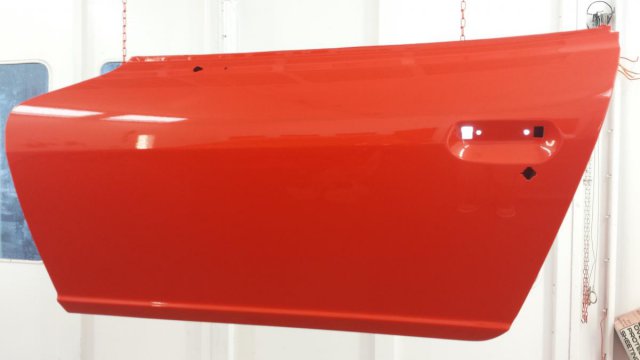

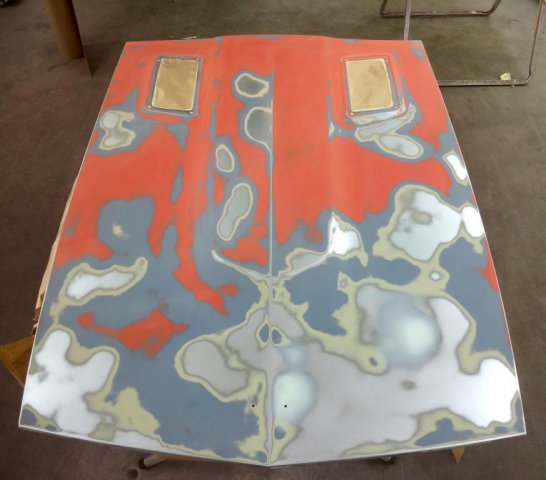

Once the bodywork was completed, the epoxy primer was prepared with orange tint and applied, followed by a black guide coat.

Hood

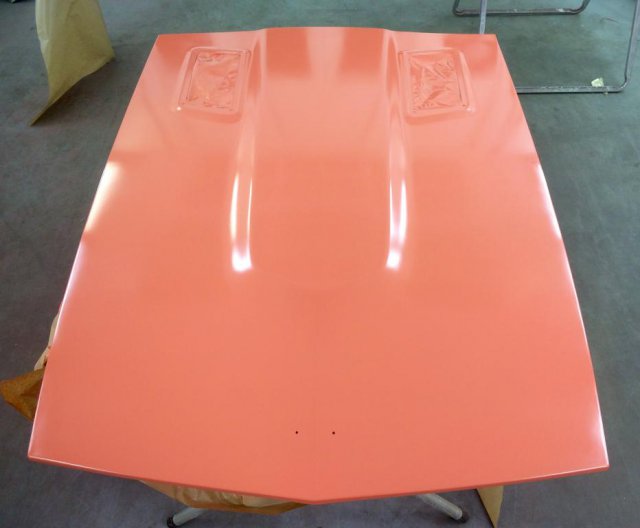

Attached File  FullSizeRender 1.jpg   60.62KB   6 downloadsAttached File  FullSizeRender-2 2.jpg   48.38KB   3 downloadsAttached File  FullSizeRender-4 2.jpg   53.78KB   3 downloads

Body

Attached File  FullSizeRender-3 1.jpg   72.92KB   2 downloadsAttached File  FullSizeRender-2 1.jpg   75.71KB   2 downloadsAttached File  FullSizeRender-1.jpg   74.59KB   2 downloadsAttached File  20150724_183306.jpg   107.07KB   2 downloads

Attached Files


05/78 280Z HLS30-465628


#9 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 05:47 AM

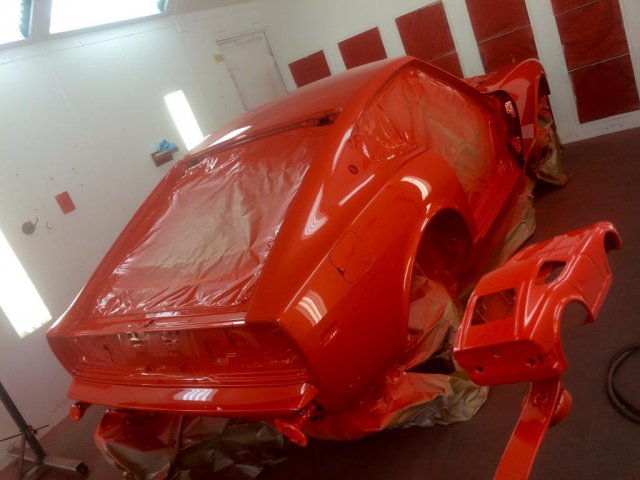

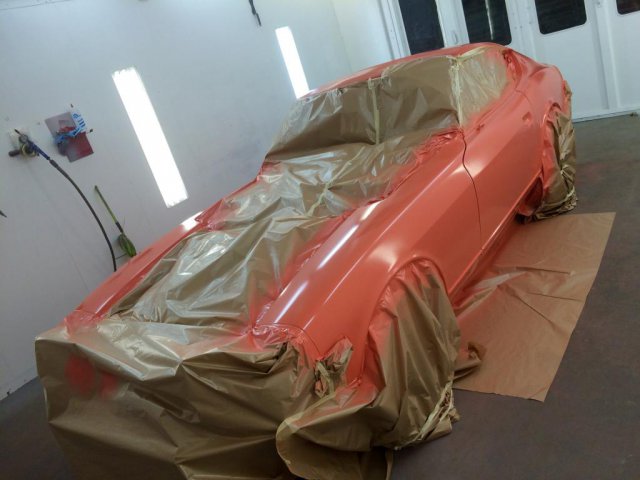

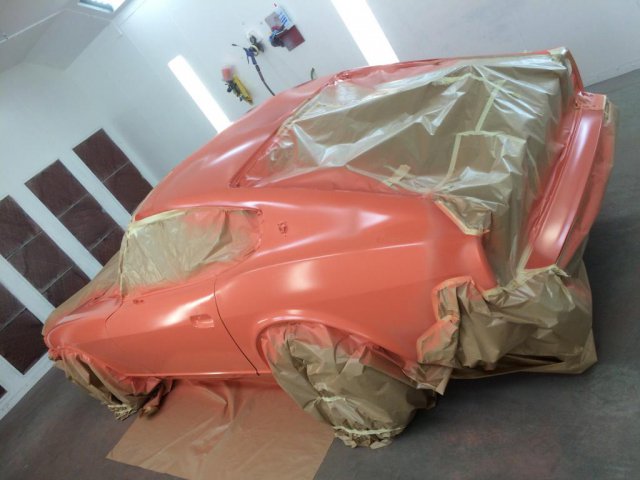

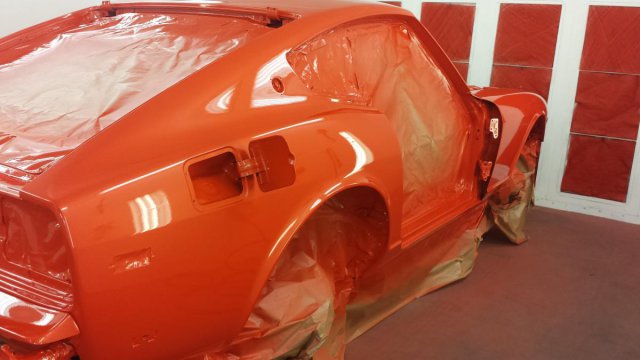

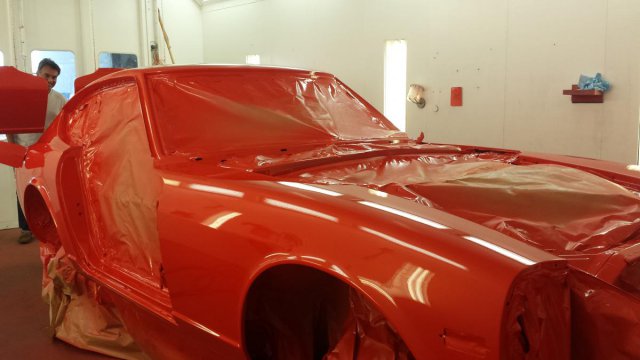

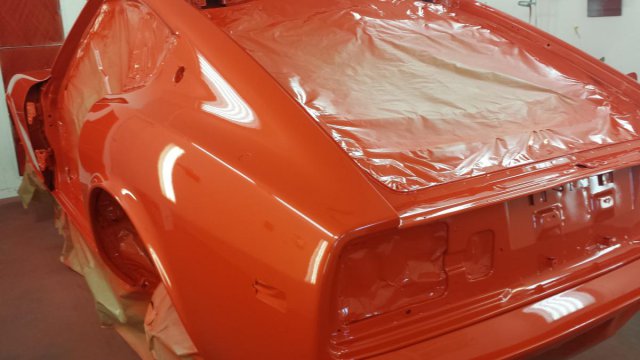

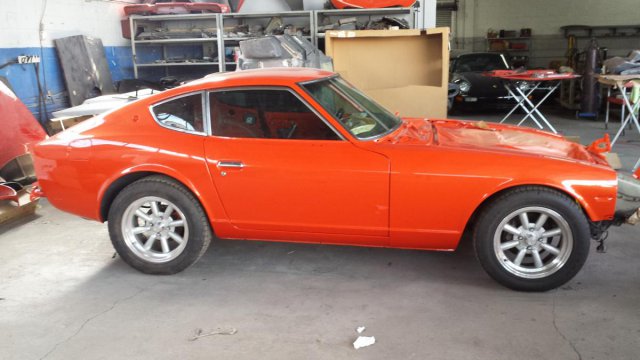

Finally the 3 stage paint was applied. After much debate we decided to keep an orange color which had the same base as the original Datsun 110 code that was on the car. This coincided with a 2015 Lamborghini orange (Arancio Argos Pearl) used on the Aventador. In conclusion the new color is much like the original color BUT with a pearl final stage before the clear coat. The effect in sunlight is amazing.

Attached File  20150819_150129.jpg   84.1KB   4 downloadsAttached File  20150819_150142.jpg   82.63KB   2 downloadsAttached File  20150819_150156.jpg   79.8KB   1 downloadsAttached File  20150819_150104.jpg   41.75KB   1 downloads

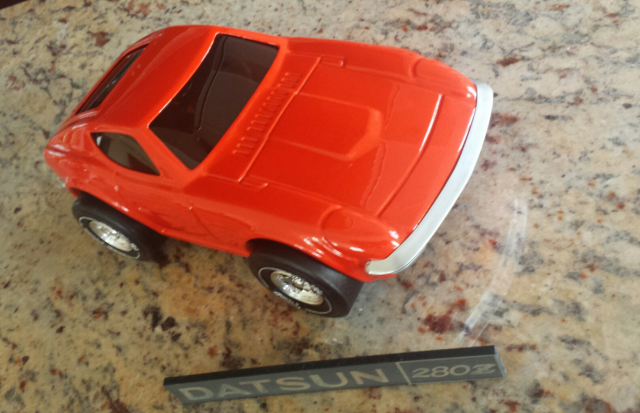

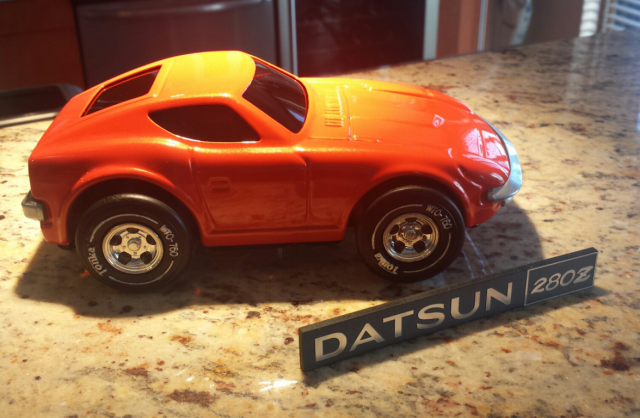

Just for fun, a vintage Tonka Toy Z was sprayed with the same 3 stage paint simultaneously:Attached File  FullSizeRender-11.jpg   76.34KB   2 downloads

Hey, I figured if I can't play with the full size toy for a while....

Attached File  20150821_092110.png   1.38MB   2 downloadsAttached File  20150821_091251.png   1.35MB   3 downloads


Edited by dmoralesbello, 12 November 2016 - 07:42 AM.

05/78 280Z HLS30-465628


#10 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 05:50 AM

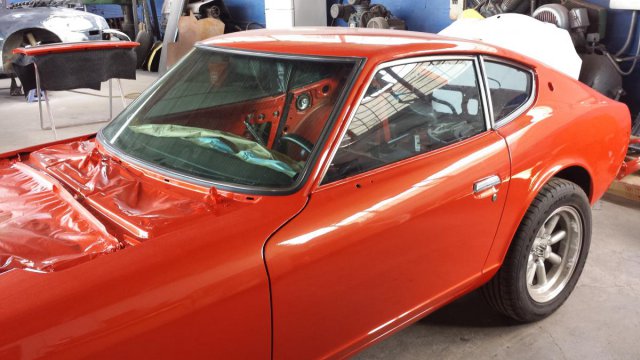

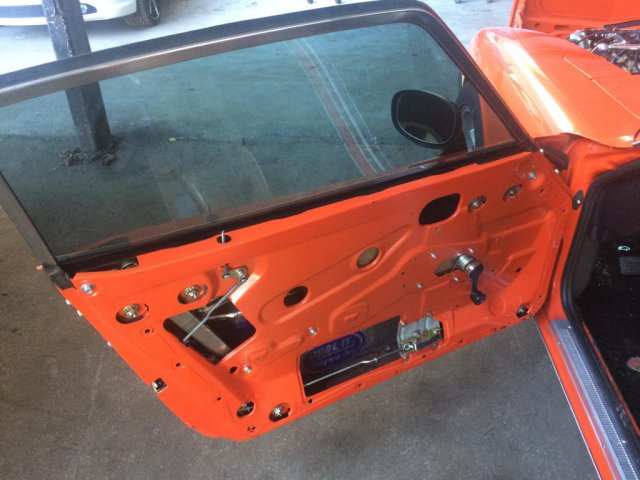

Here she sits with doors attached once again. All the glass with new rubber seals goes in today. Upholstery continues on Monday. I'll update periodically.

Attached File  doors fitted.jpg   98.61KB   7 downloads


05/78 280Z HLS30-465628


#11 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 05:56 AM

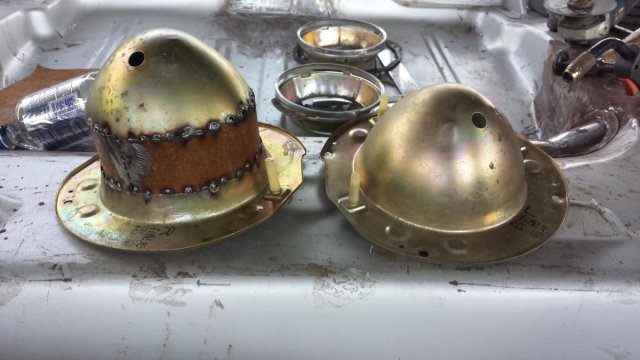

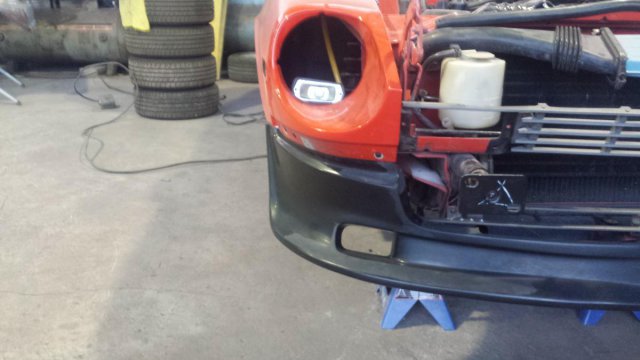

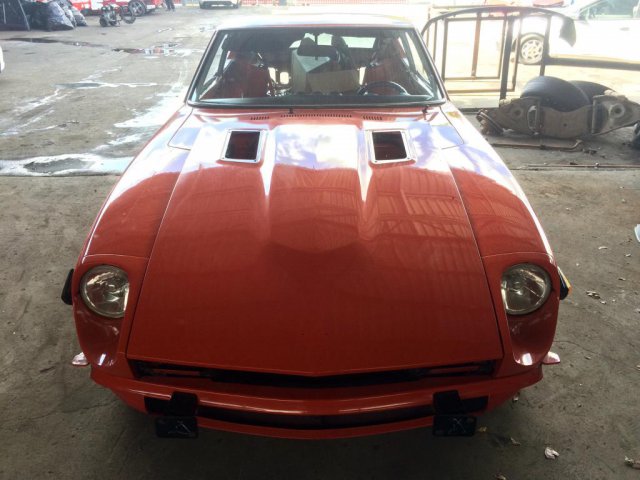

Forgot to include my headlight bucket "extensions" to fit the new LED bulbs. Not quite finished but worked well in the mock up.

Attached File  20150724_141359.jpg   101.21KB   5 downloads


05/78 280Z HLS30-465628


#12 seattlejester

seattlejester

    Never Logs Off

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2002 posts
  • LocationBellevue, WASHINGTON

Posted 22 August 2015 - 07:18 PM

Huh, now that is an interesting idea. Does it clear the wheel well and such? I just hacked the rear of my buckets off for clearance and sealed them with tape to keep the water out, that seems a bit more elegant.



#13 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 22 August 2015 - 07:25 PM

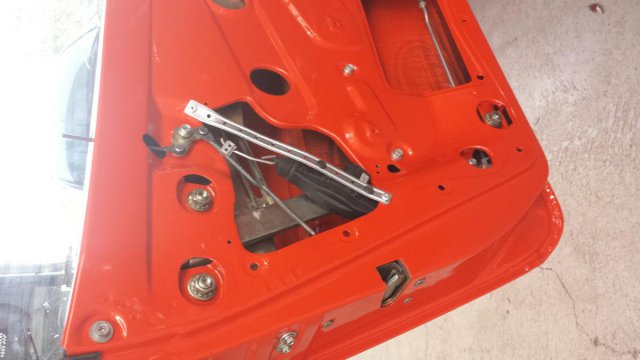

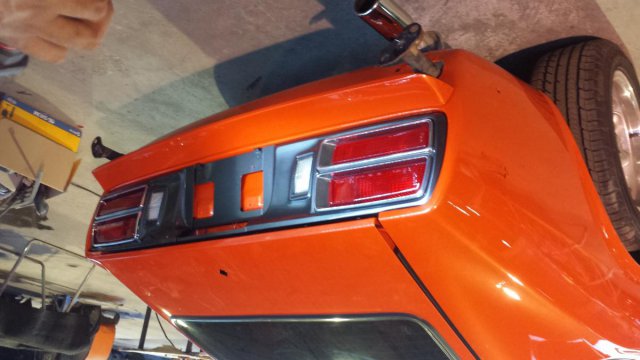

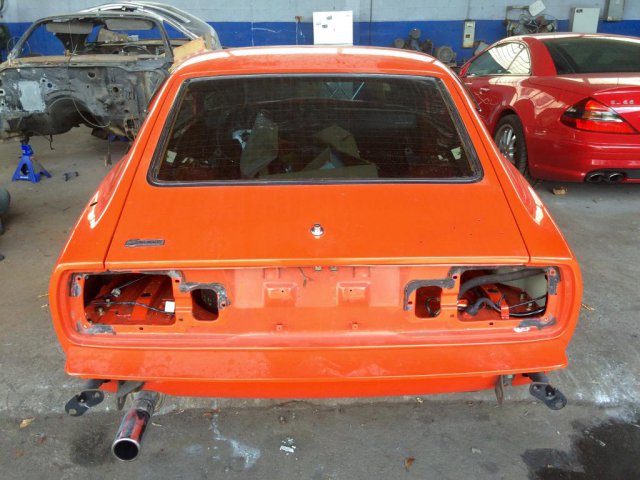

All the glass with new seals, rear hatch and tail light assembly with LED lighting went on today. Power door lock actuators are in as well.

Attached File  20150822_163952.jpg   118.56KB   1 downloadsAttached File  20150822_164035.jpg   98.4KB   2 downloadsAttached File  20150822_193355.jpg   116.73KB   1 downloads

Attached File  20150822_174028.jpg   72.87KB   1 downloads

Attached File  20150822_193324.jpg   89.01KB   2 downloads



BTW, I'm sorry for the flipped pics but I can't figure out why this happens (they look right side up in my files).


05/78 280Z HLS30-465628


#14 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 23 August 2015 - 09:13 AM

Seattlejester: The modified bucket actually contacts the inner fender liner and bulges it outward about a quarter inch. Not enough for clearance problems I think. Once I road test it I'll let you know. I will also post pics of the completed buckets.

In the meantime I hooked up all my LED tail lights and the electronic flashers seem to have done the trick: all turn signals and hazard lights work perfectly.

Attached File  20150823_104448.jpg   89.46KB   4 downloadsAttached File  20150823_104445.jpg   85.35KB   3 downloads


05/78 280Z HLS30-465628


#15 jimbob_racing

jimbob_racing

    Junior Member

  • Members
  • Pip
  • 20 posts
  • LocationBeaver Falls PA

Posted 26 August 2015 - 05:33 AM

Looks great!


Jim

'75 280Z


#16 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 30 August 2015 - 11:58 AM

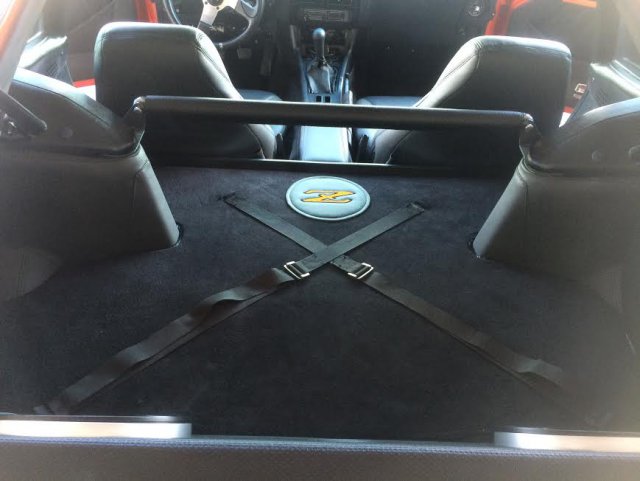

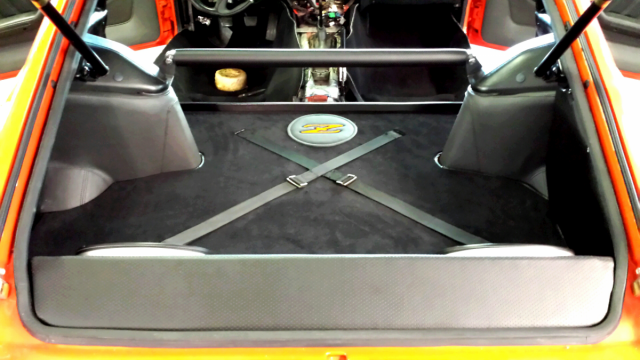

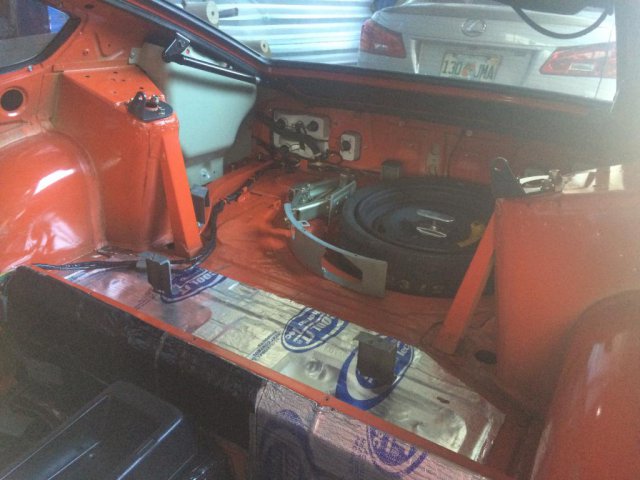

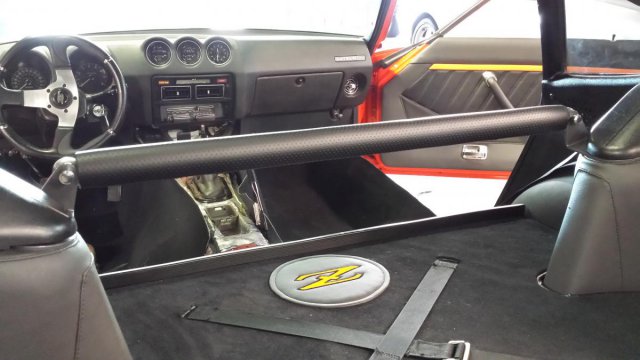

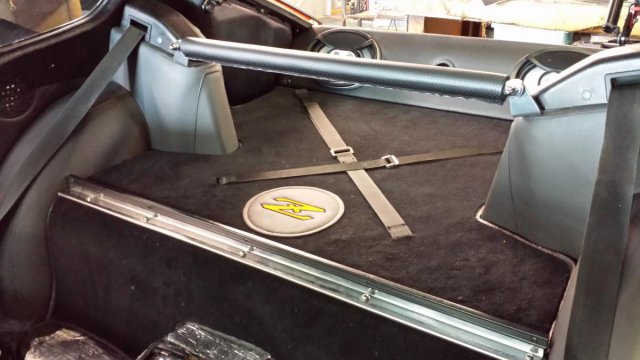

The rear deck carpeting, strut towers, speaker box and padded strut bar are all finished. Next up is the carpeting on the floor pans.

Attached File  rear deck finished anterior oblique.jpg   95.52KB   1 downloadsAttached File  rear deck finished post.png   1.21MB   2 downloadsAttached File  rear deck finished posterior oblique.jpg   93.81KB   1 downloads

We decided to cover the strut bar pad with the same perforated material that was used in the center section of the seats and on the speaker box. I think you'll have to zoom in on the pics to appreciate it.

The Z logo on the carpet looks yellow in the pics but is in reality a bright orange much like the car's body color.


Edited by dmoralesbello, 30 August 2015 - 03:15 PM.

05/78 280Z HLS30-465628


#17 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 04 September 2015 - 04:09 PM

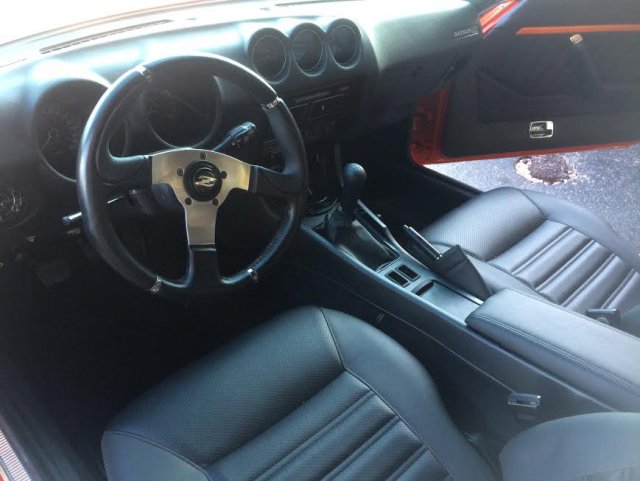

Upholstery is done. Great job from Shamrock Auto Trim in Miami, FL. They do top notch work including celebs' cars (Lenny Kravitz) and movie jobs for The Fast and The Furious.

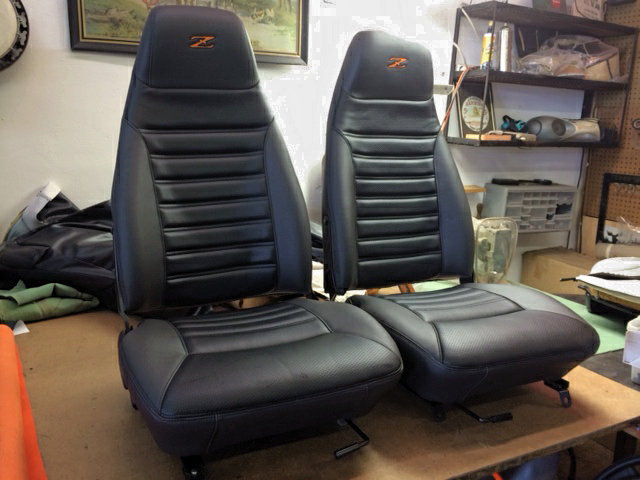

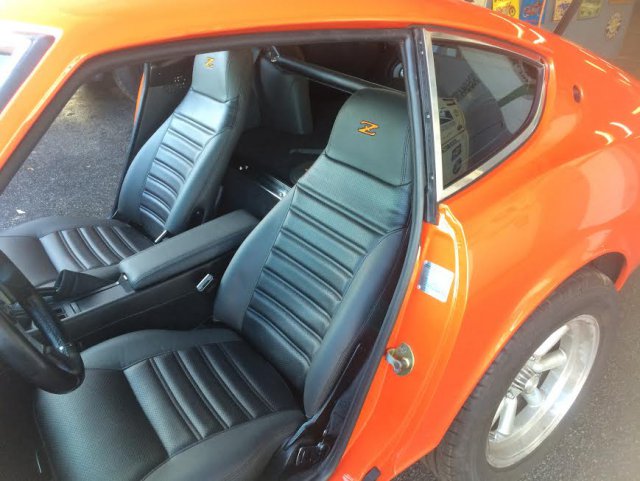

Attached File  Finished seats.jpg   65.54KB   4 downloadsAttached File  Finished console.jpg   48.8KB   4 downloadsAttached File  Finished deck and seats.jpg   40.57KB   4 downloads




05/78 280Z HLS30-465628


#18 Jay Gadsby

Jay Gadsby

    Always Here

  • Donating Members
  • PipPipPipPip
  • 209 posts
  • LocationKilleen TX

Posted 04 September 2015 - 06:19 PM

Wow that looks amazing!

#19 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 05 September 2015 - 03:30 PM

Thanks Jay!

I wanted to capture the original feeling I got when I first drove my new  280Z back in '77, but since time smooths out all the imperfections, I had to go with similar but improved methods and materials on this restoration.


05/78 280Z HLS30-465628


#20 dmoralesbello

dmoralesbello

    Always Here

  • Members
  • PipPipPipPip
  • 191 posts
  • LocationKey Biscayne, FL, USA

Posted 20 September 2015 - 05:30 AM

I'm stuck waiting on the paint shop to continue getting my hood, airdam and grill painted and I'm getting desperate! I've been promised some progress in the next 2 weeks and I will post new pics as soon as I have them.


05/78 280Z HLS30-465628
