Plug and Play Megasquirt Wiring Harness + sensors etc

ms2 efi harness plug and play relays fuses

  • Please log in to reply
22 replies to this topic

#1 softopz

softopz
  • LocationOntario Canada

Posted 25 March 2017 - 02:38 AM

   Iam now an authorized MS vendor via Amp EFI/DIYautotune. Any products from DIY autotune I can sell. Any sale made through hbz will have a 2-5% donation to the forum ( varies from product to product ) the least I could do for the forum. Any product will be the same price as listed on DIY website and any warranties will still be covered. Also my plug and play harness will still be for sale here as well as more new efi products for hbz so be sure to keep following the progress.



 Original post  I just happened to complete a full plug and play ms2 system was wondering if there was interest in doing some more seeing as FricFac is not doing any more . I can make them for the less cost and will include much more. Allot of hours has been put into this harness and will clearly show pictures don't do it justice. To make this worth while I would need 3-5 to start.



The Essential harness will be $400 It will include:

- 8-10ft harness color  now 12 ft minimum coded with diagram , ignition input shielded for noise cancellation, 1 wire end to end not a hack job. all new plugs and sensors



- 6x EV1 sealed injectors plugs quick disconnect

- 1x GM coolant temp sensor with amp sealed plug

- 1x GM air temp sensor with amp sealed plug

- 1x ms2 friendly Throttle Position sensor with sealed plug

- 1x ms2 friendly Crank Angle Sensor with plug OR l28et distributor input ( you supply plug )

-  loom supplied

new

- lowered price from$ 490 to $400

- AMP DB37 METAL clamshell connector

- GXL wiring (heat and oil resistant)

- 12ft length at no extra charge! ( shorter length and custom layout available  )

- labelled every 3 inches

- extra FIDLE, IAC 1A, 1B, 2A, 2B wires





The Full Package Harness + Relays + Fusebox will be $750 will include:

- Everything from Essential Harness

- Main and Fuel pump Relays

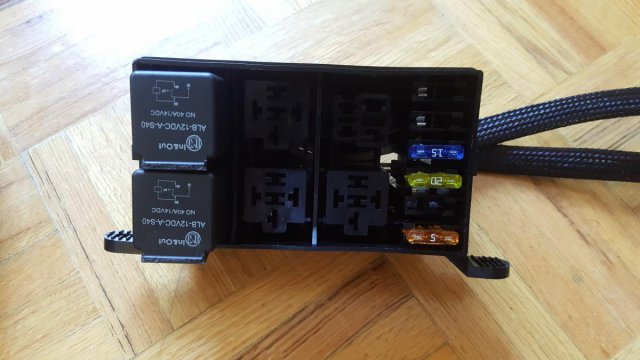

- Fusebox: Labelled with fuses for fuel pump, coil, ecu, 2x injectors banks. With 2 spare connections for wideband / boost controller.

- 16 ft power to fuel pump and 10ft power to coil (crimped and soldered)

- Main Power to battery with fuse connectors, 8ft ground for relays, 8ft switched power for relays. (crimped and soldered)

- NOTE LAST 4 OPTIONS I could connect , crimp and solder everything. OR  just include and label the obvious reason being placement of ECU is different for everyone

- plenty of loom supplied

- new

- AMP DB37 METAL clamshell connector

- GXL wiring (heat and oil resistant)

- 12ft length at no extra charge! ( shorter length and custom layout available  )

- labelled every 3 inches

- new relay/fusebox can handle 6 relays ie fan(s), lights, etc with 6 FUSES typical install uses 3-4 leaves 2 spare wideband , boost gauge etc

- extra FIDLE, IAC 1A, 1B, 2A, 2B wires



extras options available

4 cylinder harness, 8 cylinder harness, trigger wheels for CAS  ecu panel mount custom length wires. Mega squirt hardware assembly.   PM for extra options and more info.

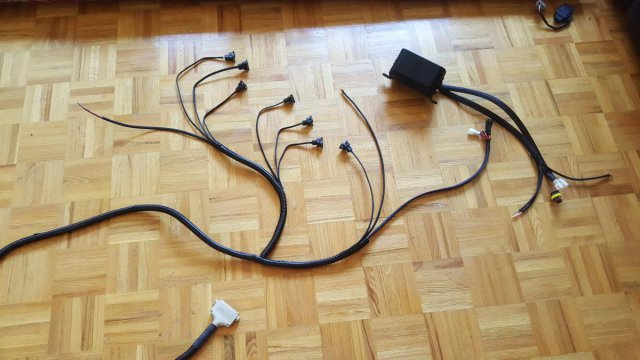

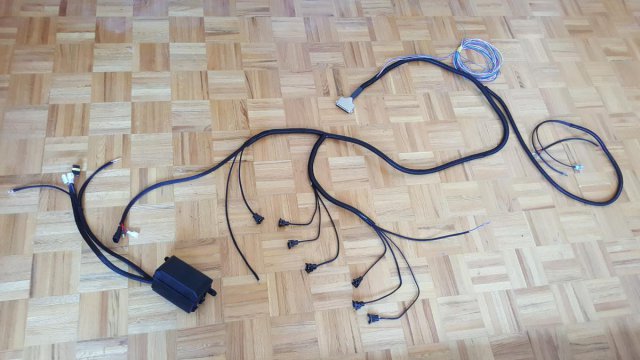

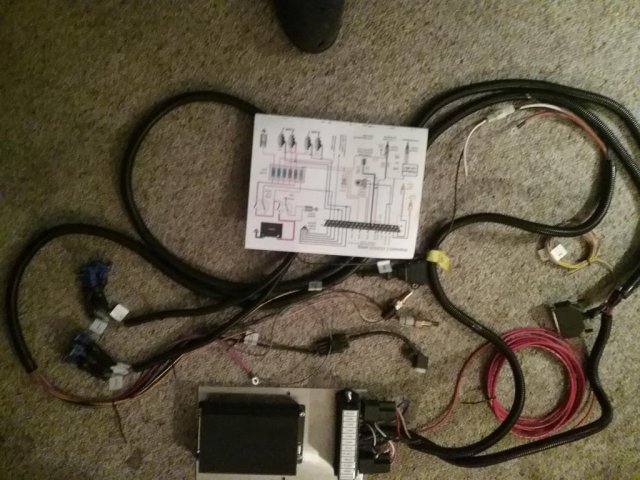

Pictured is the Full Package with ecu/relay/fuse panel mount. Not loomed/taped just to show the ACTUAL HARNESS loom will also be supplied ( for placement purposes and harness routing ability to use different holes from firewall or one )

Attached Files


Edited by softopz, 2 days ago.

Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#2 Leskinen

Leskinen
  • LocationFinland, Jyväskylä

Posted 29 March 2017 - 11:31 AM

Looks like a nice product for easy megasquirt swap. Also most of the sensors are included, cool.

Edited by Leskinen, 29 March 2017 - 11:32 AM.

1975 280z fairlady ## dnsf.org ~ JuiceS

#3 softopz

softopz
  • LocationOntario Canada

Posted 30 March 2017 - 12:06 AM

Thanks Leskinen, not most but all the sensor are included to get up and running. I just finished bench testing ecu/fuses/sensor and relays everything check out. The new owner should be receiving very soon. All he has to do is wire 12v batterey, switched 12v , ground and set trigger angle.

Attached Files


Edited by softopz, 30 March 2017 - 12:08 AM.

Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#4 aarang

aarang
  • LocationCamas, WA

Posted 31 March 2017 - 06:44 AM

Interested. Do you include a base tune by chance?


280zx-t in progress....

#5 ThatOneZ

ThatOneZ
  • LocationSterling, Virginia

Posted 01 April 2017 - 02:20 PM

I would love to buy one.

#6 softopz

softopz
  • LocationOntario Canada

Posted 01 April 2017 - 05:59 PM

@AARANG I could load a tune and all ecu parameters for any specific setup.

@thatonez pm me all the details so we dont flood this thread.

We need 2 more guys to jump in on this
Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#7 ThatOneZ

ThatOneZ
  • LocationSterling, Virginia

Posted 13 April 2017 - 07:12 PM

Ordered one, Cant wait to see the finished product!



#8 softopz

softopz
  • LocationOntario Canada

Posted 14 April 2017 - 11:00 PM

Ordered one, Cant wait to see the finished product!



I cant wait either to do an ms3 pro custom harness with individual coils. Plus that Moroso switch panel will be effin sexy.



CONFIRMED

ThatOneZ

2sixtzombii


Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#9 Zisionquest

Zisionquest
  • LocationBay Area

Posted 17 April 2017 - 07:51 AM

That is mine MS system which is on it's way as of this typing. Normally, I don't like to write review and I hate to be a guinea pig and who would want to be. But, man... Does it look sweet! Being a noob on a totally new platform (I'm a Honda guy and the 240z is my first Datsun/Nissan ever), I depend on a totally plug n play system for my Z. This is where "softopz" came in to fill that gap. So far, my experience with him is nothing but friendliness, knowledgeable, helpful, patient... He went over with me with all my noob questions and requests. He sent me links to get info to educate myself with the MS system and the Z car in general. I didn't know he is offering this to Hybridz community. If you are on the fence with this deal he is offering, join in. You can't go wrong. More choices, excellence work, reliable person and cheaper price range? It's a no brainer.



"I'll be back" with a first hand review of the system once I get it in my hands.



Chris


Edited by Zisionquest, 17 April 2017 - 07:55 AM.


#10 softopz

softopz
  • LocationOntario Canada

Posted 17 April 2017 - 06:02 PM

Thanks for the kind words really appreciate it. The ms and harness should be at your place first thing next week. Look forward to you receiving and reviewing the package.

This is the place to be if MS and s30 are new to you. The amount of knowledge in these forums are priceless, you learn just by viewing and creeping around. Plus the guys here are more than willing to help as long as you search first.
Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#11 doomed

doomed
  • Locationtewks ma

Posted 07 May 2017 - 02:01 AM

im interested in a full harness and ecm with tune also.. my 82 turbo has terrible wiring

and runs like crap.. im at my wits end .. after 8 years and 200 miles .. this might be my last effort

before a sale or a gallon of gas to burn it.

i cannot get this car to run right and cant get any help in my area of northeast.

no one will touch it.. please help..



#12 softopz

softopz
  • LocationOntario Canada

Posted 08 May 2017 - 09:28 PM

Your name doesn't help lol sorry I could not resist.

On a serious note though I KNOW EXACTLY WHERE YOU COMING FROM. Believe or not when I first did my turbo swap (more than 13 years ago) I had to deal with the ancient efi and it gave me hell. There was a lack of support online and locally at that time. I spent almost 2 years off and on trying to get it to run. I jumped into ms2 and never looked back. Dont get me wrong it was a steep lurning curve but now I am very comfortable with it. This harness is perfect for you.

I sent you a pm so I could get all your info.


Edited by softopz, 09 May 2017 - 03:03 AM.

Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#13 softopz

softopz
  • LocationOntario Canada

Posted 09 May 2017 - 01:21 AM

All the harness's I send out are fully tested here is a just finished Full Package harness w/ MS2 built per spec (all software / hardware settings configured + basetune loaded) and ecu/mount. All hardware checks out :)



Here are some shots and a quick video.



Again the wires are not loomed this way:

- you see the entire harness

- route it whichever way you want

- easier to put through firewall

- loom and tape after you choose your path (loom supplied)



All the wiring is labelled for easy install and all of them are sealed.



CAS distributor wiring - I crimp then solder - shielded wired paired in - amp seal connector

Attached File  20170509_031238.jpg   53.55KB   0 downloads



TPS with connector

Attached File  20170509_044147.jpg   84.64KB   0 downloads



CAS wiring

Attached File  20170509_044201.jpg   72.46KB   0 downloads



GM coolant Temp

Attached File  20170509_044206.jpg   96.88KB   0 downloads



IAT sensor

Attached File  20170509_044211.jpg   81.49KB   0 downloads



EV1 quick release Fuel injector clips / sealed

Attached File  20170509_044216.jpg   122.09KB   0 downloads



Coil Terminals + and - crimped and soldered - heat shrunk (adhesive kind not that other crap)

Attached File  20170509_044221.jpg   80.84KB   0 downloads




Edited by softopz, 09 May 2017 - 01:26 AM.

Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#14 softopz

softopz
  • LocationOntario Canada

Posted 23 May 2017 - 11:08 PM

GOOD NEWS the next harness's for

AARANG
BMAC

DOOMED

and anyone after that are all:



- AMP DB37 METAL clamshell connector

- GXL wiring (heat and oil resistant)

- 12ft length at no extra charge! ( shorter length and custom layout available  )

- labelled every 3 inches

- new relay/fusebox can handle 6 relays ie fan(s), lights, etc with 6 FUSES typical install uses 3-4 leaves 2 spare wideband , boost gauge etc

- extra FIDLE, IAC 1A, 1B, 2A, 2B wires

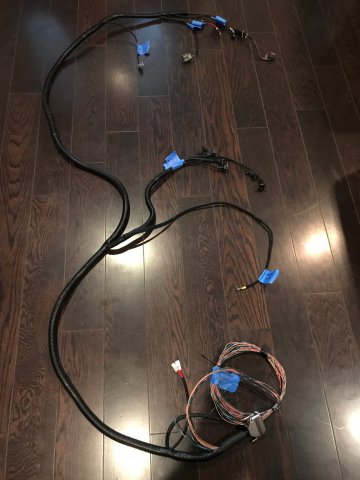

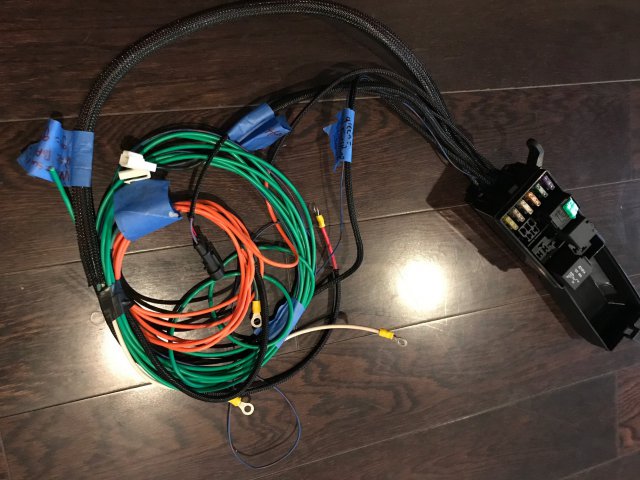

Pictured Custom s130 turbo Full Package MS2 harness + ECU . ECU Mounted in stock location, Relays and fuses next to battery.



Attached Files


Edited by softopz, 23 May 2017 - 11:12 PM.

Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#15 doomed

doomed
  • Locationtewks ma

Posted 24 May 2017 - 03:00 PM

Attached File  20160912_170303.jpg   140.33KB   0 downloads

#16 cjewing

cjewing
  • LocationTucson, AZ

Posted 28 May 2017 - 10:08 PM

Any thoughts/consideration towards coil packs?



I've got a 1983 280ZX Turbo, and seeing as Kurk McCay has dropped out of the harness game for the time being, I'm interested in a fully turbo set-up, including a way to replace the fusible links with maxi-fuses or something like that, if possible.



#17 softopz

softopz
  • LocationOntario Canada

Posted 29 May 2017 - 08:12 PM

I am currently doing a ms3pro semi sequential with LS coils it is wired sequential till he get a secondary cam phase triggor. I dont think it's necessary to go coils. The distributor is fine however a wasted spark setup (coil pack) is nice too. A bit more control in timing and cleans up engine bay. My setup comes with relays and fuses to replace all the efi fusible links and anything efi related. I will pm you to get your details.
Official AMP EFI megasquirt retailer.ms3 pro lifetime warranty!
Plug and Play Megasquirt 1/2/3 harness pre configured ms systems.
http://forums.hybrid...ss-sensors-etc/

#18 2sixTZombii

2sixTZombii
  • LocationSioux City IA

Posted 31 May 2017 - 06:15 PM

Hey just wanted to let anyone who is interested know. I have received my full harness last week. The ECU was heavily wrapped in bubble wrap and boxed in with foam, and the harness was also wrapped. Everything arrived exactly as described and pictured, everything is clearly labeled, and it came with printed detailed instructions. It shipped way faster than expected considering it came from canada. Overall Im very happy with my experience, Hussein was incredibly helpful figuring out how I wanted my setup, kept me updated every step, and had it done faster than originally promised. Everything looks great should make for a very clean install.

Attached Files


Edited by 2sixTZombii, 31 May 2017 - 06:19 PM.

Danny.
1974 early 260z
1953 Studebaker C coupe

#19 cjewing

cjewing
  • LocationTucson, AZ

Posted 31 May 2017 - 07:38 PM

Looks good! I'm excited to hash out the details, and I think we've got a few others in the 280ZX Driver's Facebook page that are interested as well.



#20 Greeko

Greeko
  • LocationVancouver, B.C

Posted 02 June 2017 - 09:24 AM

very cool!
