80LS1T Posted May 20, 2007 Share Posted May 20, 2007 Well I have one headlight almost done and half of the other one done. I am using a Bi-Xenon projector from and Infinity FX35 with 350Z bulbs, ignitors, and ballast. The housing that I am using is actually a cut up and modified crappy "ebay specials headlights". The cover over all of it is from Victory British and they are actually ment for protecting your hallogen headlights, I am just using them as a lens! The blinkers are 3 LED's that I got off ebay. I had to do this since I shaved the ones that go in the bumper off. Low Beam on(just the right side)... A little blurry but also just the low beam on.... Ok very blurry but this is the high beam on. Basically there is a solenoid inside the projector that moves a plate that allows more light to go through the projector.... Here's the blinker on... Guy Quote Link to comment Share on other sites More sharing options...
aziza z Posted May 20, 2007 Share Posted May 20, 2007 very cool. mine has a very similar blinker design. Quote Link to comment Share on other sites More sharing options...
Boosted1503 Posted May 20, 2007 Share Posted May 20, 2007 NICE! you beat me to it. Well I still need to get my Z. LOL Looks awesome. Were you able to retain stock adjustment? Also how did you run the wiring? External harness only using the stock harness for signal or did you just run it off the stock harness? Quote Link to comment Share on other sites More sharing options...
RB26powered74zcar Posted May 20, 2007 Share Posted May 20, 2007 That looks great Guy... do you have pics of it going together, ya know, kinda in pieces? Do you have the sellers ebay ID for the LED's? Here is my BMW Bi-X retro> Quote Link to comment Share on other sites More sharing options...
slownrusty Posted May 20, 2007 Share Posted May 20, 2007 Wow...very sexxy guy! Interested in seeing more (get it...."seeing"...) Yasin Quote Link to comment Share on other sites More sharing options...
Guest 280ZForce Posted May 20, 2007 Share Posted May 20, 2007 they look awesome! welcome to the brighter side of the world Guy, where you can now see the world night in your Z and see where the heck your going. Trust me, you will not ever think twice about going through this modification. Well, well worth it! we need a xenon projector club on here! Quote Link to comment Share on other sites More sharing options...
80LS1T Posted May 20, 2007 Author Share Posted May 20, 2007 I'll take some pics of the left side going together. It took me a while to figure out how to put all this together so there was a lot of trial and error on the first one. Yes, stock adjustment is still usable. I am using the stock wiring harness. The low beam power wire will power up the light and the high beam power wire will flip the solenoid. I don't have it wired in yet, I was just using some wire and a battery to power up the light for testing purposes. I still have to figure out a way to seal up the back of the headlight so water can't get inside. Hopefully I can get that done today! I'll try to post some pics soon of the left side going together! Guy Quote Link to comment Share on other sites More sharing options...
Boosted1503 Posted May 21, 2007 Share Posted May 21, 2007 Would you mind posting a pic of the back of the housing? Quote Link to comment Share on other sites More sharing options...
80LS1T Posted May 22, 2007 Author Share Posted May 22, 2007 Sure but I wont be able to do it till the coming weekend when Im around the car. The back of the housing is fiberglassed in. I haven't quite finished it yet though. Guy Quote Link to comment Share on other sites More sharing options...
Kennysgreen280zt Posted May 22, 2007 Share Posted May 22, 2007 im going to start my x5-bi-x setup pretty soon. got some parts at the swap meet this weekend. $50 for two hella ballasts, one bi-x projector, and bulb. now I just need to source a single projector and bulb and im set. Quote Link to comment Share on other sites More sharing options...
007max Posted May 23, 2007 Share Posted May 23, 2007 I'm not sure if this is true for the Z (since I don't have the original headlight wiring harness nor bi-xenon projectors in mine), but in most modern cars turning on the high beam shuts off the power to the low beam (dual filament bulbs use only one filament at a time). Thereby you will not be able to run the ballast off the low beam power source and then use the high beam switch to activate the solenoid, as it wont do you much good to trip the solenoid and have the light itself go out. Other than that it looks good, just make sure you seal it up well in the back, you don't want water getting to those wires that carry 20,000 volts. Quote Link to comment Share on other sites More sharing options...
e_racer1999 Posted May 23, 2007 Share Posted May 23, 2007 ^makes sense.... maybe you'd have to run it through a relay or with a diode? Quote Link to comment Share on other sites More sharing options...
80LS1T Posted May 23, 2007 Author Share Posted May 23, 2007 I'm not sure if this is true for the Z (since I don't have the original headlight wiring harness nor bi-xenon projectors in mine), but in most modern cars turning on the high beam shuts off the power to the low beam (dual filament bulbs use only one filament at a time). Thereby you will not be able to run the ballast off the low beam power source and then use the high beam switch to activate the solenoid, as it wont do you much good to trip the solenoid and have the light itself go out. Other than that it looks good, just make sure you seal it up well in the back, you don't want water getting to those wires that carry 20,000 volts. I haven't looked at the original 280ZX wiring diagram yet so I'm not 100% sure if it will work the way I'm planning it. Yeah sealing this thing up is going to be the hardest part. I'll be sure to post lots of pics and details of how I did everything once I'm done/almost done. Guy Quote Link to comment Share on other sites More sharing options...
zedevan Posted May 23, 2007 Share Posted May 23, 2007 looks beautiful, ur tempting me to black mine out! excellent find on the 7" headlight protector things, i'm assuming they help a fair bit with clearance at the back! how well sealed are they at the front? and are the just a type of plastic? Quote Link to comment Share on other sites More sharing options...
80LS1T Posted May 23, 2007 Author Share Posted May 23, 2007 The lens is just plastic(flexable even). They are sitting on the housing I made and then I have it taped onto the housing with electrical tape so that I can get inside of it if need be. I was going to glue them on but I want to be able to remove them if need be(clean or replace them if needed). You can't see the tape though because the chrome trim ring is covering that part of the housing. The clearance in the back is still pretty tight. Getting it all seaed up and still able to change out the bulb is going to be the hardest part! Guy Quote Link to comment Share on other sites More sharing options...
jknc90 Posted May 23, 2007 Share Posted May 23, 2007 It looks GREAT. How much did the whole conversion cost? Jon Quote Link to comment Share on other sites More sharing options...

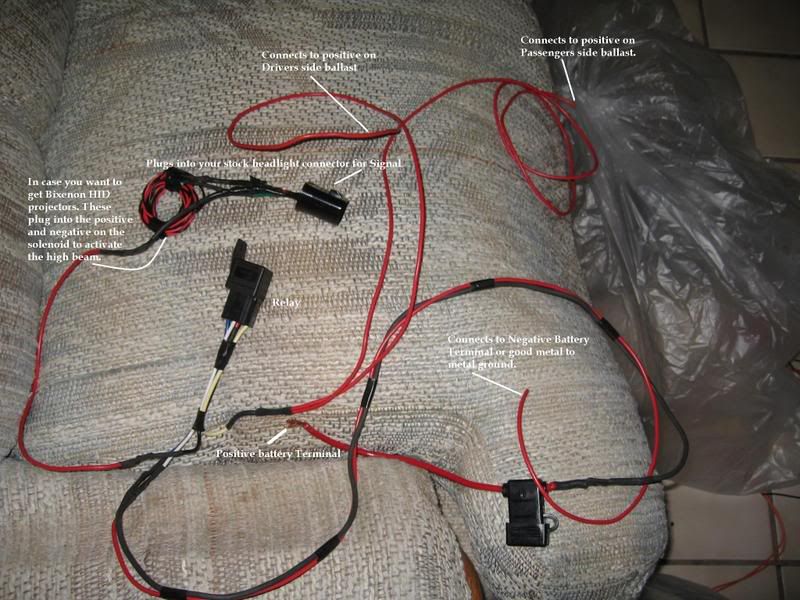

Boosted1503 Posted May 23, 2007 Share Posted May 23, 2007 In the wiring harness that I've made for my car I use a diode that connects to the high and low beam. That way when the high beam is hit the low beam still has current and doesn't die. I'll try and post a picture up of one of the harnesses. There we go. Quote Link to comment Share on other sites More sharing options...
Boosted1503 Posted May 23, 2007 Share Posted May 23, 2007 I made this so it is plug and play of a sort. Everything is soldered and heatshrinked. I'm still missing the connectors for the battery and ground and the solenoid wires (that I have just haven't crimped them on). You connect to your stock bulb plug and it gets signal from there. On that same run I added the diode that goes across the high beam and low beam. Also from there I ran 2 lines for the bi-xenon solenoid. If you want i can make you a harness just let me know the type of connector or the bulb (i.e. H7, H4, etc). and the dimensions of where you want to mount everything. I have everything to make a harness just need to know the bulb connector. Quote Link to comment Share on other sites More sharing options...
80LS1T Posted May 24, 2007 Author Share Posted May 24, 2007 Thanks for the offer on the harness but I was planning on doing the same myself. I think I will be doing the same with the diode. What kind/size/rating of diode did you use? Guy Quote Link to comment Share on other sites More sharing options...
Boosted1503 Posted May 24, 2007 Share Posted May 24, 2007 Thanks for the offer on the harness but I was planning on doing the same myself. I think I will be doing the same with the diode. What kind/size/rating of diode did you use? Guy Good Deal! I got all my stuff from Partsexpress.com. Here's the link to the diode I used. http://www.partsexpress.com/pe/pshowdetl.cfm?&Partnumber=6A-1KV&CFID=35961&CFTOKEN=63128770 It's 6Amp diode part Number: 6A-1KV The place is awesome has loads of things and fast shipping to boot! feel free to send me a PM if you have any questions or need any help. Quote Link to comment Share on other sites More sharing options...
