Exhaust Tube Sizing: I did your Arithmetic for you!!

[Leon]

Josh, you may want to re-read the thread, as I think you missed the point of the post you quoted.



Here are the parts of post #13 that you didn't quote:



As discussed in the thread, there is a significant distinction between the job of the header and collector and the long exhaust pipe



(...)



Scavenging is the purpose of the header and collector, and possibly a tuned length of exhaust, not your long pipe that goes out back!



Therefore, you want to correctly size the header and collector in order to tune the exhaust system. Again, you're very focused on velocity but that's not the only, nor the biggest thing that drives exhaust (or intake) tuning. System resonance is what really drives this phenomenon. I think I already mentioned it earlier but I'll reiterate.



In the exhaust system, as the valve opens a compression wave is sent downstream to the header and collector. At a discontinuity, such as the collector, the compression wave reflects back upstream as an expansion wave. If this expansion wave reaches the valve right before it closes (after the peak in the valve's mass flow) it creates a secondary peak of mass flow-rate through the valve by essentially sucking out (technical term ) more gasses. Therefore, you size the length of the header and collector based on parameters such as valve duration, pipe diameter, exhaust temp, etc.



This stuff is more complex than just "keeping the velocity up" as many think. Tony's car is a prime example of this, where the header/collector is tuned and varying the long pipe out back at best doesn't affect anything (but noise), and at worst starts robbing more and more power.



I highly recommend getting this book and reading and understanding as much as possible. If you don't "get" something, then post!

[josh817]

I would refer you to Kas Kastner then. The information he writes about on Triumphs specifically notes that you want your exhaust pipe to be exactly this long with this setup. Granted my translations of the Japanese pages were... barely helpful, the subject of keeping velocity up was found multiple times. Doesn't necesarily mean keeping it up by restriction. It was just an observation, it may mean nothing.



I agree with you that the header is the major part of the system, however I honestly believe the pipe matters too. Hundreds of Triumphs are out there to prove it, especially my fathers. The method is also used for gocarts. One thing I will admit is perhaps the tuned length is more-so for smaller displacements considering a Spitfire is 1.3L and a gocart motor is 100-200cc. I wish Don Potter were still around so we could give him a call and see whats up. The vintage car I posted, has Potter exhaust stuff on it.



Now, Potter was not his engine builder, however he uses a guy who had close contact with Potter. Tony, did you ever try varying lengths or did the tests end in the conclusion that full length X diameter had a loss of 20hp and no pipe showed the 20hp improvement? Was there any middle ground where there was more power to be had?



Once again we hit a point on Hybridz where books and calculations say one thing but tests show another. Once again I can only relate to what I've seen with my dad and those are Triumphs, perhaps Z's are completely different.



I wouldn't take calculations as gospel though. The rules and patterns of the periodic table are there but there are many exceptions. The Lewis Dot Structure explains the majority of atomic/molecular structures but there are some instances where it doesn't explain.



Regardless of where this discussion goes if I were serious about making all the power I could get, then I would go dyno test varying lengths even if its said it doesn't do anything. Tony, for the 2.8L with the pipe, where was peak power compared to without a pipe?

[Leon]

Whether it's a Z or a Triumph or a bike engine, the same principles apply. As this thread discusses, the header and the collector pipe are the tunable aspects of the exhaust system. You're talking about tuning the secondary/collector length. This is what you would do with any engine's exhaust. Trust me, buy the Heywood book and read it. You will have many more revelations reading that book than browsing the internet or consulting engine builders...

[Tony D]

Our initial testing was done on open headers and the header was optimised (including the header collector) to get best HP under the curve. After that, we grabbed the largest pipe we could fit under the car and still have ground clearance. We wanted as little flow restriction as possible after our tuned header collector combination. We didn't run the 2.8 with the belly pan that often, only two classes, and with the hassle of installing / removing it we concentrated on open header performance.



The exhausts collectors were 2.5" diameter, and we couldn't make megaphone 2.5 to 3" transition pieces fit due to the angles involved, so we concentrated on mandrel bent 2.5" tubing with as little bending as possible to get the turbes to exit the back of the car. I think our backpressure under full load at full rpms was less than 4" W.C as I recall...but this was 10 years ago. It was near nothing. We could not explain the 20HP drop with such a low restriction other than there had to be some sort of anti-reversionary effect of dumping the exhaust pulses out of the collector which scavenged better than dumping it into a tube. We theorized for a while about putting 4" sections on a stub of 2.5" piping then merging in the horizontal plane by the tranny to the 2.5 out to the back...but that was not to be. We made our record and stuck with what worked.



Running the 2 liter on headers with primaries that were (I forget now exactly) 2 or 3" shorter than the L28 we did not experience the loss in the same piping. Hookup was identical almost all the shortening of the pipes was done in vertical header primaries, so the exhaust just 'tucked up higher' than previously giving us slightly better ground clearance at the transmission bellhousing area. That it worked on our existing piping and we didn't have to make a completely new set to run out back was an unexpected plus that went along with not losing any HP!

[josh817]

I'll just say I'm wrong and continue on. Lol

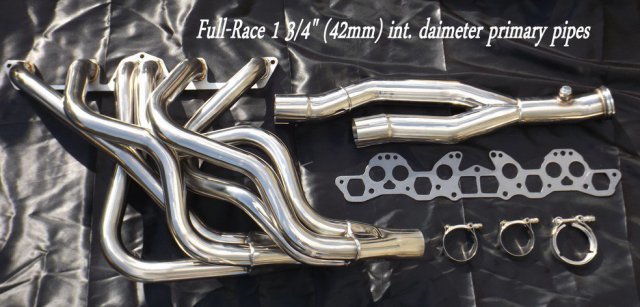

This was a header system I was wanting to base mine off of. The bends don't look as complicated as others. It would be a fun project. I could see potential difficulty in the merge engle that you guys discussed.

Edited October 20, 2010 by josh817

[Tony D]

I got one like that. But is that ending in two 50mm pipes, or two 60mm pipes?



They have both options on that header. The Z432 had twin 60's all the way back. The L24's had twin 50's, something about them not running to 10K rpms with 15:1 CR's at the time (like the S20's)

[josh817]

I got one like that. But is that ending in two 50mm pipes, or two 60mm pipes?



They have both options on that header. The Z432 had twin 60's all the way back. The L24's had twin 50's, something about them not running to 10K rpms with 15:1 CR's at the time (like the S20's)

Oh-oh-oh-oh can I see?!

[Tony D]

I'm in Tokyo, it's in SoCal. Not for a week at least... And then only if I have the time to dig it out!

[johnc]

There's always Stahl headers.

[Tony D]

Yes!

[zredbaron]

Somewhat related question: are pipe area and dB levels are related?



That is to say, I would think that a 3" pipe would be louder than a 2.5" pipe. Would a difference in dB levels or tone also follow suit with the area? (If so, roughly by how much?)

[Leon]

Here's a good article by Steve Dinan, which echoes what I've explained. Click on "Dinan's E90-92 M3 Exhaust."



From his Exhaust Theory section:

After the exhaust manifold or header, optimum performance comes from making the balance of the exhaust system as short and large as possible. This approach will result in greater engine efficiency for maximum power, as well as minimizing the weight of the system. Probably the best example of an optimized, nocompromise exhaust system would be that of an F1 racecar. If you have ever had the opportunity to hear a F1 exhaust note, I think you will agree that it is best described as deafening. Clearly an exhaust system that even approached such a volume level in a performance street-car would draw far too much of the wrong sort of attention. Therefore, a modern street-car exhaust represents a number of performance compromises in order to achieve an acceptable exhaust volume, as well as meeting emissions standards.



In order to accommodate the various components and baffling necessary for a street-car, the exhaust system becomes longer and the flow of gasses more circuitous as noise and emissions standards are addressed. Each bend in the exhaust tubing, catalytic converter, resonator and so forth introduces restrictions to the exhaust flow, particularly at higher rpm where flow is most critical. Exhaust flow can actually reach hundreds of miles per hour when the engine is producing maximum power, which results in power robbing friction along the exhaust tubing walls, particularly when the gasses must change direction. This friction results in increased backpressure that can be quantified with a pressure gauge. This backpressure restricts the amount of gasses that can be passed through the engine, resulting in a reduction of peak power.



I’m fairly certain that many of you have been exposed to a “bench racing legend†that would have you believe that increased backpressure will improve low rpm power and that low backpressure will increase high rpm output. Nothing could be further from the truth. An exhaust system is sized for maximum flow at wide-open-throttle and peak rpm. All exhaust systems are “oversized†for lower engine speeds (rpm), as backpressure is so insignificant that it can’t even be measured. Less backpressure always results in more power at higher rpm, with no negative effect on lower engine speed performance. The amount of power that can be extracted from an engine at a given rpm as a result of exhaust design is really limited by the exhaust manifold or header. After the header, less backpressure is always better. The real challenge when tuning a street-car exhaust is to increase flow without making the system loud or eliminating catalyst that will prevent you from registering your car because of your local emissions standards. It is also important to understand that vehicle manufacturers must meet more stringent maximum noise requirements than aftermarket manufacturers.

[Tony D]

Actually I believe the diameter of the piping is inverse to dB. Larger usually means quieter. This was the way it was on the Corvairs which basically had mufflers right on the header collector and then out the back. The larger diameter exhausts which you thought would be louder had a much lower and mellow tone. Smaller diameters on the Z seem to have a 'snarl'---much more 'pop' rather than a low-throated rumble. It may be where the auditory effects are masked. People find an F15 at idle wildly loud (and it is...) but mostly because the noise is RIGHT in the irritating zone of human hearing Hz - Wise. Perhaps the larger diameter pipes will 'meter' as loud, and it's just the human ear that 'seems to think' it's lower noise.



And really it's that perception that will get you the ticket! If it 'sounds loud' it is, and the ticket gets written.

[zredbaron]

Its obvious an exhaust system can choke an engine if it's too small, but is there a too big?

I've always taken exhaust systems the same way as header primary diameters, smaller to keep up velocities for low end torque and bigger for the higher RPM horsepower.



I believe you are referring to post-collector piping, correct? This has of course been answered since your post and I won't repeat others' posts.



If by exhaust "system" you include header primaries and collector, yes. Keep in mind he's talking about header primaries' diameter selection and NOT post-collector piping, but this is directly from Stahl headers:



Hi Mark,

Jere here using Judy's computer. In the early years when 280Z was top dog in SCCA CP we would go to 1-3/4" around 295 to 300 HP. Of course they were interested only in power above 5000. I have no modern dyno data on 6 cyl Datsun engines so I have no idea what the shape of the power curve is from 1500 to 5000 and that can be a major issue in the driveability of an auto cross vehicle. However, my experience with engines proves that intake port shape has more to do with driveability than any other single component including exhaust and camshafts. Certainly going to EFI will be an extremely wise choice and allow you to properly tune with the handicaps of carburetors. Just remember, that too large in the exhaust is far worse than too small.



It's my understanding that too large (for primaries) is devastating because it decreases velocity and therefore scavenging effect, which is of course crucial for normally aspirated engines, especially ones with lots of overlap. I elected to not go with 1-3/4" but instead 1-5/8" primaries for a wider torque band, despite that my race motor was in this HP range with street headers. JonhC and Stahl both agreed that for an autocross motor this would suit my best interests.





[...]





Actually I believe the diameter of the piping is inverse to dB. Larger usually means quieter. This was the way it was on the Corvairs which basically had mufflers right on the header collector and then out the back. The larger diameter exhausts which you thought would be louder had a much lower and mellow tone. Smaller diameters on the Z seem to have a 'snarl'---much more 'pop' rather than a low-throated rumble. It may be where the auditory effects are masked. People find an F15 at idle wildly loud (and it is...) but mostly because the noise is RIGHT in the irritating zone of human hearing Hz - Wise. Perhaps the larger diameter pipes will 'meter' as loud, and it's just the human ear that 'seems to think' it's lower noise.



Great point, Tony. I hadn't considered the irritating frequency range, and I would agree that when tone deepens (with larger pipes) it's less irritating and therefore seems less loud.





[...]





Also, the earlier discussions regarding post-collector piping have made me curious. I just might dyno the car with race headers+merge collector (no piping or muffler) and then once again after installing the full exhaust (3" mandrel). I don't think I'd be interested in cutting pipes to find the ideal length, but I am curious how much of a loss might be incurred due to post-collector head loss (friction). If I do this, I'll be sure and share the dyno results and pics of the exhaust setup(s).



If nothing else, I'll have an excuse to hear the race headers + merge collector roar without a muffler...

Edited May 9, 2011 by zredbaron

[Leon]

I'm slated to go on the dyno August 20th and will test a few exhaust configurations on my L24 with triple Webers and stock exhaust manifold. I'll report the results when I have them!

[josh817]

I'm slated to go on the dyno August 20th and will test a few exhaust configurations on my L24 with triple Webers and stock exhaust manifold. I'll report the results when I have them!

Don't forget pictures and video so we don't have to attack you.

[Leon]

Dyno Testing a 260Z



This is an analysis based on my dyno testing from yesterday (8-20-11).



Test Parameters



The reason for the testing was that I wanted to log a baseline for my 260Z before going further with more engine modifications and to make a comparison between different configurations.



The baseline settings are as follows:

• early 260Z with 1972 L24/E88 that was installed by the previous owner

• triple 40DCOE-18 Weber carbs with K&N-style filters, not jetted yet, just bolted on and sync'd

• Cannon long-runner manifold

• stock exhaust manifold to single 2.5" crush-bent pipe

• stock cam and internals

• refreshed cooling system with aluminum radiator, new water pump and hoses

• heater loop is blocked off at both ends

• Mobil1 synthetic 10W-30 in engine, Redline 75W-90 in transmission (GL-4) and differential (GL-5)

• MSD coil, NGK plug wires






The two pipes to be tested:



\





Test 1: Long 2.5" pipe with straight-through muffler in the rear









Initial Thoughts and Numbers:



I know actual dyno numbers don't mean a whole lot but I came in thinking that I'll be happy to break 100hp! The Z feels very torquey and quick but we all know that the almighty butt-dyno isn't very representative of reality, so for all I knew I could've been making 85hp...





I was also pretty convinced that I would not be over 120 hp as the carbs are not jetted and I have not even touched the spark timing. However, according to the dyno that day, I am making 121 hp @ 5200 rpm and 136 lb-ft @ 4000 rpm! At the very least, this indicated that my engine is fairly healthy and that my tune is not completely off. A happy side-note but we're here for comparison purposes not peak numbers. On to part two!





Test 2: Stock downpipe, cut after the merge









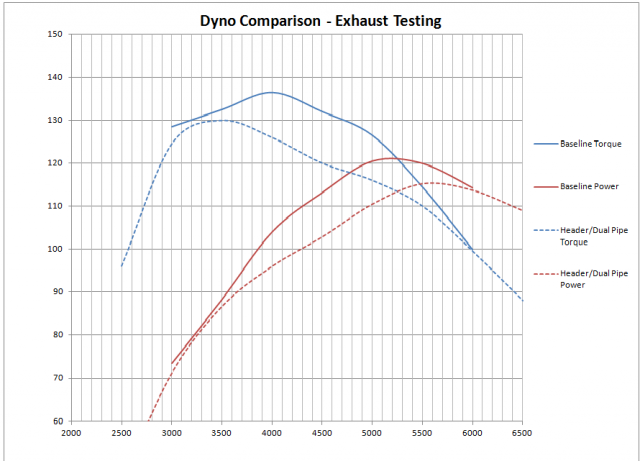

Results



SOLID lines are long-pipe runs

DOTTED lines are short-pipe runs



*Note: there are local peaks at about 5850 rpm, and they are there for both runs so it very well could be due to the tune.



The long-pipe made slightly more torque on the top end, but the short-pipe made more low-end torque.



Analysis



On the surface, the results look counter-intuitive. After all, shouldn't a short pipe be better for top end and a long pipe better for low end? How about the "mechanic" that's been "doing this for years" that says "well son, when there's less backpressure you lose all yer low end torque. You need some backpressure." Well in this case, running it with no muffler and a cut after the merge increased low end torque.



So please, get any thoughts of backpressure out of your head when speaking of exhaust tuning. In fact, forgot the word completely, it is not a very useful term in the exhaust theory glossary, besides wanting as little of it as possible.



The results come out as expected after you look at the differences in the two pipes. The critical difference between the two being the length of the secondaries before the merge into a single pipe. Take a look at the second picture from the beginning of the post, showing both collectors. Take note of the differences. The long pipe exhaust merges the secondary pipes quite a bit earlier than the short pipe, meaning that the short pipe secondaries are actually longer.



Thinking back to wave tuning, whenever there is a discontinuity in a pipe (e.g. a change in pipe diameter or merge), the compression wave coming from the open exhaust valve gets reflected back as an expansion wave. A tuned length of pipe allows the expansion wave to travel back to the exhaust valve just before it closes, further dropping pressure in the cylinder. This draws out more burned exhaust gasses as well as draws in more air-fuel mixture during the valve overlap period (scavenging). Keep in mind that a tuned length is only good for one engine speed. As pipe length before the discontinuity (merge) changes, so does the time it takes for the wave to travel out the exhaust valve, down the pipe, reflect and come back to the exhaust valve. A shorter pipe before the merge decreases the length of time it takes for the wave to reach the exhaust valve, therefore it is more efficient at higher engine speeds. The opposite is true for a longer length of pipe before the merge (longer wave travel time = lower rpm efficiency).



This test also shows that a single 2.5" pipe is ample for my L24 spinning to 6000 rpm, because it essentially mirrors the short pipe and actually outperforms it at high rpm. The large diameter pipe allows for the collector to do its work without hindering performance post-collector.



Conclusion and Discussion



The results nicely agree with the exhaust theory that we've covered in this thread.



If I took the long pipe with the muffler and cut it after the collector, it would perform better, but the difference would likely not be discernible. On the other hand, if the pipe coming off the collector were smaller than 2.5" then pumping losses would begin to climb and performance will decrease across the board, especially at high rpm since frictional losses in a pipe increase with the square of velocity.



In the near future, I am having twice pipes made and I'm curious as to the effect of keeping the secondaries separate. It may cause a small hit in performance, judging by how much of an effect moving the secondary merge point had, but carb and spark timing tuning will be a much more drastic change. I broke off a stud at the exhaust manifold-to-exhaust connection point, and although there was no detectable leak, I may just put on my Nissan Motorsports header and build the pipes off of that.



[killaimdie]

Actually I believe the diameter of the piping is inverse to dB. Larger usually means quieter. This was the way it was on the Corvairs which basically had mufflers right on the header collector and then out the back. The larger diameter exhausts which you thought would be louder had a much lower and mellow tone. Smaller diameters on the Z seem to have a 'snarl'---much more 'pop' rather than a low-throated rumble. It may be where the auditory effects are masked. People find an F15 at idle wildly loud (and it is...) but mostly because the noise is RIGHT in the irritating zone of human hearing Hz - Wise. Perhaps the larger diameter pipes will 'meter' as loud, and it's just the human ear that 'seems to think' it's lower noise.



Science supporting different perceptions of audio tones. The article talks about Psychoacoustics and human perceptions of different audio frequencies.

[Justinp551]

This thread is great reading. I have the MA 6-1 with a 2.5" system on my 280na. After reading this thread I am considering having a 3" made up and dyno both pipes to see what differences we can find. If I am understanding this correctly though the main loss is friction of the walls. Is my example of a whole bunch of people running through a narrow hall vs running though a room sound about right? My only concern is the 2.5" flange from the headers to the exhaust pipe. 3" collector through a 2.5" flange back to a 3" system all the way back. Is this small kink a huge problem? I understand it is a restriction but it's only 1/2 inch or so. Would this kink be a small issue, good for exhaust wave reflection, or a big issue?

[Leon]

This thread is great reading. I have the MA 6-1 with a 2.5" system on my 280na. After reading this thread I am considering having a 3" made up and dyno both pipes to see what differences we can find. If I am understanding this correctly though the main loss is friction of the walls. Is my example of a whole bunch of people running through a narrow hall vs running though a room sound about right?

That's a way of looking at it, yes.



My only concern is the 2.5" flange from the headers to the exhaust pipe. 3" collector through a 2.5" flange back to a 3" system all the way back. Is this small kink a huge problem? I understand it is a restriction but it's only 1/2 inch or so. Would this kink be a small issue, good for exhaust wave reflection, or a big issue?

I would prefer a 3" flange, and an even better option is a 2.5" flange to 3" pipe with a megaphone in between. In your case, I would prefer to integrate a megaphone post-collector, that tapers from 2.5" back to 3" diameter. Taper angle and location will alter its effect, as discussed within this thread.
