#1 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 28 October 2014 - 09:00 AM

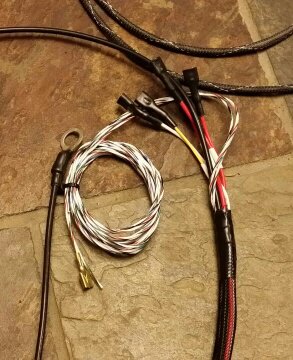

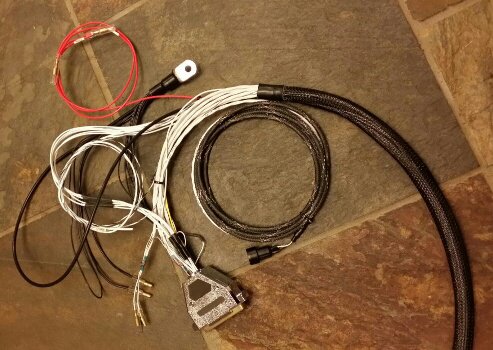

I've designed and built several Mega Squirt harnesses for various Datsun projects.  I'm an Electronics Engineering Technologist so I've designed these harnesses for optimal noise immunity with high grade wiring to provide you with a highly reliable backbone for your Mega Squirt EFI system.  Electronic noise can cause all sorts of gremlins in your system.  To eliminate these issues all harnesses are configured with a robust grounding system as well as shielded cabling for all sensors.  The wiring is heat and chemical resistant to provide you with years of trouble free use.  EV1 connectors for the injectors use the quick disconnect plugs for ease of installation and removal – no more fighting with wire clips.

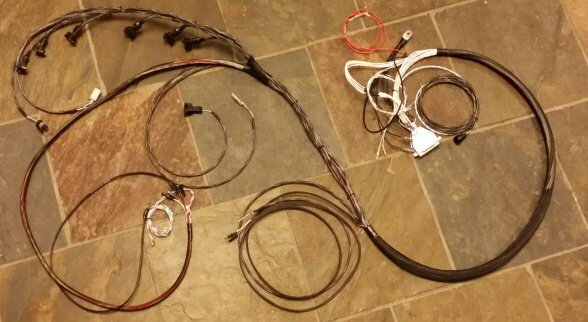

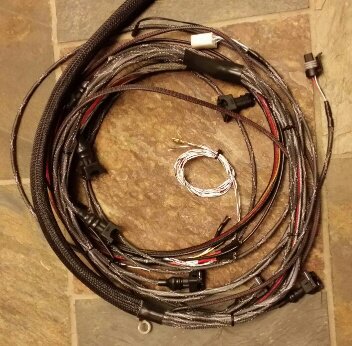

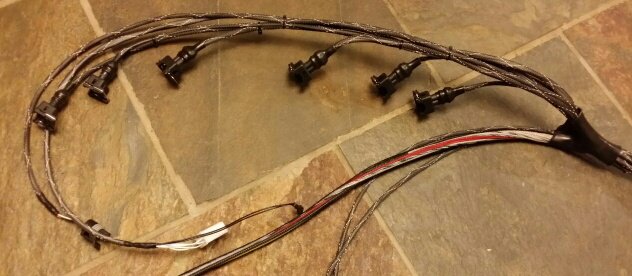

The basic harness is designed to plug into the stock sensors and injectors found on a stock L28ET engine.  This includes the injectors, 82-83 dizzy with optical encoder wheel (allows the use of stock or custom encoder wheels), TPS (after market – stock is a throttle position switch – MS requires a throttle position sensor which is a potentiometer rather than a switch), CHTS, Knock sensor (wired to main connector but not hooked up – MS requires extra hardware for the knock sensor), ignition coil, IAT (after market – stock IAT is built into the AFM but should be removed due to air restriction – MS uses a MAP sensor so the AFM is not required) and WBO2 sensor and power.  Connectors for the IAT, TPS and WBO2 will vary from installation to installation so the buyer can provide their own connectors for installation during the build of the harness or install them on the prepped associated cabling. Spares can be run for extra power, etc as requested.

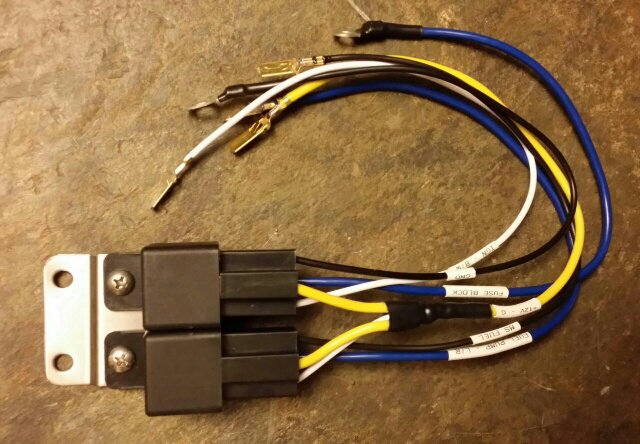

You can add a relay/fuse block assembly to the basic harness.  One will provide power for an ignition enabled fuse panel which will provide fused power for the MS ECU, injectors, ignition coil, WBO2 and fuel pump as well as spares for additional power nearby the ECU.  The second relay provides ECU control and powers the fuel pump.  This can be configured to plug directly into the stock body wiring harness on the 280ZX and control the stock fuel pump using the stock fuel pump wiring if requested.  This eliminates the optional diyautotune relay and relay harness and gives you addtional fuses for your WBO2 and igntion coil as well as a spare.  The assembled relay board and relay board harness is $179.  Custom assembly is $150.



Optional custom cabling such as COP/CNP distributorless wiring is also available.  Typically the connectors will be installed with filter caps in close proximity to the COP/CNP connector to eliminate back EMF from the coil discharge and integrated into the harness.  Custom lengths and spacing for connectors can be built to the buyer’s specification.



Basic harness is $550.  Basic customization is also included in this price.  Additional cost for extra sub harnesses such as the COP/CNP is typically about $150.  I can also build and test your MS 2/3/3x ECU and load a base tune but this will be limited to my time schedule and number of custom orders.  This will allow the buyer to plug in the harness and ECU and get the car up and running (provided the car is mechanically functioning correctly) with minimal fuss.  A proper dyno tune is highly recommended for optimal performance.



If you have any questions please feel free to contact me.







Attached File  20141026_222235~01_resized.jpg   89.38KB   27 downloads



Attached File  20141026_222256~01_resized.jpg   70.71KB   8 downloads



Attached File  20141026_222346~01_resized.jpg   77.68KB   7 downloads



Attached File  20141026_222518~01_resized.jpg   60.66KB   7 downloads



Attached File  20141026_222534~01_resized.jpg   82.76KB   9 downloads



Attached File  20141027_230153~01~01_resized.jpg   121.83KB   9 downloads


Edited by FricFrac, 03 November 2014 - 12:10 PM.

1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#2 OldAndyAndTheSea

OldAndyAndTheSea
  • LocationHenderson Harbor, NY

Posted 28 October 2014 - 02:50 PM

Wow! awesome!



Pm sent.


PM me for any composites related inquiries.


#3 12doplumbing

12doplumbing
  • LocationWindsor CA

Posted 30 October 2014 - 05:16 PM

Sign me up for one! Perfect timing; I just got through gutting my son's '72 and have ordered PDK's fiberglass dash... Just set the clutch in the BW T5... . Nothing is being salvaged as far as wiring is concerned.

#4 garyneedsz

garyneedsz
  • LocationFullerton, CA

Posted 07 November 2014 - 08:08 AM

Please tell me this is going to be a long term offer from you. I'll be definitely purchasing one once tax season is here. :)

#5 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 07 November 2014 - 10:14 AM

It should be. I work full time and do this on the side. The response has been very positive and I'll be pretty busy getting the first orders out as promptly as possible. These are quite time consuming but I take pride in my work and I'm not willing to compromise on quality. Hopefully we'll have some before and after pictures in a few weeks once I get the first sets out.

1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#6 stravi757

stravi757
  • LocationDanville CA

Posted 07 November 2014 - 11:14 AM

+1 on long term. Hope to have one made sometime in 2015.



#7 Owenbfree

Owenbfree
  • Locationnew jersey

Posted 11 November 2014 - 05:56 PM

Same here I would LOVE one. W2 comes to me end of January and I'll definatly be purchasing one from you mr fricfrac. Thank you for easing my mind. I thought my winter was going to be a headache. Now it's just going to be plain fun

#8 240zdreamin

240zdreamin
  • LocationPortland, OR

Posted 13 November 2014 - 02:25 PM

PM sent!



#9 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 28 November 2014 - 08:47 AM

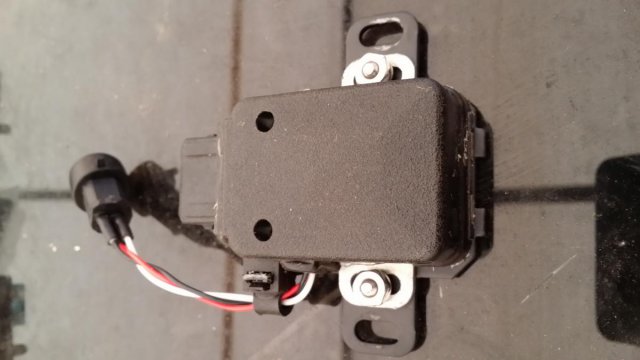

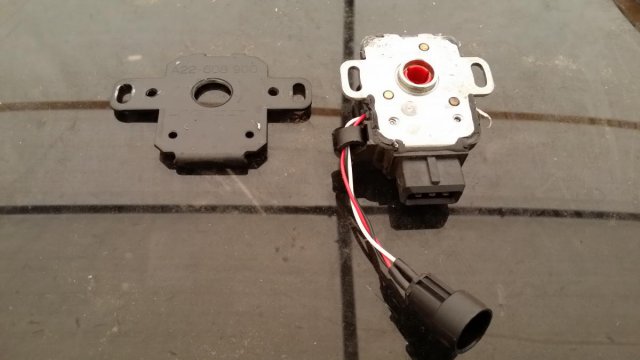

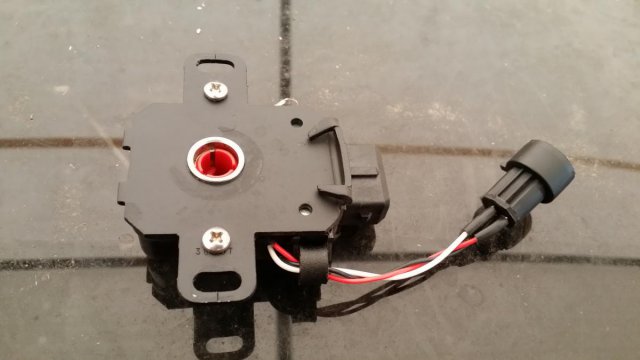

I've had a few clients asking about using a 240SX TPS with their stock 280ZX Throttle body. You can sacrifice the stock 280ZX Throttle Position Switch and use it's back plate as an adapter for the 240SX TPS.  You just need to drill some holes and you're good to go.



Attached File  20141120_112312.jpg   62.49KB   6 downloads



Attached File  20141120_112340.jpg   66.04KB   3 downloads



Attached File  20141120_112438.jpg   65.11KB   4 downloads

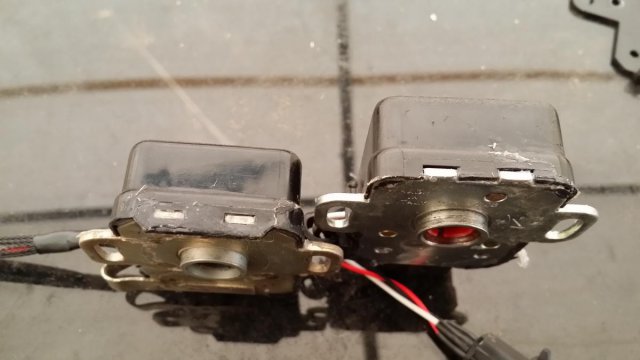

There is a small piece of plastic on the 240SX that needs to be trimmed down so the TPS will sit flush on the adapter.



Attached File  20141120_112635.jpg   64.33KB   4 downloads


1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#10 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 05 December 2014 - 08:52 AM

First two orders on their way with the third and fourth to follow shortly :)  Hopefully we can get some installation pictures up for you guys soon.


1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#11 Dat260Z

Dat260Z
  • Locationsavannah,ga

Posted 05 December 2014 - 07:26 PM

Box of SDS stuff is on the way ! look forward to seeing the finished product!


Late 74' 260z L28/p90 with round top SU's daily driver for 3 years. Pulled drivetrain recently for paint , delete everything in engine bay/wire tuck for L28et with SDS EM4-6F. Suspension consists of: TTT front and rear control arms, TC rods , Ron Tyler diff mount, TTT coilvers (soon to be sectioned strut tubes with new inserts), z32 30mm front brakes with 11.6" vented rotors. Rear brakes are JSK rotor hats, 12.2" vented rotors with 4 piston C2P aluminum racing calipers. Stainless brake lines on all 4 corners . R200 3:90 open rear end at the moment, hopefully upgrading to an LSD unit after the turbo swap is complete

#12 alexx933

alexx933
  • LocationSequim, WA

Posted 13 December 2014 - 02:55 PM

I just picked up my harness from the post office! I can tell you all that the level of craftsmanship and expertise that went into these is phenomenal. The posted pictures do absolutely no justice.



Each set of wires is shielded and marked. Each connector is heat shrinked. He even gave me the complementing side of the connectors.



It may be a while before I install mine, but I will get some pictures up later!



#13 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 31 December 2014 - 09:14 AM

Last of the orders for the initial run going out on Friday.  Turns out there is a huge demand and a very positive response on the product so I'll post this as a group buy with this discounted pricing for HybridZ members - Prices elsewhere will be higher.


1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#14 Kenji

Kenji
  • LocationSoCal

Posted 31 December 2014 - 09:19 AM

I am interested in a harness for 240z chassis with an LS1 in it.



#15 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 13 January 2015 - 11:13 AM

PMed you Kenji but I'm not sure if you ever got it.


1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#16 docaam

docaam
  • LocationDubai

Posted 25 January 2015 - 09:37 PM

Hi can you do a harness for L28 with ITBs, was planning to go for some other stand alone ECU, this is for skyline GC10



#17 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 25 January 2015 - 10:23 PM

Absolutely. Let us know what ECU you want to run and if your ITBs have a different offset for the injectors than stock. Send me a PM and we'll go over the details.

1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z


#18 OldAndyAndTheSea

OldAndyAndTheSea
  • LocationHenderson Harbor, NY

Posted 28 January 2015 - 03:47 PM

Posted the same on facebook.

High quality doesn't even begin to describe this man's work. Through a series of text conversations, a totally custom harness was designed and built for my project. Unbelievable patience, customer service, and the quality... I've yet to see anything comparable. Masterful work.



One of the best investments I've made to date (7 years of ownership).


PM me for any composites related inquiries.


#19 docaam

docaam
  • LocationDubai

Posted 07 March 2015 - 11:01 PM

Absolutely. Let us know what ECU you want to run and if your ITBs have a different offset for the injectors than stock. Send me a PM and we'll go over the details.



PM sent



#20 FricFrac

FricFrac
  • LocationVictoria, BC

Posted 28 September 2015 - 06:57 PM

So after almost a year of building MegaSquirt harnesses and pre configured MS units I've finally had a little bit of a lul in the action which let's me have some time to work on a complete custom body rewire on a VH45DE swapped 240Z. You can check out some of our builds at www.mackaypowerproducts.com

1969 Datsun 510 2dr Z22ET, 1972 Datsun 510 2dr L28, 1972 Datsun 240Z, 1981 Datsun 280ZX, 1981 Datsun 280ZXT 3.1l stroker, 1983 Datsun 280ZX, 1983 Datsun 280ZXT, 1993 300ZX Convertible, 2009 Nissan 370Z
