240Z LS3 TR6060 Build

240Z LS3 LS Swap Ford 8.8 TR6060 CXRacing

  • Please log in to reply
11 replies to this topic

#1 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 23 December 2016 - 01:07 PM

Picked up this non-running '73 240Z in Wisconsin, it came with an R200 (which I had planned to use, but am now going Ford IRS 8.8) and a mess of other stock parts.  It looked to be perfect for what I was building and after media blast it's quite solid other than floorboards so here we go.













Parts already here



-LS3 TR6060 dropout from a 2010 Camaro w/ 30k miles (lookup Midway Mustang Dewitt IA)



-CXRacing LS swap kit w/ headers and y pipe



-CXRacing Front LCAs and TC rods



-CXRacing adjustable coilovers



-T3 Rear LCAs



-Silvermine billet front 5 lug hubs



-Silvermine front wilwood brake kit



-Zedd FIndings Floorboards





Parts to order



-T3 rear backing plates



-T3 rear strut tubes



-Ford Explorer 8.8 Diff



-Z32 rear 5 lug hubs and brakes



-Wheels/Tires, S71B ~17x11 (5.5 backspace) and 17x9.5 (4.9 backspace).  315/35R17, 275/40R17



-Flares (TBD, maybe SSWorxs???)





My rear end will largely be based on Sunny Z's build.  Digging through the wheel forums it looks like 5.5" backspace on the rear is doable, any advice here on whether 5.5 is too much?  The T3 plates should put the wheel in the stock location.

Attached Files


Edited by NC88, 04 February 2017 - 02:01 PM.

1973 240Z LS3 TR6060


#2 Neverdone

Neverdone

    Always Here

  • Members
  • PipPipPipPip
  • 306 posts
  • LocationMilwaukie, OR

Posted 23 December 2016 - 01:23 PM

How are you attaching the Ford 8.8 to the frame?



Also, what axles are you going to use to go from the diff to the Z32 hub?



#3 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 24 December 2016 - 08:06 AM

Neverdone -http://forums.hybrid...ing ford rear

Just bought an '09 explorer diff. FYI 2007-2010 models are the one you want if you're looking for DUAL front mounts, earlier years had a single front diff mount.

1973 240Z LS3 TR6060


#4 trackzpeed

trackzpeed

    Always Here

  • Members
  • PipPipPipPip
  • 473 posts
  • LocationRedding

Posted 12 January 2017 - 10:28 PM

What's your opinion on the CXR fronts LCA's and TC rods? I brought those up awhile back based on price, never saw them in person, but they were generally shot down as "Chinese junk" by most of the community....... To be honest, I've been very happy with my CX LS swap kit, but will admit it has no critical moving parts to fail under load. Looking forward to your build. Thanks, Jim

#5 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 13 January 2017 - 10:48 AM

I guess I don't see a big difference in the design of the LCA and TC rods, others seemed quick to dismiss the CX stuff tho...whatever.



Update on build - floors are out and 1 of the 1x3 subframe connectors is in.  Also ordered a set of WELD S71B wheels in "low pad height", which should clear the wilwood front and stock Z32 rear brake calipers.



http://www.jegs.com/...355959/10002/-1



The Z32 TT brakes and hubs showed up.  Unfortunately RockAuto lists Raybestos 711011 (Timken 511011) as a TT hub/bearing assembly, it definitely is not.  The axle flange wouldn't fit into the bearing.  Did some research/measuring and turns out I'm not the first to find this out.  RockAuto told me multiple times "the part is listed correctly" and wanted nothing to do with fixing the real issue.  The TT hubs are harder to find and more expensive.  Ended up going with Z1 motorsports for the 46mm I.D. hubs.



https://www.z1motors...z32-p-3700.html


1973 240Z LS3 TR6060


#6 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 20 April 2017 - 06:59 AM

Lots of parts going together.  Floors and connectors are done, Sparco R100s mounted, front suspension has been mocked up and the wheels clear.  Not sure my rear wheels will ever show, so I went ahead and ordered some 15x10 Aeros and Mickey Thompson 26x12x10's.  Hopefully it will be off to get a roll cage soon.



20170315_221211_zpsmm8q2d2f.jpg20170226_201552_zpsrmntlu4n.jpg20170418_222652_zps7qq4ciaj.jpg20170418_222415_zpsaprb8o5p.jpg20170418_222519_zpsshesbsdh.jpg20170315_221510_zpswukhy0qz.jpg


Edited by NC88, 20 April 2017 - 07:02 AM.

1973 240Z LS3 TR6060


#7 Neverdone

Neverdone

    Always Here

  • Members
  • PipPipPipPip
  • 306 posts
  • LocationMilwaukie, OR

Posted 20 April 2017 - 08:20 AM

Did you put the frame rails on top of the the new floor pans?



#8 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 20 April 2017 - 09:09 AM

They are through-floor, 1x3 tubing.


1973 240Z LS3 TR6060


#9 Dark240Z

Dark240Z

    Newbie

  • Members
  • Pip
  • 5 posts
  • LocationWashington, DC

Posted 12 May 2017 - 05:45 AM

I'm thinking of going LS3 for my Z as well. Also thought about utilizing the the spare tire well as a fuel cell holder, but I want a cell big enough where I can hop in the car and drive 3-4 hours without worrying about a fill up.



How big is the cell you put in? Can't tell by the lettering.



#10 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 12 May 2017 - 06:50 AM

8 Gallon.  https://www.summitra...arts/abt-171115


Edited by NC88, 12 May 2017 - 06:52 AM.

1973 240Z LS3 TR6060


#11 Dark240Z

Dark240Z

    Newbie

  • Members
  • Pip
  • 5 posts
  • LocationWashington, DC

Posted 12 May 2017 - 08:16 AM

Thanks. Probably too small for me so I may still mount a larger cell in the stock tank location.



I have a few other questions since I haven't started ordering parts yet - still stripping my Z down to send it out for sand blasting and primer.



For the trans..are you having to custom fabricate a trans mount by hacking up the original one? Or is there a bolt-in mount?



I was thinking of going with the bougie LS3/T56 combo but I wasn't sure what trans mount options were available - if any.



#12 NC88

NC88

    Newbie

  • Members
  • Pip
  • 15 posts
  • LocationLe Claire, IA

Posted 12 May 2017 - 08:32 AM

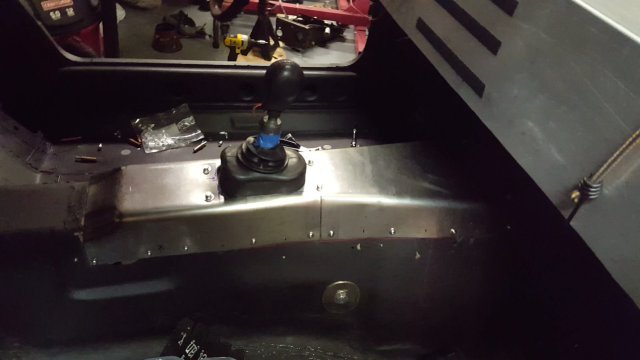

I'm using the CX racing LS swap kit (comes with engine and trans mounts, headers, y pipe, and exhaust if you want, but I just got the y pipe), but havent test fit anything yet.



Members Crapforum and jz 90 are using a TR6060 with the kit.



http://forums.hybrid...60-build/page-3


1973 240Z LS3 TR6060
