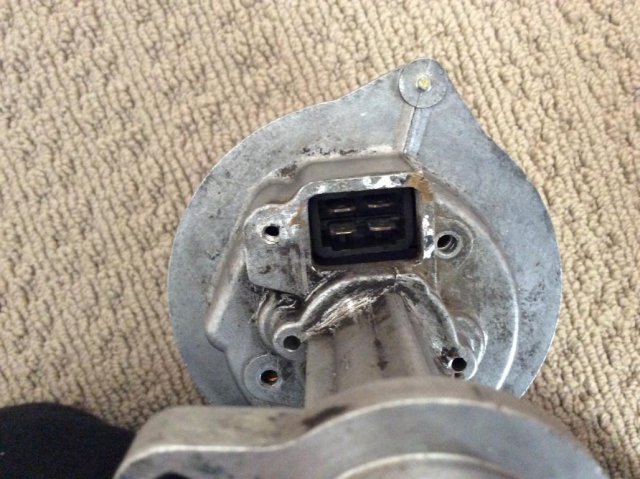

andypurce Posted October 15, 2014 Share Posted October 15, 2014 (edited) I am building a turbo L28 engine stroked and bored to 3.1 litres with an upgraded turbo. I have the 1983 CAS dizzy driving my Microtech ECU and Igniter box. I don't have the wiring harness for the dizzy that has the Green, black, red, white wires from the dizz going to Gr/Ye, Black, Bl/Wh, Gr/Bl wires in the EFI harness. I have read every post on this and there are some that describe the connections that correspond on the dizz end to the colours BUT there isn't one that correlates with another, in other words there are CONFLICTING posts. So I really need to get the correct way round. Here are the options I have seen. Looking at the dizzy four spade male connector box with the screw hole for fastening the harness on the top left corner.(see pic): One post says starting at top left going clockwise: Red, Green, Black, white. Second post says (same rotation) : Green, Red, Black, White. Also, if I am reading the FSM correctly it agrees with post one above. Can anyone Please help and confirm which is correct? Many thanks guys. Andy Edited October 15, 2014 by andypurce Quote Link to comment Share on other sites More sharing options...
NewZed Posted October 15, 2014 Share Posted October 15, 2014 Attach links to the threads you've read so people don't waste time referring you to them. There was a very good one recently on this exact topic. Quote Link to comment Share on other sites More sharing options...

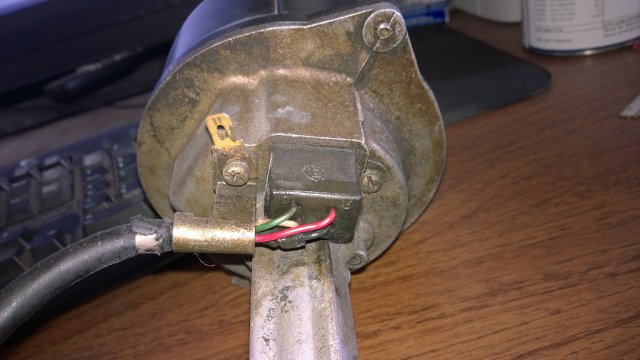

Sam280Z Posted October 16, 2014 Share Posted October 16, 2014 I have a post in this thread that shows how the optical CAS is wired. http://forums.hybridz.org/topic/116315-my-ms3ms3x-full-sequential-sparkfuel-settings/ Quote Link to comment Share on other sites More sharing options...
cgsheen Posted October 16, 2014 Share Posted October 16, 2014 Like this... Quote Link to comment Share on other sites More sharing options...
andypurce Posted October 22, 2014 Author Share Posted October 22, 2014 Thank you very much all of you. Solved! Quote Link to comment Share on other sites More sharing options...
