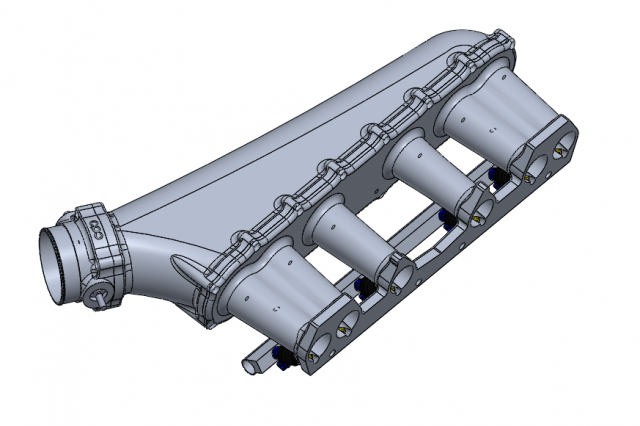

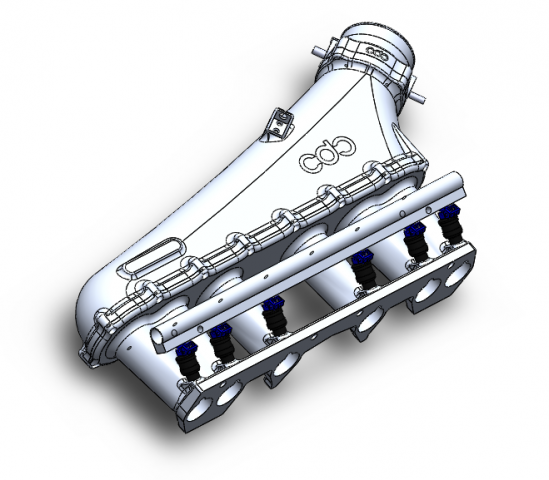

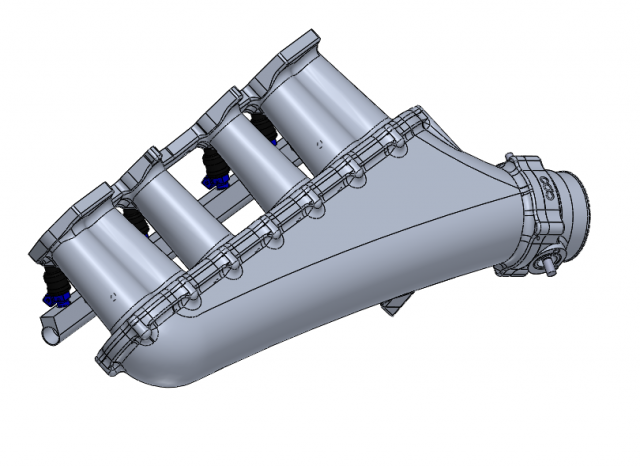

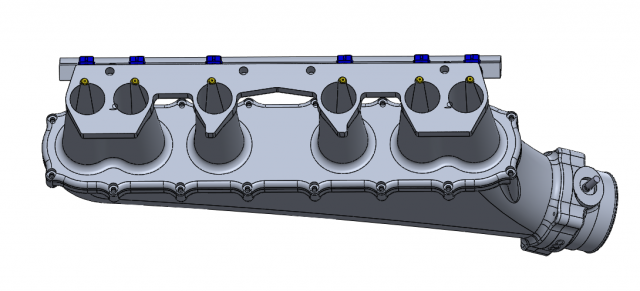

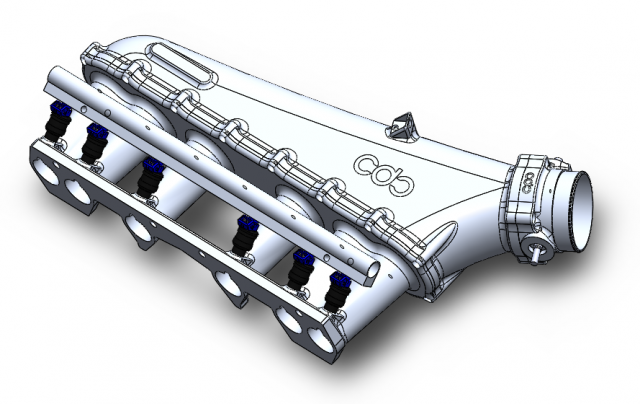

ISL33P Posted September 9, 2015 Share Posted September 9, 2015 Just thought I would share something I have underway for a customer in UAE. Thought it might excite a few people Cheers, Ariel Quote Link to comment Share on other sites More sharing options...
wolfalp1592 Posted September 9, 2015 Share Posted September 9, 2015 Looks great, cant wait to see more. Quote Link to comment Share on other sites More sharing options...
madkaw Posted September 10, 2015 Share Posted September 10, 2015 Cool! Quote Link to comment Share on other sites More sharing options...
roger280zx Posted September 10, 2015 Share Posted September 10, 2015 Very pretty! How is the distribution to the siamesed runners? Distribution in 1, 5, and 6 has been an issue with these long engines before.. and is often a persistent one with the front mounted TB. All that aside its a beautiful piece, as is your other works (I follow on instagram) and I love the bolt on plenum. Quote Link to comment Share on other sites More sharing options...
ISL33P Posted September 14, 2015 Author Share Posted September 14, 2015 Not bad at all actually. Since I have tried to separate them as much as possible to reduce the negative effect the pair ports have. Traditionally all plenums with a throttle moved away from runner one will flow a little less but I do my best to negate this with the straightest path possible. I have found adding a tight radius the plenum toward #1 reduces the flow and then causes turbulence and effecting cylinder #2 aswell, hence the slightest bend possible. I am just finishing this design so I might end up just making it straight once I am done. Quote Link to comment Share on other sites More sharing options...
supernova_6969 Posted September 21, 2015 Share Posted September 21, 2015 Very nice. Besides loiking awesome what do you expect somw of the advantages over stock will be, and why (please speak for us non-professionals). Is it going to be two pieces joined by screw? With or without gasket? Im guessing thats for ease of fabrication ( not solely for the awesome factor)... Quote Link to comment Share on other sites More sharing options...
ISL33P Posted September 21, 2015 Author Share Posted September 21, 2015 There are several reason for this modification: - remove the factory setup which can become restrictive - take advantage of a higher flowing manifold but more importantly something that flows more evenly between cylinders - it is a complete two piece manifold which bolts together and has an o'ring on all mating faces I am also working on an ITB setup for the naturally aspirated guys Quote Link to comment Share on other sites More sharing options...
Chickenman Posted September 21, 2015 Share Posted September 21, 2015 Looks beautiful. Are you using radius-ed trumpets inside the Plenum or flush mount? How much and when can I order one? Quote Link to comment Share on other sites More sharing options...
ISL33P Posted September 21, 2015 Author Share Posted September 21, 2015 These use radiussed bellmouths. Best to email sales@customeplenums.com for ordering Quote Link to comment Share on other sites More sharing options...
Nelsonian Posted September 22, 2015 Share Posted September 22, 2015 Very nice looking intake there Ariel. I see you have something for a 2jzgte as well. Would that fit nicely with the angle into an S30? Will be in need of one sooner than later with my build. Quote Link to comment Share on other sites More sharing options...
ISL33P Posted September 22, 2015 Author Share Posted September 22, 2015 Thanks. I am pretty confident it will not be a problem. Quote Link to comment Share on other sites More sharing options...
texis30O Posted September 22, 2015 Share Posted September 22, 2015 Will you do any flow testing on the manifolds? Quote Link to comment Share on other sites More sharing options...
ISL33P Posted September 22, 2015 Author Share Posted September 22, 2015 Yes I have been carrying out CFD testing Quote Link to comment Share on other sites More sharing options...
z-ya Posted September 23, 2015 Share Posted September 23, 2015 Very nice looking design. Quote Link to comment Share on other sites More sharing options...
ISL33P Posted September 24, 2015 Author Share Posted September 24, 2015 Thanks z-ya Quote Link to comment Share on other sites More sharing options...
