RB26powered74zcar Posted July 5, 2006 Share Posted July 5, 2006 oops sorry for not responding earlier...I didnt even know this thread had come back again. I have some time this weekend, so I promise to take lots of pictures, compile my notes and post regarding this. In the future though Its probably best to just PM me, guaranteed I will respond much faster Thanks Sparks.... I'm greatfull Link to comment Share on other sites More sharing options...
CableSrv Posted March 15, 2007 Share Posted March 15, 2007 any pics for wiring the 280z wipers ? I've been able to get the low, high speed working but nothing on intermittent has anyone got that working yet ? Link to comment Share on other sites More sharing options...
zdog Posted June 4, 2007 Share Posted June 4, 2007 Hey Guys, I have a 72 240Z that is in dire need of a new wiring harness. Have by passed starter relay that fried along with a few other things such as all lights. She'll start right up and goes like stink but the wiring under the dash is totally shot. Doing some weird things. I want to do this myself and feel with the right amount of patience I can but don't know what aftermarket harness to get or to try a used one from salvage yard. Any advice you can give would be appreciated. Thanks Link to comment Share on other sites More sharing options...
BillZ260 Posted September 11, 2007 Share Posted September 11, 2007 Just to keep the info in this thread, I updated my ignition switch wiring this week. HERE http://forums.hybridz.org/showthread.php?t=118969 Link to comment Share on other sites More sharing options...
PUSHER Posted January 4, 2008 Share Posted January 4, 2008 Can anyone explain how the painless harness hooks up to a 280z alternator/voltage regulator? Not really sure where the wire labeled: 'Alternator Exciter' or 'Solenoid Power' goes. Thanks. Link to comment Share on other sites More sharing options...
Mikelly Posted January 5, 2008 Share Posted January 5, 2008 On the following wires I think it's important to know how to energize them... This drove me nuts... 932 is the Brown FEED for parking/gauge lights and needs a switched 12v source. On the stalk, as the guys have mentioned the green/white and green/black wire are the two you want to use for 927/929/930. I ran a jumper off the main red/black feeder to the red wire on the stalk and jumped it over to the green/black. Then I ran 927/929/930 (all brown) to the green/white. Now all my parking/gage lights work off the switch! Mike Link to comment Share on other sites More sharing options...
BillZ260 Posted January 6, 2008 Share Posted January 6, 2008 Mike, Glad you got it sorted. Can anyone explain how the painless harness hooks up to a 280z alternator/voltage regulator? Not really sure where the wire labeled: 'Alternator Exciter' or 'Solenoid Power' goes. Thanks. Not sure, most of the painless kits are built towards rewiriring utilizing GM alternator with the internal regualtor. I personally went w/ a 1-wire hook up. There is no reason you couldn't swap your alt over to the GM one. Link to comment Share on other sites More sharing options...
BillZ260 Posted January 11, 2008 Share Posted January 11, 2008 Ran across this and though I'd post it here... The Painless Manual... http://www.painlessperformance.com/Manuals/90501Manual.pdf Link to comment Share on other sites More sharing options...
BillZ260 Posted January 15, 2008 Share Posted January 15, 2008 Can anyone explain how the painless harness hooks up to a 280z alternator/voltage regulator? Not really sure where the wire labeled: 'Alternator Exciter' or 'Solenoid Power' goes. Thanks. Pusher, did you see my simular posts on the ALT stuff? Exciter wire probably needs a 6Amp diode with the strip towards the Alt, hook the wire to the #1 post. For the #2 post, make a little jumper to the BATT post. Other thread...http://forums.hybridz.org/showthread.php?t=128977 Link to comment Share on other sites More sharing options...
Tanman280z Posted September 24, 2008 Share Posted September 24, 2008 Is it possible that you can send me this pic of the wiper wiring? I would greatley appreciate it. Thanks. Link to comment Share on other sites More sharing options...
Tanman280z Posted September 27, 2008 Share Posted September 27, 2008 First off, I just want to say thanks and show my appreciation to those who have posted on this thread with answers. It has really helped. Thanks again. Okay, I cant find anything on the wiper "Amp assy INT. wiper". I just need to know what wire does what so I can finish installing the painless wiring harness. If anyone know or can direct me in a better path. Please let me know. Thank you in advance. Link to comment Share on other sites More sharing options...
BillZ260 Posted September 29, 2008 Share Posted September 29, 2008 Sorry, I STILL have not wired up my wipers as of yet, so they are not hooked up. Link to comment Share on other sites More sharing options...

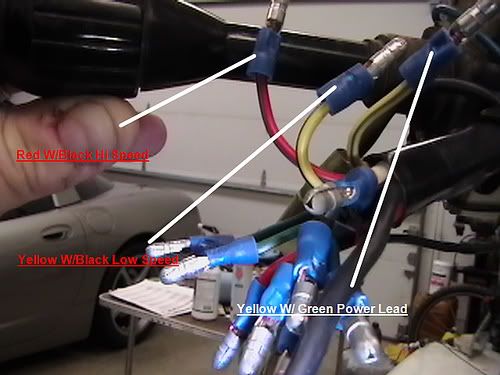

Mikelly Posted December 1, 2008 Share Posted December 1, 2008 Assuming I don't get another corrupt files issue with photobucket, here is a pic of the wiring for the wipers. Mike Link to comment Share on other sites More sharing options...
badjuju Posted January 17, 2009 Share Posted January 17, 2009 Wow. I'm reading this sucker a hundred times between now and my actual install. The harness is in the car, waiting for me to start stripping and crimping. Thank you for all the great posts guys! Link to comment Share on other sites More sharing options...
lgoodson@pacbell.net Posted January 23, 2009 Share Posted January 23, 2009 I want to run this 2-speed Taurus fan using my PCM, The PCM is designed to operate 2 seperate fans? Instead of 2 fans. can it be set up to run the 2 speeds. Anyone done this? Thanks for the help Larry Link to comment Share on other sites More sharing options...
jimes240z Posted April 3, 2009 Share Posted April 3, 2009 hey i'm new to this forum and i have a 72 240z. I decided to go with a not so painless wiring harness 18 circuit and can't seem to figure out where a few wires go. i've got most of the answers i was looking for on this thread but i wanted to know if anyone has a picture of the wiring between the voltage regulator and the alternator. original wires or painless wires. this is the only thing left for me and i can't seem to get this down right. i don't know what wires really go to the voltage regulator. diving me crazy. Link to comment Share on other sites More sharing options...
GrenadeZ Posted April 4, 2009 Share Posted April 4, 2009 I took out the old alt, voltage regulator, and am swapping in a GM 12si unit. Search Gm 12si and there are a couple threads on the subject and other Gm altenators. I found the one by hizandherz very helpful. Im having a friend and electrician wire mine but i purchased the EZ 21 circuit harness and it had an altenator circuit in the fuze box, forgoing the need for the fusible links and the altenator has a voltage regulator already built in. The Ez wiring harness I have is Gm based to the altenator wired right up. When Its all finished Ill try to put up pics in a seperate thread. Link to comment Share on other sites More sharing options...
BillZ260 Posted October 5, 2009 Share Posted October 5, 2009 Anyone having any issues with fuses tripping on thier painless harnesses? Currently my turnsignal fuse will last about 10 minutes, and when it goes, I loose the dash lights, guages stop working, turn signals stop, and brakes stop. I don't recall having this issue in the past, but to be honest, I just got the car back home after having it in storage for a year or so. Any thoughts? I think I might have too much of a load on that circuit and didn't realize I had everything wired up on the same one. But the wires are labled, so that doesn't make a lot of sense, but this was my first wiring job... Thanks. Link to comment Share on other sites More sharing options...
BillZ260 Posted January 26, 2010 Share Posted January 26, 2010 Pulled all the dash wiring and the fuse stopped blowing, now to find some time and replace everything one at a time. Link to comment Share on other sites More sharing options...
badjuju Posted March 19, 2010 Share Posted March 19, 2010 Sorry to ask such a stupid question but... On the combo switch, are the wires on either side of that 9 pin plug the same colors? I dont have the harness side of it! Havent been able to find one at a yard either :\ Link to comment Share on other sites More sharing options...
