JMortensen Posted December 11, 2006 Share Posted December 11, 2006 That's probably assuming the cowl isn't barely attached to the firewall due to rust. Mine was and I suggest that anyone who is going to triangulate the strut tower bar to the firewall should check their cowl before loading it too heavily... Quote Link to comment Share on other sites More sharing options...
johnc Posted December 11, 2006 Share Posted December 11, 2006 Step 1 in building your HybridZ: Ensure the structurual integrity of the basic chassis... Quote Link to comment Share on other sites More sharing options...
Guest Mike Posted December 11, 2006 Share Posted December 11, 2006 "ORIGINAL POST DELETED BY AUTHOR" Dang... I must be losing my marbles to have become such a rude, abnoxious fool. I'm working on my lousy attitude... Mike Quote Link to comment Share on other sites More sharing options...
johnc Posted December 11, 2006 Share Posted December 11, 2006 I'm sick of people trying to sound like "experts". But Mike, I consulted with "experts" on the design of the front STB mentioned above. Bill Savage did a lot of the chassis design and upright fabrication on Nissan's GTP cars when he worked with NPTI in the late 1980s and early 1990s. He has also built a number of off-road winning race trucks for Nissan. I would consider him to be an "expert" on chassis design and reinforcement. You may not like how he (or I) sound, but that doesn't diminish his "expert" status. Quote Link to comment Share on other sites More sharing options...
Careless Posted December 12, 2006 Share Posted December 12, 2006 I have some close-up pictures of the mounts in one of my galleries. http://album.hybridz.org/showgallery.php?cat=702 i absolutely love the way you've made those STB mounts, but I'm curious to know: 1) what type of metal you used? thickness? 2) how would one close the hood, or is it an aftermarket hood that is attached with pins elsewhere? Quote Link to comment Share on other sites More sharing options...
johnc Posted December 12, 2006 Share Posted December 12, 2006 I can't take credit for making them, although using my monkey-see, monkey-do engineering skills I've made a duplicate setup in a customer's car. The originals on my car were made by Ivan at Bill Savage's shop. Material is 4130 and wall thickness is .083. Forgot, they fit under a stock hood and the hood on my car was pinned on all around. Quote Link to comment Share on other sites More sharing options...
Careless Posted December 13, 2006 Share Posted December 13, 2006 I can't take credit for making them, although using my monkey-see, monkey-do engineering skills I've made a duplicate setup in a customer's car. The originals on my car were made by Ivan at Bill Savage's shop. Material is 4130 and wall thickness is .083. Forgot, they fit under a stock hood and the hood on my car was pinned on all around. beautiful. Quote Link to comment Share on other sites More sharing options...
Guest rayjay Posted December 13, 2006 Share Posted December 13, 2006 You definitely don't want to attach the brace to the core support. A relatively light impact crash could do some major damage to the strut towers. Quote Link to comment Share on other sites More sharing options...

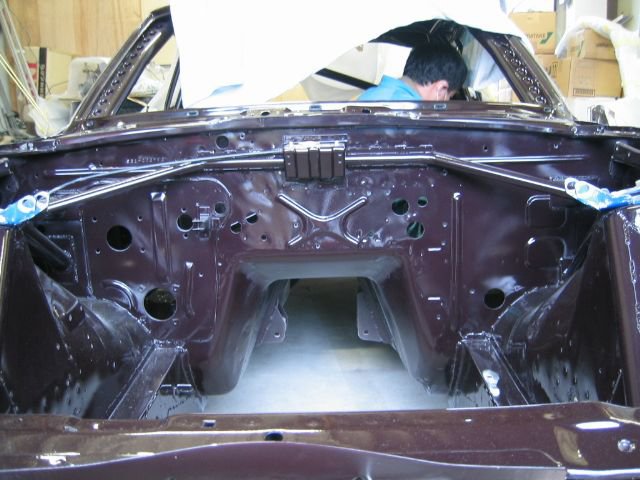

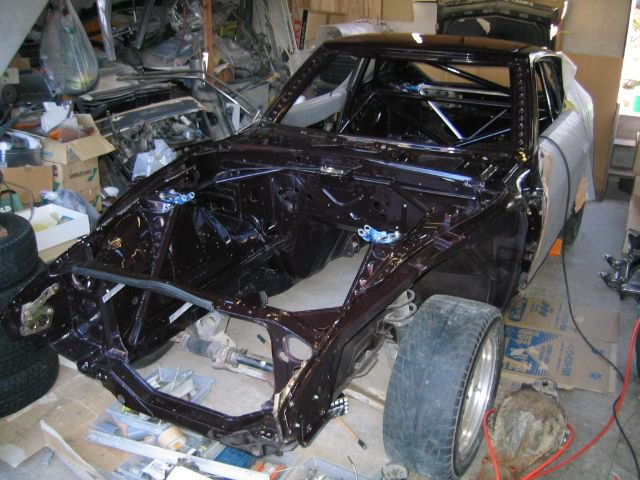

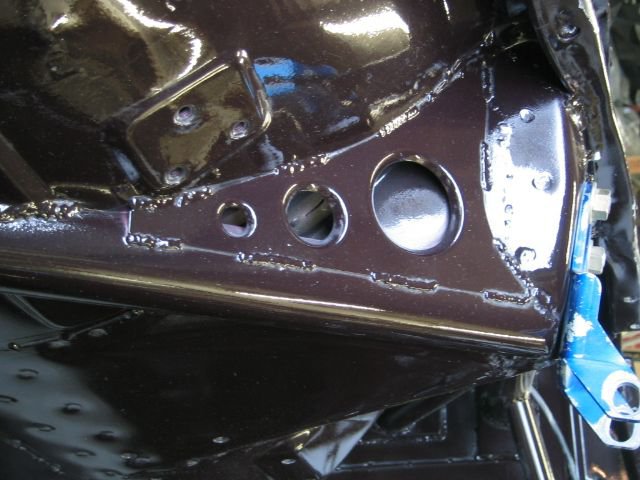

OlderThanMe Posted December 13, 2006 Share Posted December 13, 2006 Quote Link to comment Share on other sites More sharing options...
Careless Posted December 13, 2006 Share Posted December 13, 2006 i think im gonna find the lowest sitting engine i can possibly acquire... (ej20) and just weld in a huge 3/16" second hood that will just weld into the entire engine bay opening. that should provide enough structural support to be used as a bomb shelter, since the Z is the only thing i enjoy that i have stuck to my name. questions? comments? concerns? metal donations?! Thanks =) Quote Link to comment Share on other sites More sharing options...
EMWHYR0HEN Posted December 14, 2006 Author Share Posted December 14, 2006 Here's my finished product. Given my situation, I think the bar is pretty stiff for its shape. The good news is my welding instructer is selling me his TIG welder, which means I'll be able to redesign everything and do all the good stuff at home! Quote Link to comment Share on other sites More sharing options...
olie05 Posted December 14, 2006 Share Posted December 14, 2006 Looks strong. Looks close enough to the line of a straight STB to be effective, although thats a matter for debate. Just out of curiousity... Did you have a tubing notcher at your disposal, or did you use a grinder? Quote Link to comment Share on other sites More sharing options...
EMWHYR0HEN Posted December 14, 2006 Author Share Posted December 14, 2006 Just out of curiousity... Did you have a tubing notcher at your disposal, or did you use a grinder? Just my good old grinder and a hacksaw did the job. Quote Link to comment Share on other sites More sharing options...
Pop N Wood Posted December 14, 2006 Share Posted December 14, 2006 That should be effective. Maybe not the 100% pristine engineering solution, but some times you have to work with what you have. Quote Link to comment Share on other sites More sharing options...
katman Posted December 15, 2006 Share Posted December 15, 2006 5 more pounds of downforce.... Quote Link to comment Share on other sites More sharing options...
Administrators RTz Posted December 15, 2006 Administrators Share Posted December 15, 2006 Don't be like that Kat... its probably only 4.5 lbs Quote Link to comment Share on other sites More sharing options...
OlderThanMe Posted December 15, 2006 Share Posted December 15, 2006 when you can...weld some extensions on from the corners of the bar and have it bolt on to the corners of the rad support. And then do the firewall reinforcement later on. Quote Link to comment Share on other sites More sharing options...
EMWHYR0HEN Posted December 15, 2006 Author Share Posted December 15, 2006 when you can...weld some extensions on from the corners of the bar and have it bolt on to the corners of the rad support. And then do the firewall reinforcement later on. ahh this bars only gonna be "for the mean time", I have plans to move the engine back and down sometime soon. Quote Link to comment Share on other sites More sharing options...
EMWHYR0HEN Posted December 15, 2006 Author Share Posted December 15, 2006 5 more pounds of downforce.... You just don't get it do you. You need to stop being so hardcore, pull the stick outa your butt and lighten up cat. Quote Link to comment Share on other sites More sharing options...
Pop N Wood Posted December 15, 2006 Share Posted December 15, 2006 Katman can be pretty, ahh, direct. But what he says is usually worth listening to. Overall a good guy to have contributing to your threads. Quote Link to comment Share on other sites More sharing options...
