stony Posted January 31, 2014 Author Share Posted January 31, 2014 Well i finally completed something i have been putting off forever. Wiring. its not all done BUT all i really have to do is run wires (14 to be exact) and clean up the engine harness under the dash and its done. This is the first time time i have ever attempted something like this. Probably wont do it again either. VERY TIME CONSUMING!!! Quote Link to comment Share on other sites More sharing options...
mtnickel Posted January 31, 2014 Share Posted January 31, 2014 Wow that is Tidy! Does this replace all the original wiring as well? Mounts on the firewall or passenger kick area? I need to do mine soon but was going to relegate a large portion of relays and such to the engine bay beside the battery. I picked up one of these from the wrecker and am going to repurpose it a bit: Quote Link to comment Share on other sites More sharing options...
stony Posted February 1, 2014 Author Share Posted February 1, 2014 Its mounted in the passenger kick area where the stock fuse block used to be. It replaces all the wiring. the block with 4 fuses is for the engine harness and the bigger one is for the rest of the chassis, lights and everything. Quote Link to comment Share on other sites More sharing options...
stony Posted February 9, 2014 Author Share Posted February 9, 2014 Sat down, well laid down in the car and got just about everything wired up. Just need to do the nitrous circuit and the chassis harness. Also got in all my certified tranny shields. Only thing left is my flez plate and its in the mail ;> Quote Link to comment Share on other sites More sharing options...
stony Posted February 14, 2014 Author Share Posted February 14, 2014 Got my new flexplate in today and installed it. Trans in Had to put this belt in before I put the center tunnel in. Center tunnel in Shifter in. I’m going to try and get the dash in tomorrow. Also need to finish installing torque converter bolts. Then do A LOT of cleanup before final wiring. Quote Link to comment Share on other sites More sharing options...
stony Posted February 23, 2014 Author Share Posted February 23, 2014 Car is coming along nicely. Got motivated and actually cleaned up the interior and installed the dash. Put the battery in and after the garage was heated up to around 75 degrees the car started right up!!! Quote Link to comment Share on other sites More sharing options...

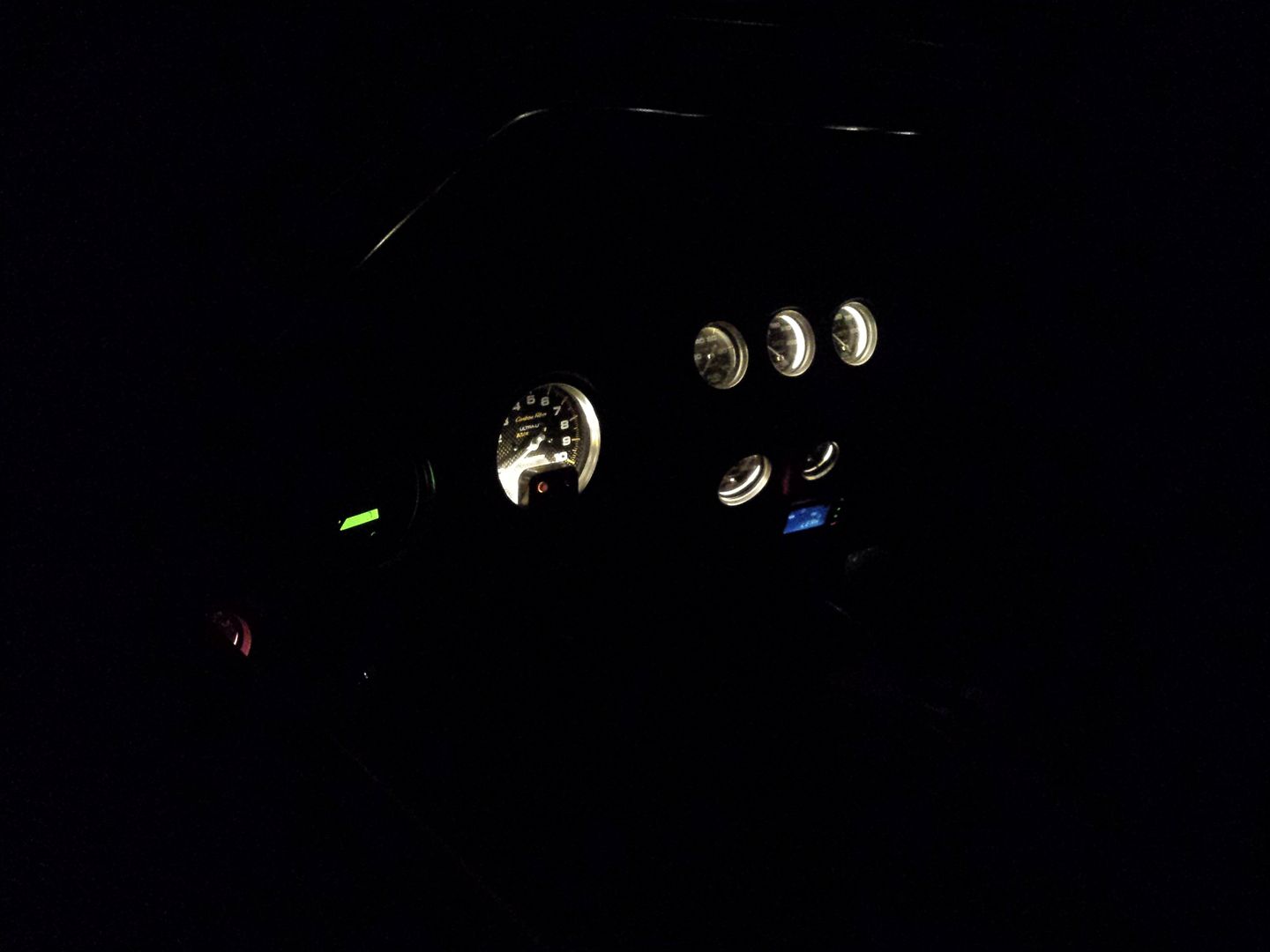

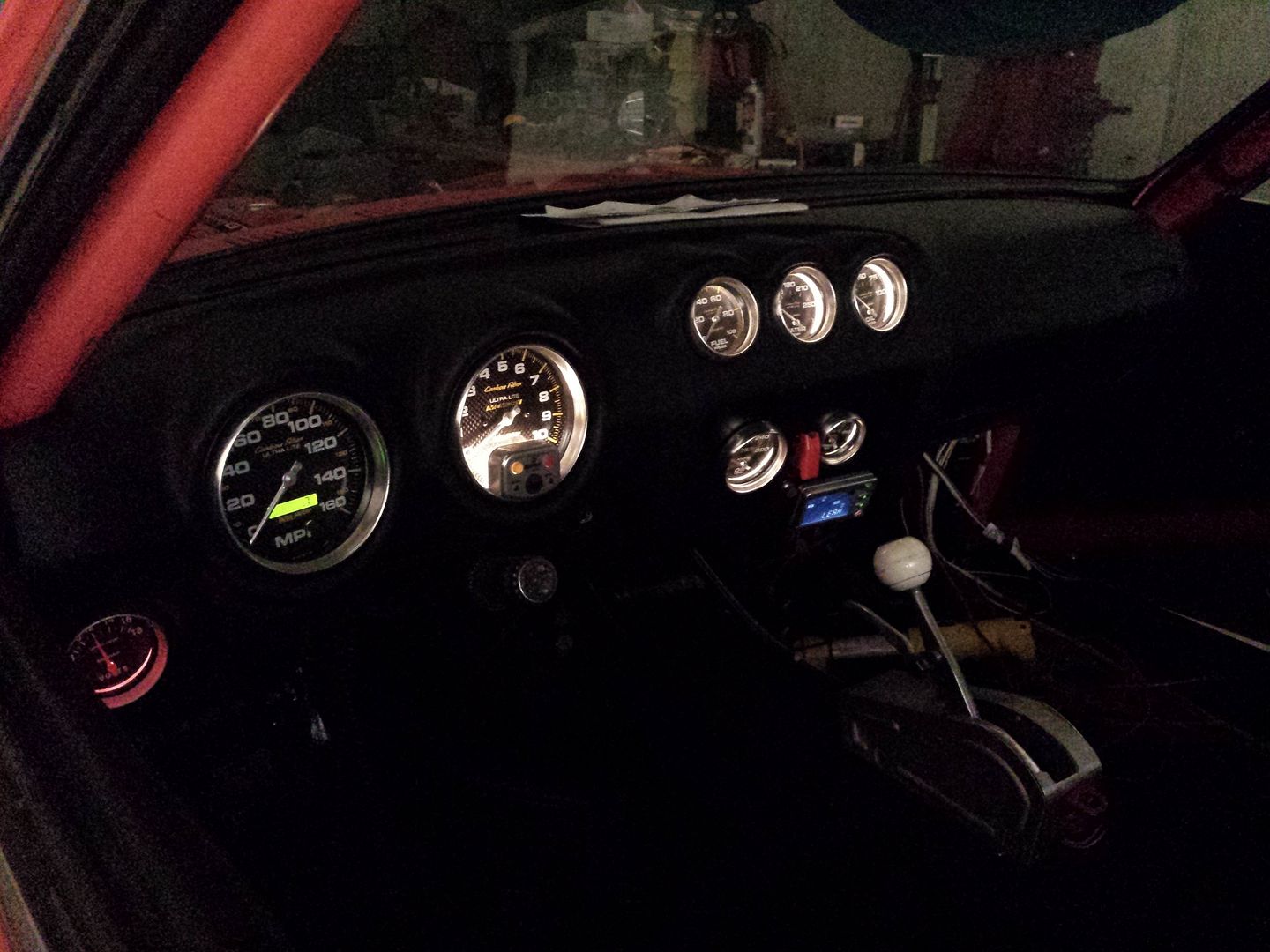

stony Posted February 27, 2014 Author Share Posted February 27, 2014 More boring pics... Got the dash all wired up all the gages work. speedo has a burnt bulb ;< Also got the line lock, Trans brake, and neutral safety switch all wired up and ops checked!!!! Quote Link to comment Share on other sites More sharing options...
stony Posted February 28, 2014 Author Share Posted February 28, 2014 Now the question will be is it too loose? Click pic Quote Link to comment Share on other sites More sharing options...
stony Posted March 2, 2014 Author Share Posted March 2, 2014 Brakes bled, seat and belts in... time for a drive....crap its raining ;< Quote Link to comment Share on other sites More sharing options...
flatrate Posted March 3, 2014 Share Posted March 3, 2014 I know how ya feel, i just got my R230 retrofitted and installed into the car and its pouring rain Quote Link to comment Share on other sites More sharing options...
340ZXTTAZ Posted March 3, 2014 Share Posted March 3, 2014 Hey Stony where did you get the power and ground distribution blocks posted a couple of post back? Quote Link to comment Share on other sites More sharing options...
stony Posted March 3, 2014 Author Share Posted March 3, 2014 http://www.vteworld.com/content/electromech/busbar/terminal_busbars.php Quote Link to comment Share on other sites More sharing options...
stony Posted March 7, 2014 Author Share Posted March 7, 2014 Looks like i may not need nitrous after all. On the rev limiter building 15 psi no rev limit 20 psi Quote Link to comment Share on other sites More sharing options...
ZT-R Posted March 7, 2014 Share Posted March 7, 2014 (edited) You should upgrade that snail at some point *edit, had to capitalize the Y in you before Joel demotes me* lol Edited March 7, 2014 by ZT-R Quote Link to comment Share on other sites More sharing options...
stony Posted March 7, 2014 Author Share Posted March 7, 2014 I want to see what it does on the current setup before i change anything. Quote Link to comment Share on other sites More sharing options...
SUNNY Z Posted March 7, 2014 Share Posted March 7, 2014 Mmmm. Boost. Quote Link to comment Share on other sites More sharing options...

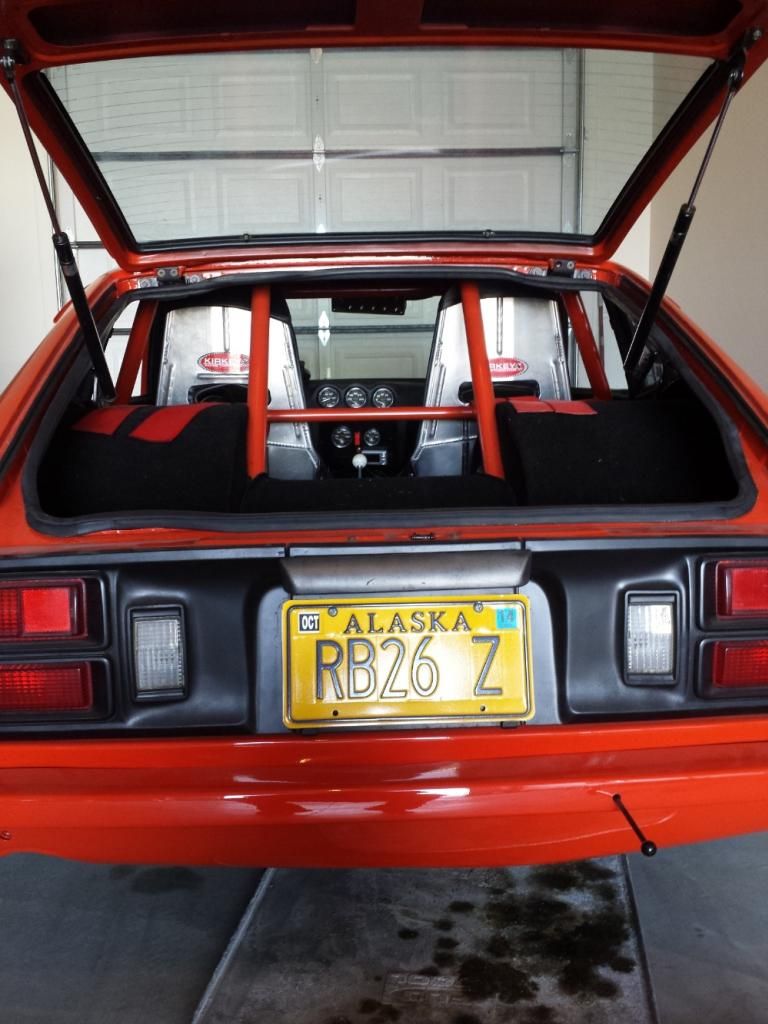

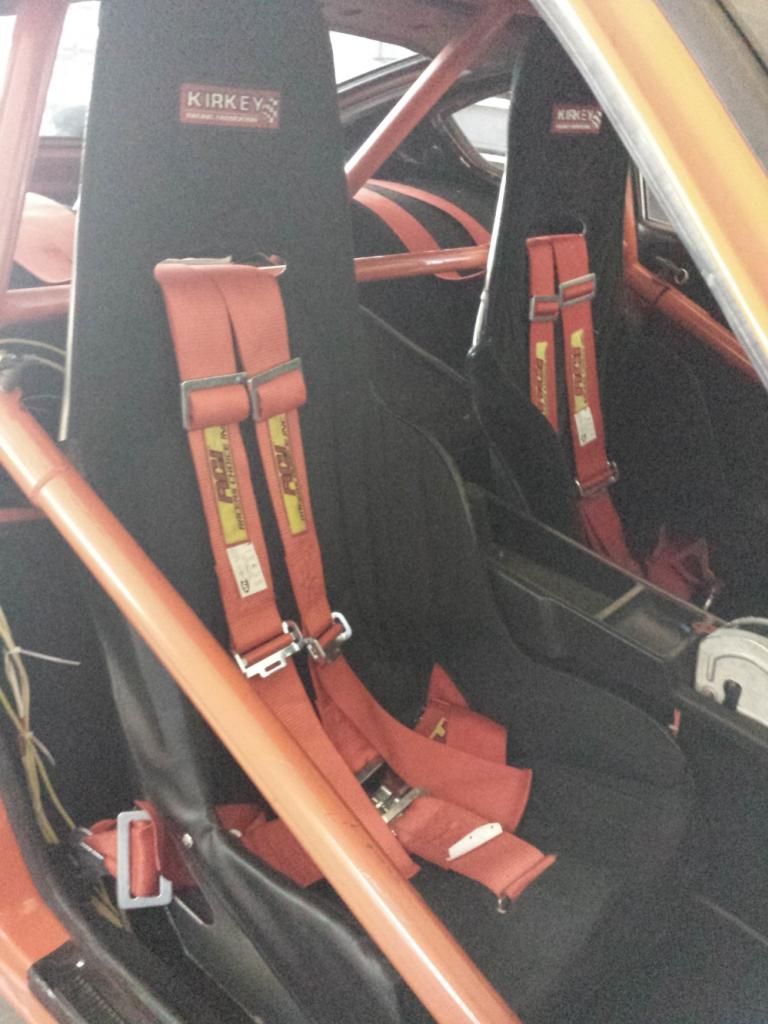

stony Posted March 14, 2014 Author Share Posted March 14, 2014 First time the Z has had seat bolted in with real seatbelts in both spots.... EVER Quote Link to comment Share on other sites More sharing options...
stony Posted March 22, 2014 Author Share Posted March 22, 2014 Well finalized the wiring today. Got my taillights wired up for the track. And played around a bit. Sorry in advance for the crap video. Quote Link to comment Share on other sites More sharing options...
stony Posted March 30, 2014 Author Share Posted March 30, 2014 Let some more smoke out of the tires today. Quote Link to comment Share on other sites More sharing options...
ZT-R Posted March 31, 2014 Share Posted March 31, 2014 Let the puppies breathe… Quote Link to comment Share on other sites More sharing options...
