A musician's therapist (The $300 Z)


Recommended Posts

I thought I had figured out the clutch, I was wrong. I think there's just not enough throw in the new clutch master cylinder. I realized that a lot of people actually have this problem so I swapped out the push rod from my old on into the new master cylinder. It's installed right now, but I haven't had a chance to bleed it.



Only things left to get it moving is clutch bleeding and new tires. I got a battery for it this week so I don't have to jump start it. I'll have to replace the air flow meter boot soon. I have a plugged up one from a 78 on there right now, but it's torn up and the engine is running super rich.



If anyone has alternatives for the AFM boot on a '76 I would greatly appreciate some suggestions... $50 for the one from MSA is money I could spend other places :/

Link to comment
Share on other sites

Major milestone in both life and in the Z car.



I graduated from my university this weekend, but more importantly... I bled the clutch properly and the car shifts quite well right now. Pumped up the lousy tires for a test drive and it actually feels quite good! I'll have a video when I take another short spin around the neighborhood tomorrow.



Time for metal work and paint stripping  B)

Link to comment
Share on other sites

Didn't get a chance to get some pics or video of the car moving today because we've been getting some pretty good rain. I'll get something once it's sunny again.



In the meantime I started cutting up the carpet that I bought over a year ago. It's all laid out and ready to go. center piece at the rear of the console was finished earlier. I'll have pics up in the morning when I finish the rest.

Link to comment
Share on other sites

Frankenstein lives:





Obviously I haven't put everything back on yet. Threw the taillights back on super fast just so i didn't feel too ratty, but she moves! Still finishing the back piece for carpet. Not sure if I'll have that totally done tonight, but pics will come as soon as it's done and I've thrown them on for a test fit.

Link to comment
Share on other sites

  • 2 weeks later...

Been raining a lot here the last few days. Haven't done too much last weekend, but earlier I got the chance to clean up the glass, particularly the nasty tint that was left on the driver side window. Took a couple hours of scraping even after using a window film adhesive remover.



Before (note that this is just a couple minutes after I had started. don't have a true "before" pic):




After:


Link to comment
Share on other sites

  • 3 weeks later...

Haven't been posting much lately. Been trying to apply for full time jobs and I was in Oregon for a few days just recently checking out a job offer. Finally made a cover for the tank. Made from aluminum my dad got at the scrapyard. It's bolted around the sides so I can access anything I want on the tank or the rear end down the road. Welded the fancy little things you see around the circle so I could bolt the plate down. It works well enough for now



Dad cutting the cover and a mockup




Fancy schtuff




Gives you an idea of placement pre-welded




Aaaand, painted and bolted on (mostly, you get the idea)




It's not perfect but it'll do for now.

Edited by Zetsaz
Link to comment
Share on other sites

  • 2 weeks later...

No pictures right now, but I've taken everything apart to prepare for metal work and hopefully sandblast this thing. There was way more bondo in some areas than I thought and it turned out to be more rust than I was hoping for, but the worst is in areas I already bought replacement panels for so I'm not too bummed.



I'm gonna have to buy the lower panel for the passenger fender though because I had no idea it was pretty much just rust and bondo. Live and learn I guess. The project keeps getting to be more and more work than I expected just go the the shell in decent condition, but my fuel setup will be solid for pretty much any engine I choose to swap down the road (especially an LS engine), and the interior with few exceptions is pretty much done. Just gotta patch up this metal which is gonna be a pita.

Link to comment
Share on other sites

SUPER IMPORTANT QUESTION:



When putting on new rocker panels, do people generally just spot weld them on like the originals, or do they make a seam like on butt joints? I've been searching for hours and most of the pictures I've found are sparse to say the least and there's not much detail in the descriptions on how to get the whole job done. I'm almost done completely removing the driver side, but I'm still slightly confused by a couple things.

Link to comment
Share on other sites

Put it on the same way the factory did - with spot welds. The rockers are a major structural point of the chassis too, so make sure you put some bracing in to keep everything square. And make sure to mock everything up with the fender on to be sure the mounting points are in the right place.

Edited by rturbo 930
Link to comment
Share on other sites

Put it on the same way the factory did - with spot welds. The rockers are a major structural point of the chassis too, so make sure you put some bracing in to keep everything square. And make sure to mock everything up with the fender on to be sure the mounting points are in the right place.



Awesome, thanks for the response!

Link to comment
Share on other sites

Your dad too? lol. I know the feeling. I can't really say for sure, but if you think about it, I think it's obvious which weld is stronger. A spot weld is in the middle of the flange (meaning load is spread more evenly), and there's also 360 degrees of metal surrounding it, whereas a butt weld like that is only on the very edge of the flange, and, at most, 180 degrees of  metal around it. My gut feeling is that the spot weld is stronger. The factory used spot welds, and I imagine there's a good reason for it. And if that doesn't work, tell your dad you're doing it this way, and that's that... which is what I do haha.

Link to comment
Share on other sites

Your dad too? lol. I know the feeling. I can't really say for sure, but if you think about it, I think it's obvious which weld is stronger. A spot weld is in the middle of the flange (meaning load is spread more evenly), and there's also 360 degrees of metal surrounding it, whereas a butt weld like that is only on the very edge of the flange, and, at most, 180 degrees of  metal around it. My gut feeling is that the spot weld is stronger. The factory used spot welds, and I imagine there's a good reason for it. And if that doesn't work, tell your dad you're doing it this way, and that's that... which is what I do haha.



Latin American dad. Working on his own to support family from the time he was a teenager when his dad passed away. It's not like it's a surprise, but it's definitely frustrating a lot of the time haha.



I need to look into getting a spot welder or borrowing one then. If not, I may weld it up whichever way we do it for now and spot weld it a bit down the road before painting. It's not like I'm driving it much and it definitely doesn't have enough power to start affecting the frame. I could be totally wrong of course. I know the rockers are structural, but I assume anything that has them welded pretty firmly to the rest of the car will work well enough for now on a car that makes maybe 120hp as is, and is barely going to be driven until another several months or even a year down the road.

Link to comment
Share on other sites

Well, what you can do is just punch out the holes and weld them with a MIG welder. You don't necessarily need a spot welder.



What does your rocker look like right now? If it's completely removed, you probably shouldn't be driving it. Like I said, you should add some bracing in - probably just an 'x' in the door frame out of some small tubing - to keep the chassis square. As I recall, the rockers are the strongest/stiffest part of the car.

Edited by rturbo 930
Link to comment
Share on other sites

Looks like plug welds are gonna be the way to go. Haven't been able to find anyone with a spot welder, and even the cheapest Harbor Freight ones are like $170.



And I was really hoping not to have to drill or cut any of my shiny new panels :/



Updates to come with pics: Both rocker panels are fitted and ready for welding right now. Just need to fit the passenger dogleg. Once that's done I'll be working on the rear lower quarters.

Link to comment
Share on other sites

  • 4 weeks later...

Rocker panels and other bits have been done for almost two weeks now, just haven't had a chance to upload pictures. I'll have them uploaded sometime tonight once I've sorted through them for before/after deals.



Still have some more bits to weld including some floor patching and the frame rails, plus the holes from the old bumpers in the back but for now it's really coming along and starting to take shape. It's far from any sort of ground up restoration but a lot of major issues will be taken care of.



The passenger door aligns quite well and closes, but the driver side door (unfortunately) closes just as poorly as before and I haven't quite figured out why. It's no different from before swapping the rockers, so I know it's not that, but it's still bugging me that it's harder to close and almost needs to be slammed to shut completely.

Link to comment
Share on other sites

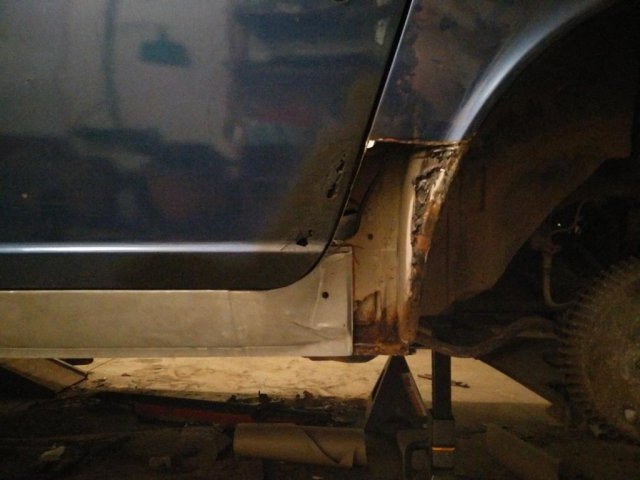

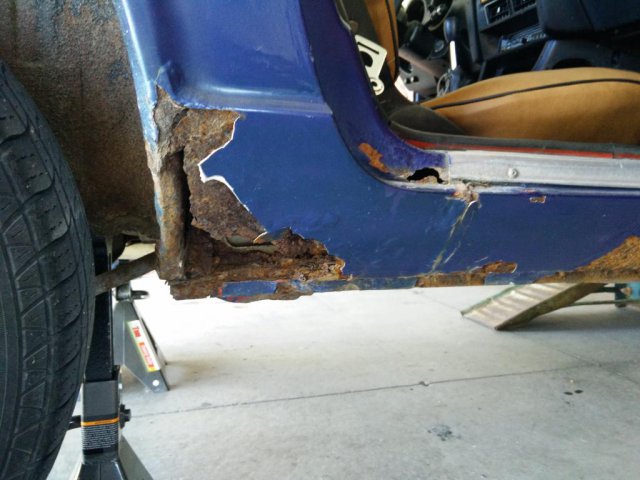

Pictures as promised. Wasn't done with a regular mig, no gas, so the welds still need some more grinding down and cleaning up, but I sprayed it with a thin coat of black primer for now while I get a chance to clean them up more down the road when I'm actually prepping for paint. Note I have way more pictures of rust but for the sake of comparisons and seeing a few in between shots this is all I'll upload. :)

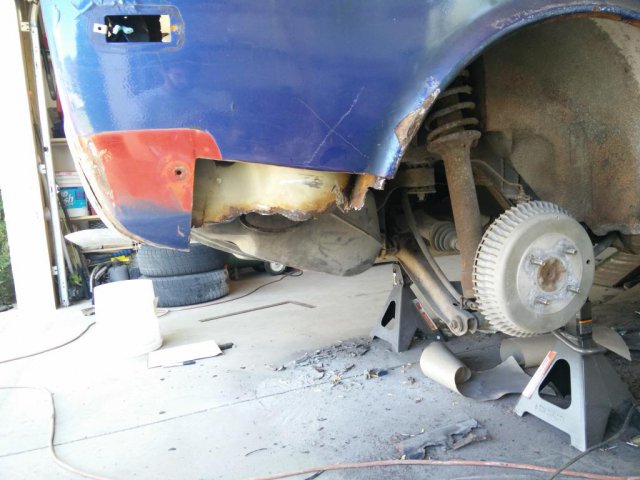

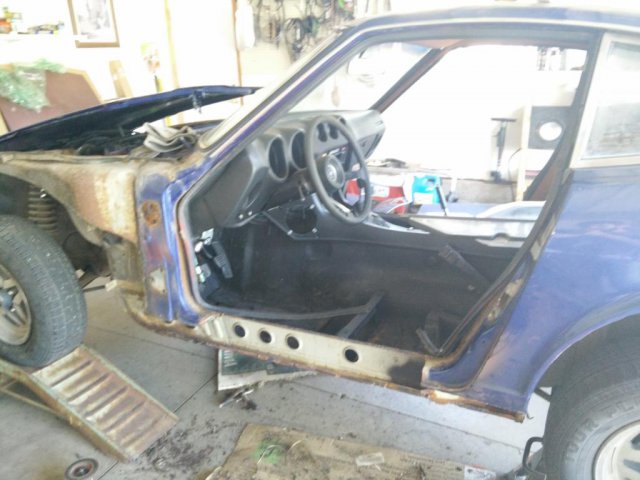

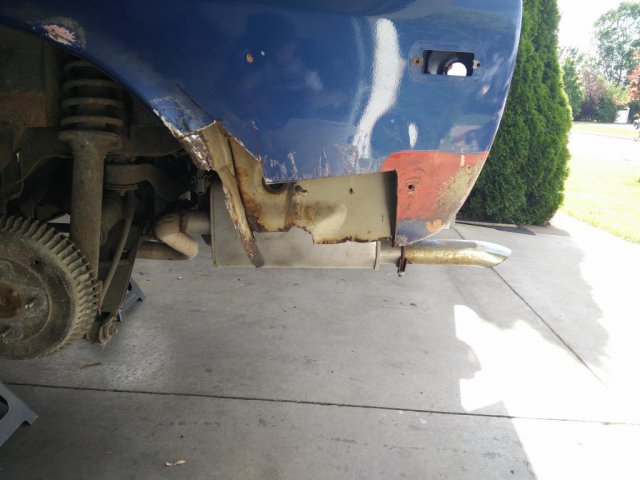

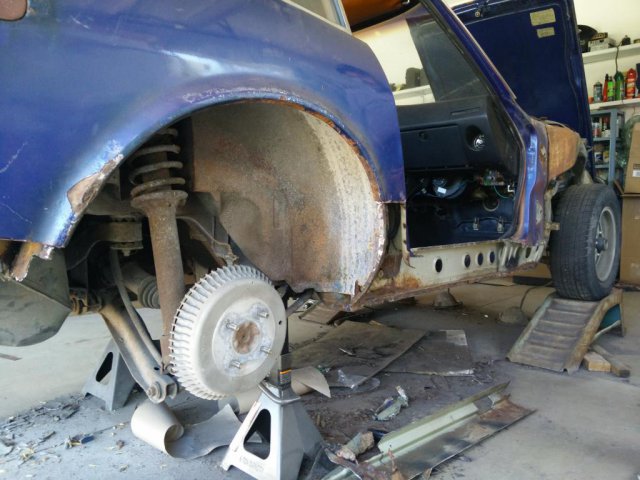

Cut up

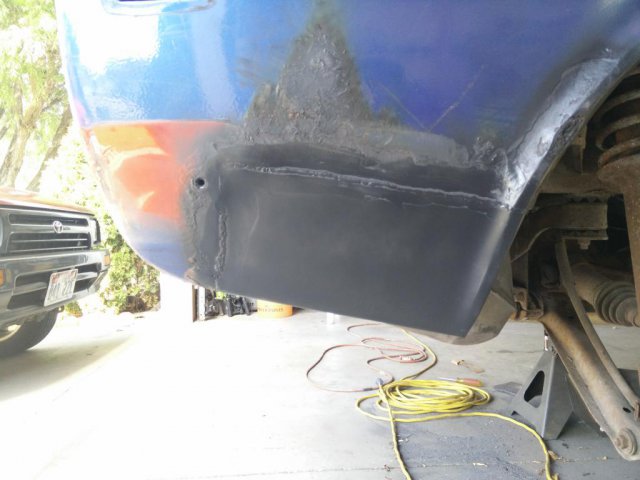

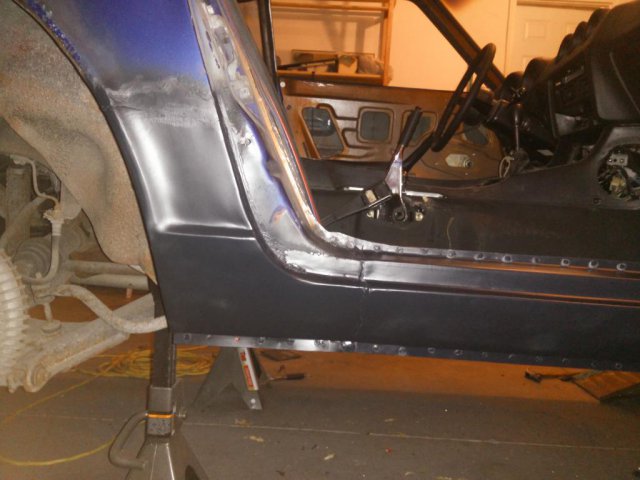

Passenger side

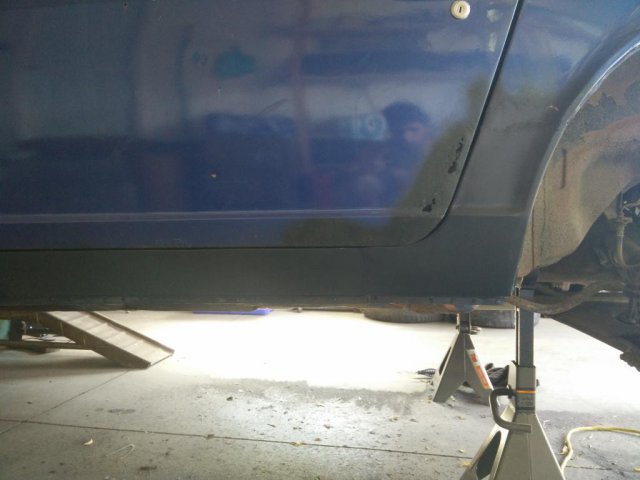

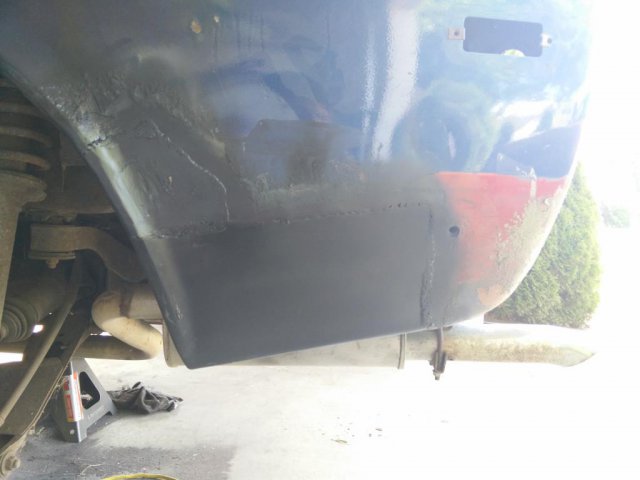

Driver side



Edited by Zetsaz
