Cobra_Tim Posted May 15, 2015 Share Posted May 15, 2015 Have you thought about header design yet? I wonder if just copying the primary length and diameter off a known good K series header would be a good idea. Quote Link to comment Share on other sites More sharing options...

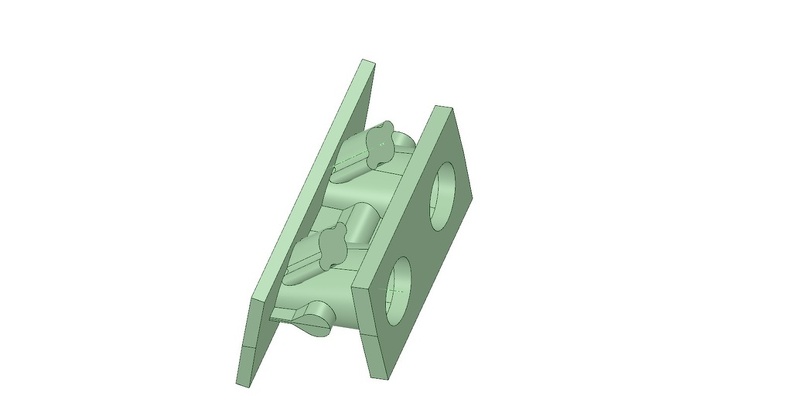

Derek Posted May 15, 2015 Author Share Posted May 15, 2015 (edited) I truely am excited that you are building this. I can't wait to listen the the music from this motor on the road! You and me both! There is still a butt ton of stuff to do though. Have you thought about header design yet? I wonder if just copying the primary length and diameter off a known good K series header would be a good idea. Yes. One of the Hybridz family is helping me out with exhaust design and fabrication. I'm sure he'll chime in at some point. Got the intake manifold designed. I'm utilizing a balance tube like I did on my EFI manifold. It made my life a lot easier. By doing three separate manifolds it reduces my risk of failure. I'm 3D printing the cores and I ordered them today. The pattern will be conventional. I designed the flanges to be a lot larger than I need but I want to have options when I do the machining. I'm using the same injector boss mount as my manifold. This way I can hard line it if I want to. And I want to:) I got a call from the steel foundry and they are pouring the cams next week. Hopefully the first units will pass inspection. If they are good then I'll do some basic machining and then I'll ship them out to Isky for grinding. And I'm painting my car Base coat. Cleared it today. No time to do a proper job but it's been off the road for almost two years and I had enough. I wanted to drive it again. It'll look ok. Basically painting in my fab shop so you can only imagine how clean that is:) Edited July 7, 2017 by Derek Quote Link to comment Share on other sites More sharing options...
jeffer949 Posted May 15, 2015 Share Posted May 15, 2015 Didnt you just paint it a few years ago? Quote Link to comment Share on other sites More sharing options...
Xnke Posted May 15, 2015 Share Posted May 15, 2015 That's looking awesome. What color is that red? I need to paint the Maverick red and that's a nice color. I may need to place an order for some injector bosses...the stainless lines just look so cool....and I have a 12-injector fuel system that will need injector mounts later this year. Quote Link to comment Share on other sites More sharing options...
Derek Posted May 15, 2015 Author Share Posted May 15, 2015 Didnt you just paint it a few years ago? Well if December of 2007 is a few years ago then yes it "was" a few years ago:) You're getting old. That's the first sign. The big problem with it was I laid the base coat down too heavy and then cleared it too soon. It trapped solvents and the clear started coming off after about 4 years. I had to strip all the old clear and base off with a da. And of course there was new rust to be fixed.... That's looking awesome. What color is that red? I need to paint the Maverick red and that's a nice color. I may need to place an order for some injector bosses...the stainless lines just look so cool....and I have a 12-injector fuel system that will need injector mounts later this year. I use products from Southern Polyeurathanes http://www.southernpolyurethanes.com. Their products are really great (as long as you follow the directions) and the price is amazing. The red is their house brand red base. I had a little problem laying down the clear and the owner spent 20 min on the phone with me getting it dialed in. Try that with PPG Hard lines are more work but you can't beat the look IMHO. Quote Link to comment Share on other sites More sharing options...
75280z Posted May 16, 2015 Share Posted May 16, 2015 You know since you started this thread in September you have averaged 126 views a day? To be fair I might have been like 20 of those on a couple of the days. I usually just check the page smile, get super impressed, then leave but today I wanted to post again just to give you encouragement and kudos this is a fantastic project and even just reading it I am learning a ton. I have been thinking about a repaint for mine in the future (I painted mine in 2003ish memory is a bit fuzzy). Good luck and I continue to look forward to your updates. Quote Link to comment Share on other sites More sharing options...
texis30O Posted May 18, 2015 Share Posted May 18, 2015 Please tell me that the header design will be a long tube, equal length unit.... something similar to the OS Giken piece...... Quote Link to comment Share on other sites More sharing options...
Derek Posted May 18, 2015 Author Share Posted May 18, 2015 It's my understanding that it will be an equal length header. I don't know what denotes a "long tube" from a "short tube". I do know that the large radius bends right off of the head will not be needed as the OSG head (and motor) as well as the S20 is tilted the opposite direction as ours. I don't believe that changing the tilt will be necessary on mine. This means shorter radius bends can be used and still achieve a decent length. Derek Quote Link to comment Share on other sites More sharing options...
jeffer949 Posted May 18, 2015 Share Posted May 18, 2015 Crap so that means I painted mine in 08? So 7 years ago? Man I am getting old. Well I did throw my back out last month... Quote Link to comment Share on other sites More sharing options...
Derek Posted May 18, 2015 Author Share Posted May 18, 2015 (edited) Crap so that means I painted mine in 08? So 7 years ago? Man I am getting old. Well I did throw my back out last month... As long as you didn't do it taking a dump you're probably still ok. Edited May 18, 2015 by Derek Quote Link to comment Share on other sites More sharing options...
Tony D Posted May 20, 2015 Share Posted May 20, 2015 Larger radius bends flow better, less restriction. That is the purpose for using them. Fujitsubo made a header for the non-cross flow L-Head that looks almost identical to the OSG DOHC u it...definitely a RHD Only piece...goes right through the steering shaft area on the U.S. Models. Long gradual bends out of the head, almost to the strut tower before making a very large radius bend south to the collectors... Quote Link to comment Share on other sites More sharing options...
jeffer949 Posted May 20, 2015 Share Posted May 20, 2015 As long as you didn't do it taking a dump you're probably still ok. When I first read this I thought you where talking about painting my car... If I could take a dump and paint a car at the same time I would have to say I was one talented man. And back on topic.... GO!!! Quote Link to comment Share on other sites More sharing options...
Tony D Posted May 21, 2015 Share Posted May 21, 2015 Depends really on the viscosity and if you can keep the air hose out of it while you progress around the car. The two are not mutually exclusive. Quote Link to comment Share on other sites More sharing options...
Xnke Posted May 21, 2015 Share Posted May 21, 2015 The limiting value on the bend radius is 6"....as that's the material available right now. That and the steering shaft... Quote Link to comment Share on other sites More sharing options...
TimZ Posted May 22, 2015 Share Posted May 22, 2015 The limiting value on the bend radius is 6"....as that's the material available right now. That and the steering shaft... Pardon my laziness, but I forget - is this going to be turbo or NA? Quote Link to comment Share on other sites More sharing options...
Derek Posted May 22, 2015 Author Share Posted May 22, 2015 NA. Quote Link to comment Share on other sites More sharing options...
Tony D Posted May 23, 2015 Share Posted May 23, 2015 Unless someone makes a turbo header... Quote Link to comment Share on other sites More sharing options...
TimZ Posted May 23, 2015 Share Posted May 23, 2015 Unless someone makes a turbo header... Lotsa room over there now that the intake is on the other side... Just sayin' Quote Link to comment Share on other sites More sharing options...
Xnke Posted May 24, 2015 Share Posted May 24, 2015 Already planning on one...have to make the N/A header first! Quote Link to comment Share on other sites More sharing options...
Tony D Posted May 24, 2015 Share Posted May 24, 2015 Lotsa room over there now that the intake is on the other side... Just sayin' You think JeffP isn't changing briefs and boxers regularly after going just a bit too far down the "what if" thought train? No need for an SFP Log without that inlet hanging overhead... Not that there's anything wrong with that! Quote Link to comment Share on other sites More sharing options...
