DuffyMahoney Posted July 12, 2018 Share Posted July 12, 2018 A buddy and I are designing a cnc billet triple intake. It’s based off of the harada. It will feature the ability to add a balance tube and come with needle bearings. Stock will be 45mm tubes. It will have a bridge, but it will mainly be for looks, it will attach to the same balance tube holes. Also throttle arms will be long enough to clear the starter circuit. It will use the harada parts that are available, like the connection rods, springs, Shepard’s hook and insulators. It will be customizable for intake runner lengths, bore etc... I’m pretty excited on how it looks. The basic idea is that a high end customize-able intake is missing in the Datsun triple world. I didn’t like the finish/ quality of the harada and some of the mechanics. So building my own. My buddy won’t mass produce them but for a high end build or someone that wants a specific design this will be great. Plus it’s fun to make and design. We should have the throttle shaft all designed and drawn today. 1 Quote Link to comment Share on other sites More sharing options...

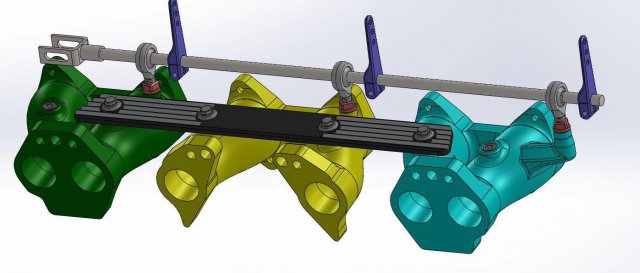

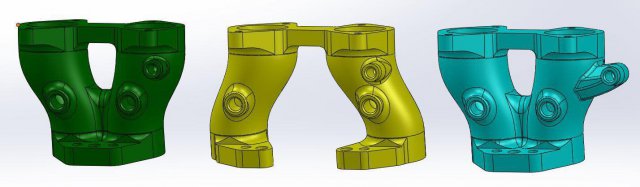

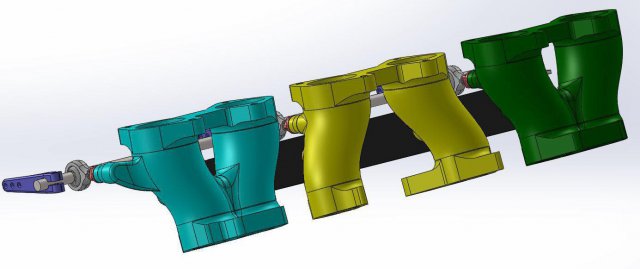

DuffyMahoney Posted July 19, 2018 Author Share Posted July 19, 2018 Version 2 is done, any thoughts? I think it's close to being cut. Quote Link to comment Share on other sites More sharing options...
Jethoncho Posted July 19, 2018 Share Posted July 19, 2018 Personally, I think it looks great. If I were designing it, I would put the vacuum ports and balance tube on the bottom to improve aesthetics. Love to see the finished product. Quote Link to comment Share on other sites More sharing options...
Leon Posted July 20, 2018 Share Posted July 20, 2018 I'm not so sure about that cantilevered rod-end boss. That's a fatigue failure waiting to happen... Quote Link to comment Share on other sites More sharing options...
Tony D Posted August 30, 2019 Share Posted August 30, 2019 New Stuff out of JDM has injector bungs in the runners, and a dual-pattern bolt pattern on the flange to take either a DCOE or utilize 45mm ITB Bodies from the plentiful RB26... Quote Link to comment Share on other sites More sharing options...
LLave Posted August 30, 2019 Share Posted August 30, 2019 On 7/19/2018 at 10:11 PM, Leon said: I'm not so sure about that cantilevered rod-end boss. That's a fatigue failure waiting to happen... I had the same thought. Why not move it above the runner? But on the other hand, it doesn't take very much load. Quote Link to comment Share on other sites More sharing options...
Leon Posted August 30, 2019 Share Posted August 30, 2019 1 hour ago, LLave said: I had the same thought. Why not move it above the runner? But on the other hand, it doesn't take very much load. It depends on how you set up the return springs. There will already be a load from each carb/TB with an additional load if a tension spring is used as an auxiliary return. A torsion aux return spring would help reduce loading. Something else I just noticed, there are three throttle rod supports and the manifold is actually three individual pieces. It's held together via a bolt-in support. The position of that middle (redundant) throttle rod boss is going to be very hard to control and will likely lead to throttle rod bind, which will then make for a sticky return to idle and require heavy return springs thereby putting more stress on that cantilevered boss. You'd be better off having the manifold be one piece and consider removing the redundant throttle rod support. Better late than never I suppose, I'm curious if this project ever got past the design phase! Quote Link to comment Share on other sites More sharing options...
DuffyMahoney Posted August 31, 2019 Author Share Posted August 31, 2019 If anyone wants the cut file let me know. I ended up finding a SK intake that I love. I would think the intake would have worked fine. Quote Link to comment Share on other sites More sharing options...
