dwarlick Posted October 12, 2008 Share Posted October 12, 2008 I just did a quick mock up of my new FMIC and need some help. I wanted to use the stock holes in the radiator support, but the IC I got ended up being too wide to make the 90 degree turn. I then got the idea that if I flip the IC over I could angle the piping a little to make the 90 degrees. Does anyone see any problems with this? Quote Link to comment Share on other sites More sharing options...
RB26powered74zcar Posted October 12, 2008 Share Posted October 12, 2008 Looks good to me. If you wanted to fit it the other way around, just wack off the strait ends and have two tight radius 90's on instead. Quote Link to comment Share on other sites More sharing options...
dwarlick Posted October 12, 2008 Author Share Posted October 12, 2008 I considered that and saw it mentioned in another thread, but I couldn't see how the clamps were gonna work. Quote Link to comment Share on other sites More sharing options...
rayaapp2 Posted October 12, 2008 Share Posted October 12, 2008 Looks like the same exact one I purchased. I mounted it as far forward as I could. I eliminated the extra bends in the piping this way. I know that theoretically you want the intercooler close to the radiator in this situation. You will end up with weird eddy currents in between the two and an overheating issue. I havent tested a solution yet, but Im going to put an electric fan in between the two on the front of the radiator and use directed fins to guide the incoming air through the Intercooler and directly into the radiator area. Hopefully this prevents the air from stalling behind the intercooler. I will find out when I start running. I figure its worth a try to escape the extra bends in the piping. Quote Link to comment Share on other sites More sharing options...
stony Posted October 15, 2008 Share Posted October 15, 2008 The more clamps you add to the system the more you are prone to blowing things apart. I suggest the same as above. have a Pro welder look at it. You can cut the straight sections off and add tight 90s and it will be almost perfect fit thru the holes here s a pic of my intercooler with this don't to it. Yea i don't have a core support But these could be fabbed to fit the stock core support Quote Link to comment Share on other sites More sharing options...
Careless Posted October 17, 2008 Share Posted October 17, 2008 you might have to cut the short side radius of the 90 degree bends a bit and sacrifice the tiny percentage of airflow that will cause turbulence in that area, but I think it will be much like many port designs that are not quite 90 degrees in design. I would center the IC a bit more and have two 90's on either side at the top (or at the bottom would work too in this case) and start cutting the short sides of the 90's together until you reach a suitable even ended pipe route. I think it would be better than to have one full 90' and one 45-type weirdly offset cut 90' on the other end. It should be just a U-Bend cut in half to get part way there. Car looks clean, too! I wish my cars were that clean to work on. LOL Quote Link to comment Share on other sites More sharing options...
Careless Posted October 17, 2008 Share Posted October 17, 2008 also, what J S. is trying to say and what stony is illustratating is that you don't have a clamp in that are, it's just welded after cutting off the straight hose-mounting section that's currently there. Took me a second look to see it in stony's post, so it probably slipped you too, LOL. never know! Quote Link to comment Share on other sites More sharing options...

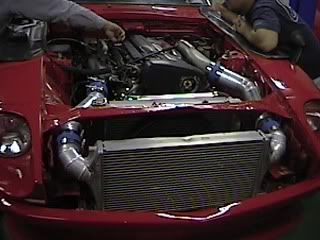

stony Posted October 17, 2008 Share Posted October 17, 2008 Here are a couple more shots of intercoolers thru stock core support. Quote Link to comment Share on other sites More sharing options...

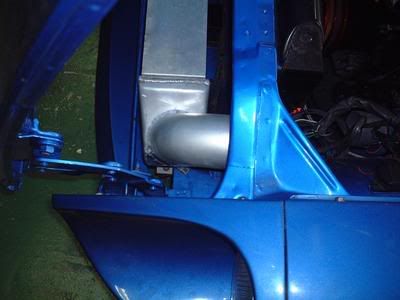

RB26powered74zcar Posted October 17, 2008 Share Posted October 17, 2008 Yea, heres another use of stock holes.. Quote Link to comment Share on other sites More sharing options...
Jaspendlove Posted October 17, 2008 Share Posted October 17, 2008 nice pics. it helps me out Quote Link to comment Share on other sites More sharing options...
Careless Posted October 19, 2008 Share Posted October 19, 2008 i swear, datsun knew we would be doing this with intercoolers. it's just TOO obvious!!!! Quote Link to comment Share on other sites More sharing options...
240hoke Posted October 19, 2008 Share Posted October 19, 2008 Heres a picture of my old setup, its not a Rb26 but I think its the exact same intercooler. Looking back at this picture I cant believe I even put that thing on my car..its rediculous. At least for a L28 anyway.... I used four tight radius 90's worked out awesome, put the couplers inside the engine bay which makes for easy servicing. Quote Link to comment Share on other sites More sharing options...
900ss Posted October 21, 2008 Share Posted October 21, 2008 I take it that intercooler (and others shown below) are just std alloy aftermarket coolers meant for the R33/34 skyline ? Quote Link to comment Share on other sites More sharing options...
spotfitz Posted October 22, 2008 Share Posted October 22, 2008 I take it that intercooler (and others shown below) are just std alloy aftermarket coolers meant for the R33/34 skyline ? Yea, heres another use of stock holes.. Actually, this one afew of us were able to purchase from a fellow member afew years ago. James Thagard. Is that the right spelling? I'm so terrible with names, but I do remember you James. lol Excellent Man to work with! Has it been that long? Quote Link to comment Share on other sites More sharing options...
stony Posted October 22, 2008 Share Posted October 22, 2008 I take it that intercooler (and others shown below) are just std alloy aftermarket coolers meant for the R33/34 skyline ? No its just a generic ebay special... i think that one is modeled after the one for an s13 or 14 Quote Link to comment Share on other sites More sharing options...
dwarlick Posted October 22, 2008 Author Share Posted October 22, 2008 Its this one: http://cgi.ebay.com/ebaymotors/FMIC-Turbo-Intercooler-31x12x4-3000GT-Mustang-Supra-S13_W0QQcmdZViewItemQQ_trksidZp1742Q2em153Q2el1262QQcategoryZ33742QQihZ002QQitemZ120319986447 Quote Link to comment Share on other sites More sharing options...
900ss Posted October 22, 2008 Share Posted October 22, 2008 Meant for an S13/14 then, cheers now I know what to look out for. Quote Link to comment Share on other sites More sharing options...
stony Posted October 23, 2008 Share Posted October 23, 2008 99 BUX.... That is reduculous i paid 179 for mine!!!! o got ripped off. Quote Link to comment Share on other sites More sharing options...
ZT-R Posted November 25, 2010 Share Posted November 25, 2010 can someone update a link.. 32x12x3 31x12x3 30.5x12x3 Quote Link to comment Share on other sites More sharing options...
