jacky4566

Jeep Cam angle sensor for L - Series

Recommended Posts

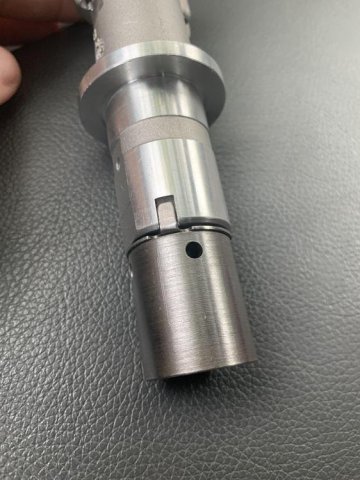

Sorry kinda stumped been reading and reading this over but not really understanding, so still using the stock dizzy (from a 81 ZX) the jeep cas goes into it w the modifications done? And with this I can control spark? Ofc will be going megasquirt just reading up If I can't find a 82/3 turbo dizzy.

Share this post


Link to post
Share on other sites

Butternut it sounds like you need to learn more about what Megasquirt is, and how the system works in whole.



If you want to run a full sequential injection and ignition Megasquirt requires 3 critical pieces of timing information.

  • When is the crankshaft at TDC.
  • Where is the crankshaft in relation to TDC.
  • Where is the camshaft in relation to the crankshaft. Also known as phasing. (remember that the camshaft spins at half the crankshaft speed)

So. In relation to the above. The Jeep CAS ONLY provides you with the camshaft phasing. Or in more simpler terms, is cylinder 1 on a compression stroke or an exhaust stroke?



Of course if you only want sem-sequential or Batch fire. Then you don't need the cam phase at all. IMO full sequential is overkill for an occasional/ race driver but I like to tinker so here it is.



To answer your question, the Jeep CAS replaces the dizzy yes, but does not provide all the information required by megasquirt. You still need to know the crankshaft position via a 36-1 trigger wheel or other.

And no, a sensor can not control spark, the megasquirt does all that with input from sensors like this.



If you want the easiest way to get timing information to megsquirt, then by all means grab a 82/3 turbo dizzy. I just think they are ugly and wanted to make this work.

Share this post


Link to post
Share on other sites

Jacky, I'd love to see pictures of your build. Especially the Bosch MAF. I did manage to get one out of Ireland. So it would be cool to see how you set yours up. I was thinking I'd put a silicone house from the throttle body to the MAF, then more tubing, either stainless or silicone to in front of the radiator.

Share this post


Link to post
Share on other sites
On 5/14/2017 at 12:28 PM, Conedodger said:

Got a part number or a year and model? I think I'm going to run with this too. Might as well take advantage of all the tech I can with this.



Cherokee: '00 or '01

Grand Cherokee: '99 - '04

Wrangler: '00 - '04



All models with the 4.0 inline 6.  (Appropriately enough, for this forum...  :D )



On Rockauto it's called a "Camshaft Synchronizer".  Prices there are better than at Summit.

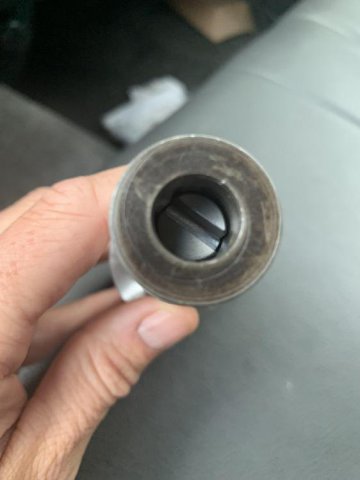

I'm kind of amused by this thread, because I ended up back here (and, sorry guys, my 300zx powertrain into a 240z project is gone, ended up having to sell all of that kit after my divorce) while looking around for information on crank trigger wheels for use with Megasquirt, for a big block mopar engine project I've got going now... which will also be using this same camshaft position sensor, because it has the same interface (the flat blade at the end of the stock CPS) as the distributor drives from those engines.  So, apparently this CPS is just a treasure trove of adaptability.

Share this post


Link to post
Share on other sites
41 minutes ago, ilcylic said:



Cherokee: '00 or '01

Grand Cherokee: '99 - '04

Wrangler: '00 - '04



All models with the 4.0 inline 6.  (Appropriately enough, for this forum...  :D )



On Rockauto it's called a "Camshaft Synchronizer".  Prices there are better than at Summit.



I'm kind of amused by this thread, because I ended up back here (and, sorry guys, my 300zx powertrain into a 240z project is gone, ended up having to sell all of that kit after my divorce) while looking around for information on crank trigger wheels for use with Megasquirt, for a big block mopar engine project I've got going now... which will also be using this same camshaft position sensor, because it has the same interface (the flat blade at the end of the stock CPS) as the distributor drives from those engines.  So, apparently this CPS is just a treasure trove of adaptability.

That’s pretty crazy it’s so versatile
