Metric Brake Adaptor


  • Please log in to reply
21 replies to this topic

#1 Scottie-GNZ

Scottie-GNZ

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2602 posts
  • LocationOrlando, FL

Posted 18 October 2004 - 08:34 AM

Anyone know a good source for metric brake adaptors or better yet, have one of what I am looking for?

I want to go from a male 10x1.0, inveterted flare to a female 1/8 pipe so I need a fitting that will have a female end to accept the 10x1.0, inverted flare and male 1/8 pipe on the other end. Every place I see selling adaptors seem to only have male-male.
Scottie

Fun Cars: '92 Mustang, Turbo LSx, 8.74 @ 156.8 (so far)
DDs: '84 911 Carrera Cab, '13 VW Jetta Sportwagen TDI

#2 BillZ260

BillZ260

    Member

  • Members
  • PipPipPipPipPipPip
  • 1391 posts
  • LocationTulsa, OK

Posted 18 October 2004 - 09:36 AM

"If I only had a lathe"
Bill
----------------------

Early 260/355/T-5

I can now drive it around the block anytime I want!!!

#3 Jeff

Jeff

    HybridZ Supporter

  • Donating Members
  • PipPipPipPip
  • 402 posts
  • LocationOrlando, Fl

Posted 18 October 2004 - 09:40 AM

You might give Amazon Hose a call locally or Maryland Metric is very good.
74 260Z
Full Restoration & Hybridization Under Way

#4 mark

mark

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPip
  • 1427 posts
  • LocationNorth Carolina

Posted 18 October 2004 - 10:21 AM

One of these will work
6174143 P. 10 MM-1.0 JAPAN TO AN#3 MALE

PR $9.95
6174144 P. 10 MM-1.0 JAPAN TO AN#4 MALE

PR $9.95
One is female and one is male both have male AN ends on them.

http://www.speedwaym.../qx/product.htm

#5 Scottie-GNZ

Scottie-GNZ

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2602 posts
  • LocationOrlando, FL

Posted 18 October 2004 - 02:07 PM

Jeff,

I will give Amazon a call tomorrow followed by Maryland Metric. I am willing to bet MM has what I want but my head hurts trying to find anything on their webpage.

Mark,

I actually have metric to AN but it would also require a AN to pipe and I am trying to not make this look like a Rube Goldberg contraption. What I am doing is plumbing in a line-loc and at the outlet of the line-loc I am tee-ing in a hydraulically-operated throttle stop for limiting RPM on spoolup. The more direct adaptors I use, the less klutzy it will look. :?: :?: Don't ask. You will just have to see it :D
Scottie

Fun Cars: '92 Mustang, Turbo LSx, 8.74 @ 156.8 (so far)
DDs: '84 911 Carrera Cab, '13 VW Jetta Sportwagen TDI

#6 GAZRNR

GAZRNR

    Member

  • Members
  • PipPipPipPip
  • 135 posts
  • LocationGeorgia

Posted 18 October 2004 - 02:49 PM

-an3 & 1/8 NPT are close but not interchangeable. I got my brake parts from Orme Brothers in CA. T 818-885-1414 I worked with Jim, told him what I was trying to do and he got me what I needed.

Rusty
78Z - 350 T56

#7 Pyro

Pyro

    Member

  • Members
  • PipPipPipPipPipPip
  • 1194 posts
  • Locationtexas

Posted 18 October 2004 - 02:54 PM

Believe it or not I saw some at Pep Boys in their metal brake line section behind the parts counter.

#8 DaleMX

DaleMX

    Member

  • Members
  • PipPipPipPipPip
  • 908 posts

Posted 18 October 2004 - 03:08 PM

At the bottom of the page.

http://s2.pegasusaut...ing.com/076.pdf
Dale

78 280Z LS1/T56 :-)

Stage 1 (do the engine tranny swap) - Done
Stage 2 (finish the rear suspension) - Done
Stage 2.5 (drive the car because I'm tired of looking at it) - Where I'm at now.
Stage 3 (finish the front suspension) - In Progress
Stage 4 (totaly strip and re-assemble the car) next year
Stage 5 (body work and paint) within my lifetime.

http://album.hybridz...00&ppuser=10170

#9 mark

mark

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPip
  • 1427 posts
  • LocationNorth Carolina

Posted 18 October 2004 - 03:33 PM

Sorry scottie, brain fade

#10 Scottie-GNZ

Scottie-GNZ

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2602 posts
  • LocationOrlando, FL

Posted 18 October 2004 - 04:46 PM

At the bottom of the page.

http://s2.pegasusaut...ing.com/076.pdf

I assume you are referring to this:
10mmx1.0mm male to 1/8" NPT female

I will give them a call also but I believe that is the opposite of what I am looking for. That looks like it would allow you to connect a 1/8 NPT male to a 10mmx1.0mm female. I need to connect a 10mmx1.0mm male to a 1/8" NPT female. They might be able to source one or I might have it backwards.
Scottie

Fun Cars: '92 Mustang, Turbo LSx, 8.74 @ 156.8 (so far)
DDs: '84 911 Carrera Cab, '13 VW Jetta Sportwagen TDI

#11 DaleMX

DaleMX

    Member

  • Members
  • PipPipPipPipPip
  • 908 posts

Posted 19 October 2004 - 12:39 AM

Yea, I get mixed up with the connectors. I'll see if I can find the right one.
Dale

78 280Z LS1/T56 :-)

Stage 1 (do the engine tranny swap) - Done
Stage 2 (finish the rear suspension) - Done
Stage 2.5 (drive the car because I'm tired of looking at it) - Where I'm at now.
Stage 3 (finish the front suspension) - In Progress
Stage 4 (totaly strip and re-assemble the car) next year
Stage 5 (body work and paint) within my lifetime.

http://album.hybridz...00&ppuser=10170

#12 DaleMX

DaleMX

    Member

  • Members
  • PipPipPipPipPip
  • 908 posts

Posted 19 October 2004 - 02:40 PM

I have not found anything. You may have to make one.
Dale

78 280Z LS1/T56 :-)

Stage 1 (do the engine tranny swap) - Done
Stage 2 (finish the rear suspension) - Done
Stage 2.5 (drive the car because I'm tired of looking at it) - Where I'm at now.
Stage 3 (finish the front suspension) - In Progress
Stage 4 (totaly strip and re-assemble the car) next year
Stage 5 (body work and paint) within my lifetime.

http://album.hybridz...00&ppuser=10170

#13 Scottie-GNZ

Scottie-GNZ

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPipPip
  • 2602 posts
  • LocationOrlando, FL

Posted 20 October 2004 - 03:16 AM

I gave up trying to find that metric adaptor and ended up cutting off the fitting and using a 3/16" compression fitting. My hope was to be able to bypass the line-loc in case of emergency and put the brake line back stock w/o having to reflare the line. Now the flaring kit will have to be part of the road toolkit.

Thanks everyone.
Scottie

Fun Cars: '92 Mustang, Turbo LSx, 8.74 @ 156.8 (so far)
DDs: '84 911 Carrera Cab, '13 VW Jetta Sportwagen TDI

#14 Miles

Miles

    Miles ahead!

  • Donating Members
  • PipPipPipPipPipPip
  • 1207 posts
  • LocationSacramento, CA

Posted 23 November 2008 - 09:35 AM

I am plumbing hard lines for a Wilwood proportioning valve (PV). The PV will be installed in the tool box behind the passenger seat.

The easy way to connect the Datsun 10mm x 1mm brake line would be with a 1/8 NPT -27 to 10mm x 1mm adaptor that screws into the PV, but I can't find one here, Summit, local parts stores or local speed shops. The only solution seems to be going with a 1/8 NPT -27 to AN -3 male to AN -3 to 10mm x 1mm adaptor which results in an ugly stack up of parts.

Does anyone make a 1/8 NPT -27 to 10mm x 1mm inverted flare adaptor?
72 240z 350 SBC WC T5 R200 240 RWHP

#15 madkaw

madkaw

    HybridZ Supporter

  • Donating Members
  • PipPipPipPipPipPip
  • 1279 posts
  • LocationBloomington, Indiana

Posted 23 November 2008 - 12:06 PM

http://www.brakequip.com/mfthread.html
Steve,
9/71 240z. 2.4 -.40 over, balanced. E-88 Bigger SS valves, stage 2, 6x2 header, true dual exhaust. BW t-5 , STI LSD 3.90- triple Mikunis 40mm

#16 Miles

Miles

    Miles ahead!

  • Donating Members
  • PipPipPipPipPipPip
  • 1207 posts
  • LocationSacramento, CA

Posted 25 November 2008 - 04:29 PM

I found the Wilwood to metric adaptor at Flyin Miata. It is specifically made to fit the Wilwood proportioning valve: 1/8 -27 to 10mm x 1mm. p/n 14-76255

Link

http://www.flyinmiat...number=14-76255

Attached Files


72 240z 350 SBC WC T5 R200 240 RWHP

#17 DHale_510

DHale_510

    Member

  • Members
  • PipPip
  • 45 posts

Posted 02 December 2008 - 05:34 PM

Napa 7934A

#18 PaulR

PaulR

    Member

  • Members
  • PipPipPipPip
  • 134 posts
  • LocationEverett, WA

Posted 02 December 2008 - 06:54 PM

I found the Wilwood to metric adaptor at Flyin Miata. It is specifically made to fit the Wilwood proportioning valve: 1/8 -27 to 10mm x 1mm. p/n 14-76255

Link

http://www.flyinmiat...number=14-76255


I purchased the Flyin Miata Wilwood Proportioning Valve kit to install in my 240Z and it fit perfect. These adapters are the ones you need. I had found some other adapters from another source that I thought would work, but turns out they were for BUBBLE flares.

Here is the email I got from them before I purchased:


> -----Original Message-----
> From: Richer, Paul
> Sent: Monday, October 06, 2008 10:35 AM
> To: Keith Tanner
> Subject: Item Number: 14-76240 Complete adjustable brake
> proportioning kit
>
>
> Item Number: 14-76240 Complete adjustable brake proportioning kit
>
> I would like to install this kit in a Datsun 240Z and need
> to verify that the metric adapters are for metric INVERTED
> flare fittings (not bubble Flare). Is that correct?
>
>
>
> Best Regards,
>
> Paul Richer

-----Original Message-----
From: Keith Tanner
Sent: Monday, October 06, 2008 9:57 AM
To: Richer, Paul
Subject: RE: Item Number: 14-76240 Complete adjustable brake
proportioning kit

Yes, with a 10x1 thread pitch. We can sell the parts individually if you
don't need them all.

Keith Tanner
Flyin' Miata

http://www.flyinmiata.com
1-800-FLY-MX5s (orders)
1-970-464-5600 (tech)
Paul - 71 240Z

Posted Image

#19 Miles

Miles

    Miles ahead!

  • Donating Members
  • PipPipPipPipPipPip
  • 1207 posts
  • LocationSacramento, CA

Posted 02 December 2008 - 08:26 PM

I am getting my parts together to do the Wilwood PV install. I'll be removing the stock PV and tie into the lines that went to the stock PV just behind the tool boxes. The Wilwood PV will install in the passenger side tool box so I can reach it from inside.

I bought two hard brake lines and two metric unions from Black Dragon and should get the NPT to metric adaptors tomorrow from Flyin Miata. The metric adaptors will make for a clean installation. This is in preparation for installing the Mustang rear brake kit sold here by Edan AKA Bajaracer.

I called and emailed Wilwood suggesting that they stock these NPT to metric fittings. They basically brushed of the need to do so.


Miles
72 240z 350 SBC WC T5 R200 240 RWHP

#20 PaulR

PaulR

    Member

  • Members
  • PipPipPipPip
  • 134 posts
  • LocationEverett, WA

Posted 02 December 2008 - 10:08 PM

I am getting my parts together to do the Wilwood PV install. I'll be removing the stock PV and tie into the lines that went to the stock PV just behind the tool boxes. The Wilwood PV will install in the passenger side tool box so I can reach it from inside.


I called and emailed Wilwood suggesting that they stock these NPT to metric fittings. They basically brushed of the need to do so.


Miles

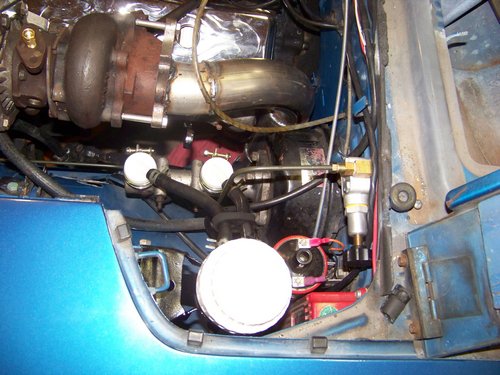

I like your idea of installing it where you can adjust it from inside. FYI, I installed mine near the master cylinder. I can adjust it by opening the access door on the drivers side. I disconnected the line that goes from the MC to the rear brakes and re-attached it to the output of the proportioning valve. I then installed a new, short line from the PV to the MC. I replaced the stock PV with a union that came with the kit from Flyin Miata.

Attached Files


Paul - 71 240Z

Posted Image
