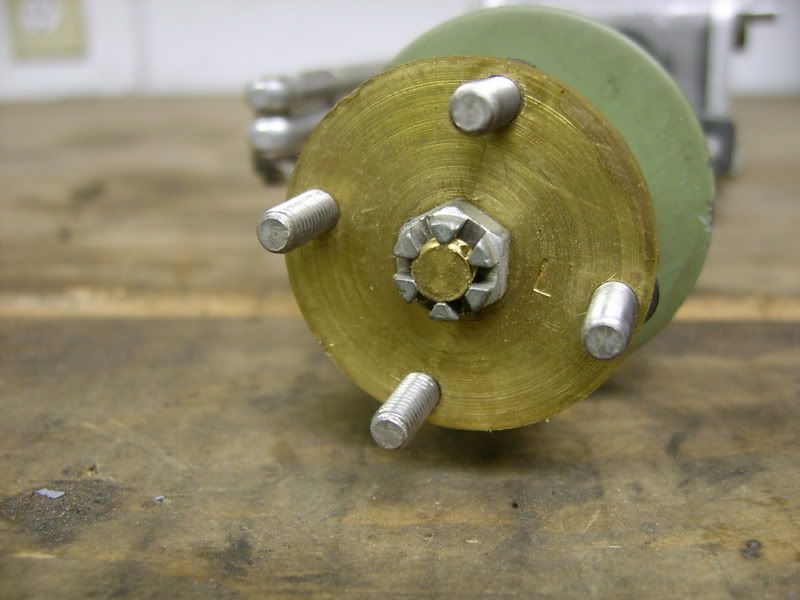

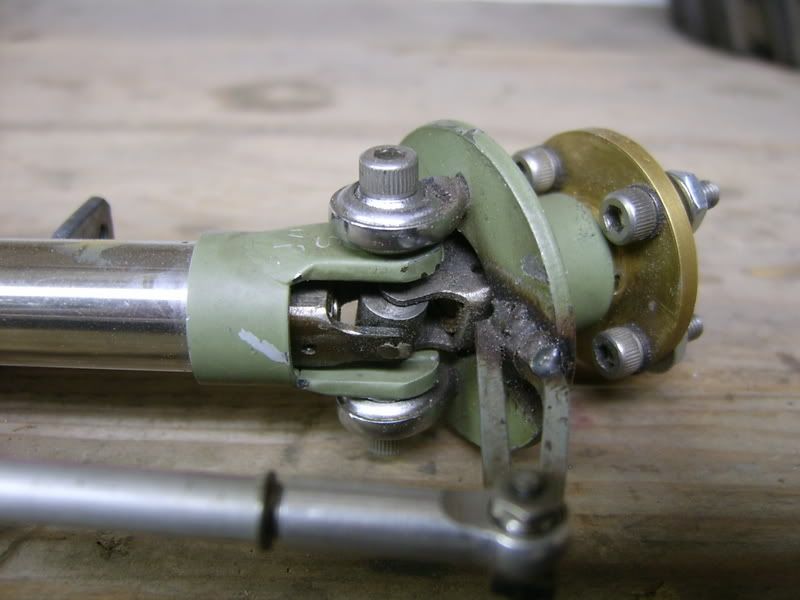

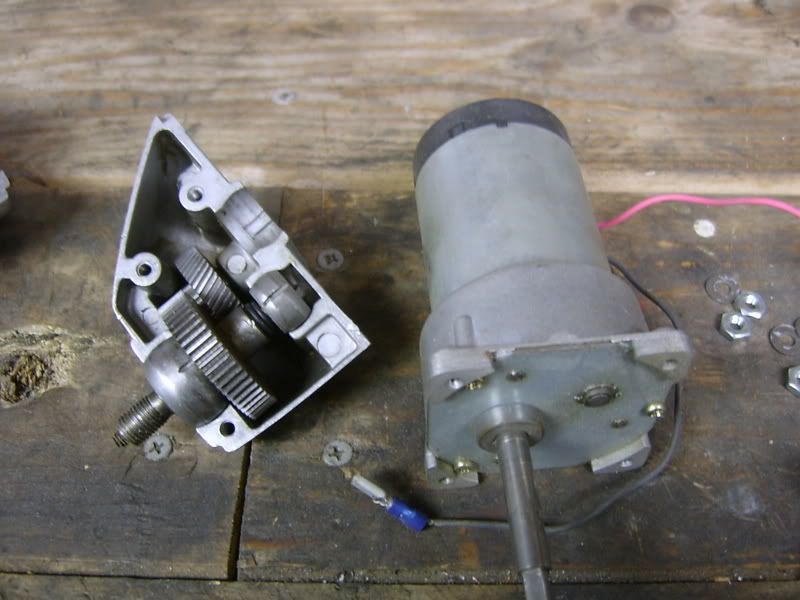

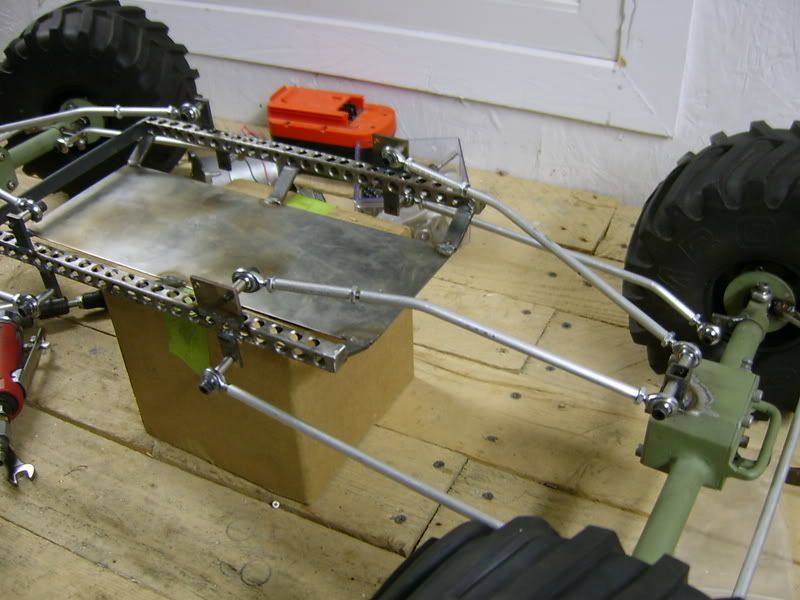

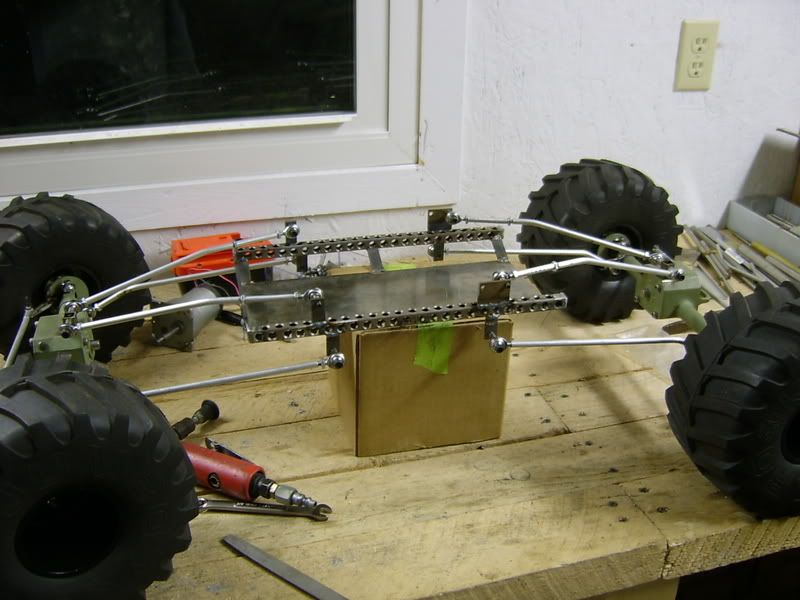

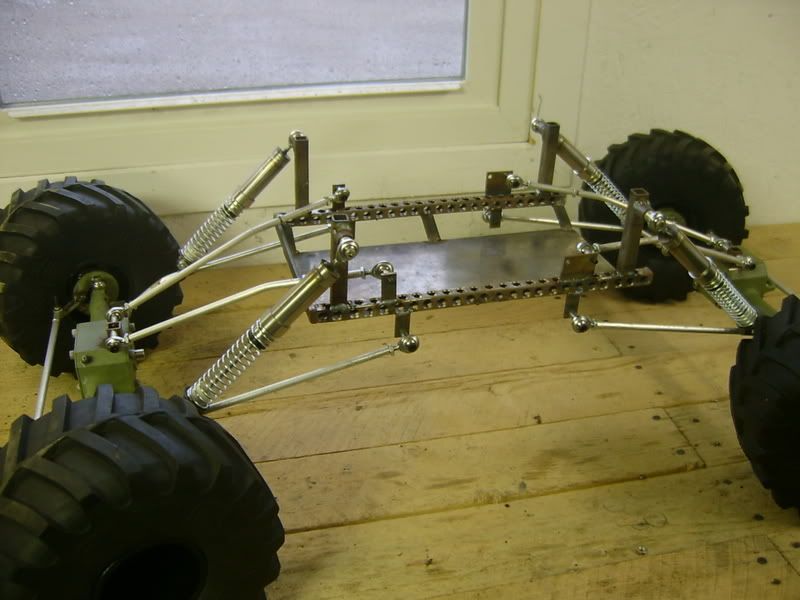

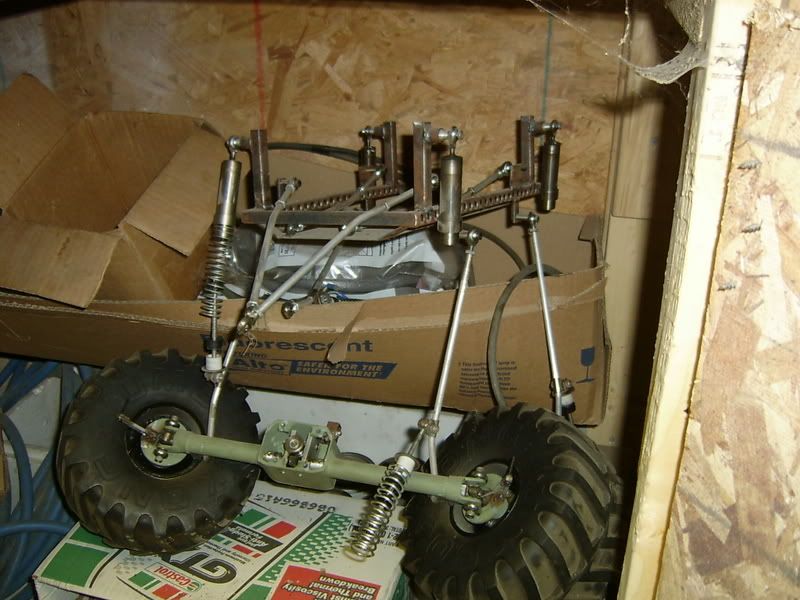

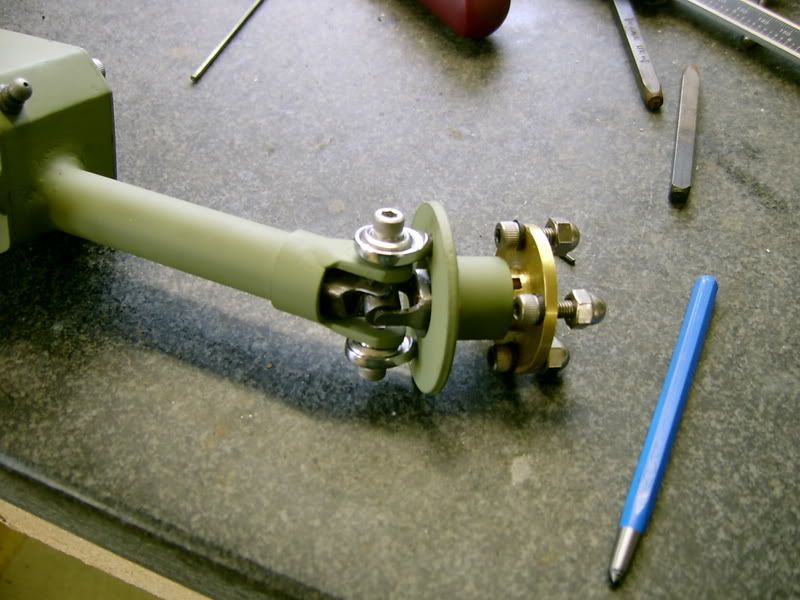

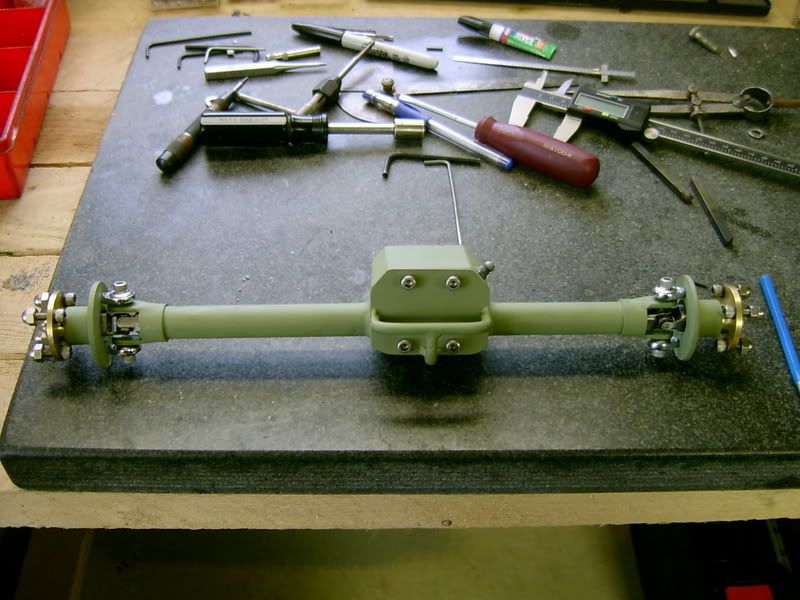

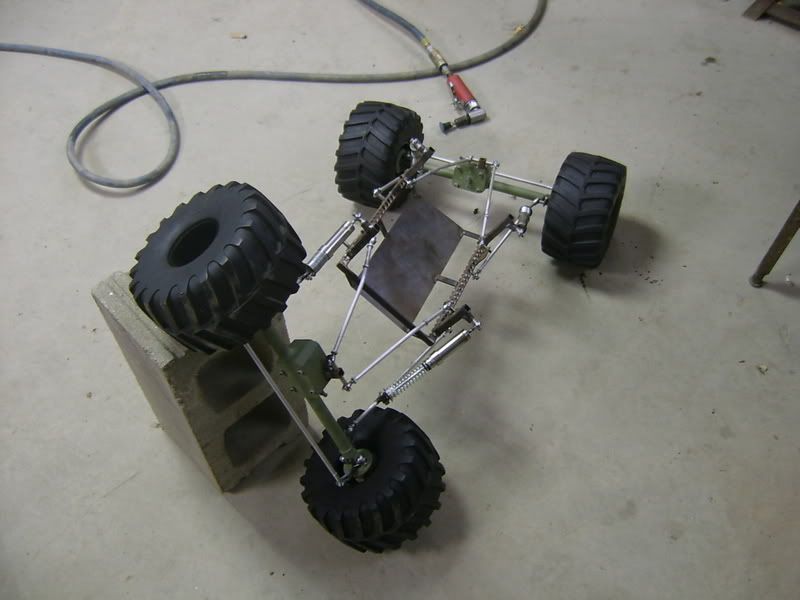

G.I.jonas Posted April 20, 2007 Share Posted April 20, 2007 Hey everyone ,just thought i would post on my other hobbie aside from cars(small cars lol).The pics below are of a project that i so far have about 300 hours into!.Its a 3 foot long scratch made rock crawler ..rc of course.Its basically an accumulation of about 500 parts so far and im maybe 1/4 done.I have hand fabbed and machined every part on the vehicle exept the obvious,tires,mini heim joints and such.The axles are worm drive 16:1 with custom scale u joints,ball bearing construction and totallty rebuildable.Both axles are steering axles for the 4x4x4 capability.I had to make my own wheels to suit the vehicle as well as my own oil filled coilover shocks too boot(PITA!!!)lol.I have all parts to finish i just need the time to do so,when done it will use a 24 volt gearhead motor,servo actuated high and low range transfer case as well as 4 wheel steering.I have many more pics but if i had time to put them all on i would think i had time to work on all my projects:p Specs so far: 38" long 23"wide About 14 pounds so far,closer to 30 finished 9" high tires Fully adjustable 4 link suspension Am i a huge nerd??....yes indeed Quote Link to comment Share on other sites More sharing options...
DavyZ Posted April 20, 2007 Share Posted April 20, 2007 Am i a huge nerd??....yes indeed "Nerds" that can create great automotive art are not "nerds" by definition; they are Heroes. Remember that Davy Quote Link to comment Share on other sites More sharing options...
G.I.jonas Posted April 20, 2007 Author Share Posted April 20, 2007 they are Heroes. Remember that Will do,thanks a lot:) Quote Link to comment Share on other sites More sharing options...
Administrators BRAAP Posted April 20, 2007 Administrators Share Posted April 20, 2007 (quoting the kid on the Big-Wheel in the movie, “The Incrediblesâ€).. “That is totally wicked!!!†Very cool. Thank you for sharing. Please keep this thread going with updates as you progress. Quote Link to comment Share on other sites More sharing options...
v80z Posted April 20, 2007 Share Posted April 20, 2007 Man I can see it full scale. That looks like alot of great work. Congrats!! Please post progress. Maybe you can put a red 2+2 body on it!!!!! Quote Link to comment Share on other sites More sharing options...
RB26240Z Posted April 20, 2007 Share Posted April 20, 2007 Nice work, keep us posted. Henry Quote Link to comment Share on other sites More sharing options...
Rhnmsf Posted April 20, 2007 Share Posted April 20, 2007 is it going to be gas or electric?.....hehe nitro cars are sweet.... Quote Link to comment Share on other sites More sharing options...
Racin_Jason Posted April 20, 2007 Share Posted April 20, 2007 Wow that thing has some major articulation! nice job on the design and execution. Should be interesting to drive when it ready Quote Link to comment Share on other sites More sharing options...
sweetleaf Posted April 20, 2007 Share Posted April 20, 2007 Great work man.. Keep at it and post the progress.. Is there a class for that size crawler? Quote Link to comment Share on other sites More sharing options...
steal my nametag Posted April 21, 2007 Share Posted April 21, 2007 it's gotta be rough making something that incredibly fantastic on such a small scale, i know the kinda work that goes into full grown crawlers, i'm with everyone else on seeing the progress. outstanding work, keep it up! Quote Link to comment Share on other sites More sharing options...
roninjiro Posted April 21, 2007 Share Posted April 21, 2007 all i can say is WOW..... Quote Link to comment Share on other sites More sharing options...
Some-Guy Posted April 21, 2007 Share Posted April 21, 2007 thats is super cool man great work ! I like how you have all those tools on a surface table hehe Quote Link to comment Share on other sites More sharing options...
CalifaThugz Posted June 14, 2007 Share Posted June 14, 2007 Any progress pictures? I like how it has turned out so far. Sorry I am just really interested I know its an old post. Quote Link to comment Share on other sites More sharing options...
MY77Z Posted June 14, 2007 Share Posted June 14, 2007 WOOOOOOOOOW great job, why electric? why not nitro? Quote Link to comment Share on other sites More sharing options...
v8wannabe2 Posted June 15, 2007 Share Posted June 15, 2007 That's cool, it would look good under one of my wire cars Quote Link to comment Share on other sites More sharing options...
CalifaThugz Posted June 15, 2007 Share Posted June 15, 2007 Wow that is crazy! I have never seen cars done that way... wires! Quote Link to comment Share on other sites More sharing options...
v8wannabe2 Posted June 15, 2007 Share Posted June 15, 2007 Thanks Califthugs, I don't want to hijack the threads. Here's a link if you want to see more. http://forums.hybridz.org/showthread.php?t=113913 Quote Link to comment Share on other sites More sharing options...
LT280z Posted June 15, 2007 Share Posted June 15, 2007 If you need any opinions or help with the project pm me...I raced and designed r/c cars for about 10 years on a profesional level. I have boxes and boxes of parts and cars, trucks, planes, etc Quote Link to comment Share on other sites More sharing options...

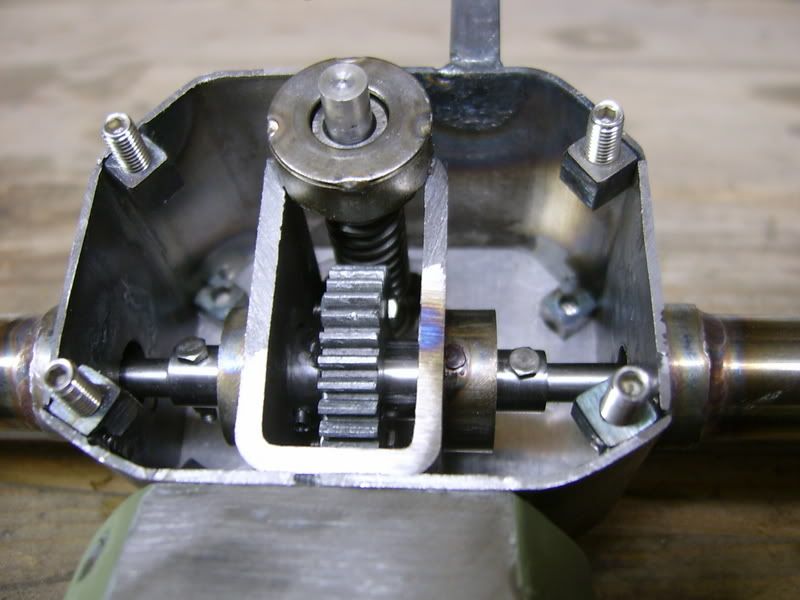

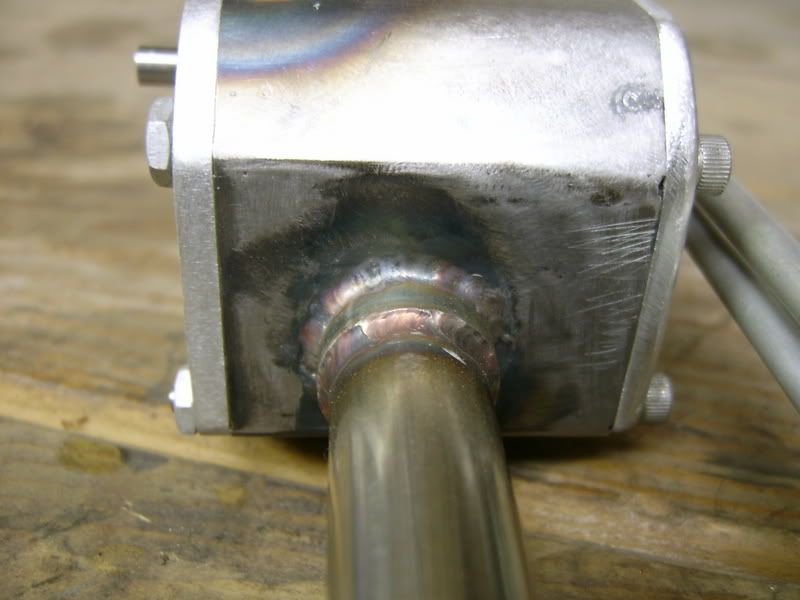

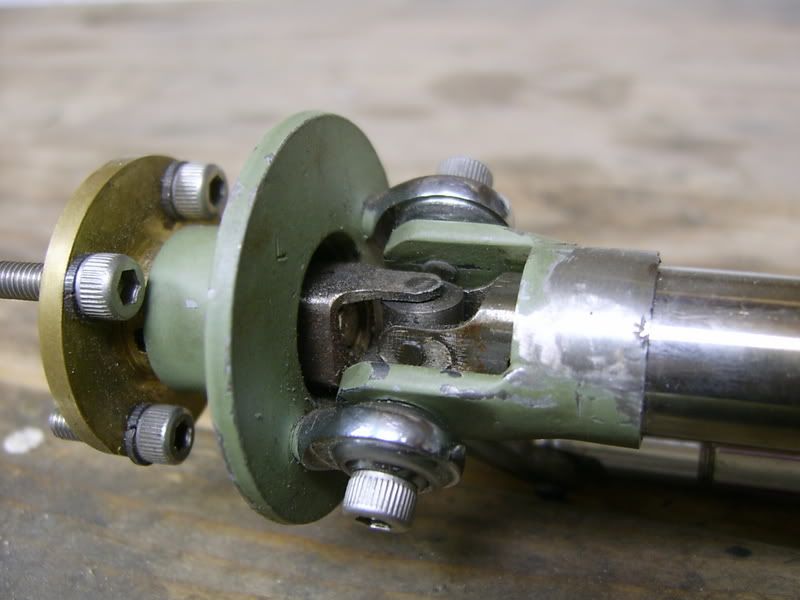

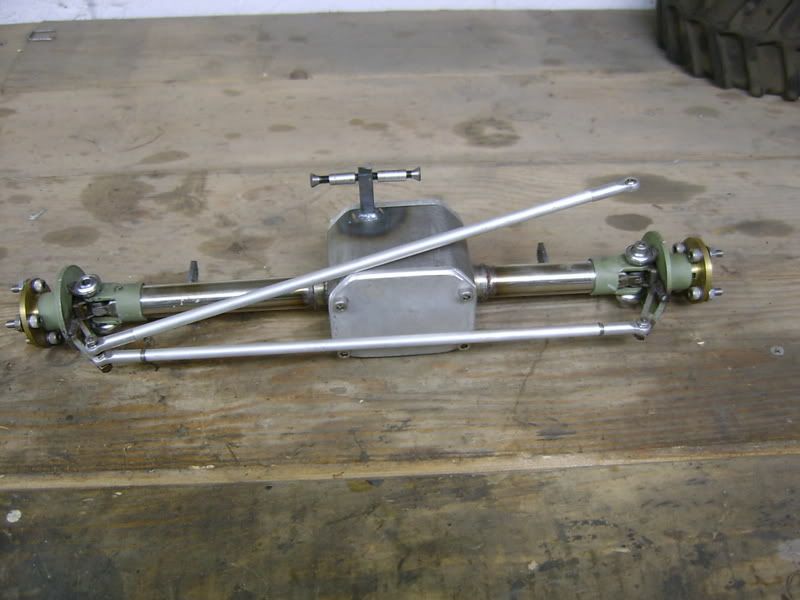

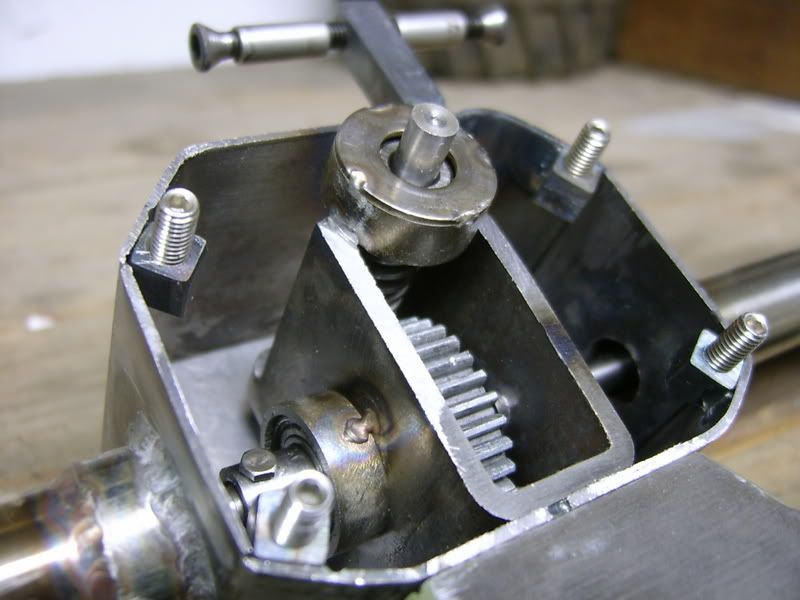

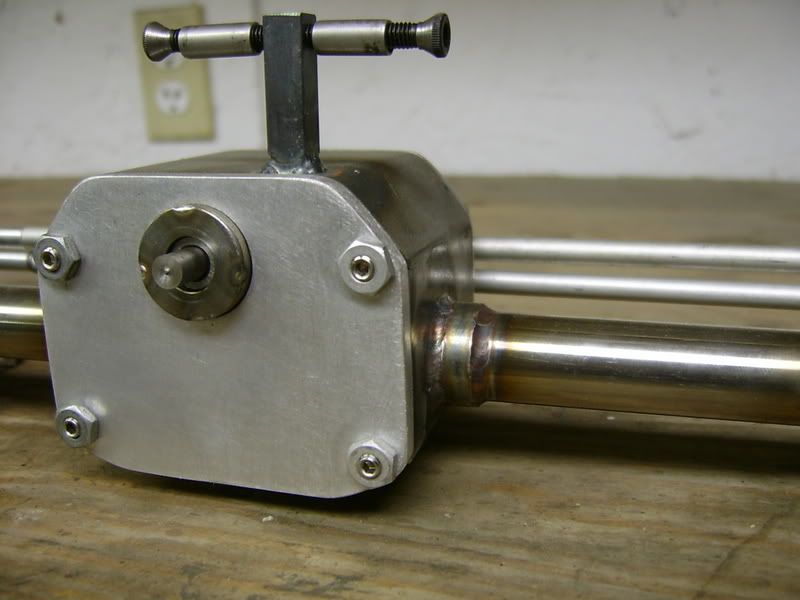

G.I.jonas Posted December 17, 2007 Author Share Posted December 17, 2007 Yup...thats how i am,start something sweet and then hate it for about a year only to work on it again.Well my original axle design became a problem requiring me to reengineer which is why i was disgusted with the project so long.After coming up with a new idea for the gearing i decided to make entirely new axles aside from the original hubs and knuckle assembly.The problem with the old design was the fact that even thought the gear ratio was 16:1 worm drive, the gear driven by the worm was only about 3/8" in diameter so there was so little leverage at the wheels.My new design uses a gear about 2" and the difference is enormous...just turning the pinion shaft by hand i cannot hold the hub with my other hand well enough to keep it from spinning.Between the ratio and the diametral difference i'm thinking that it should put out about 20 times the torque as the old design.Your probably asking yourself "wow,this guy can build this thing yet he didnt think of that until he was done" well...thats a good question,anyways here is what ive got now,the old ones are being scrapped. Rebuildable worm drive third member: Brass hubs:use 10x24 stainless screws for studs.Note mini castle nut. I love my tig welder!!>stainless to mild steel=no prob. Rear of housing,pinion shaft and upper 4 link mounts: My homemade block and pin u-joints: Gearhead motor and future transfer case: Tires! Current state of the rest of the project:icon56:: Yeah i know i like my camera and keyboard too much hope you all approve!! Quote Link to comment Share on other sites More sharing options...
