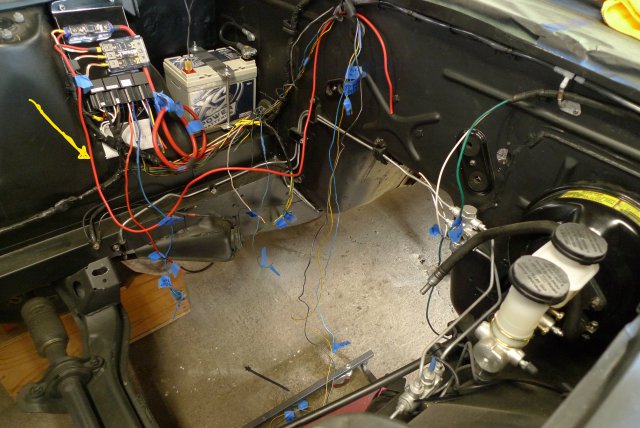

wingwalker Posted July 11, 2019 Share Posted July 11, 2019 I've been working on my 280 Z and will test-fit the engine (carbureted Vortec 350) once I am able to bundle up this bird's nest of wires. Because the guys at Vintage Air suggested I mount the compressor on the passenger side, I have my alternator on the driver side. And that means the wire feeding the alternator needs to run a long way. As you see in the photo, I was about to send it back to the firewall, across and then forward to feed the alt. But a few minutes ago I noticed that if I run it along the inner side of the cross-member, it is a pretty straight (and much shorter) shot. I have drawn in an arrow to the wire in question. Once that's decided, I can begin re-wrapping the harness. (By the way that relay closest to the firewall will be either for the fuel pump or for the electric fan--I haven't decided (and I'll take feedback on that issue, too). Quote Link to comment Share on other sites More sharing options...
wingwalker Posted July 14, 2019 Author Share Posted July 14, 2019 Okay, without any feedback encouraging me to take the unconventional path, I will carry this feed-wire the long way around. But to avoid voltage drop, I have ordered 8-gauge to replace this 10-gauge wire. When It arrives, I'll route it around the front and be done with wiring hell. Finally. Quote Link to comment Share on other sites More sharing options...
Richard Oben Posted July 14, 2019 Share Posted July 14, 2019 Don't sweat it. Alternator is low driver side on my car (long way from battery). Wire runs up and over engine and then to battery. Depending on alternator that may be more challenging unless it is a one wire. HTH, Richard. Quote Link to comment Share on other sites More sharing options...
jhm Posted July 14, 2019 Share Posted July 14, 2019 You can run the wires pretty much any way you want. All things being equal, obviously a shorter run of wire is more desirable than a long run. I originally considered running my main alternator wire along the path you were considering, but it ended up being slightly shorter on my setup going down the driver-side frame rail and across the firewall. Other factors to consider are "neatness" (if that's important to you), durability/survivability, and maintainability. A lot of solutions are easy to initially implement, but become a bitch later on when it's time to work on them and/or replace them. Quote Link to comment Share on other sites More sharing options...
wingwalker Posted July 15, 2019 Author Share Posted July 15, 2019 Richard and JHM--thanks. I appreciate the input. As I mentioned, I ordered (from Jegs) a more robust 8-gauge wire kit, and when it arrives, I'll finish that bit. Right now I confused as hell about the wire to drive the tach. I have a blue wire separated and labeled for that, but I'm pretty sure it's wrong. I want to get this right, because I really don't want to cook the tach. Quote Link to comment Share on other sites More sharing options...
wingwalker Posted July 15, 2019 Author Share Posted July 15, 2019 Richard and JHM--thanks. I appreciate the input. As I mentioned, I ordered (from Jegs) a more robust 8-gauge wire kit, and when it arrives, I'll finish that bit. Right now I confused as hell about the wire to drive the tach. I have a blue wire separated and labeled for that, but I'm pretty sure it's wrong. I want to get this right, because I really don't want to cook the tach. -------------------- Okay, I just tested the blue wire to the tach resistor, and sure enough, they have continuity. So, I'll attach the blue wire to the negative on the HEI when the engine goes in and see what happens. The JTR book says to turn the brass adjustment on the back of the tach 45 degrees, but the text doesn't mention which way. I'll leave that step until after I have the car running, since this may have already been done (it previously had a SBC in it). Getting closer. Quote Link to comment Share on other sites More sharing options...
jhm Posted July 16, 2019 Share Posted July 16, 2019 (edited) On my V8 swapped 260, I ran the tach wire from the GM HEI straight to the stock tach (with the JTR-recommended resistor inline), and it's been working fine for years. I thought the adjustment was only needed for a 240 tach, but my memory could be failing me. Edited July 17, 2019 by jhm Quote Link to comment Share on other sites More sharing options...
Grog Posted July 16, 2019 Share Posted July 16, 2019 You can run a longer wire if you increase the gauge to compensate for resistance. What is the amperage of your alternator? Eight gauge may be okay. I run 6GA with no issues. Quote Link to comment Share on other sites More sharing options...
Twisted46 Posted July 17, 2019 Share Posted July 17, 2019 The OEM tach in your 280z should work just fine hooked up to the HEI output. There should be two black - white wires if you are using OEM, If not then refer to the manual for that harness. Look at the JTR book to make sure you have them correct. I ended up yanking my wiring and going full race car with my own relay and fuse boxes and switches. Quote Link to comment Share on other sites More sharing options...
wingwalker Posted July 17, 2019 Author Share Posted July 17, 2019 Grog and Twisted46, The alternator is 65 amps and I won't be running a huge stereo amp, so I believe 8 gauge will be okay. It think total it will be about a five-foot run. At the most, six. And I have been using the JTR book, but because this car had been hacked--not just wiriing, but on many other levels, the book is for me just a starting point. I think I have the correct wires for the HEI. At least I hope so. In a separate post today, I show some photos of us stuffing the engine onto its mounts. Feels good to have most of the wiring behind me, and the engine now bolted to the front mounts. (The transmission right now sits on a box. Fitting the rear mount will be next.) Quote Link to comment Share on other sites More sharing options...
Twisted46 Posted July 18, 2019 Share Posted July 18, 2019 There are some calculators you can use but I would seriously consider 6g as your biggest load will come when the car sits for a while and the alternator has to charge the battery. I blew a fusible link by letting and alternator charge an almost flat battery. You will likely never have an issue with 8g but it only takes one unlikely event for hell to break loose. https://www.engineeringtoolbox.com/amps-wire-gauge-d_730.html Yes POs are the biggest problems when working on old cars. I spent weeks looking through the 260z wiring diagrams and probing with a multimeter. I would start at thr tach and work your way to thr end of the loom if you think wires have been crossed or replaced. Quote Link to comment Share on other sites More sharing options...
wingwalker Posted May 29, 2020 Author Share Posted May 29, 2020 (edited) I'm back at work on this project, and nearing the end of wiring hell--but I have two issues hanging and would like advice. If this C-19 keeps me close to home for a couple more months, I just may get this thing on the road. I'll post a couple photos that show how I solved the earlier issue. I used a heavy-gauge wire and ran around the front. It's protected and out of the way. And I got rid of the fusible links with four robust fuses per some write-ups in this forum. I mounted four relays for high and low beams, ignition and starter. I was about the wire in another for the electric cooling fan, when my searching showed me that I'll need to tie in the air conditioning compressor--so I'll wait until the Vintage Air system is on hand.to do that. But I also should put a relay in for the fuel pump. I'm thinking of mounting that relay on the firewall and using the existing wiring to run power back to the fuel pump (and in fact I've mounted the pump and wired it into the existing 280Z fuel pump wires). I can tap into the ignition wire at the HEI (since it is switched) for that relay , but I also have a source of +12 that is always hot that I could use. And why I am thinking of using that constantly-hot source is that with the car shut down on hot days, the fan will continue to run until the thermo switch tells it the engine has cooled to the set temp. When it opens, the fan will shut off. My former fun-car, an Alfa Romeo, would do that, and the setup never ran down the battery. Thoughts on this? That's the first question. The second has to do with the electric cooling fan. I read somewhere that it isn't good to pick up power from the ignition side, and instead I should use the Aux feed (Cig lighter?). I think that the reasoning was that as the fan costed down, it would feed power back into the circuit and keep the engine running for a little extra time as it acted like a generator using its inertia). I could use that always +12 source mentioned above and depend on its thermo switch to shut it down. Let me know problems with either of those scenarios, please. And if I might throw in a third question, other than the cigarette lighter, where else might I pick up switched power? Edited May 29, 2020 by wingwalker Quote Link to comment Share on other sites More sharing options...
jhm Posted May 30, 2020 Share Posted May 30, 2020 15 hours ago, wingwalker said: And why I am thinking of using that constantly-hot source is that with the car shut down on hot days, the fan will continue to run until the thermo switch tells it the engine has cooled to the set temp. When it opens, the fan will shut off. My former fun-car, an Alfa Romeo, would do that, and the setup never ran down the battery. Thoughts on this? That's the first question. Unless you plan on using an electric water pump, I don't think this will really achieve your intended goal. The fan will continue to run after you shut the engine off; but will really only effectively cool the fluid in the radiator vs cooling the engine. I'm surprised this setup worked on your Alfa, but I know pretty much zero about most Italian hardware. Maybe the smaller Alfa engine block and overall cooling system was small enough to be affected by the cooler fluid in the radiator. Regarding your second question, you could install switched and unswitched "hot posts" (using relays of course) to power a variety of high-draw accessories, like your electric fan, AC/heat blower fan, etc. This approach gives you a lot of flexibility in your wiring strategy, and provides max amperage directly to accessories without running through the fragile OEM switches and wiring harnesses. Quote Link to comment Share on other sites More sharing options...
wingwalker Posted May 30, 2020 Author Share Posted May 30, 2020 Thanks, JHM. Good point about only cooling the fluid in the radiator. Maybe there would be some block cooling due to percolation (the strategy the early Model T Fords used), but for a big hunk of iron like the GMC V8, probably negligible. So it makes sense to look for switched power. I can pull it off the cigarette lighter circuit, but are there other sources folks use? Quote Link to comment Share on other sites More sharing options...
wingwalker Posted May 31, 2020 Author Share Posted May 31, 2020 Anyone have suggestions for sources of switched power other than cigarette lighter circuit? I kinda hate to pull that source out to the engine bay, since I may need it for something in the future in the cockpit. Quote Link to comment Share on other sites More sharing options...
bunkhouse Posted May 31, 2020 Share Posted May 31, 2020 I'd use a voltmeter and search through the circuits in the fuse block. Quote Link to comment Share on other sites More sharing options...
Wildfire490 Posted May 31, 2020 Share Posted May 31, 2020 Just now, bunkhouse said: I'd use a voltmeter and search through the circuits in the fuse block. I was literally just going to suggest this. Before I started rewiring my car I had some stuff wired this way. You should probably be able to find open spots on fuse block and if not, just wire into something that isn't super essential if you blow a fuse Quote Link to comment Share on other sites More sharing options...
jhm Posted May 31, 2020 Share Posted May 31, 2020 Looks like you've built your own fuse and relay block inside the engine compartment....are any of those circuits switched? Quote Link to comment Share on other sites More sharing options...
wingwalker Posted June 2, 2020 Author Share Posted June 2, 2020 Okay, out with the volt/ohm meter. I'll dig in and find something. And after that, on to the brakes. I'm getting close enough to visualize starting this thing. Quote Link to comment Share on other sites More sharing options...
wingwalker Posted June 24, 2020 Author Share Posted June 24, 2020 I'm pretty sure my alternator has a bad diode, and it's only 65 amps, so I plan on replacing it. I just ordered a Vintage Air a/c and intend to add a hefty sound system--both of which will require more power than the stock 280Z ate (the a/c and heater uses electric servo controls rather than vacuum that the stock system used), so I'm thinking of ordering a 100-amp or larger alternator. The choices are overwhelming. Anyone care to steer me to the right choice? Cost is a facotr. Quote Link to comment Share on other sites More sharing options...
