Evos 9sec 2jz build - 9's, 8's, and 7's done going for 6 sec pass now!


Recommended Posts

Richard spraying first coat of the white. Color is based of Alpine white.



8-28-2011009.jpg?t=1316401005

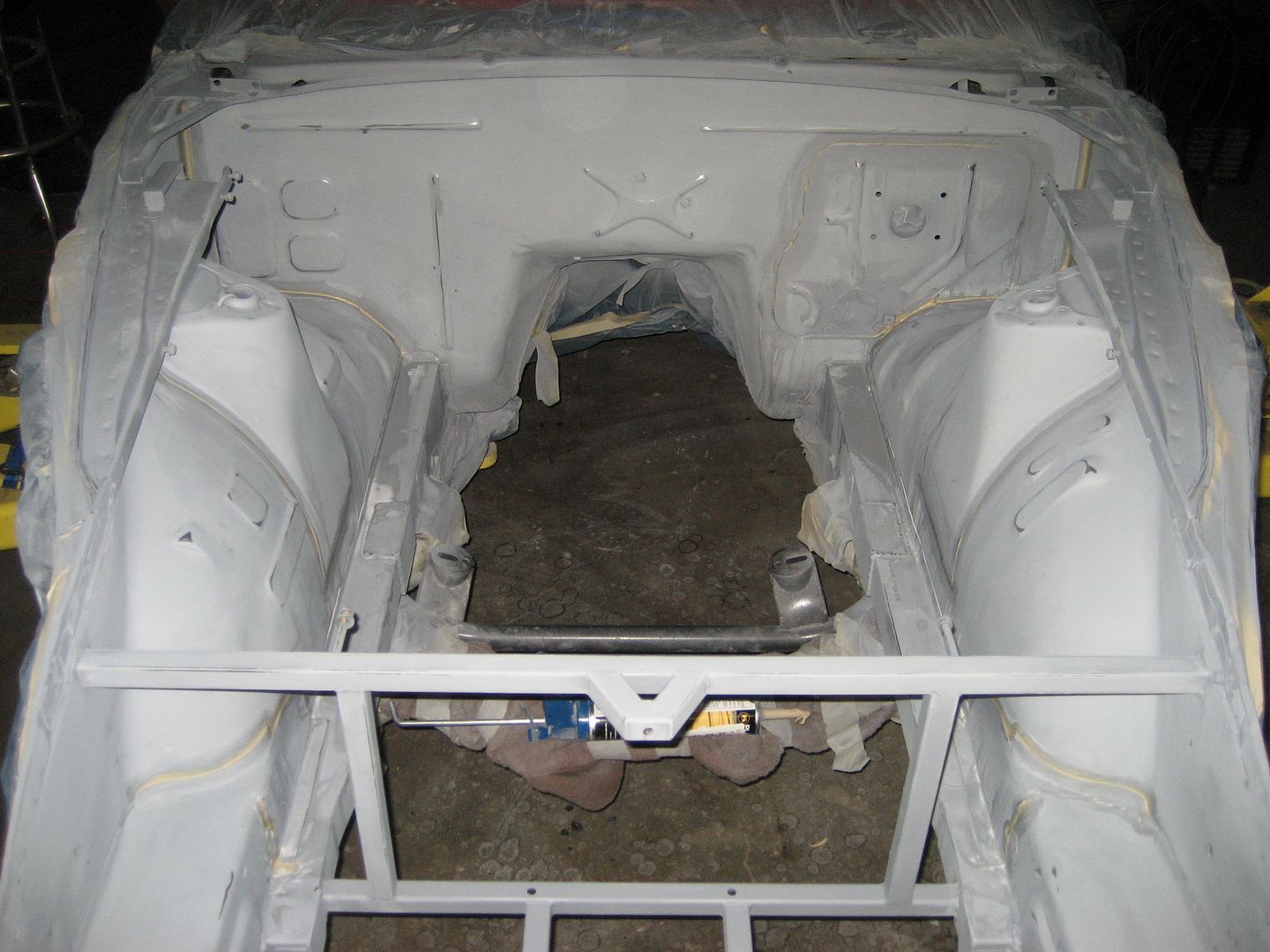

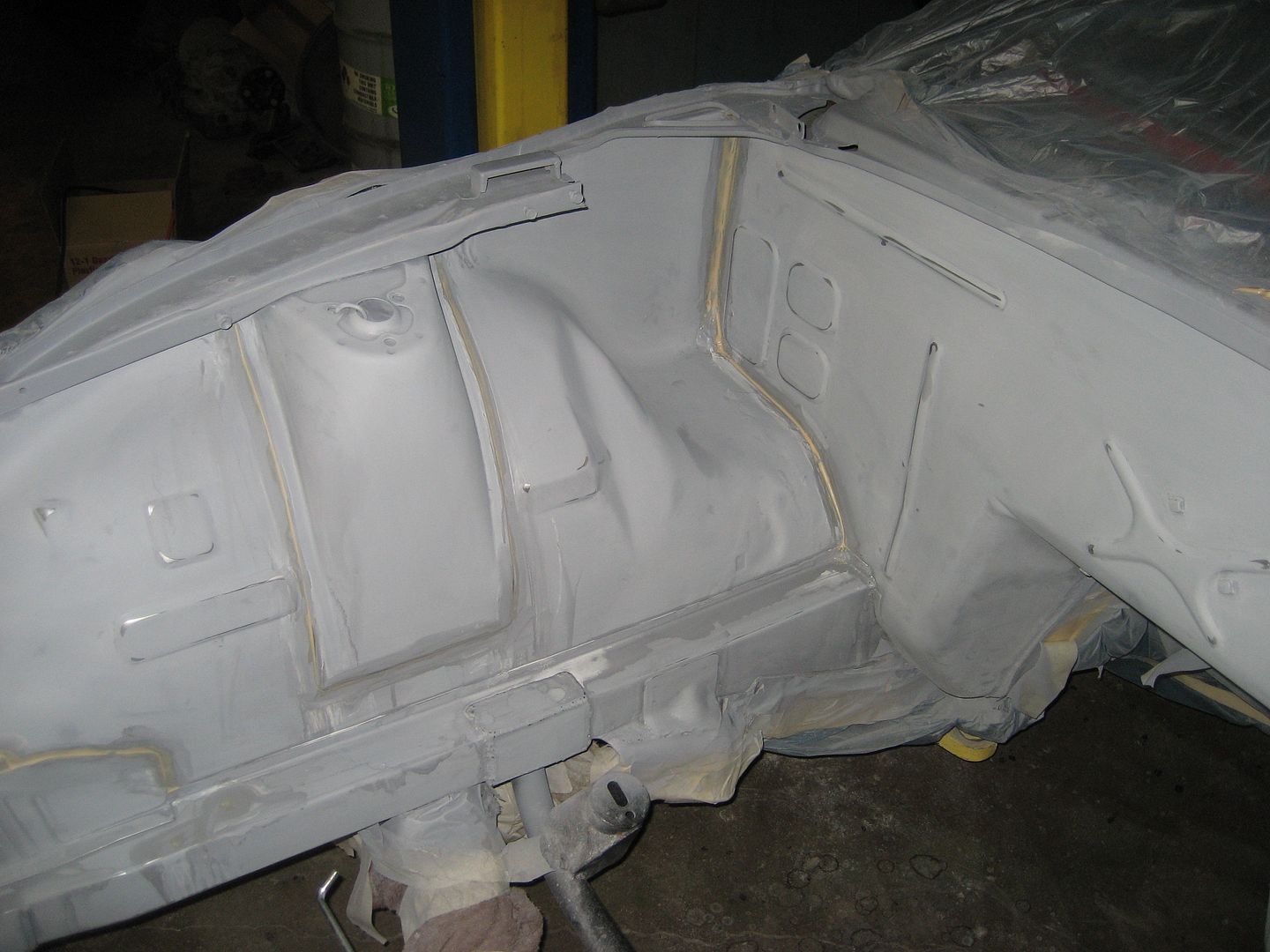

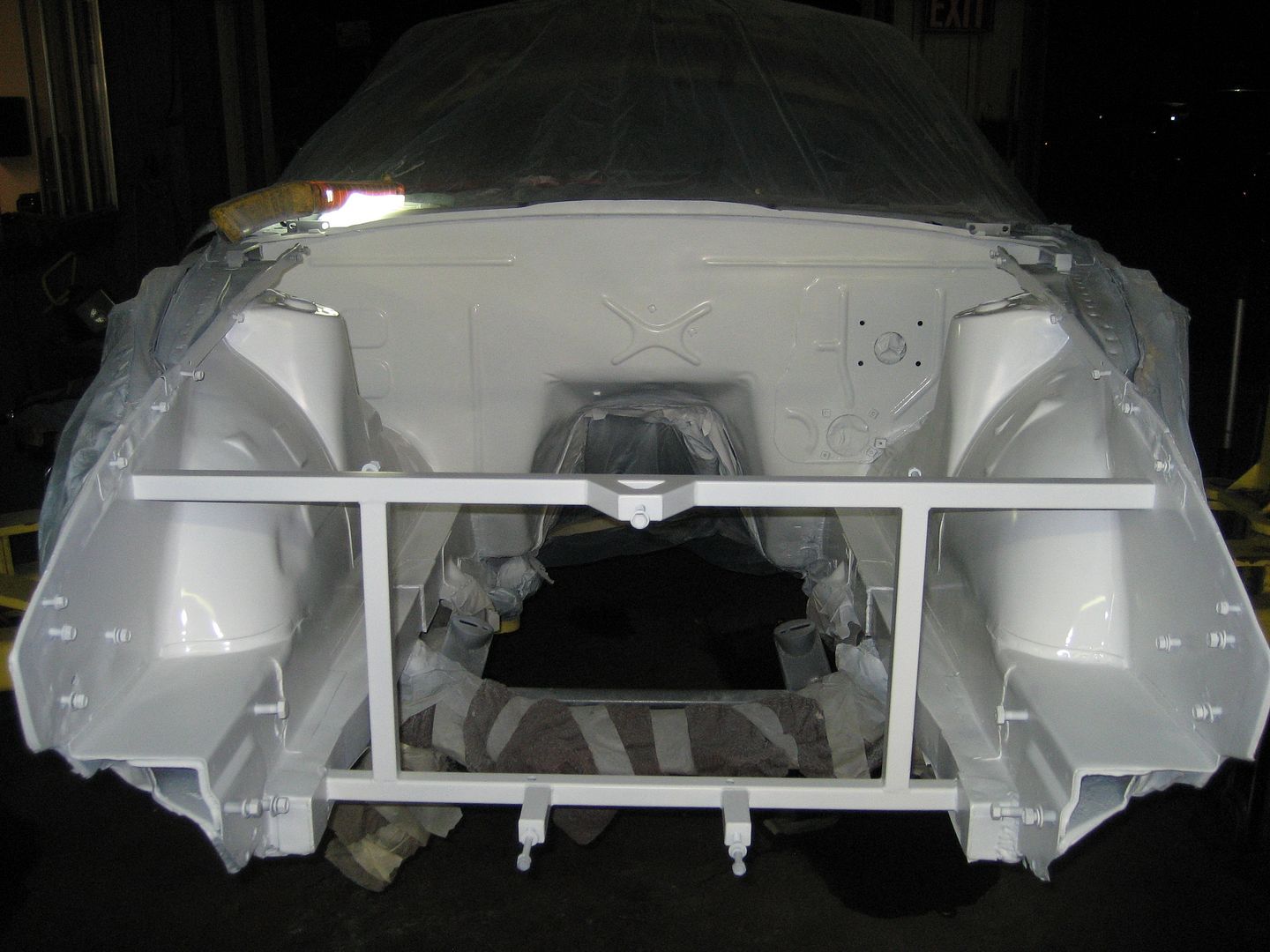

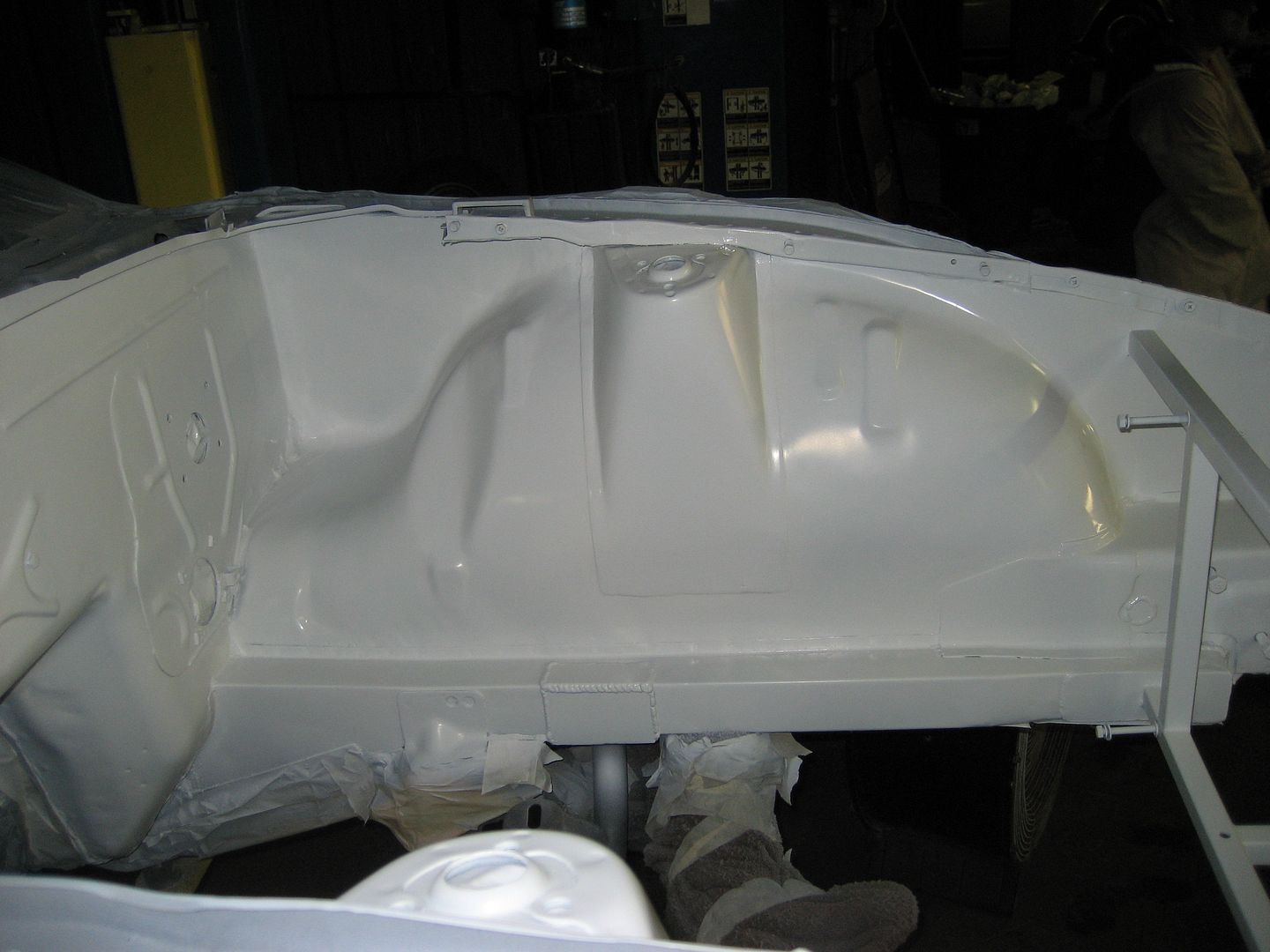

This was after first coat.



8-28-2011017.jpg?t=1316400983



8-28-2011019.jpg?t=1316400968

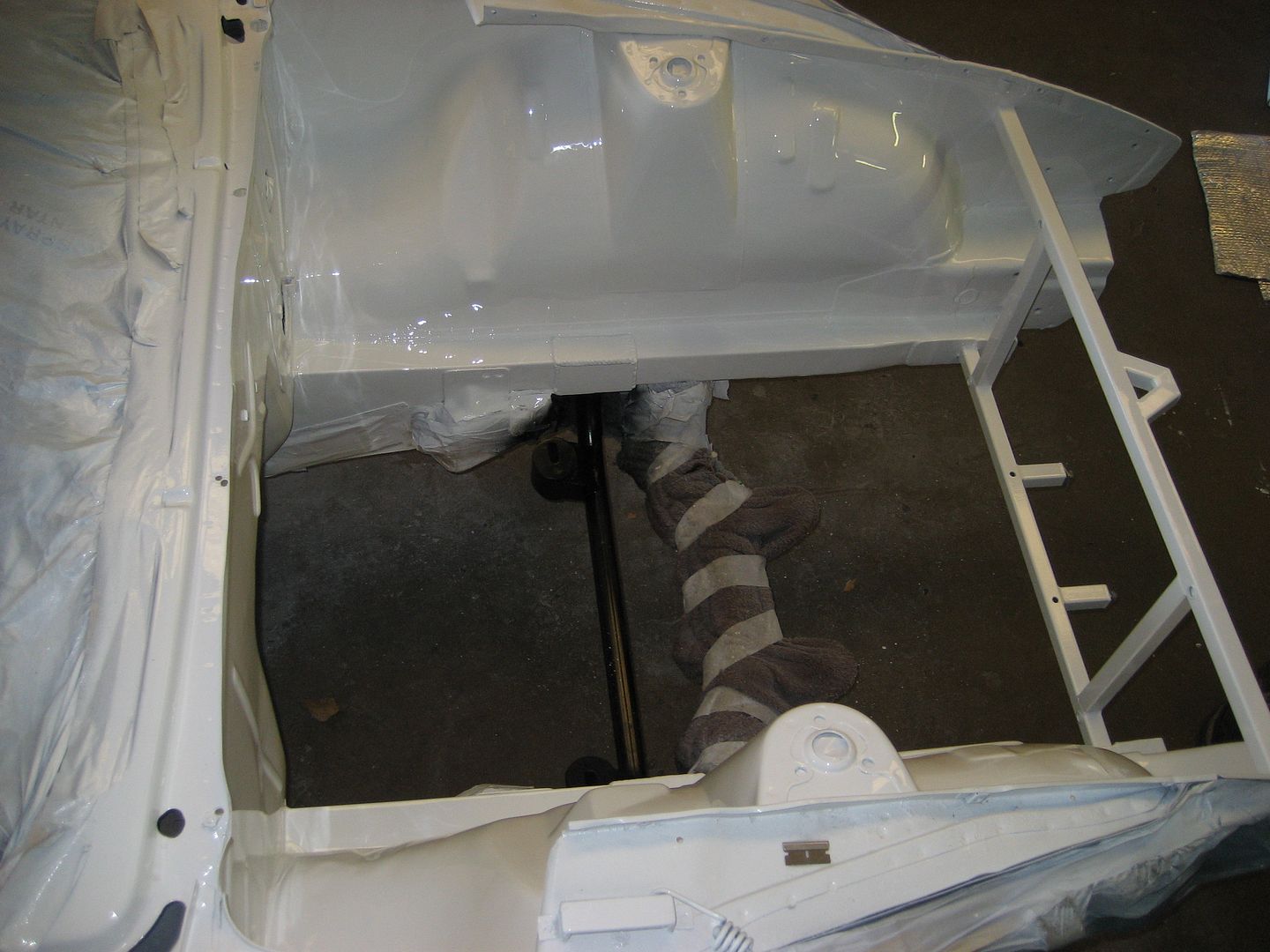

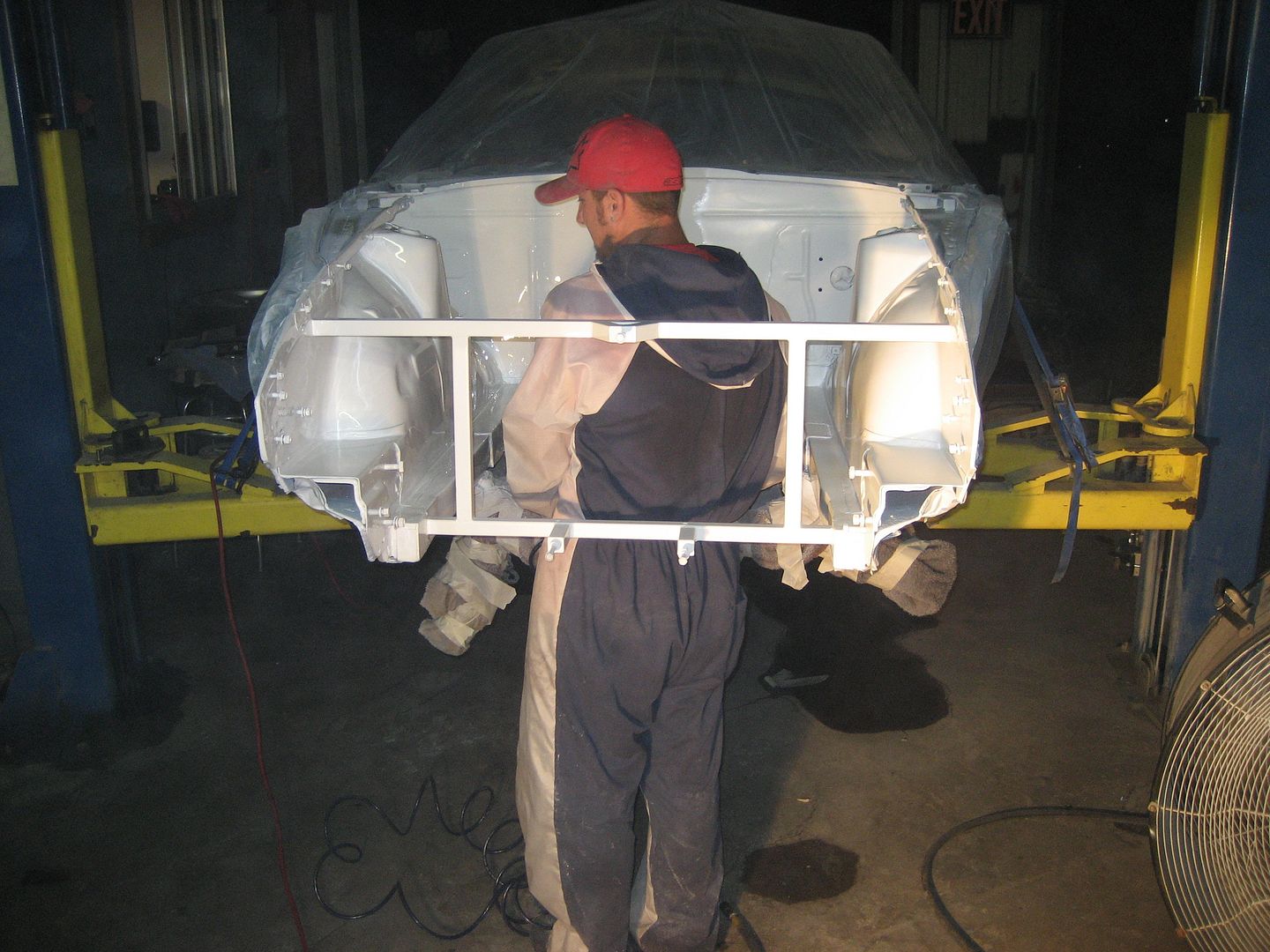

Richard spraying first coat of clear right afther he finished second coat of base color.



8-28-2011020.jpg?t=1316400961

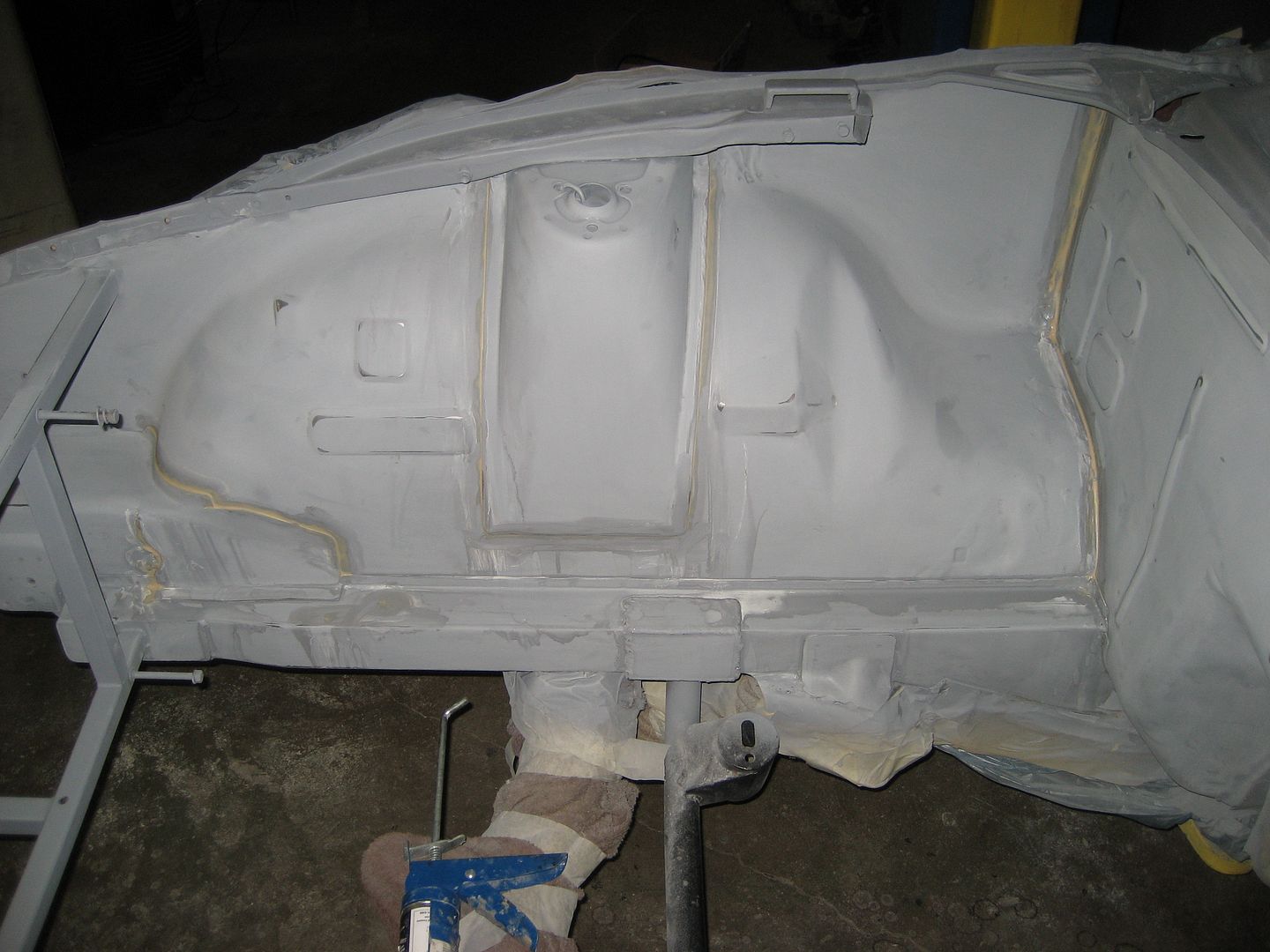

This is where we ran into slight problem. Half way through spraying clear coat spray gun just went to crap and it started BLOWING out clear! So much of clear came out that it formed three large puddles of runoff. We found alot of small imprefections in engine bay that we could not see with the primer on there they showed up afther the paint had dried off. There was no other than sand the most of the engine bay down and fix all the small imperfections.

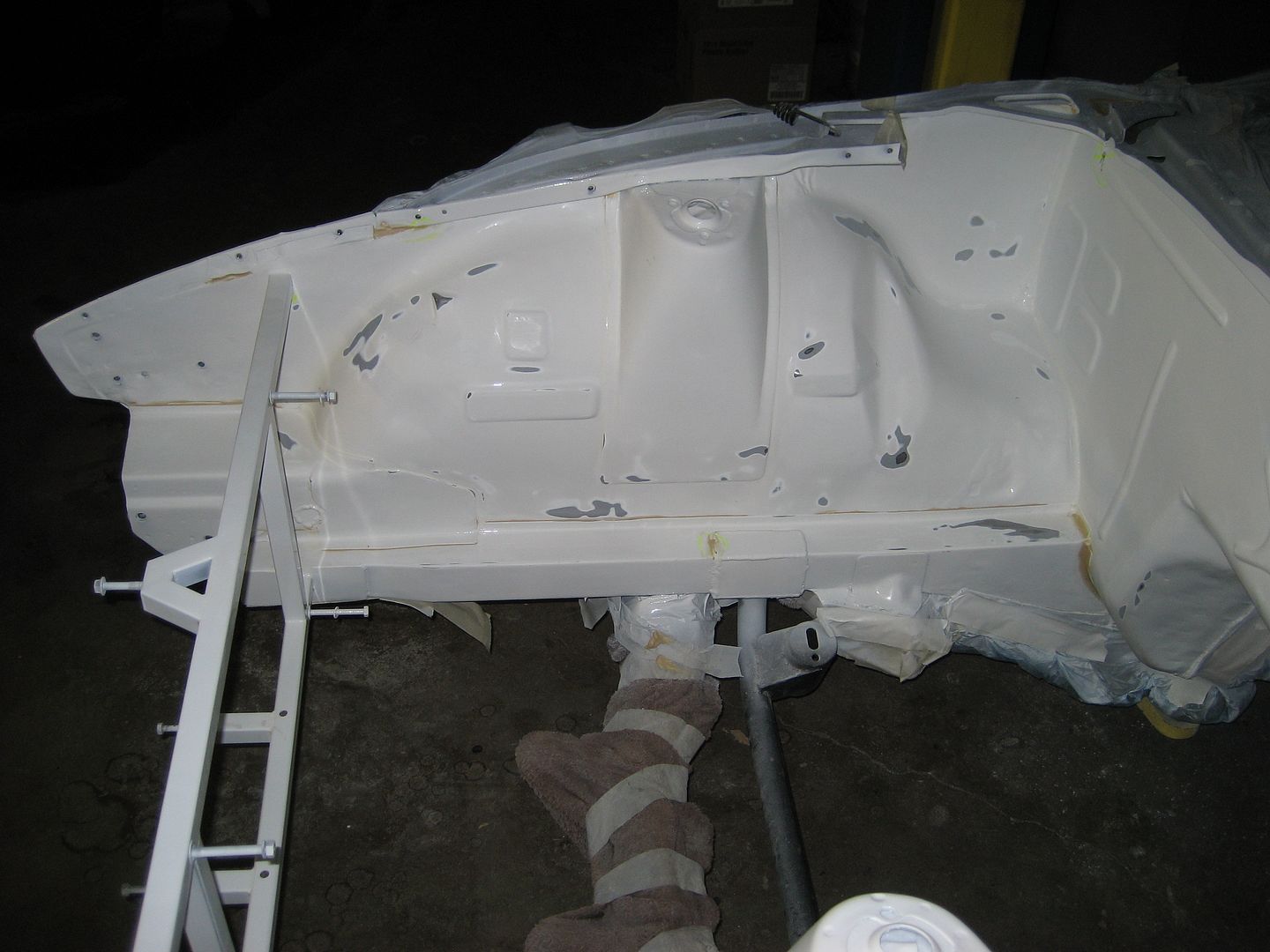

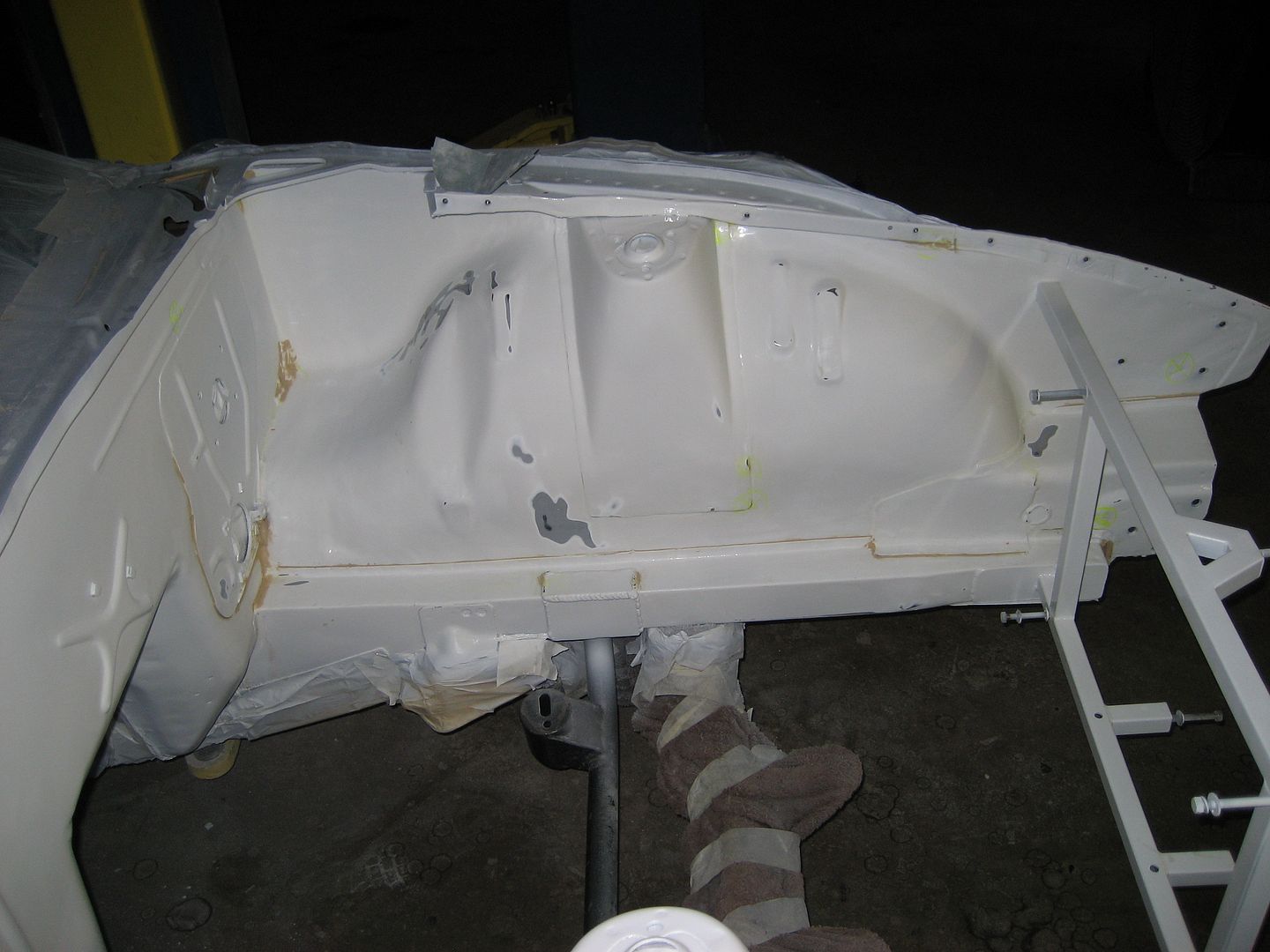

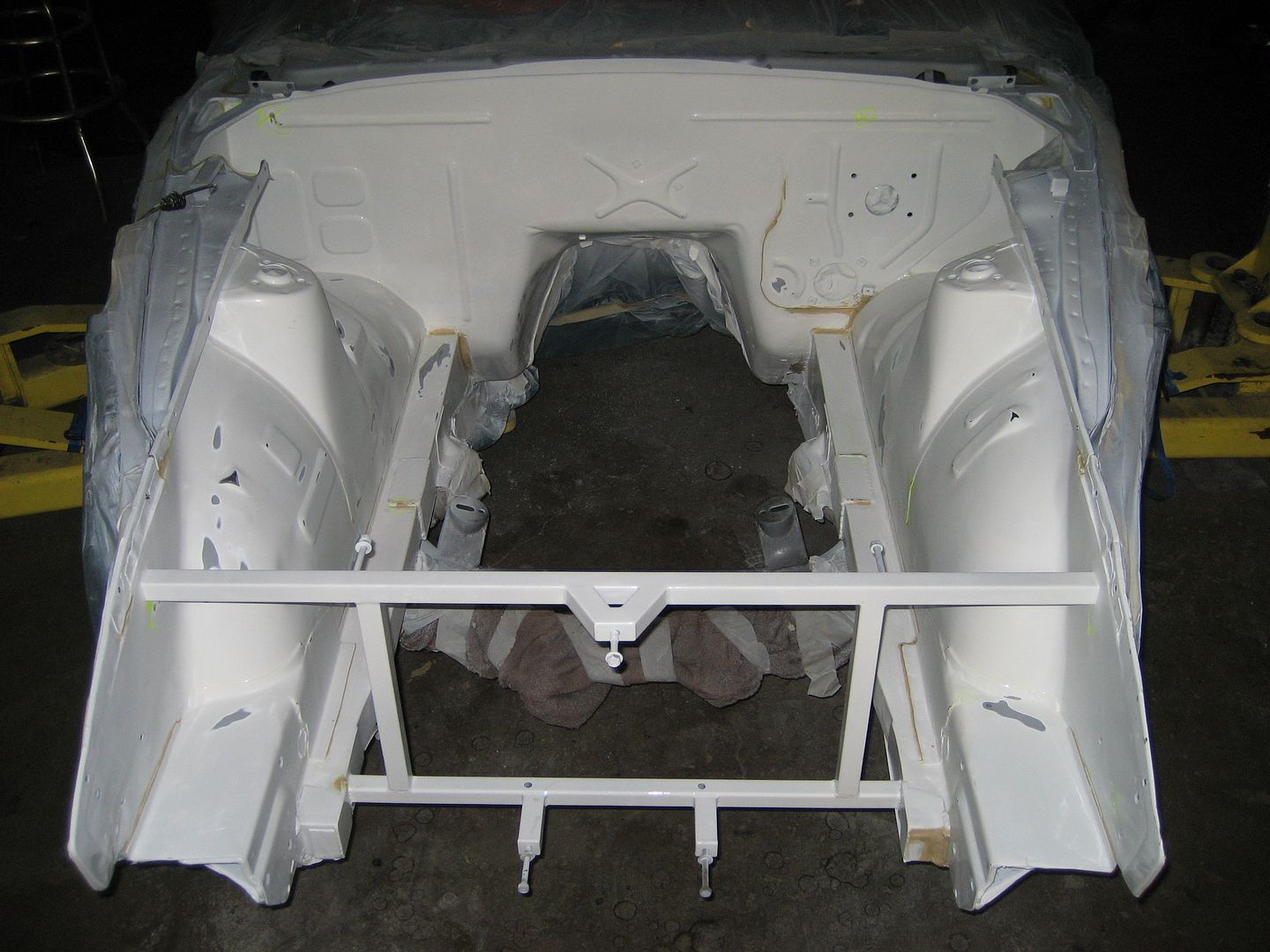

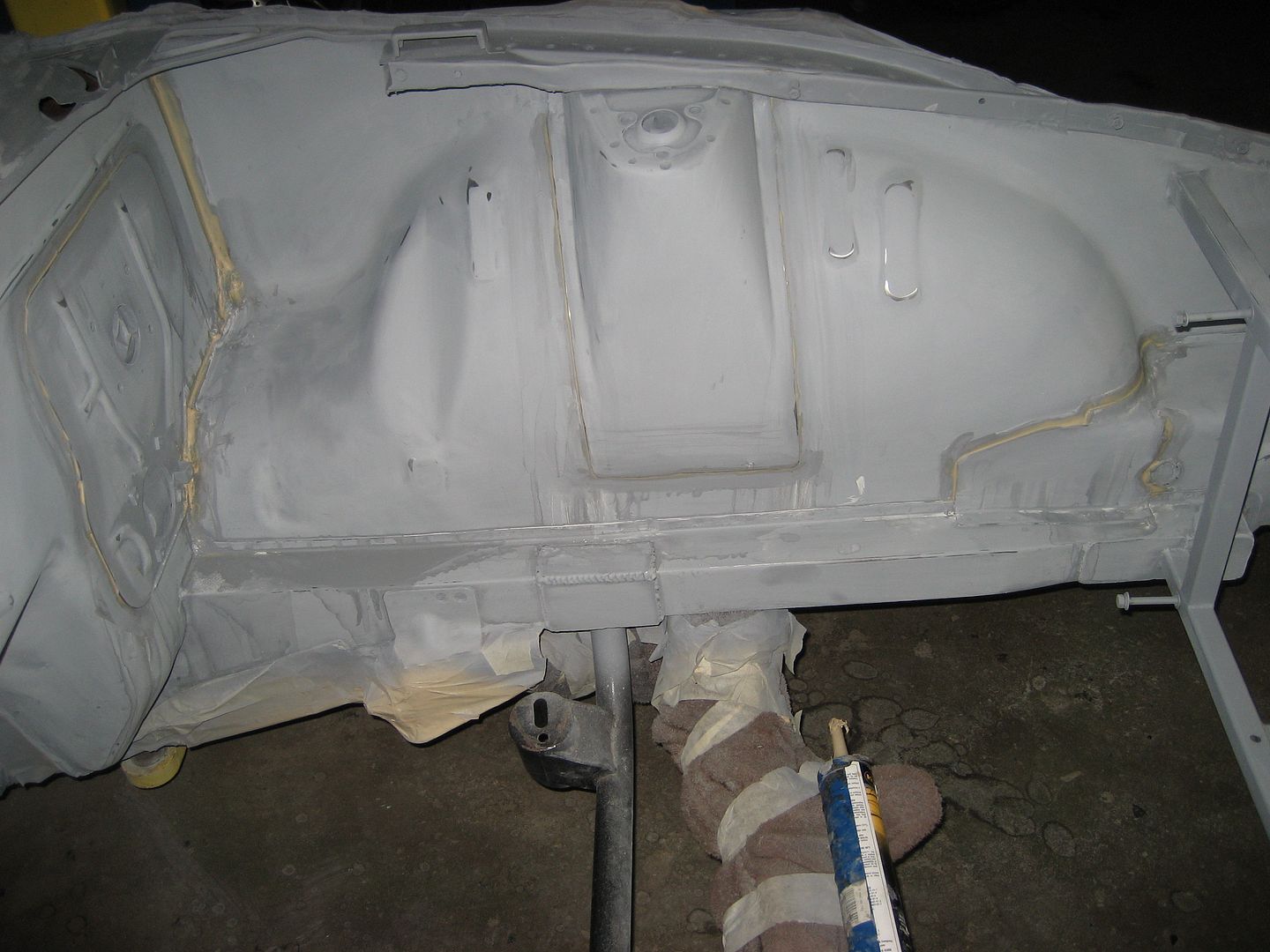

Here you can see what all had to be addressed (marked with green higlighter and seam sealer) but after this everything was as perfect as it could be! Silly me I tought that I was building race car...lol



9-11-2011001.jpg?t=1316400951



9-11-2011002.jpg?t=1316400941



9-11-2011003.jpg?t=1316400933

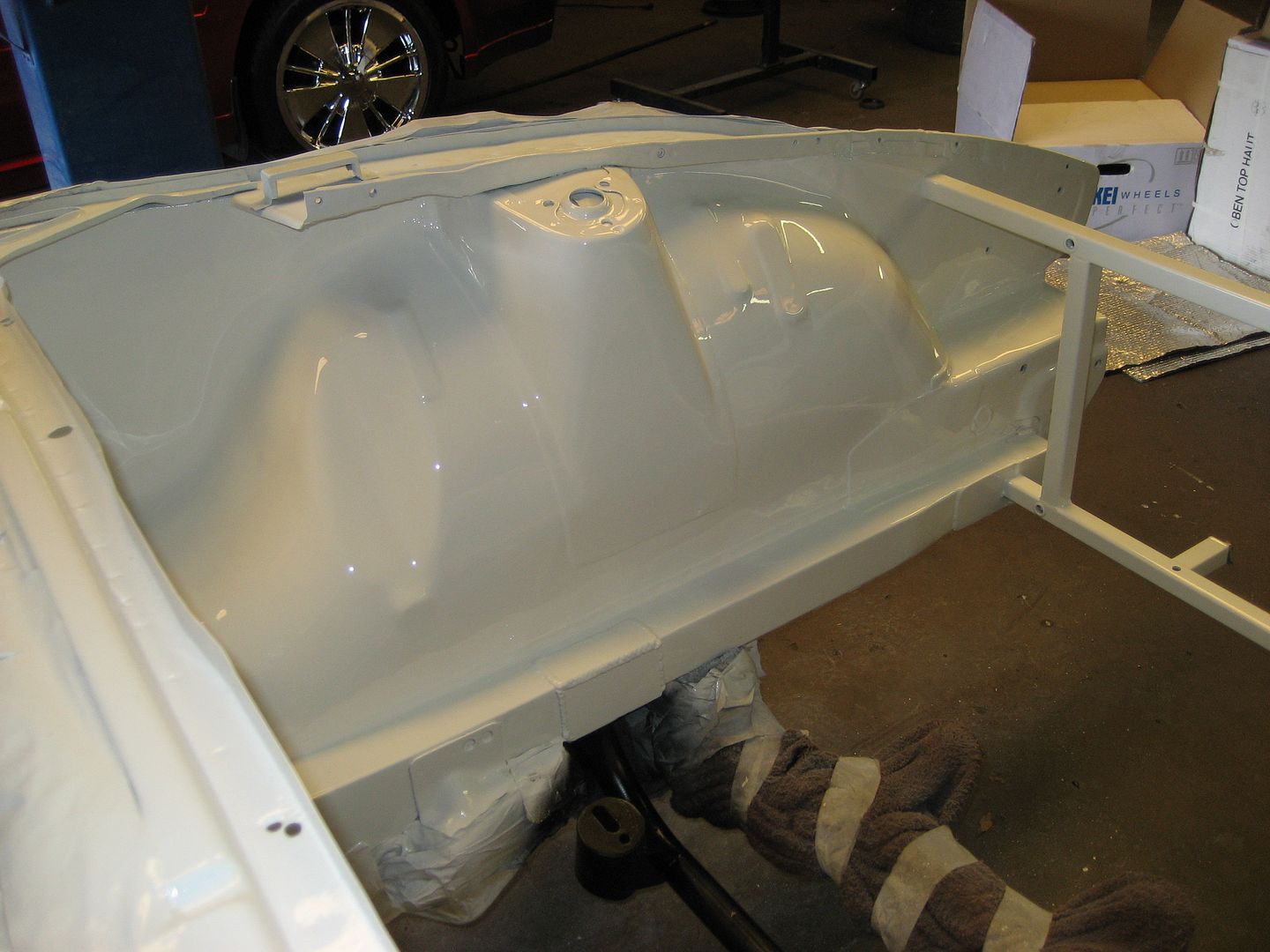

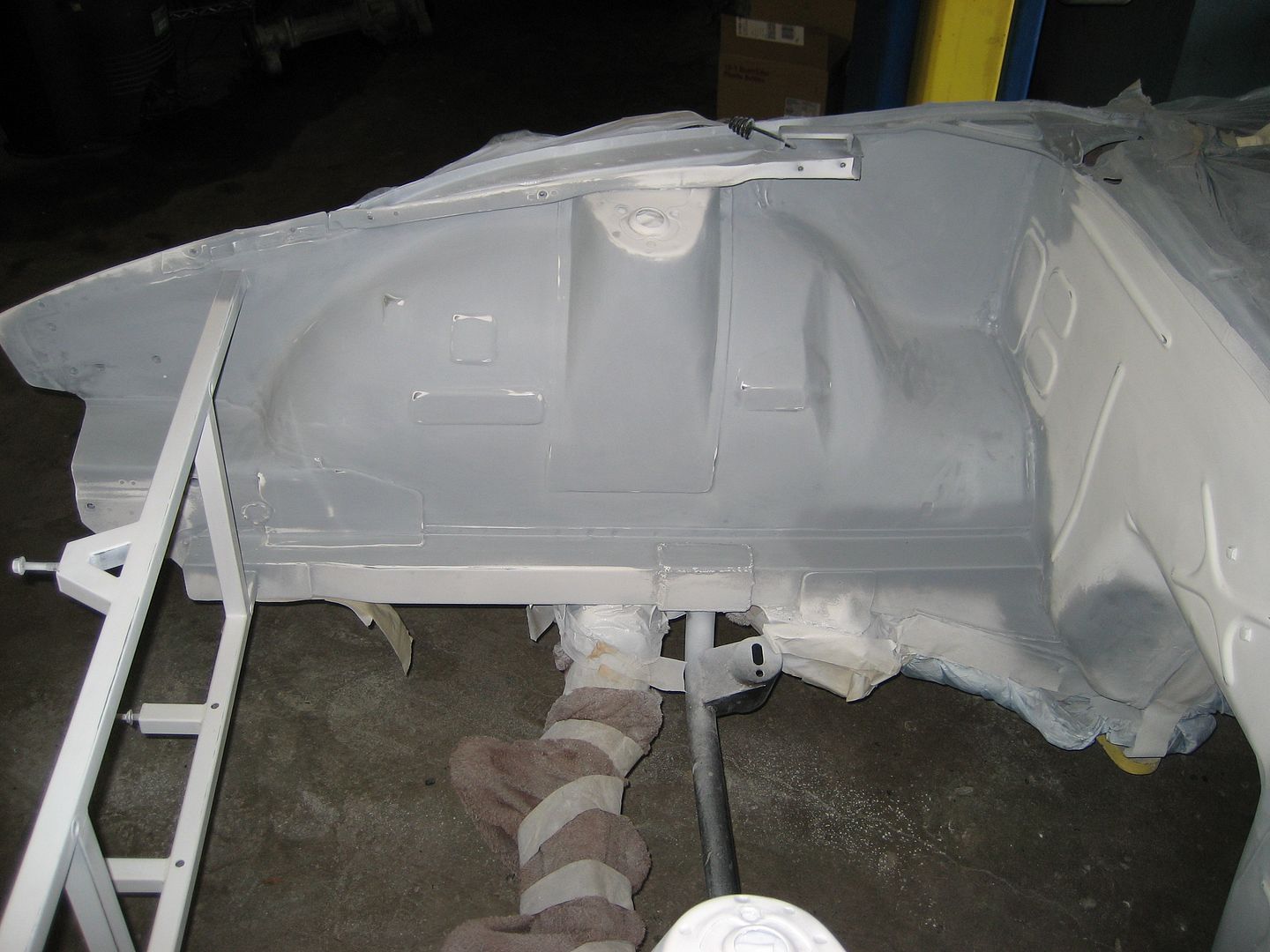

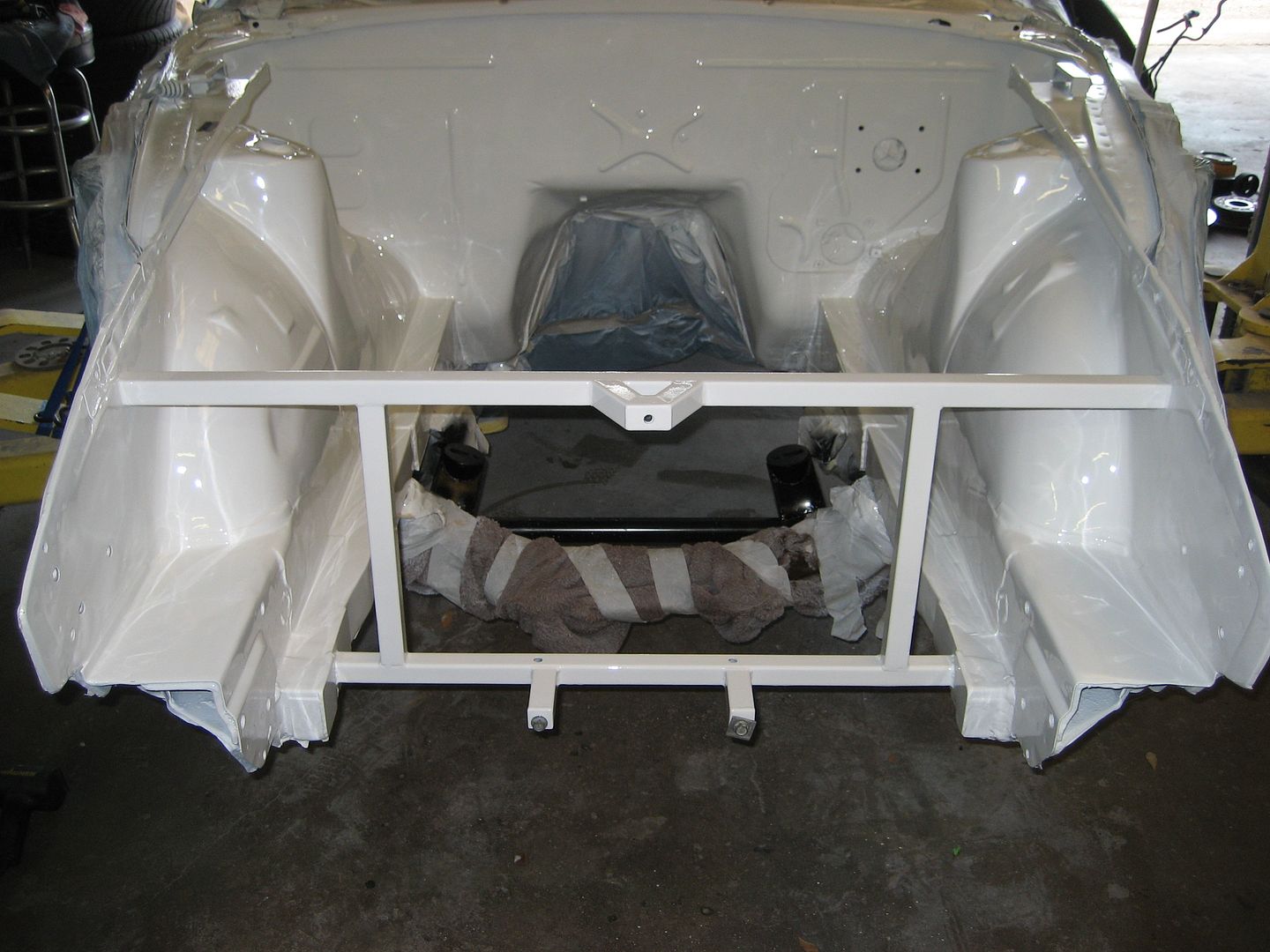

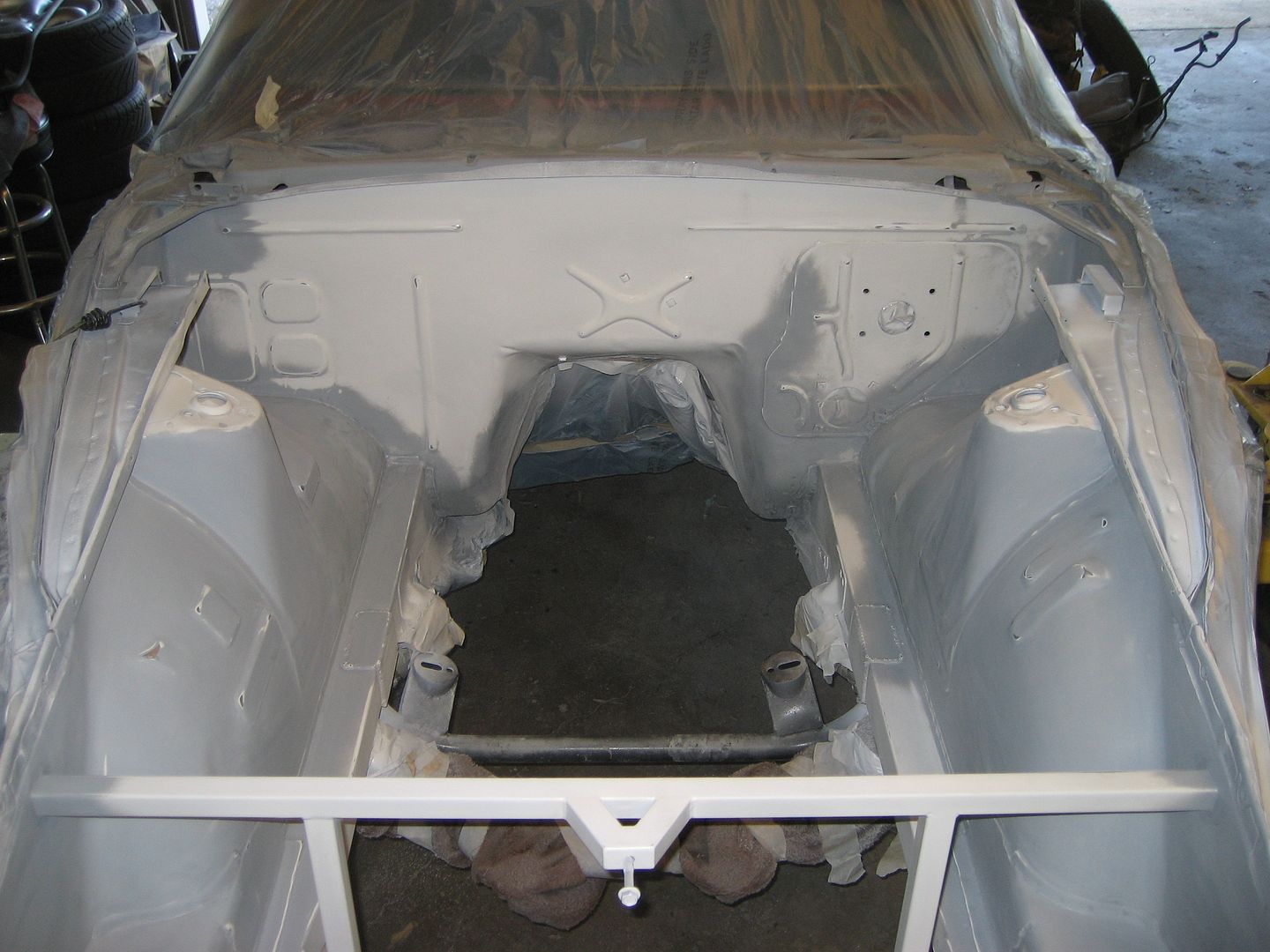

Primed again with 2K primer.



9-11-2011009.jpg?t=1316400898

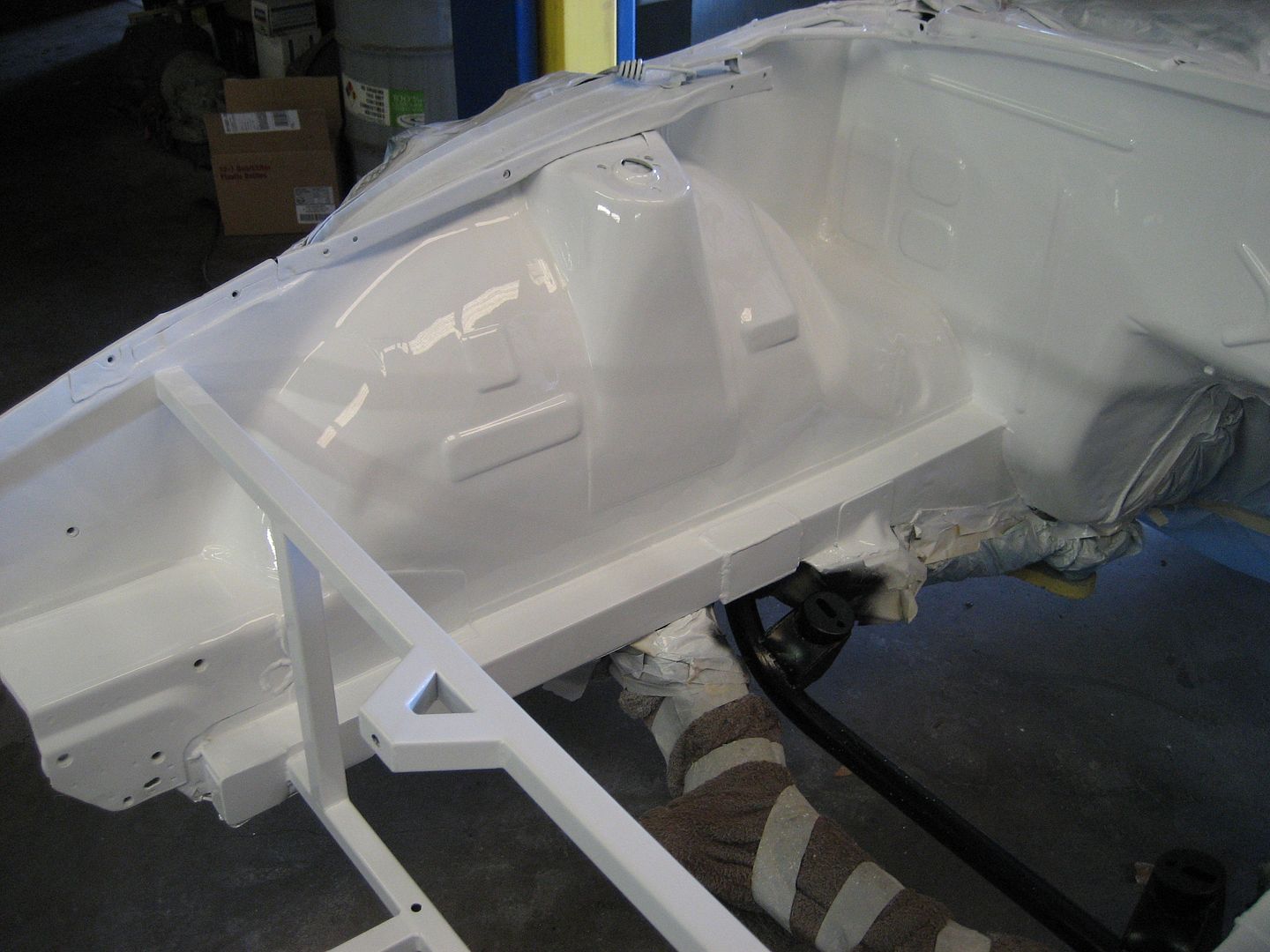

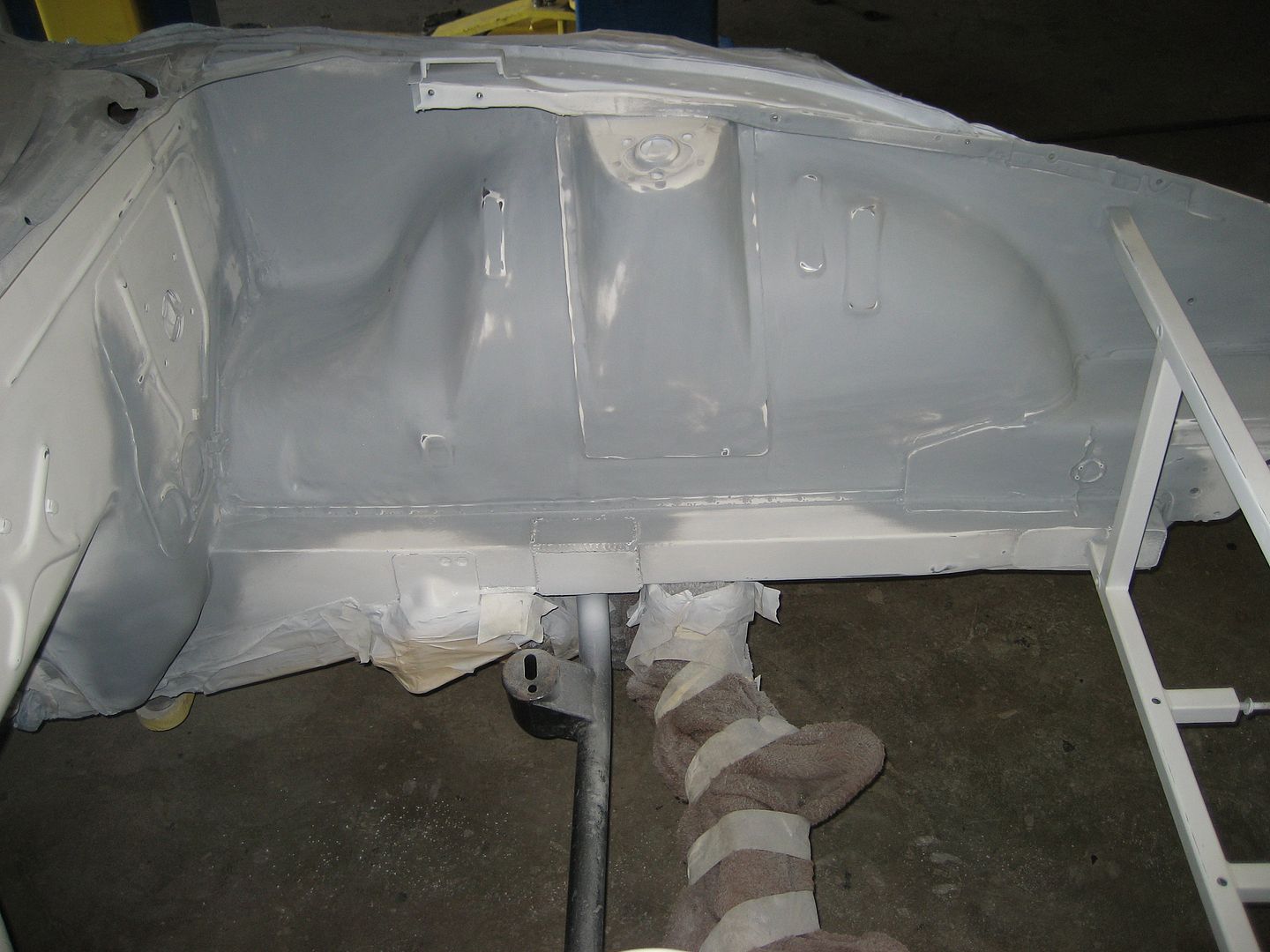

9-17-2011002.jpg?t=1316400880



9-17-2011003.jpg?t=1316400872

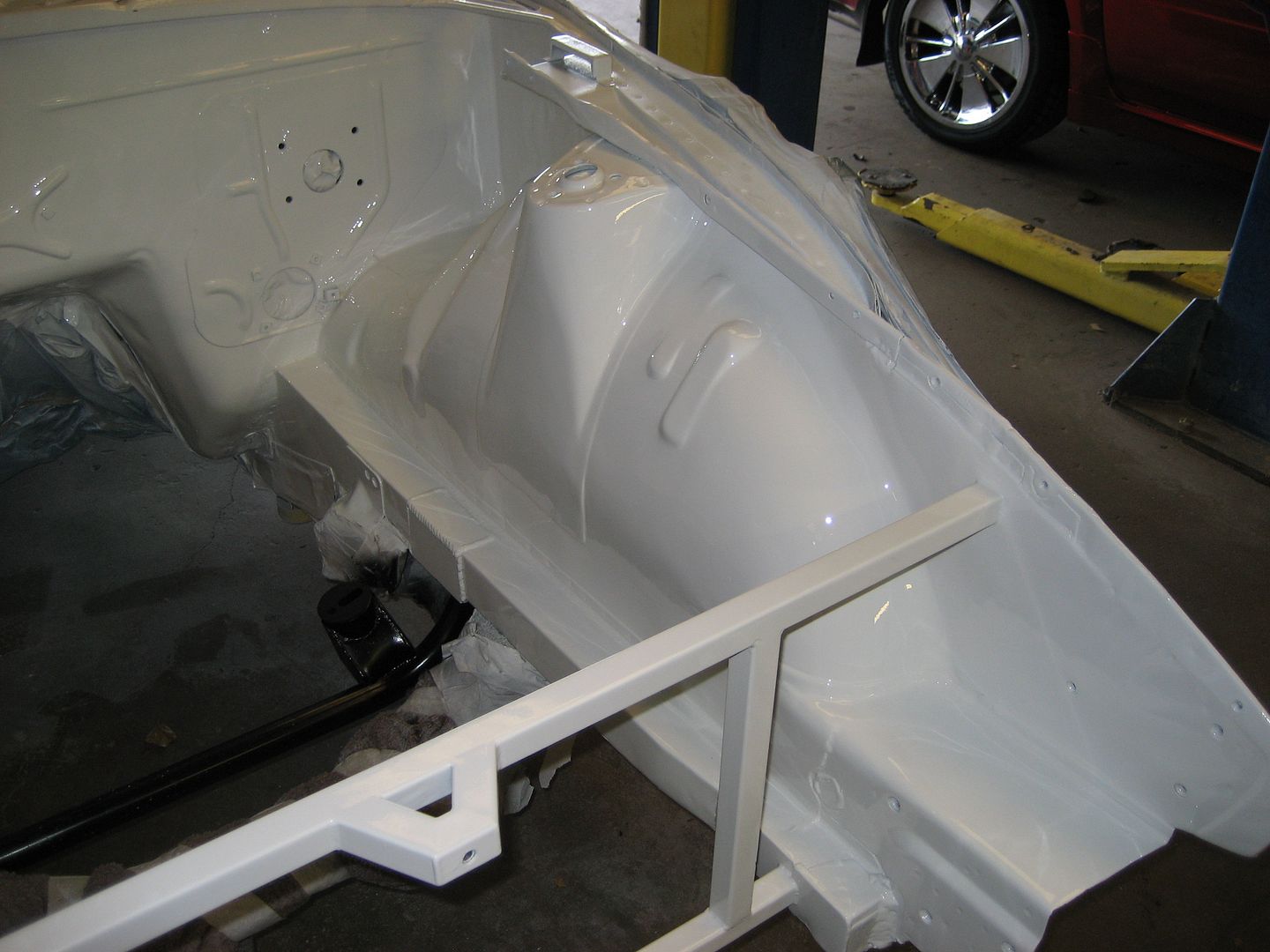

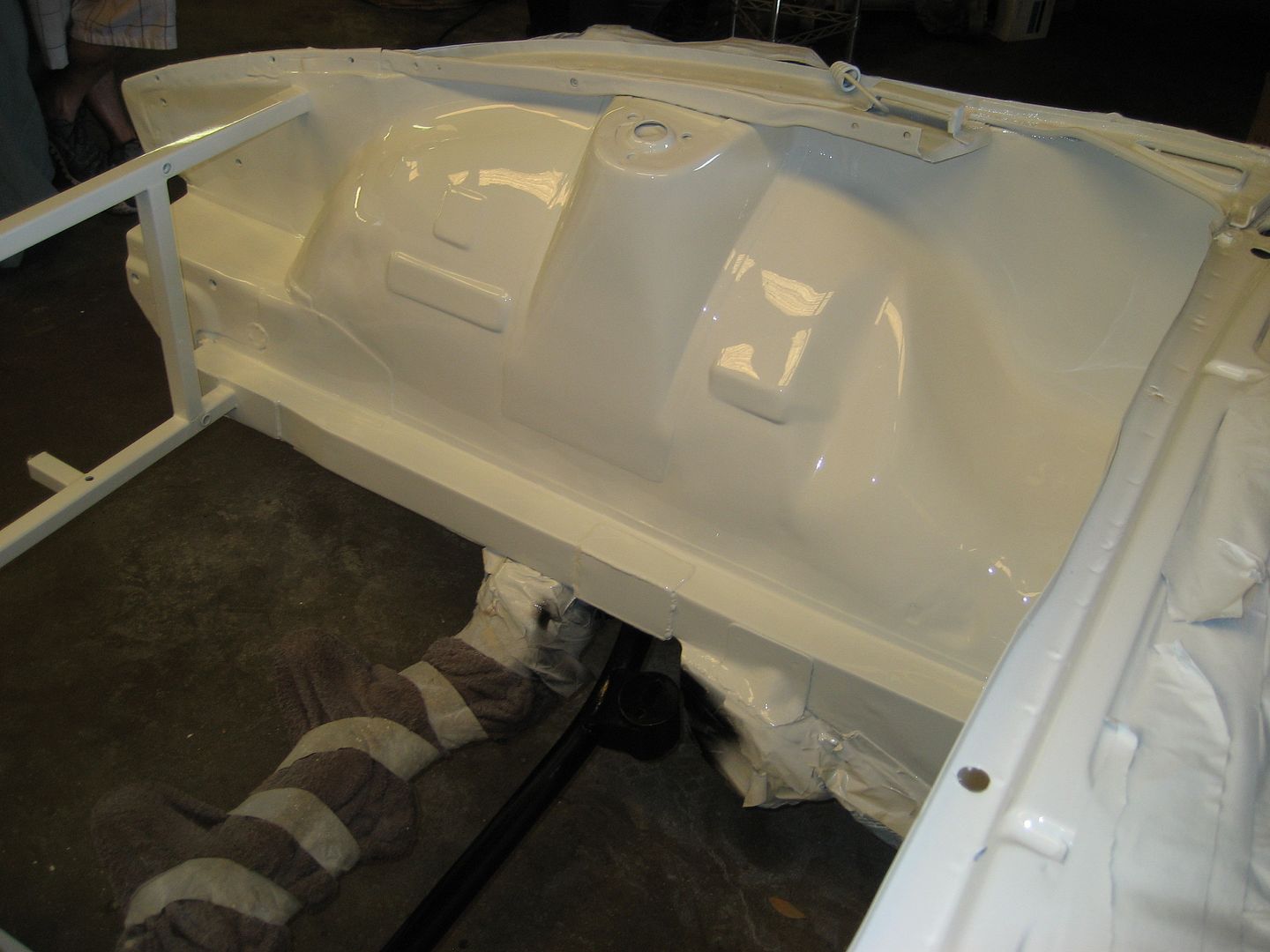

Final paint on next update!

Edited by Ivan280zt
Link to comment
Share on other sites

That does look good Ivan. I like how you are painting the engine bay as well as the whole car the same color. Don't get me wrong, blacked out engine bays look good also and hide dirt,scrapes easy, but body matching color shows off in a more fluid and complete way to my eyes.

Link to comment
Share on other sites

That does look good Ivan. I like how you are painting the engine bay as well as the whole car the same color. Don't get me wrong, blacked out engine bays look good also and hide dirt,scrapes easy, but body matching color shows off in a more fluid and complete way to my eyes.



Thanks man I agree 100%.

Link to comment
Share on other sites

Wow....just Wow. Great(amazing) job. :o My wife needs to look at this for perspective.



Just dont let her look at my checking account! lol



I dropped off my head at the machine shop to get refreshed with all the goodies that I got for it and first thing that machine shop owner tells me is to go and buy new valves right away because stock stuff just does not flow well... I figured screw it I have spent so much money so far few more bills won't be end of the world.

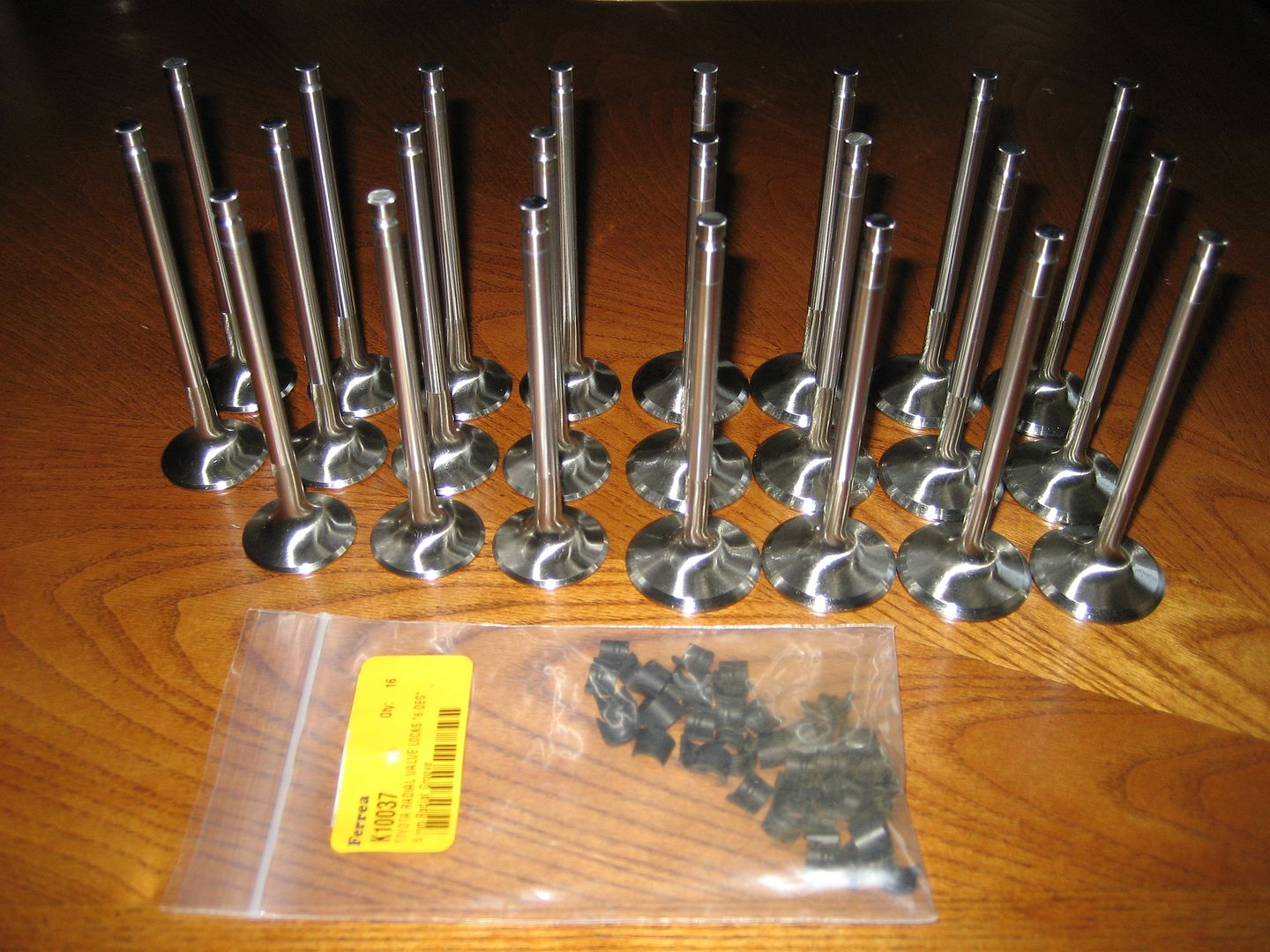

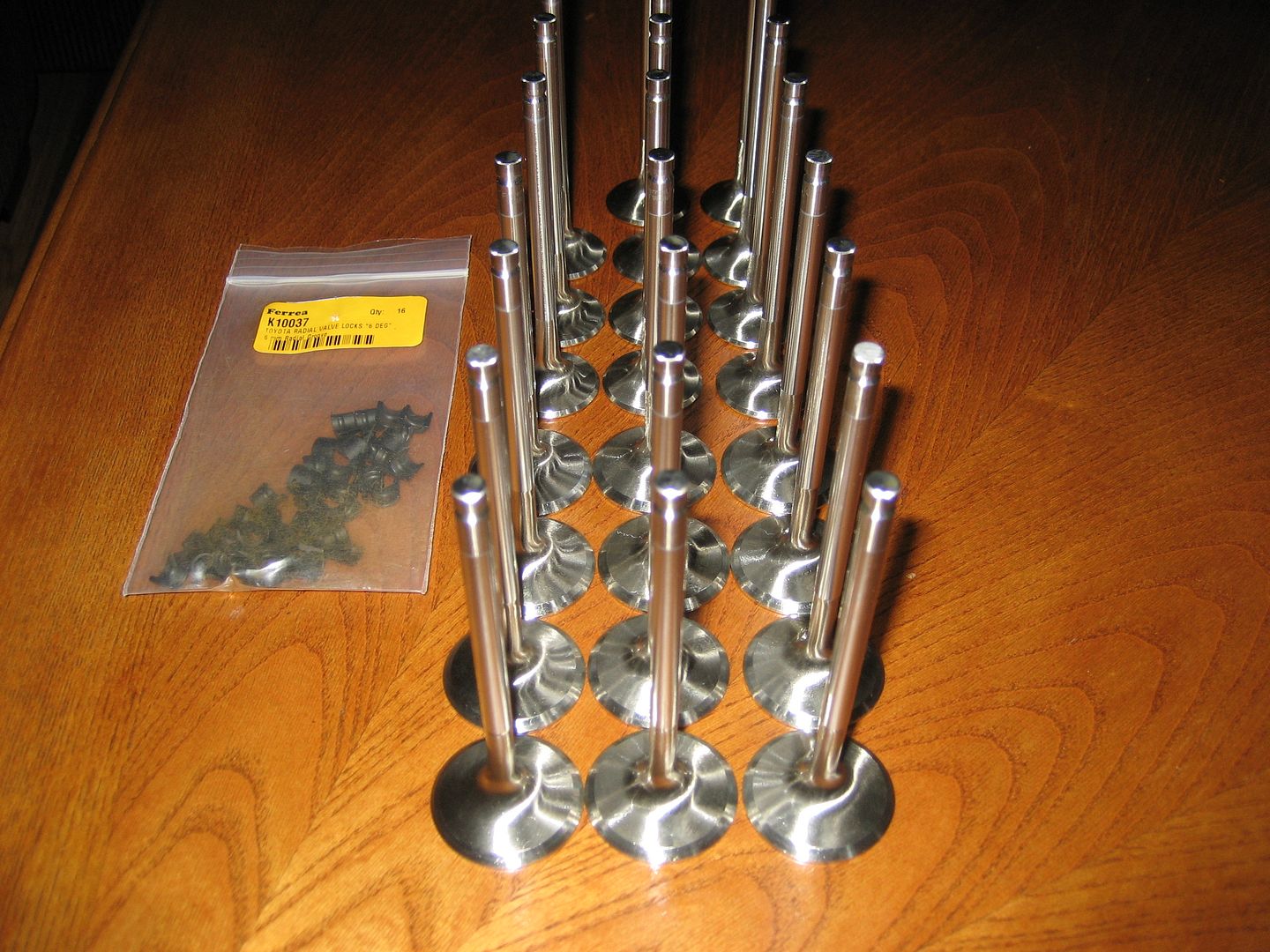

My new Ferrea "Competition Plus" super alloy valves and keepers from Sean at Titanmotorsports who always gets me best price!



10-1-2011003.jpg?t=1317519827



10-1-2011005.jpg?t=1317519817

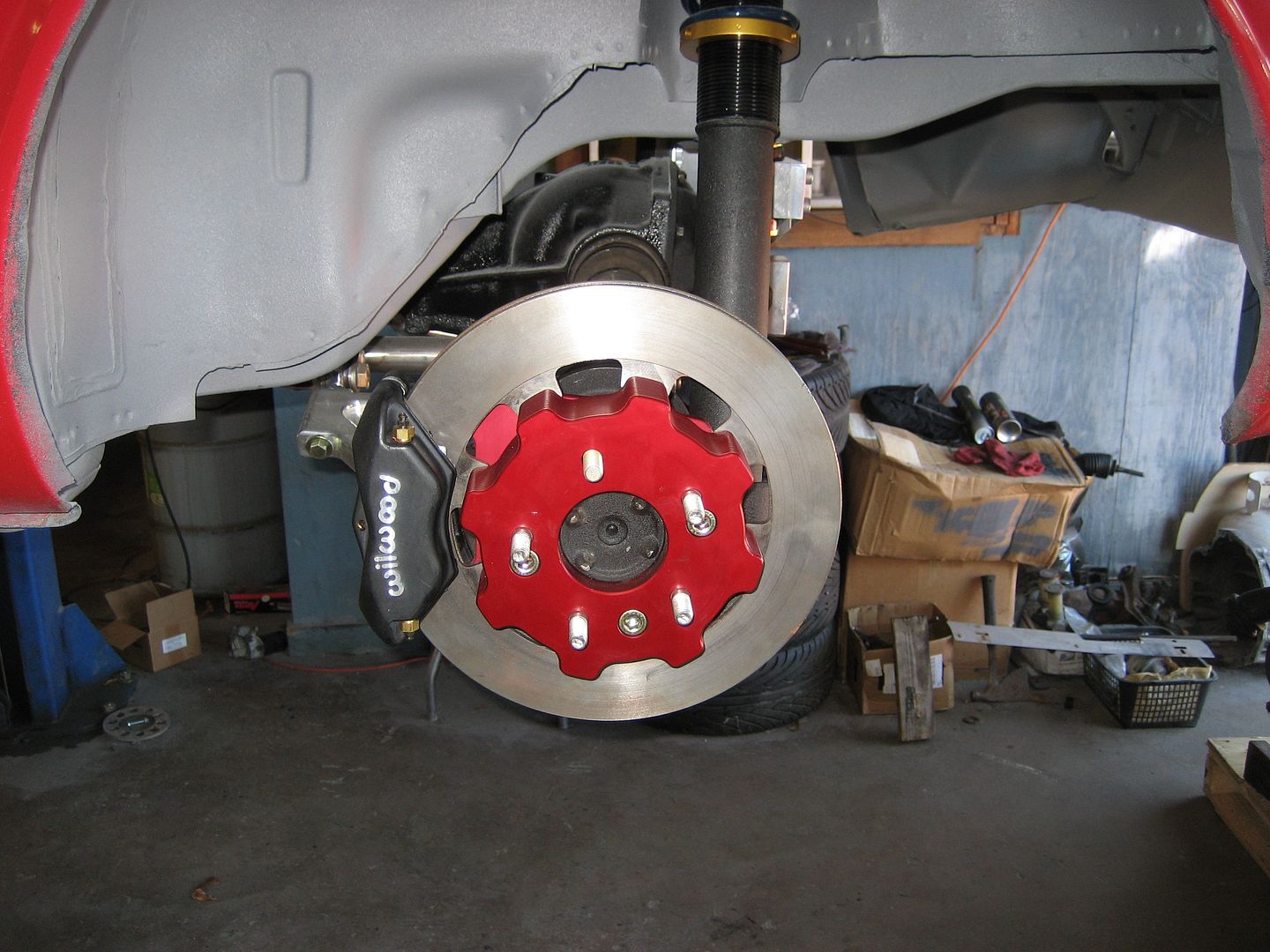

Installed AZC rear brakes with five lug conversion all new bearings and seals (diff is dusty from bondo work)



10-1-2011016.jpg?t=1317519778

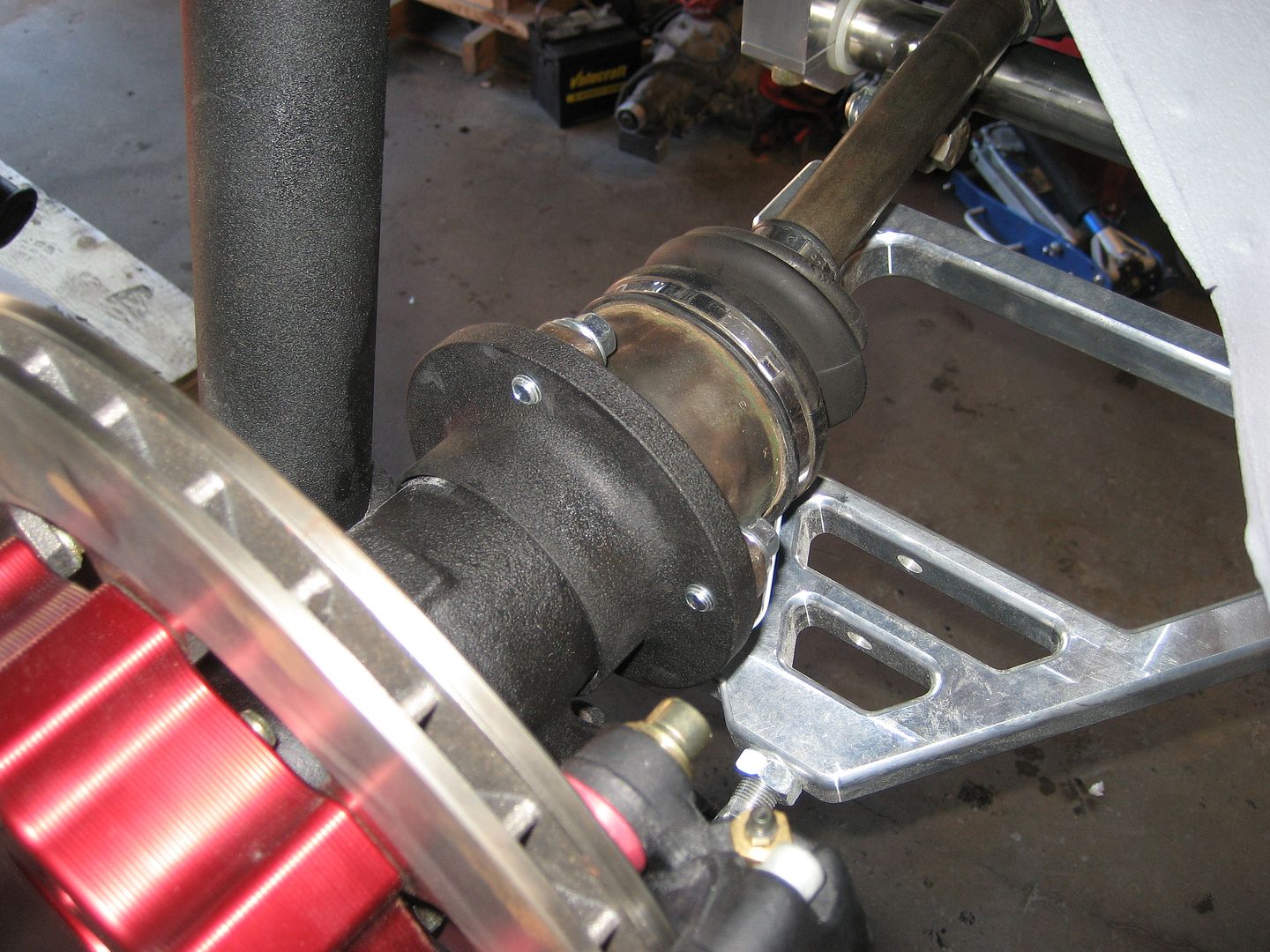

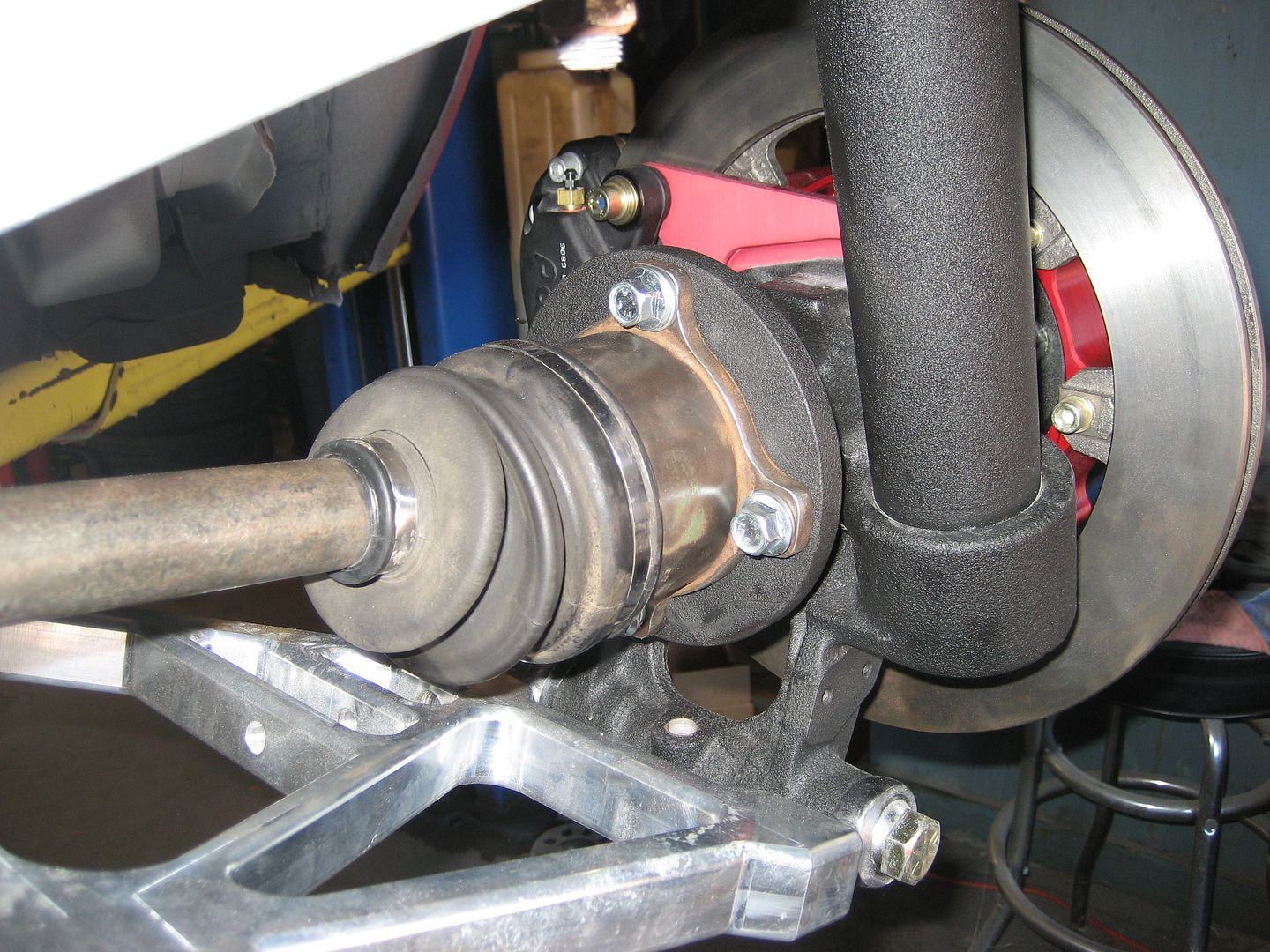

Modern Motorsports billet 300zx(z31)CV adapters with good used oem 300zx axles. I had to flip outer bearing races around to shorten the lenght of the axle. Also had the adapters powdercoated black since they were rusting.



10-1-2011026.jpg?t=1317519758



10-1-2011024.jpg?t=1317519769

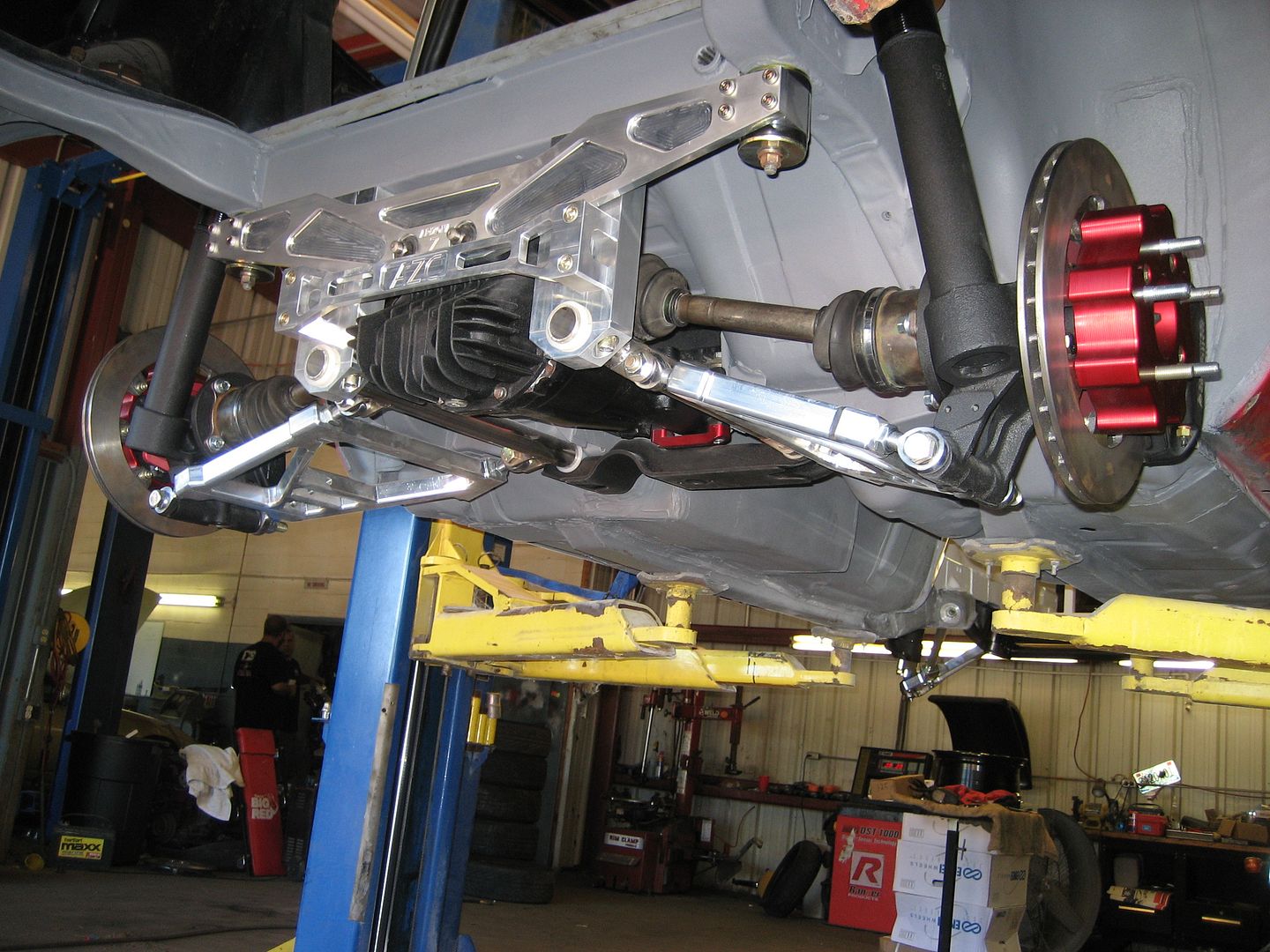

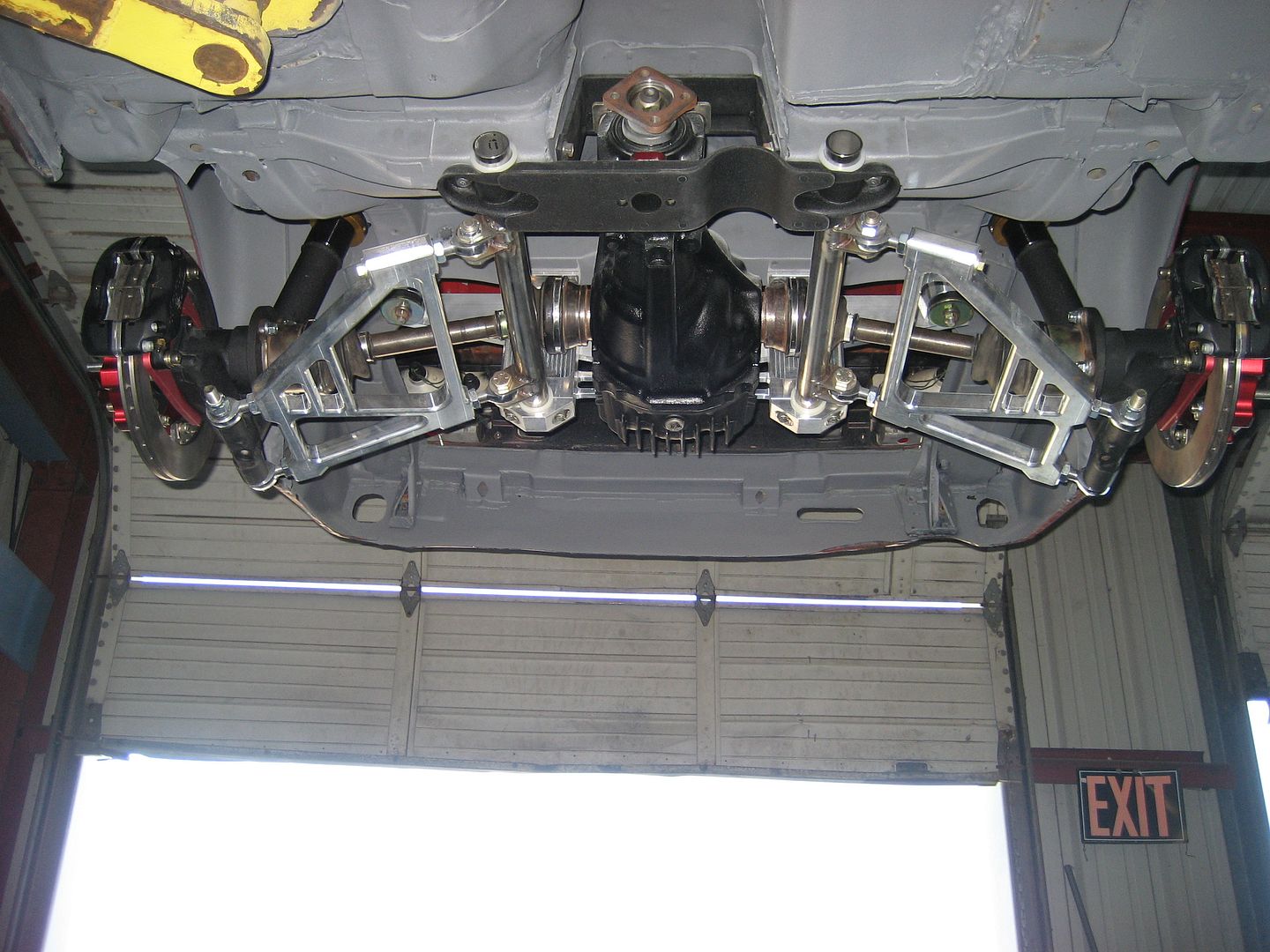

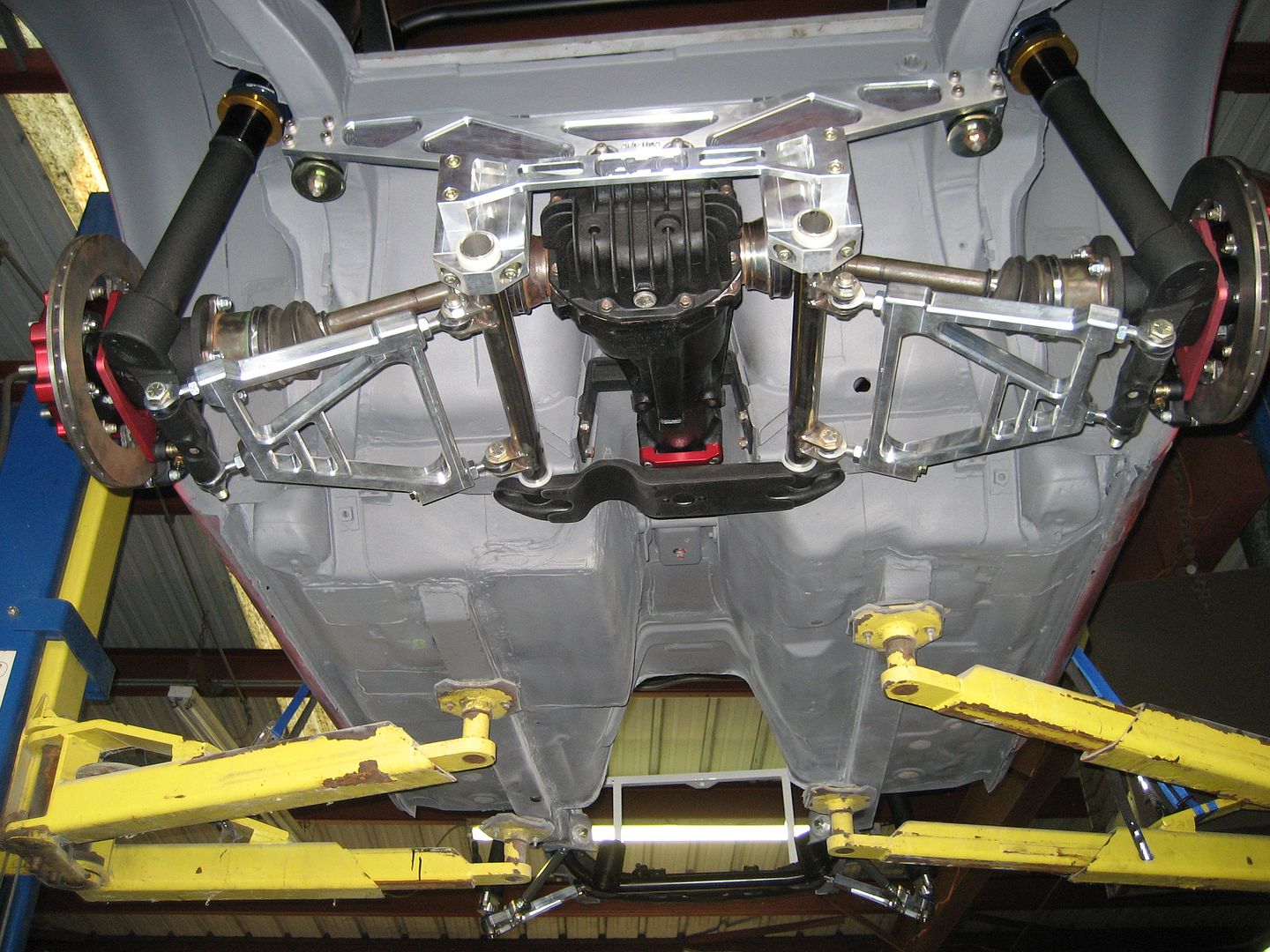

Whole rear subframe is complete now just have to fill up the differential.



10-1-2011028.jpg?t=1317519749



10-1-2011048.jpg?t=1317519689



10-1-2011049.jpg?t=1317519679

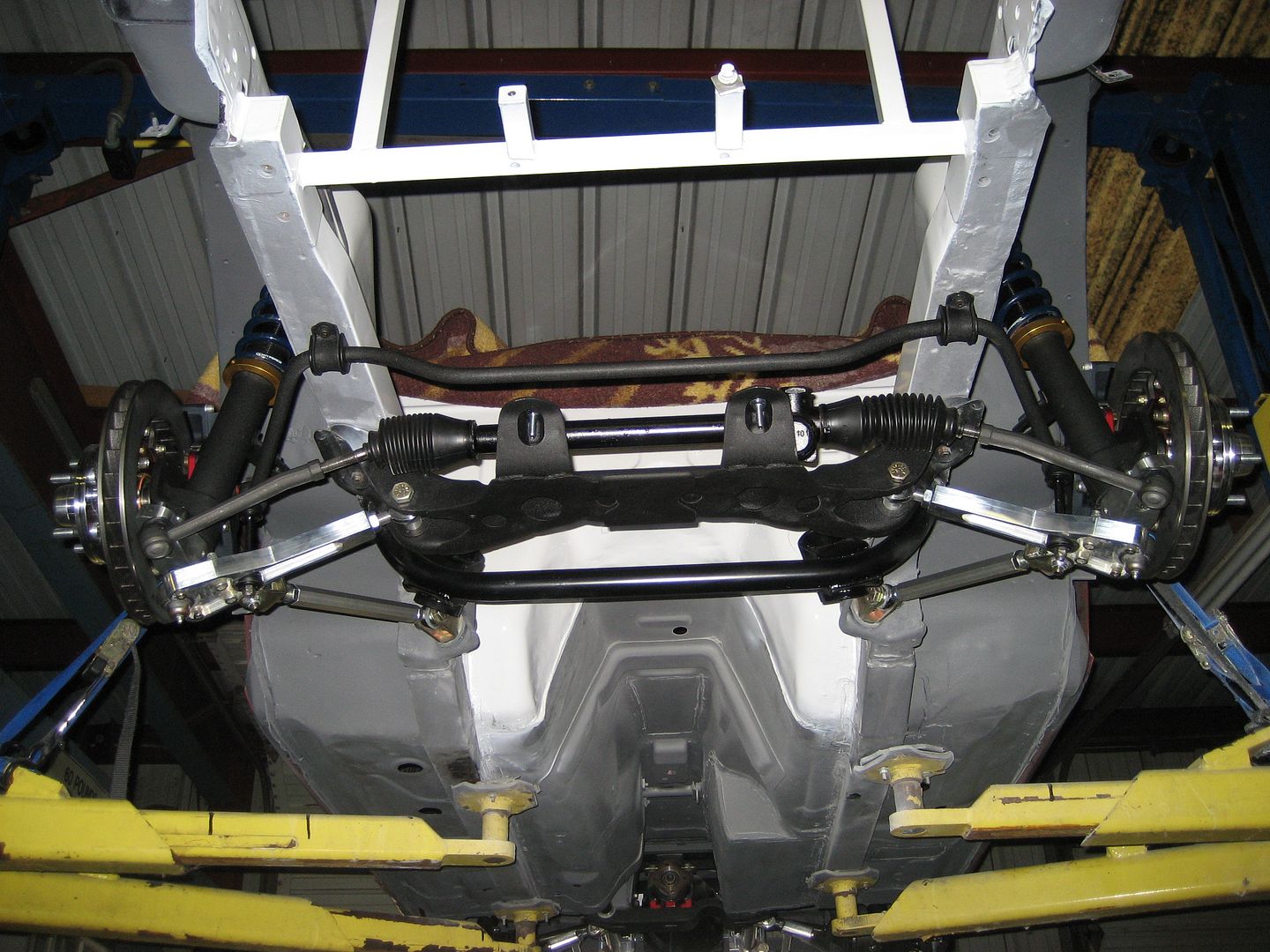

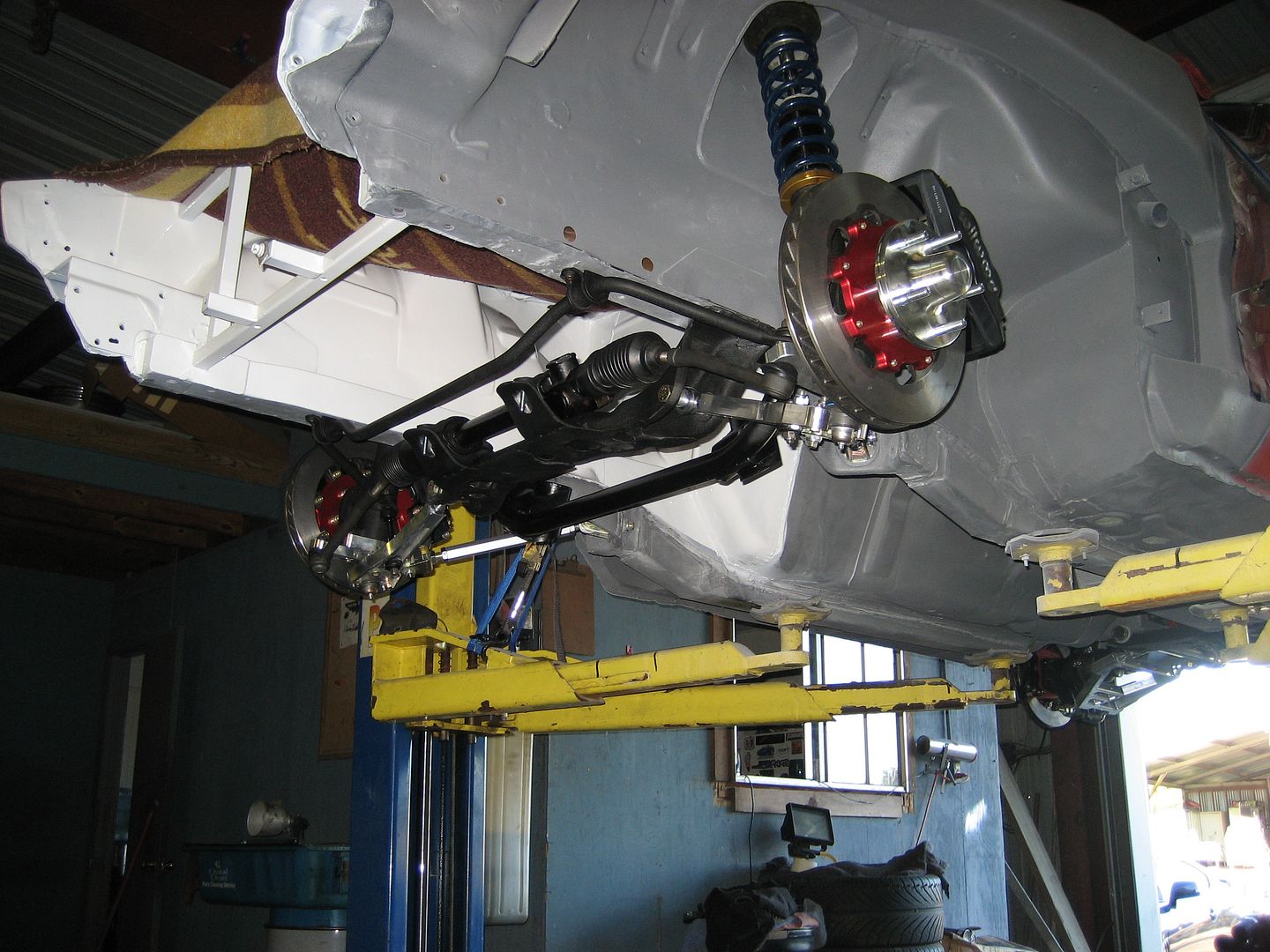

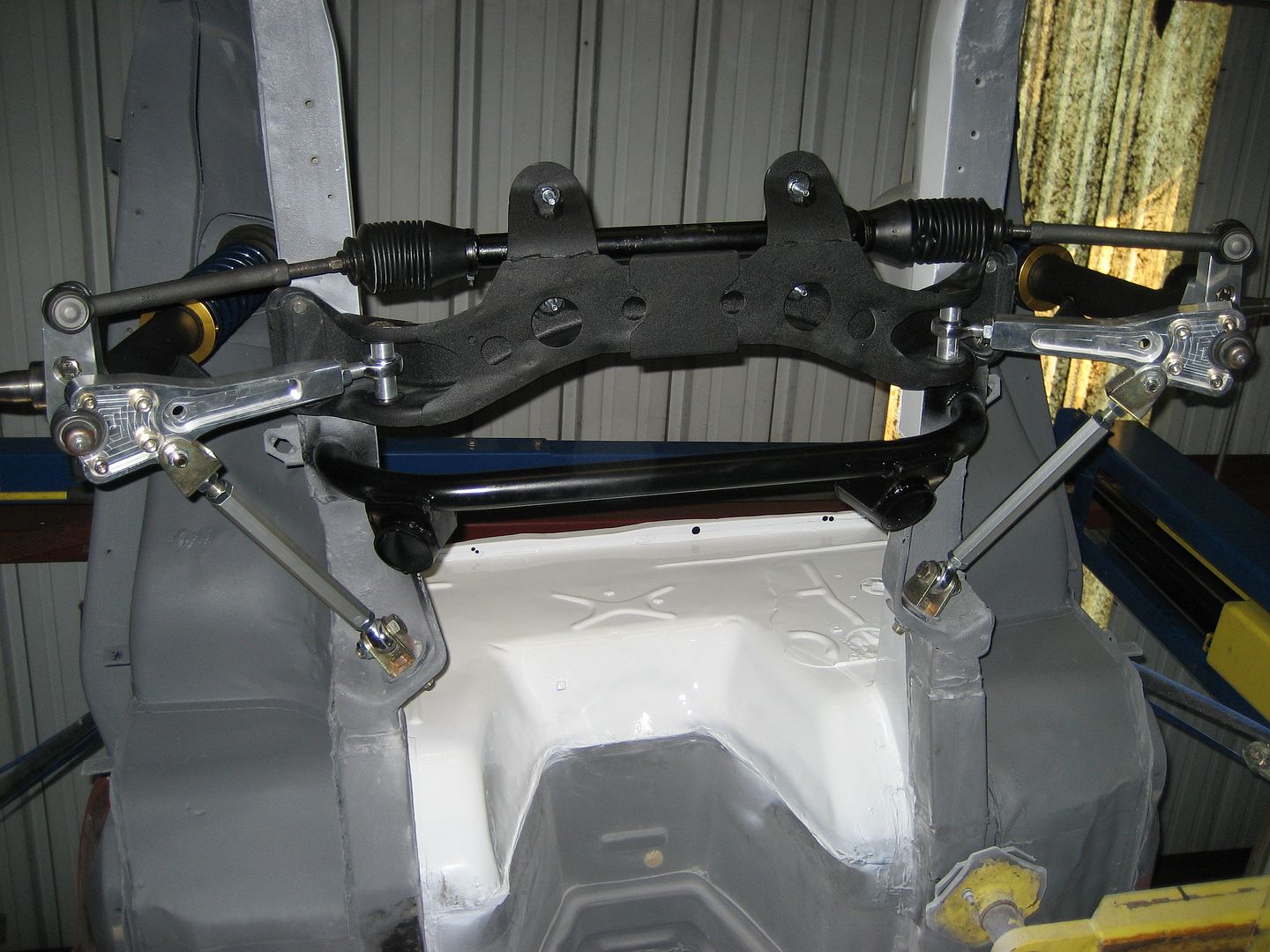

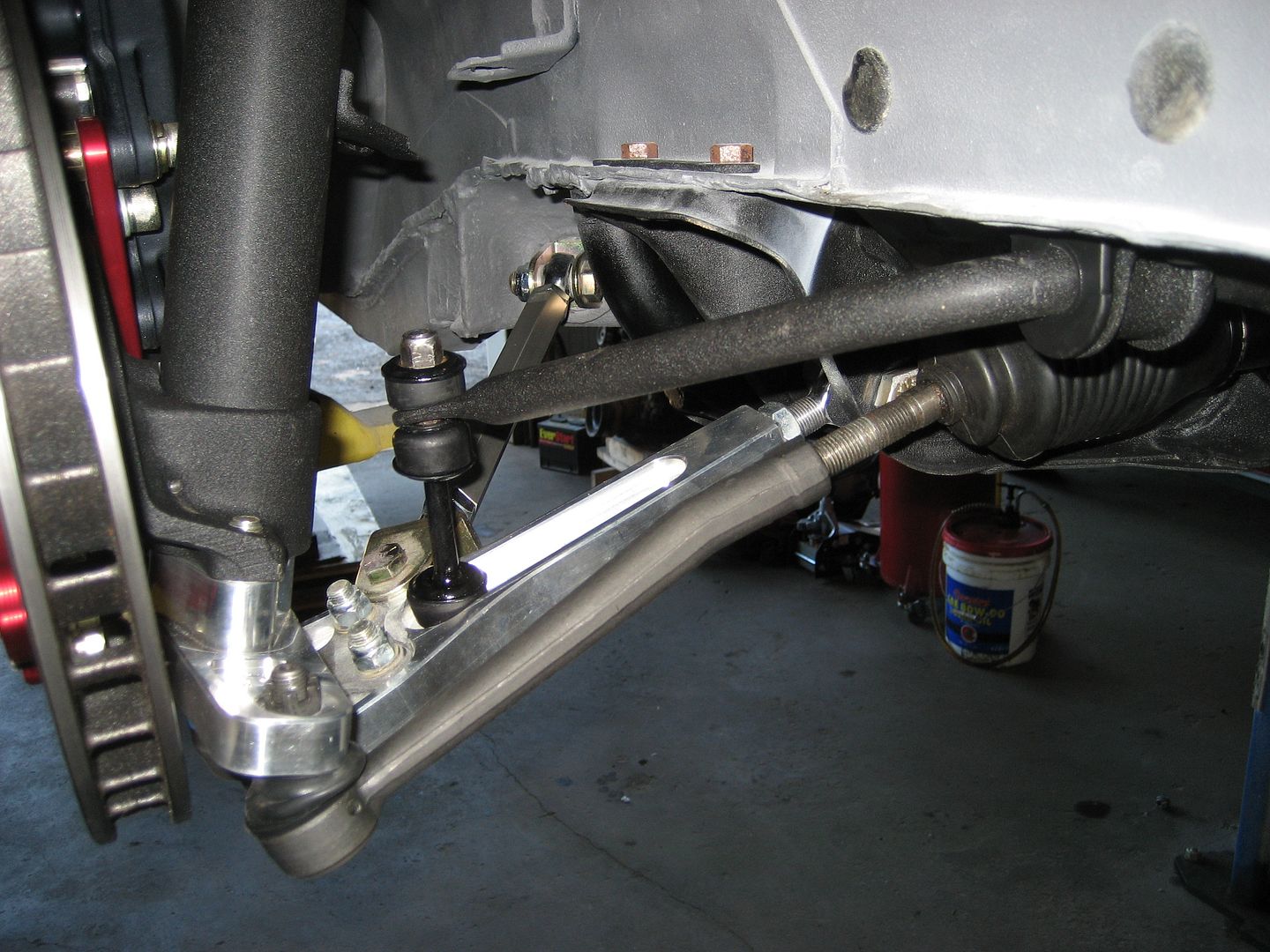

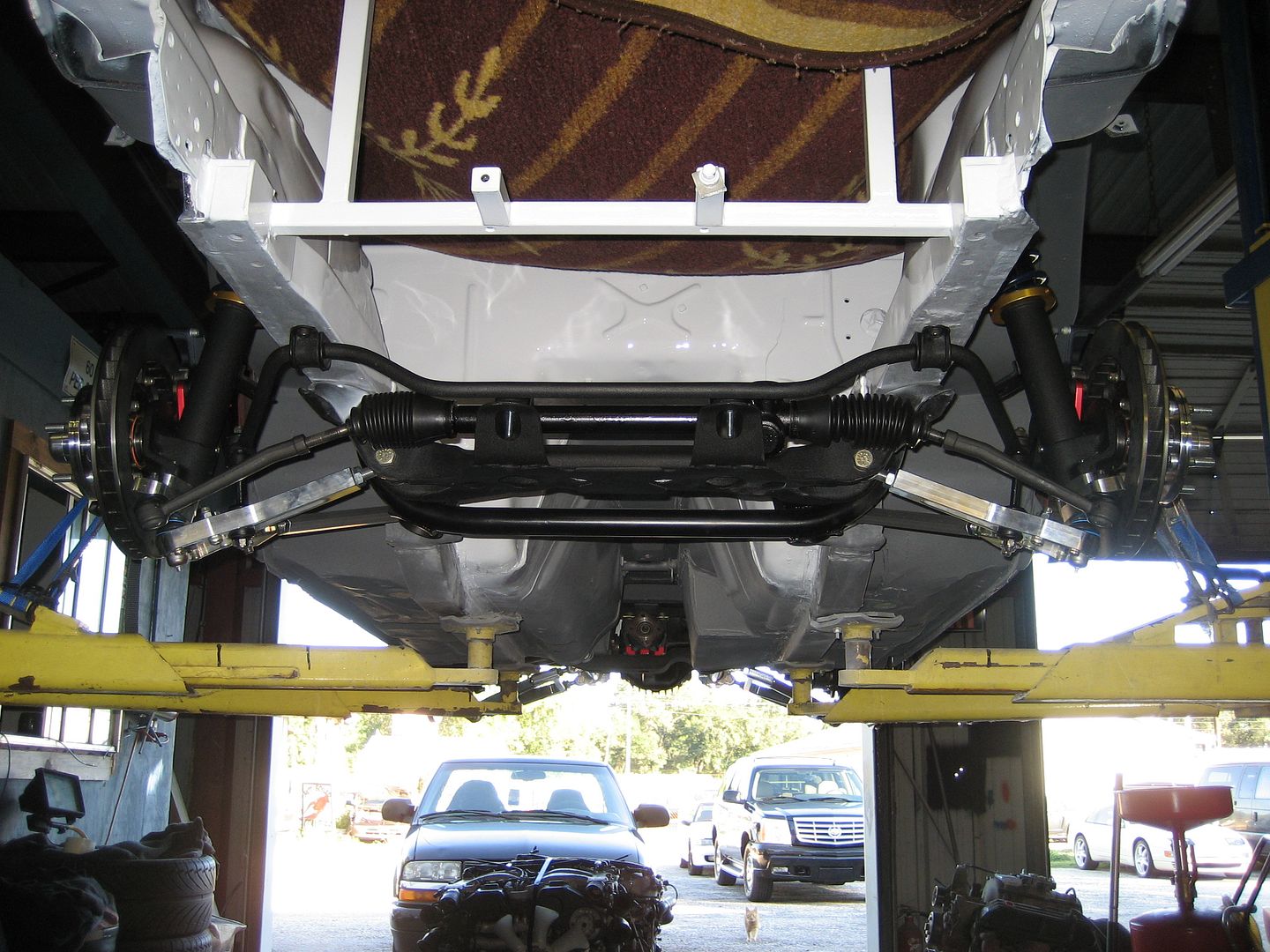

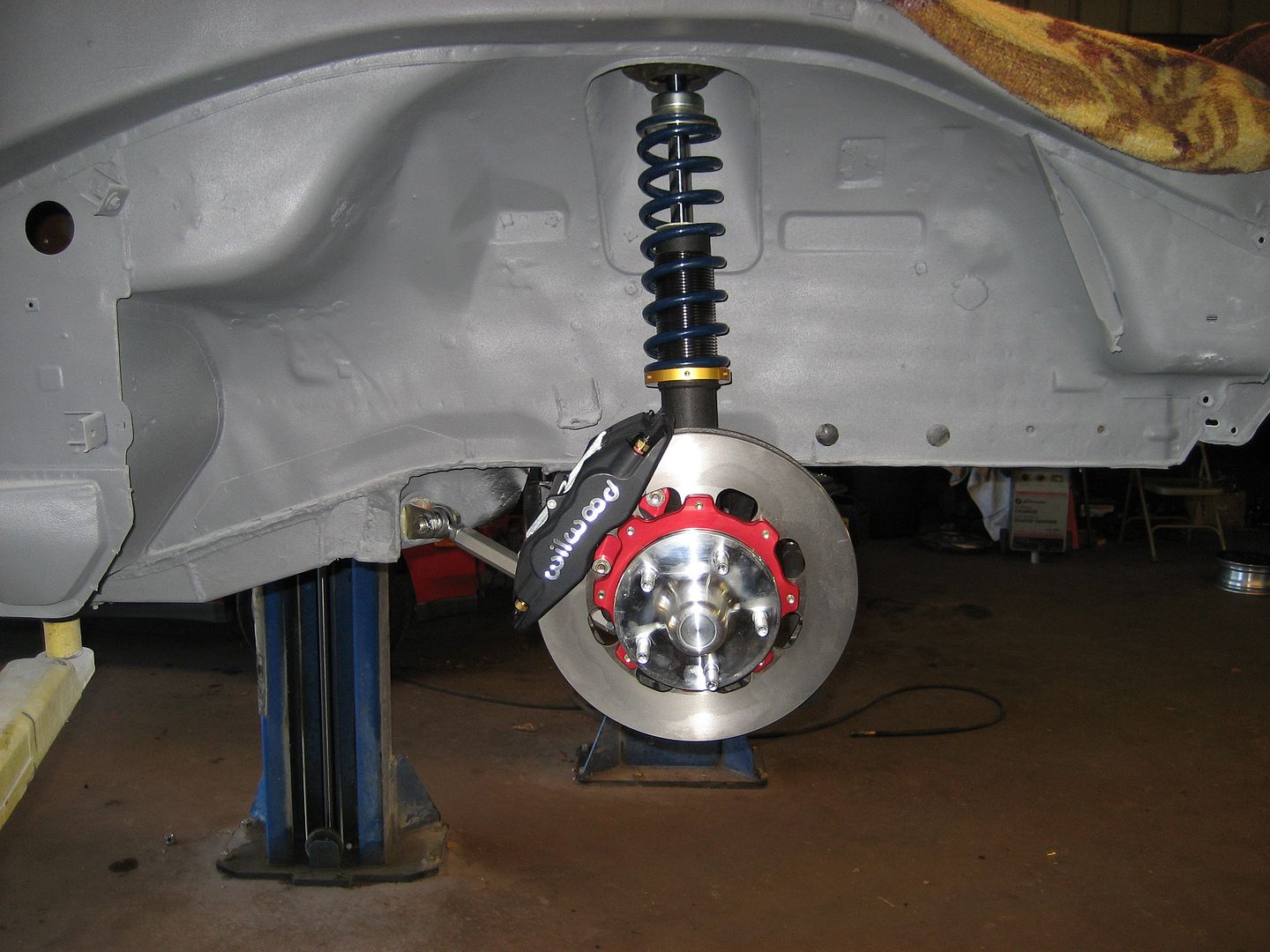

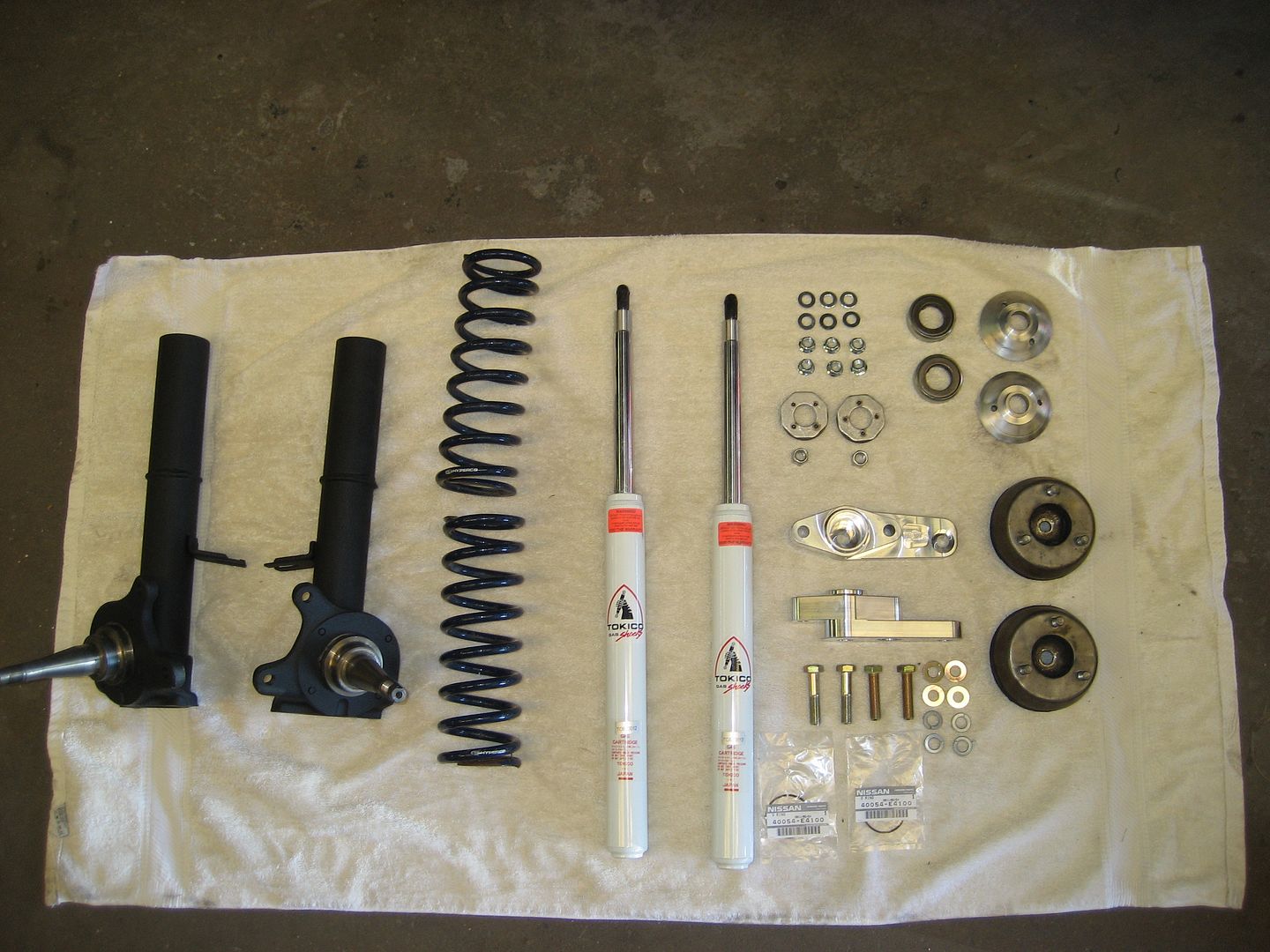

Front suspension ready to go together.



10-1-2011009.jpg?t=1317519806

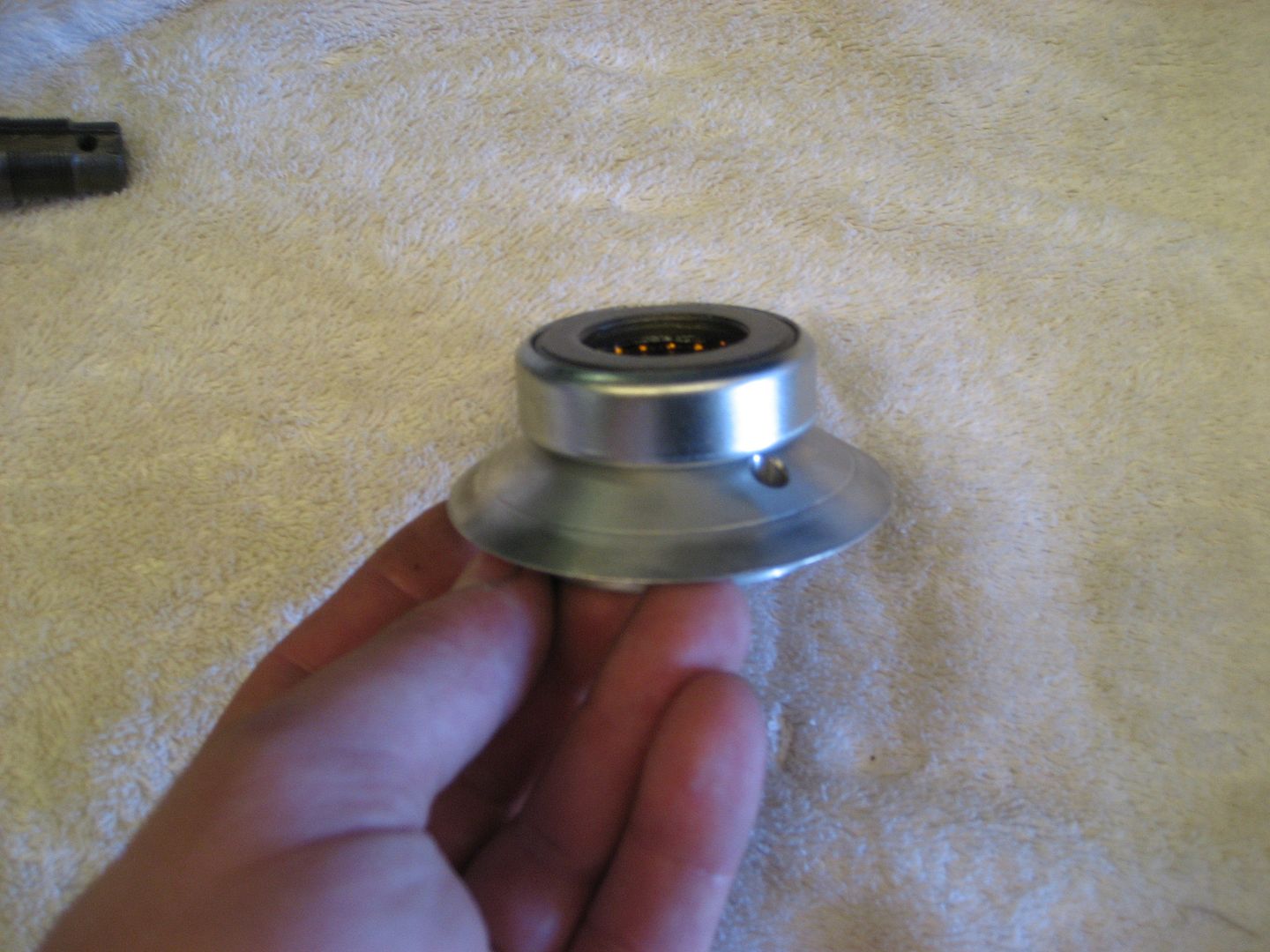

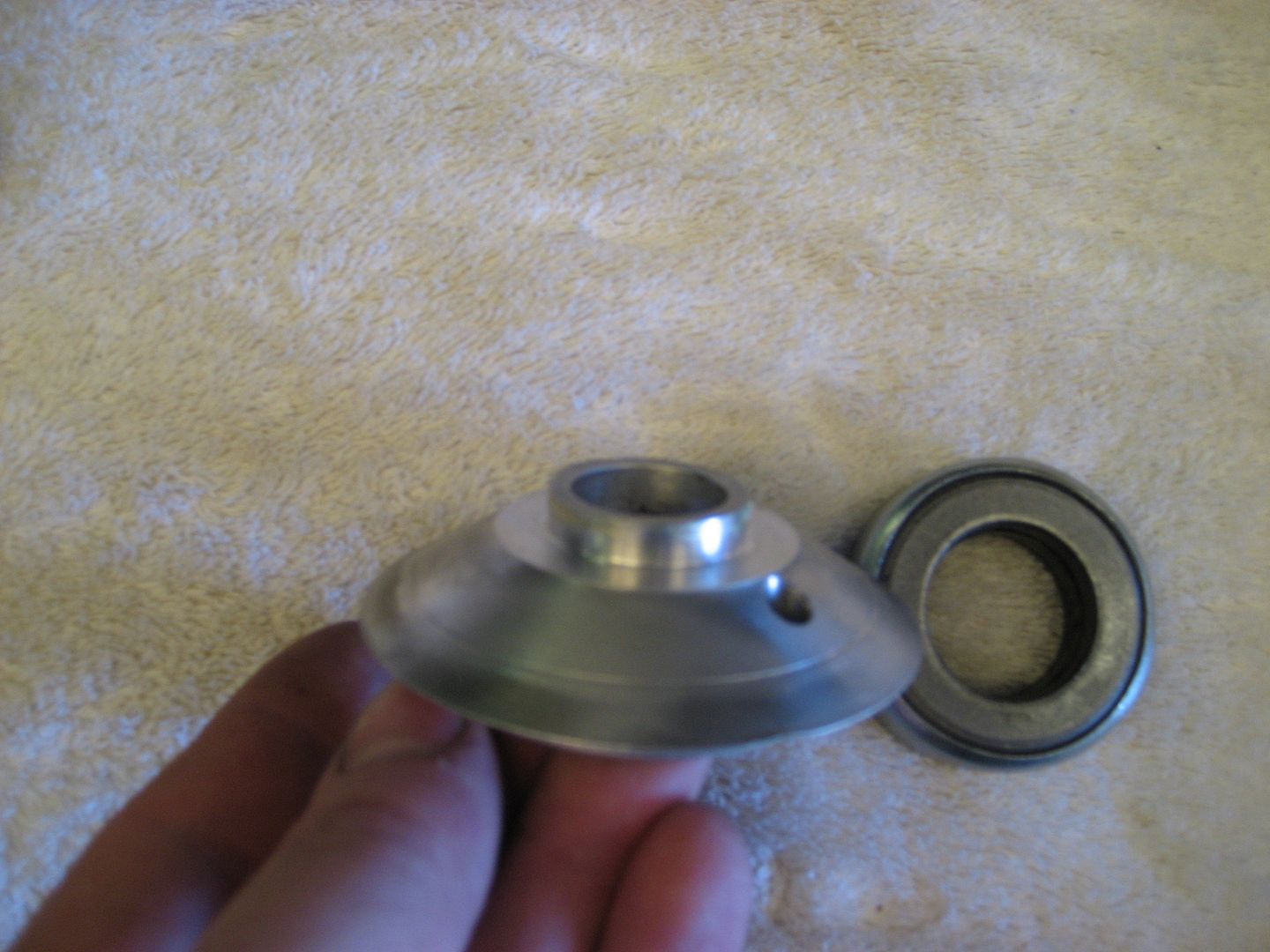

I had the top hat for the coil machined down so that strut bearing can fit it.



10-1-2011012.jpg?t=1317519797



10-1-2011013.jpg?t=1317519788

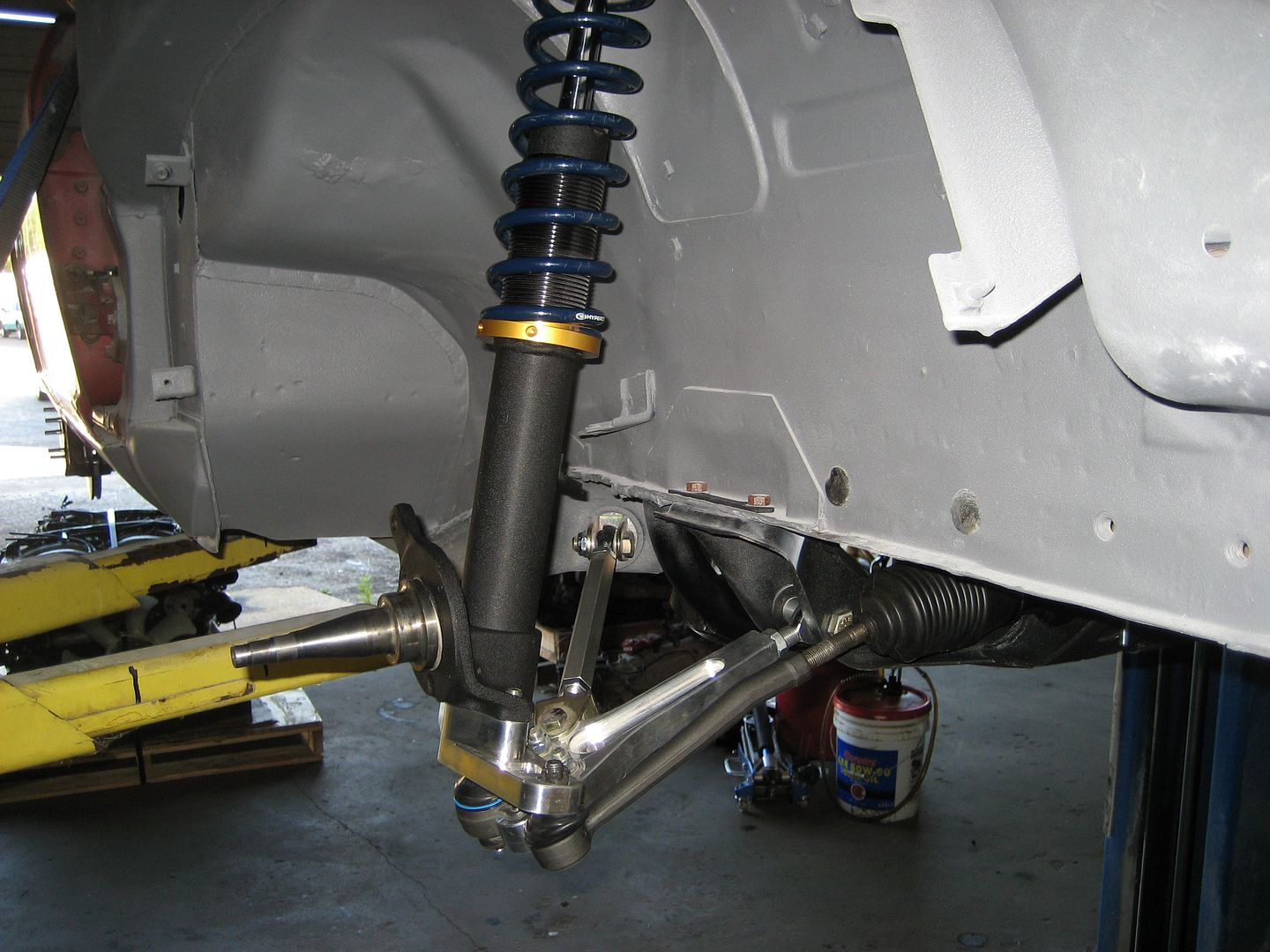

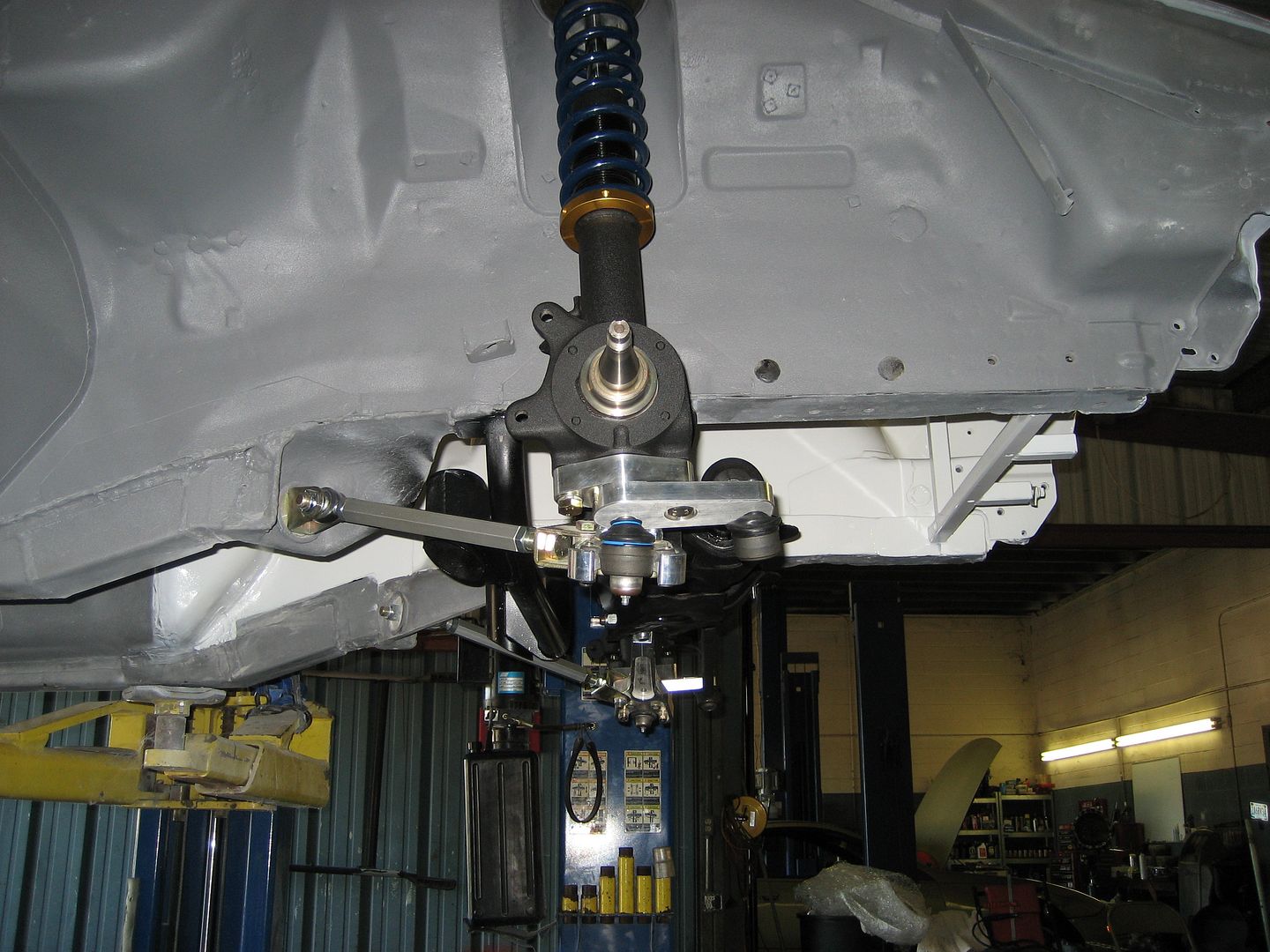

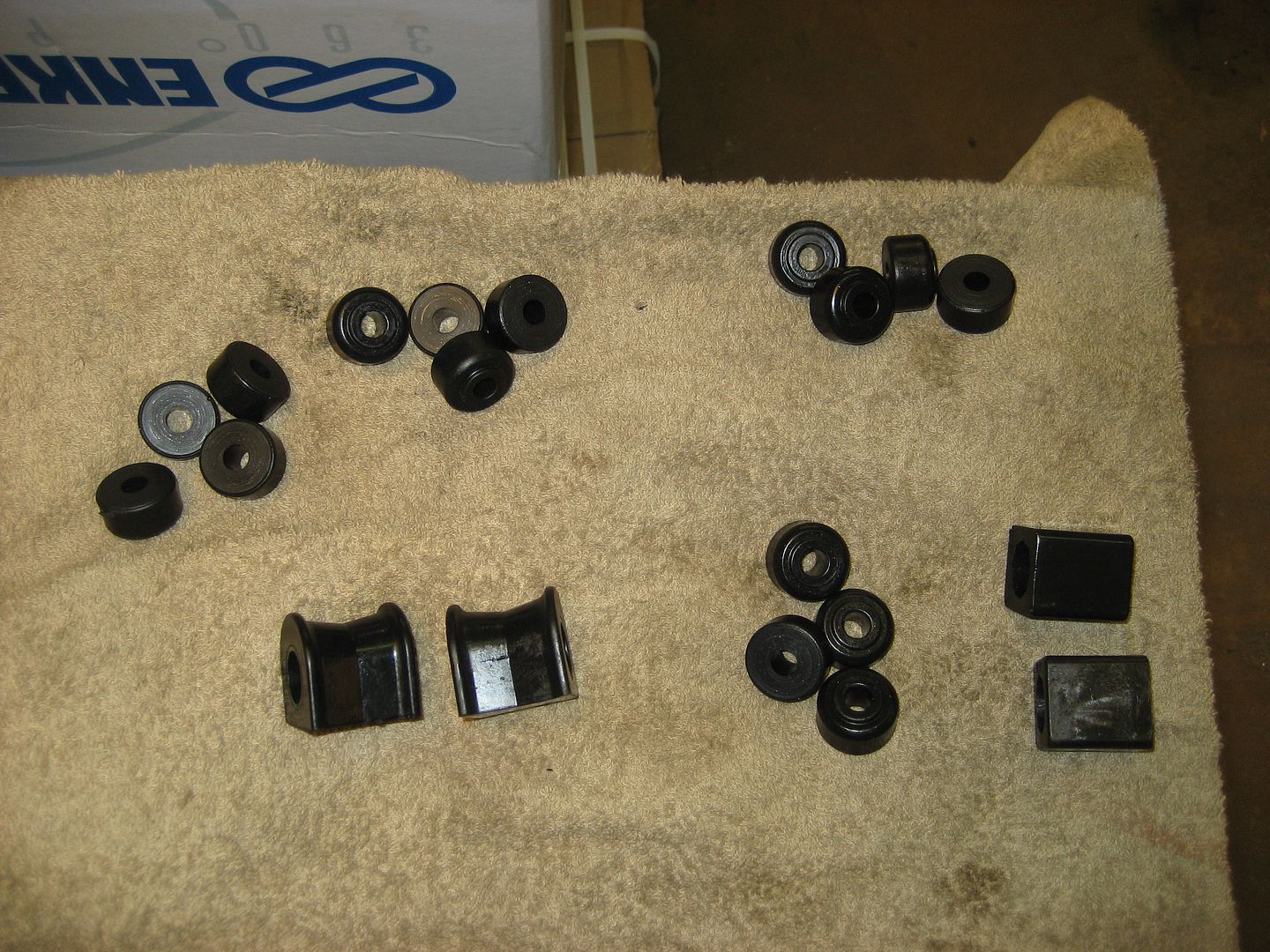

Reman steering rack with polyurethane bushings.



10-1-2011033.jpg?t=1317519741



10-1-2011037.jpg?t=1317519724



10-1-2011038.jpg?t=1317519716

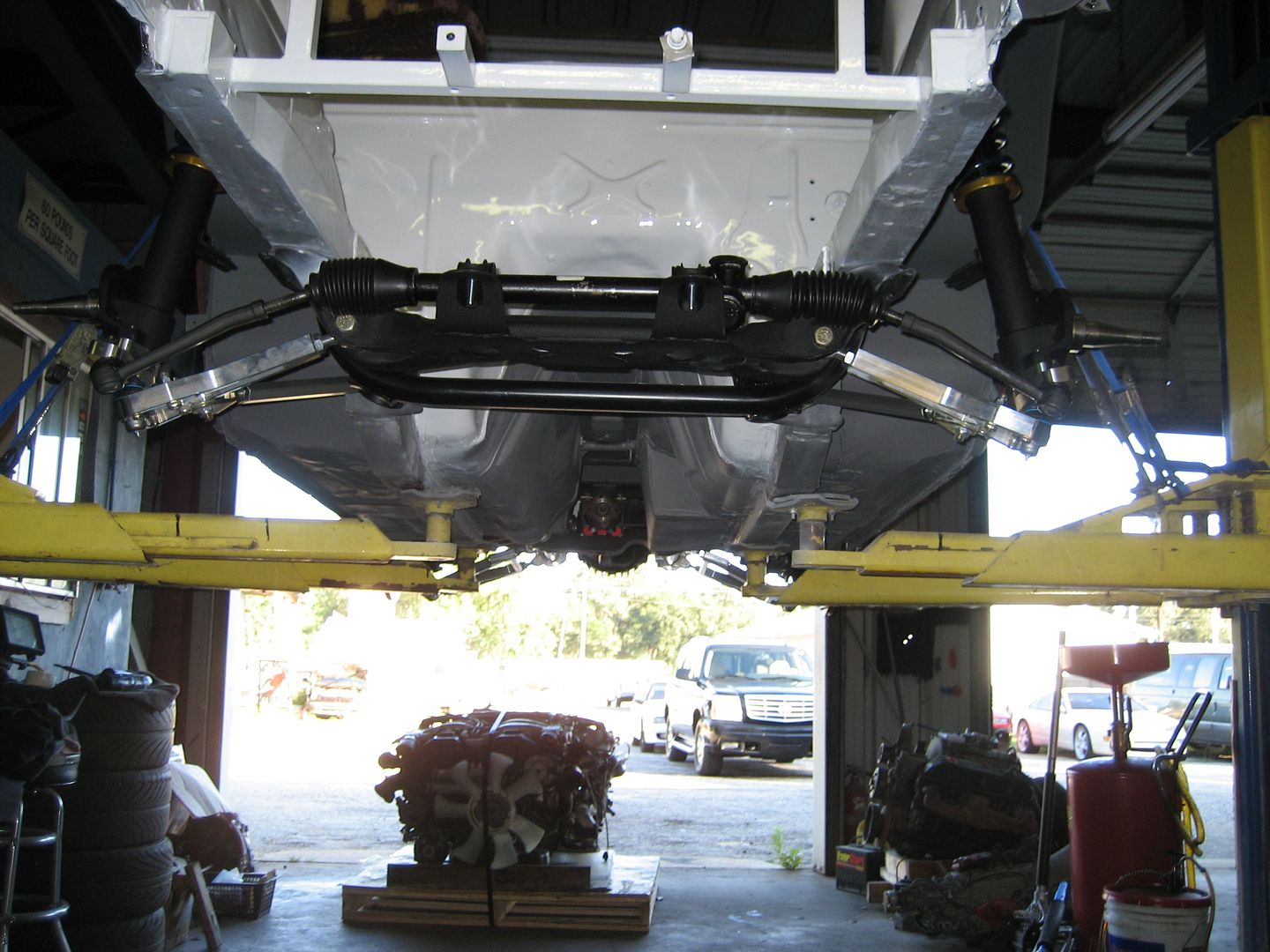

10-1-2011040.jpg?t=1317519707



10-1-2011045.jpg?t=1317519698



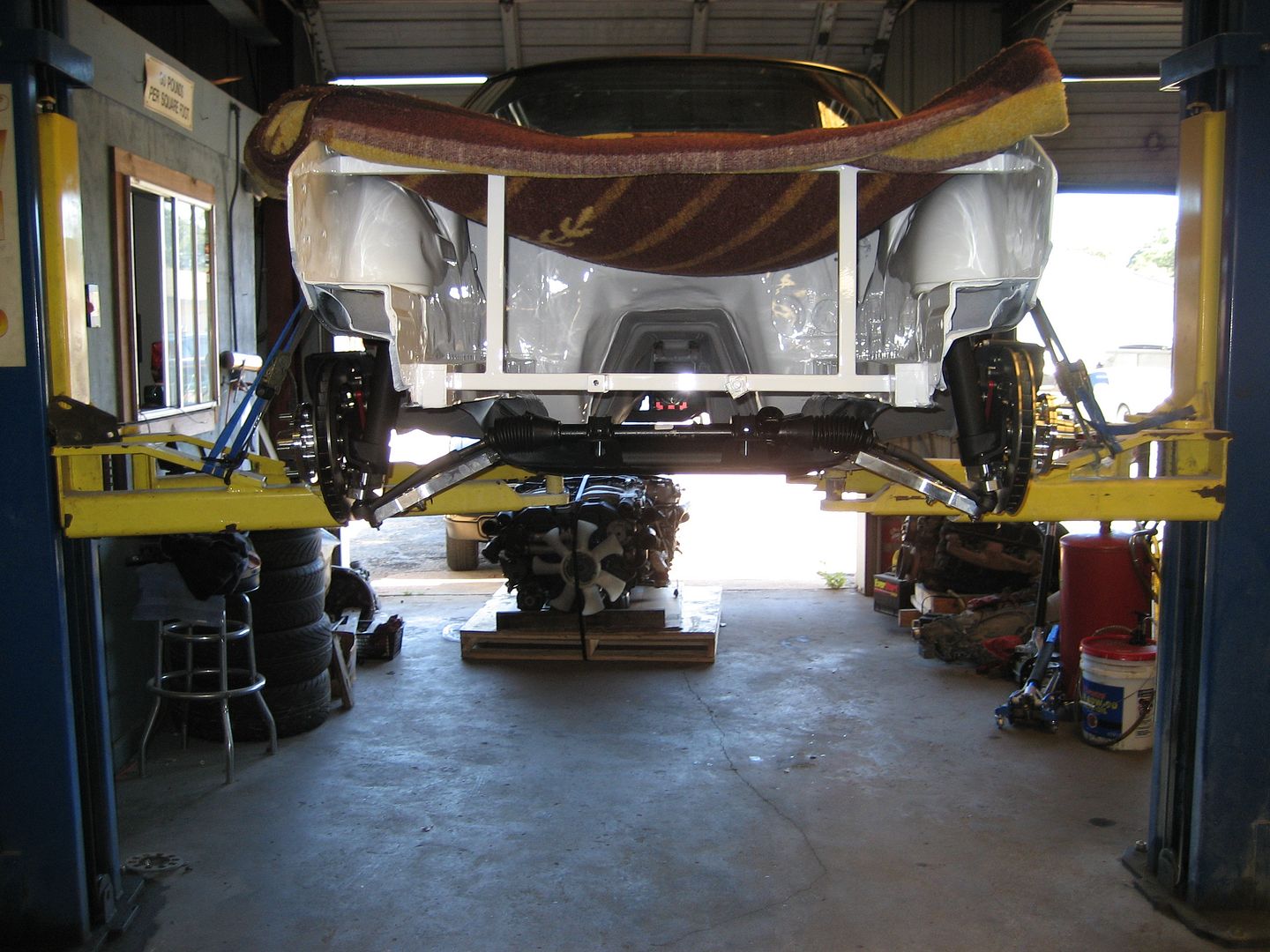

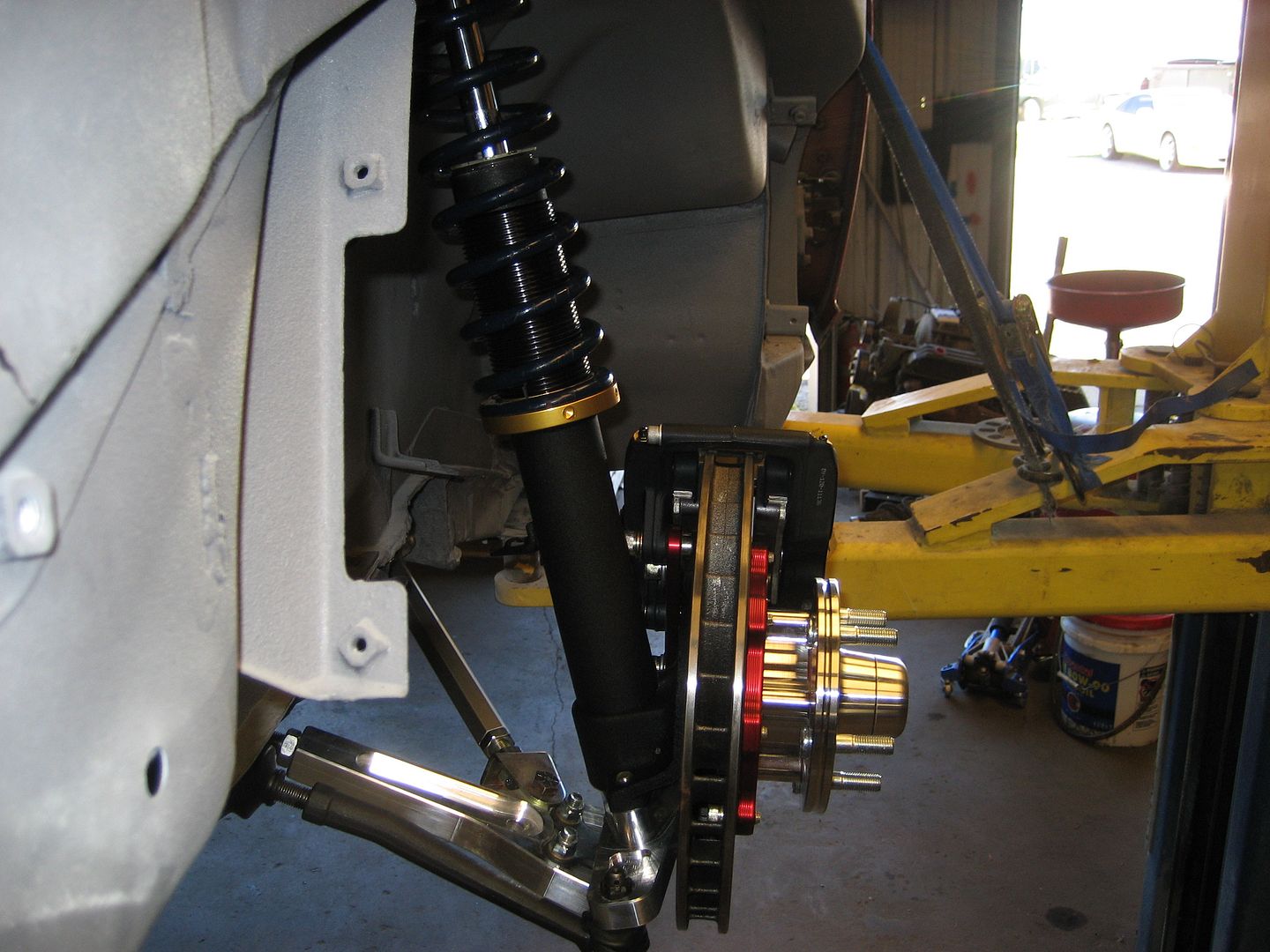

Front five lug brakes are getting installed next. I was going to do it today but I forgot front spindle nuts at home so I will get to it in day or two.

Edited by Ivan280zt
Link to comment
Share on other sites

Here is small update.

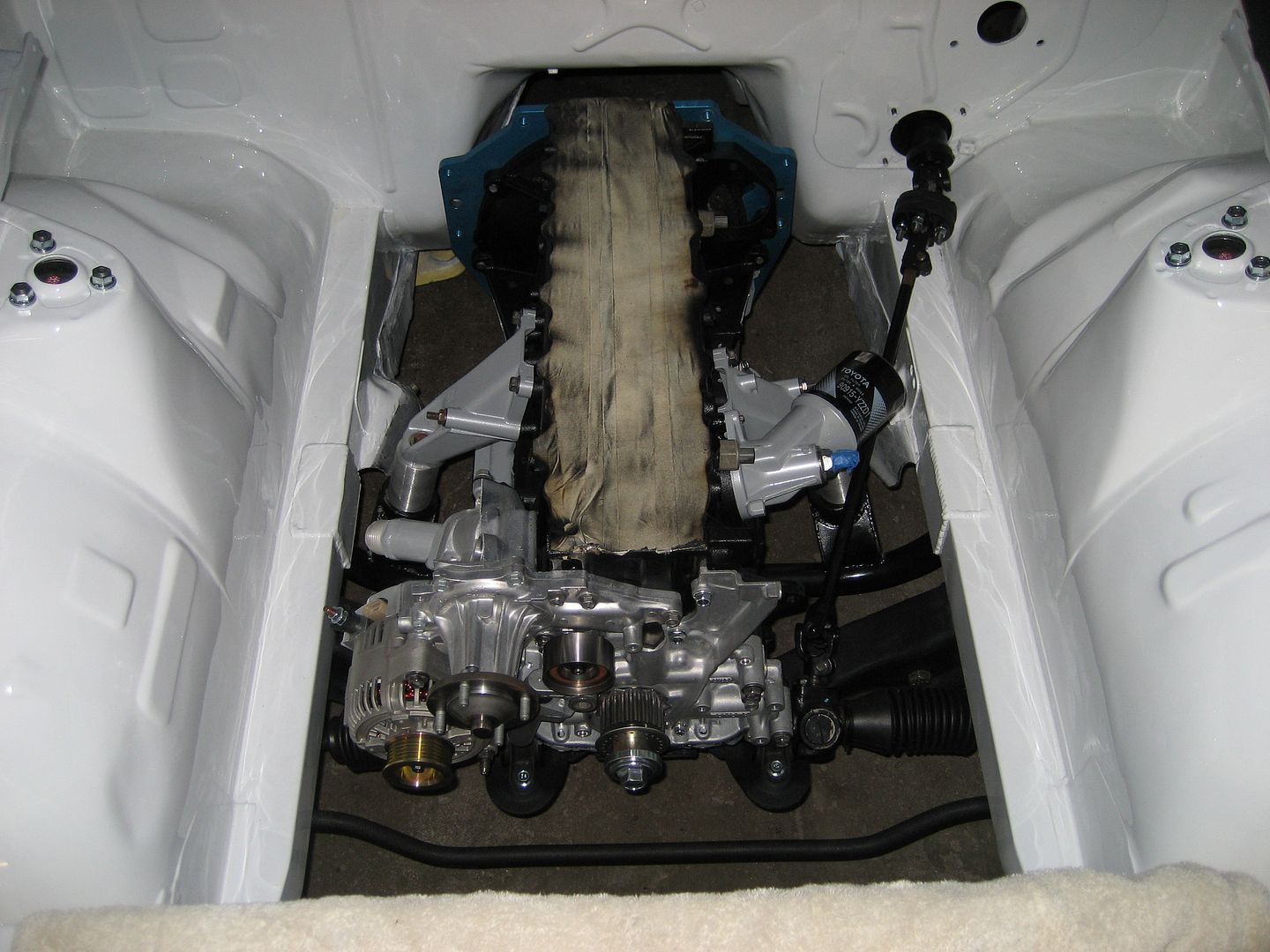

Short block installed with solid engine mounts (man that will vibrate like SOB!). Cleaned and painted steering linkage installed too.



10-15-2011007.jpg?t=1318716607



10-15-2011009.jpg?t=1318716597

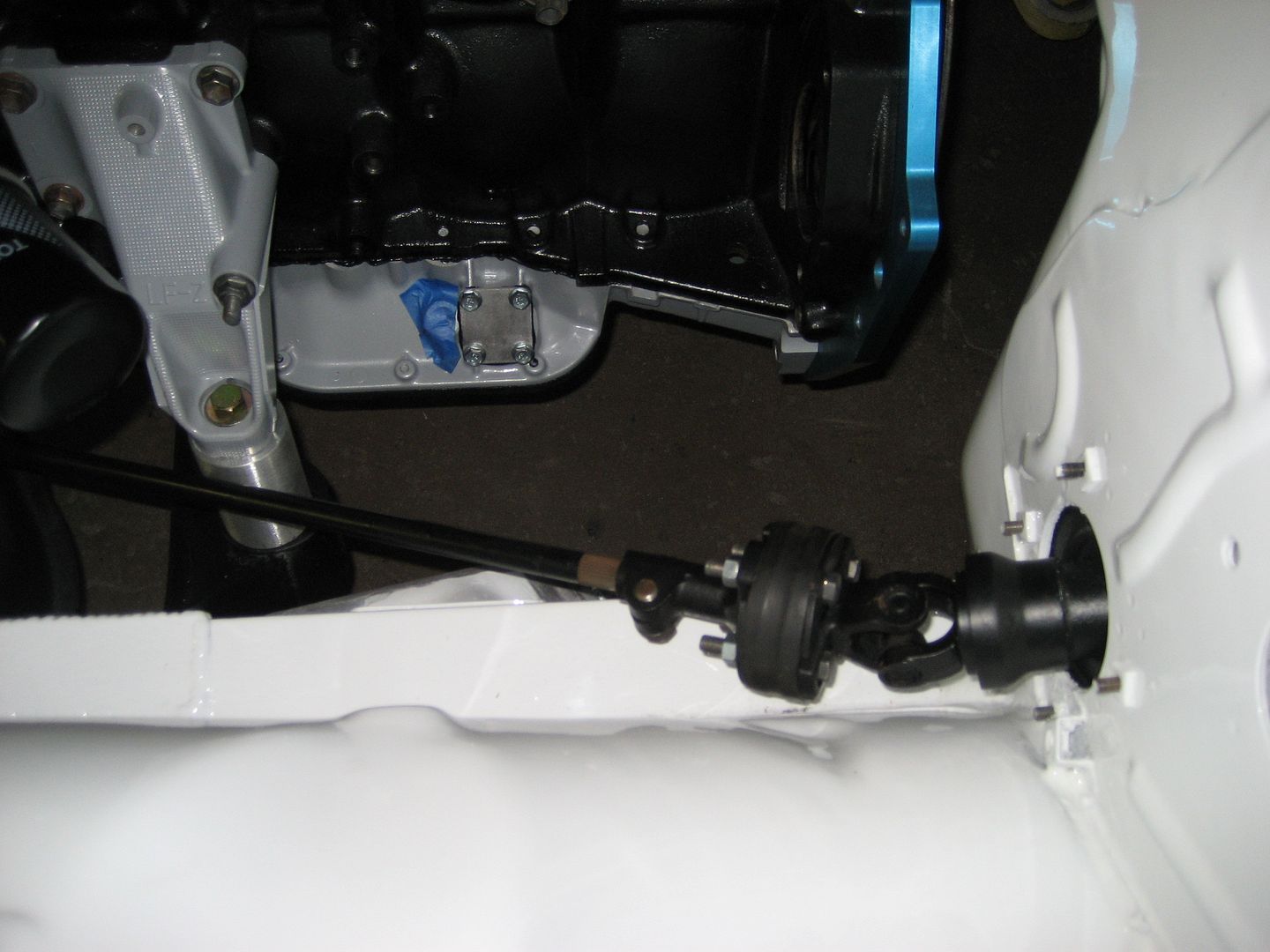

Waterjet cut block off plate for factory oil temp sensor (I think). Steering shaft now clears engine mounts since they are slimmer than stock ones.



10-15-2011005.jpg?t=1318716615

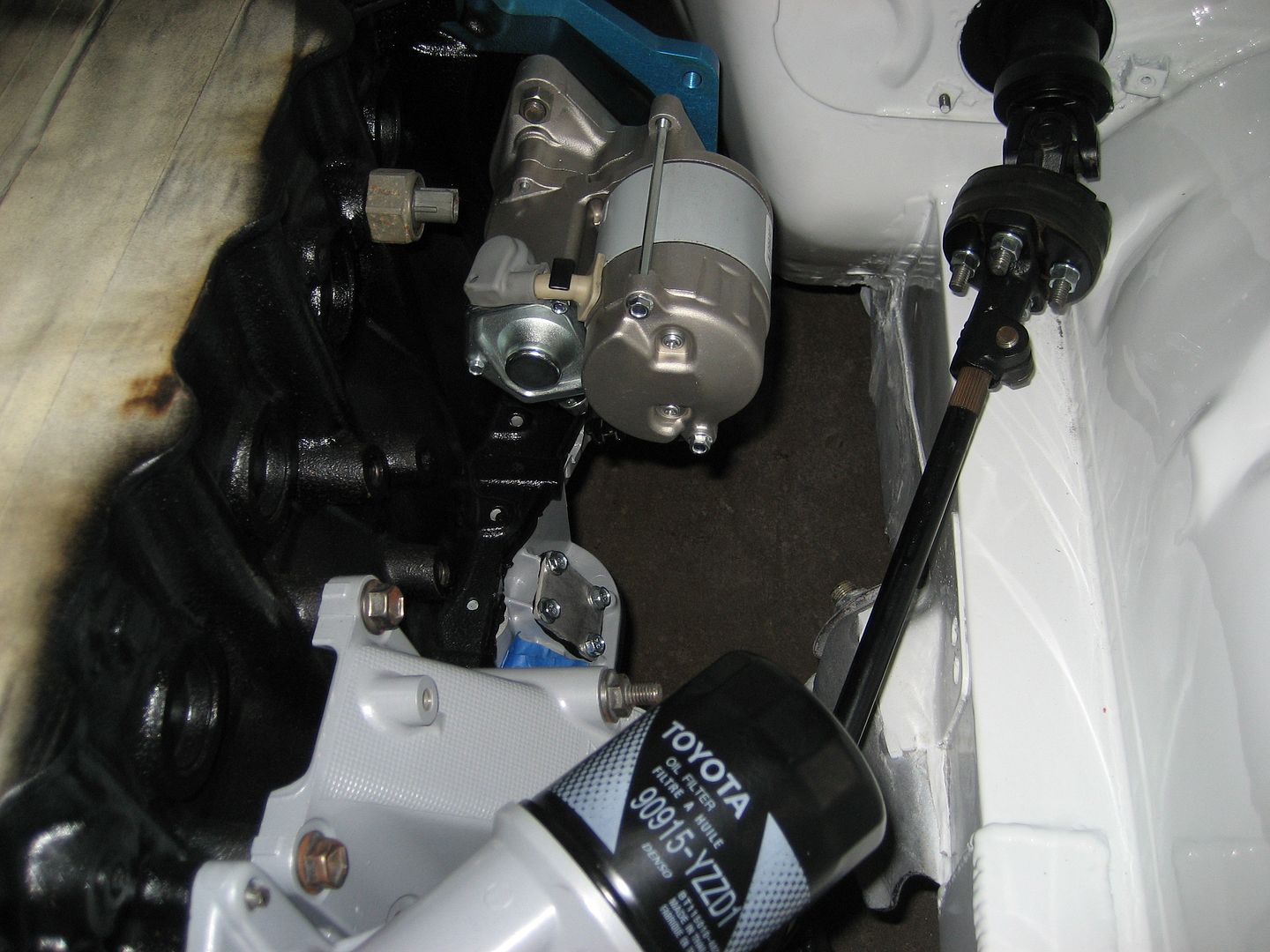

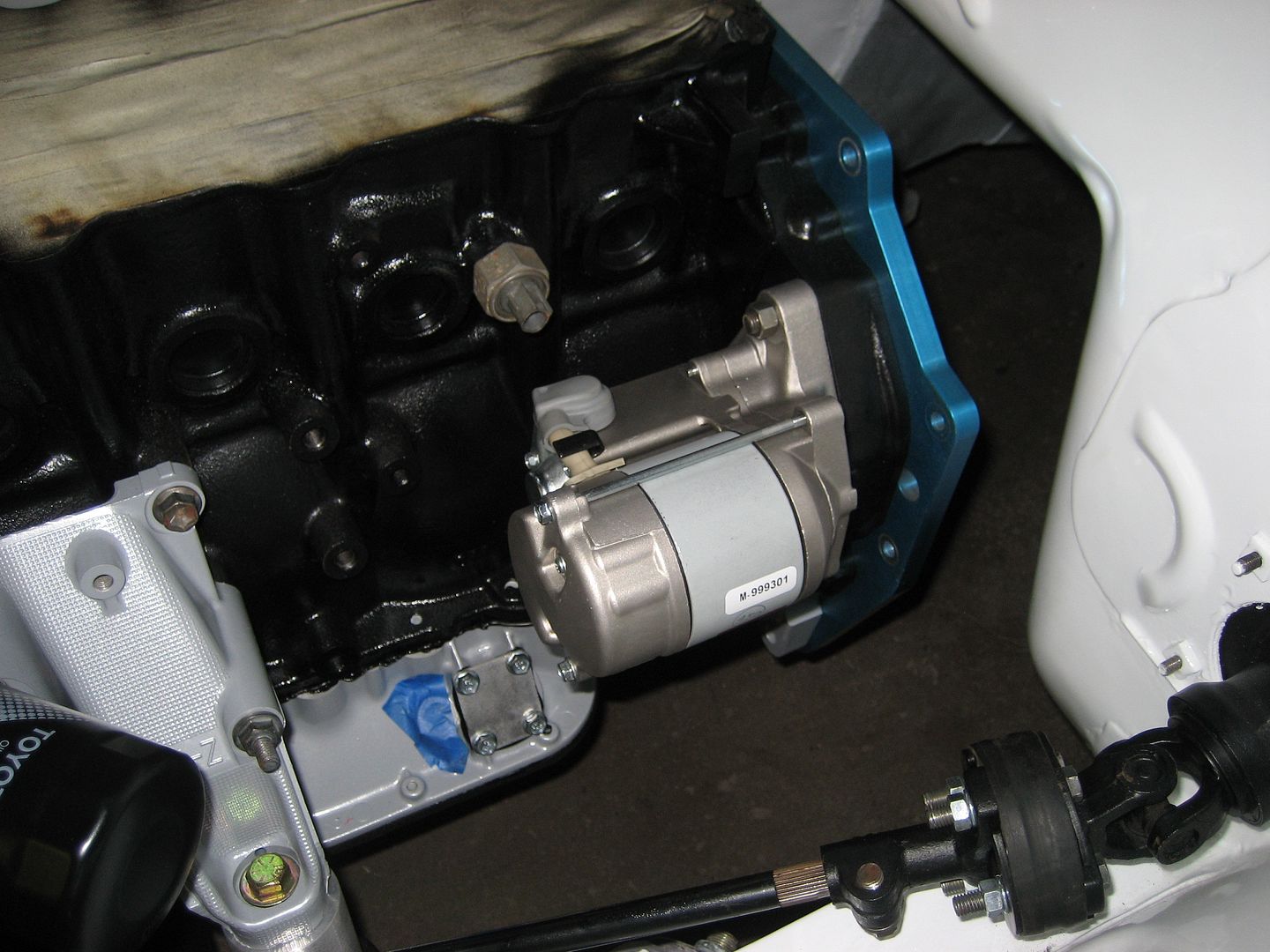

Toyota remanufactured starter that only costed me $10 more than reman from AutoZone.



10-15-2011013.jpg?t=1318716588



10-15-2011015.jpg?t=1318716579

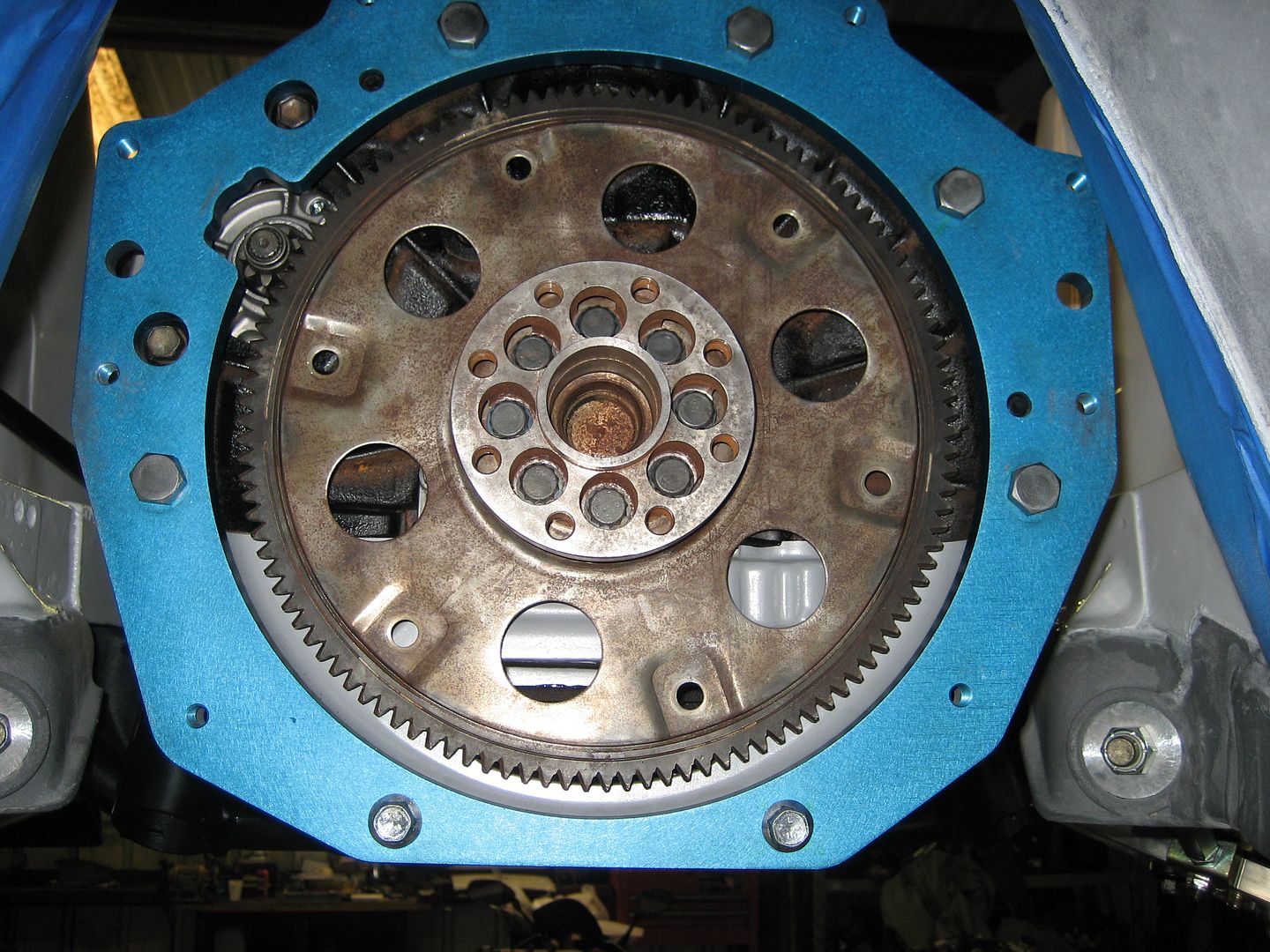

Boostwerx trans adapter (been sitting for the past 3 years...)



10-15-2011022.jpg?t=1318716548

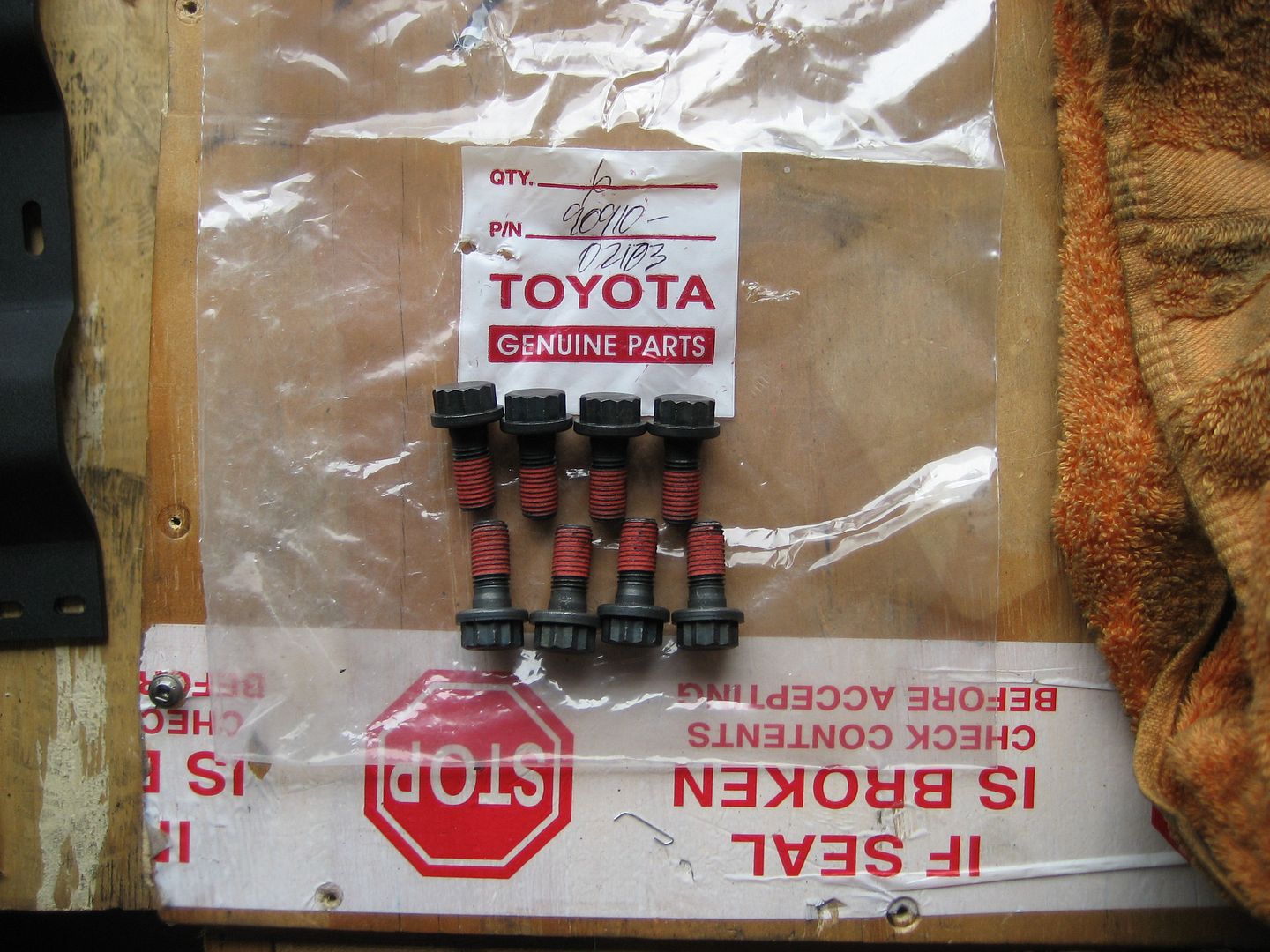

OEM flywheel bolts for 2jzge (stronger/longer than automatic flexplate bolts according to DaveH of Boostwerx). These damn things were $45 at my employee cost!



10-15-2011018.jpg?t=1318716559



More updates coming up next week.

Edited by Ivan280zt
Link to comment
Share on other sites

I figured that it was going to take me about two nights to get my transmission installed man was I wrong...



First two nights were spent trying to modify/shave the bellhousing since there were clearance issues when I tried to install trans with ALL the pieces of trans adapter in the place. Long story short almost two weeks later trans is in the car for good (I hope).

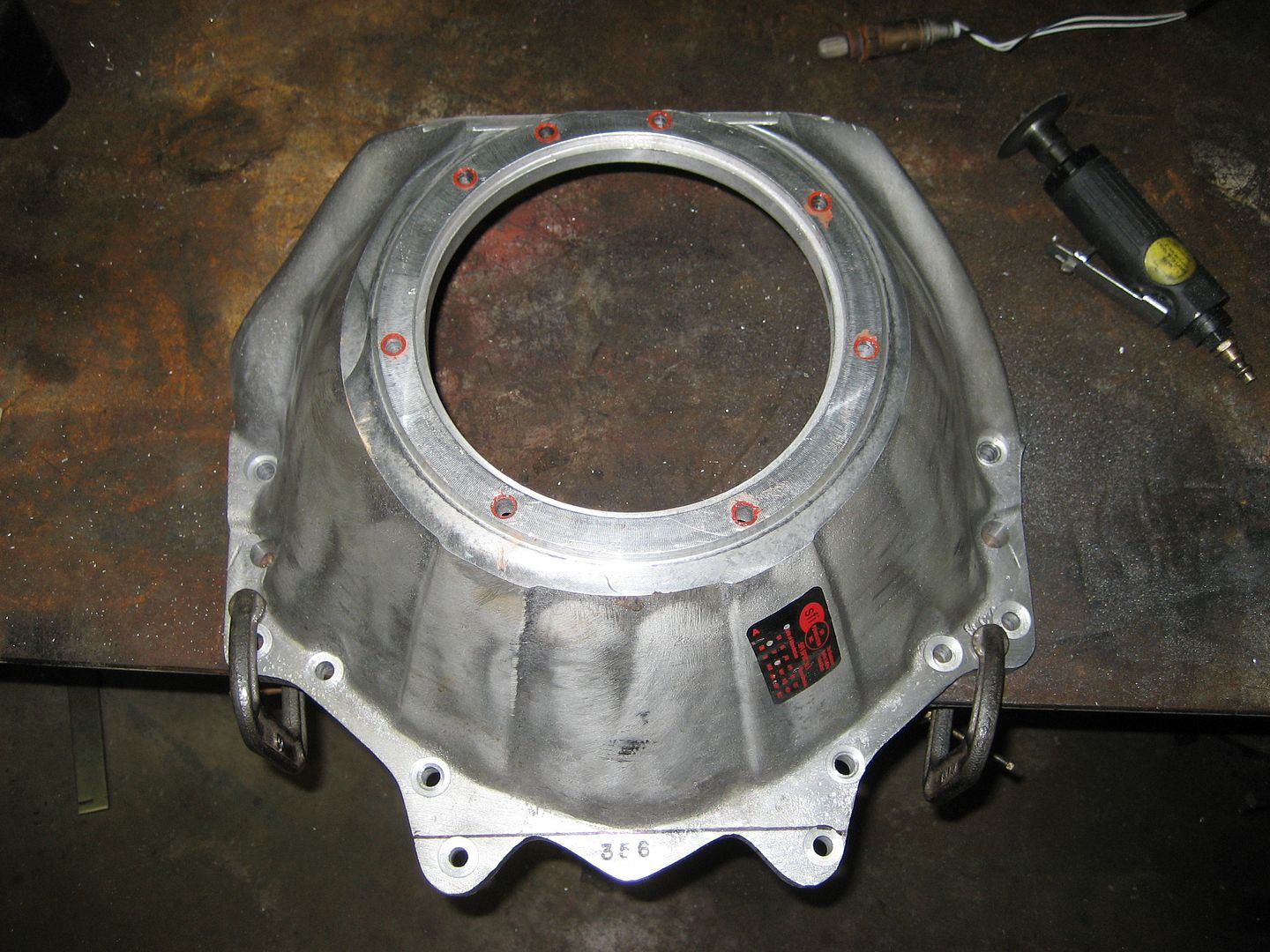

First issue dual bolt pattern bellhousing.



10-15-2011017.jpg?t=1319342434



10-15-2011025.jpg?t=1319342424

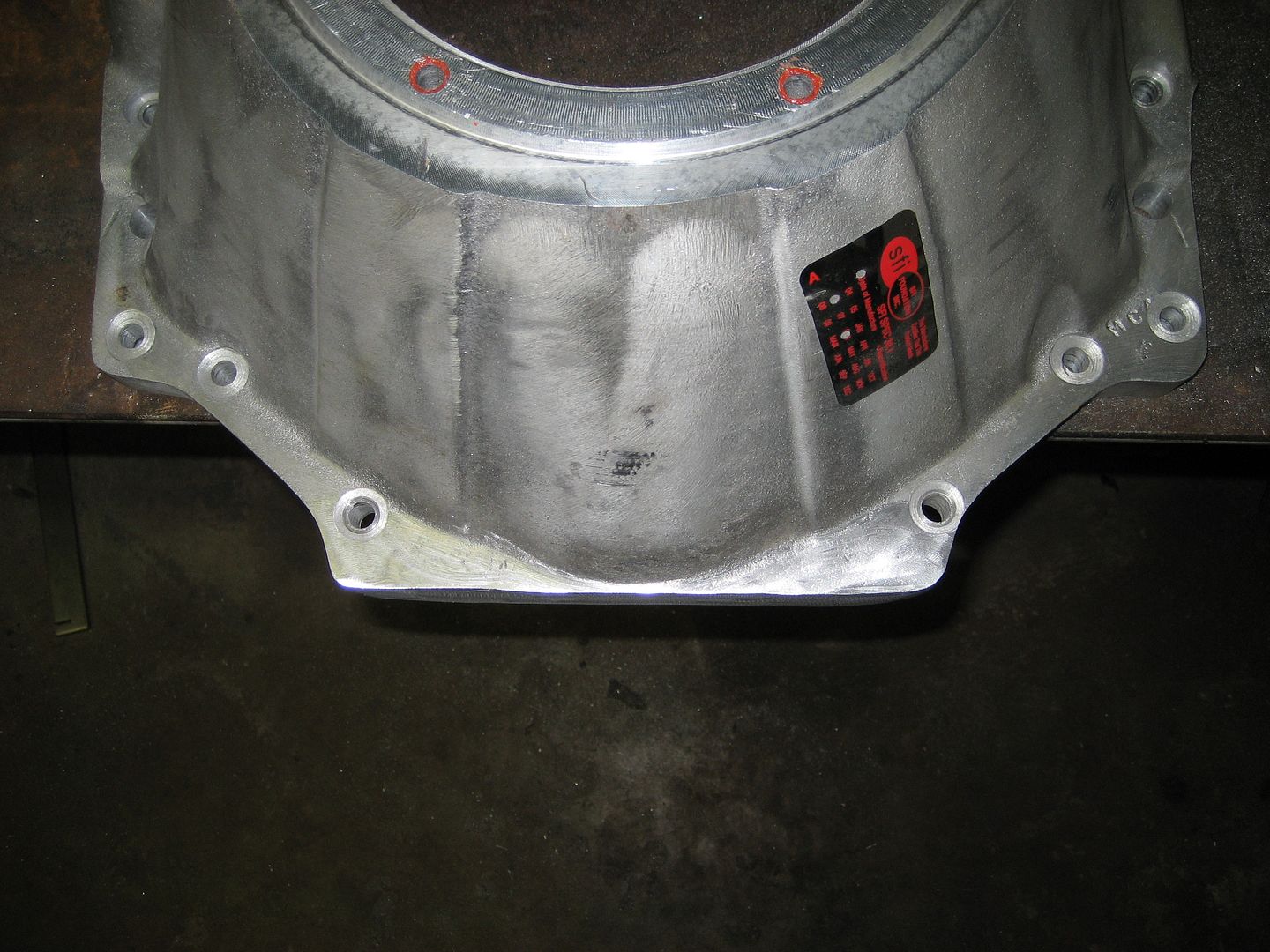

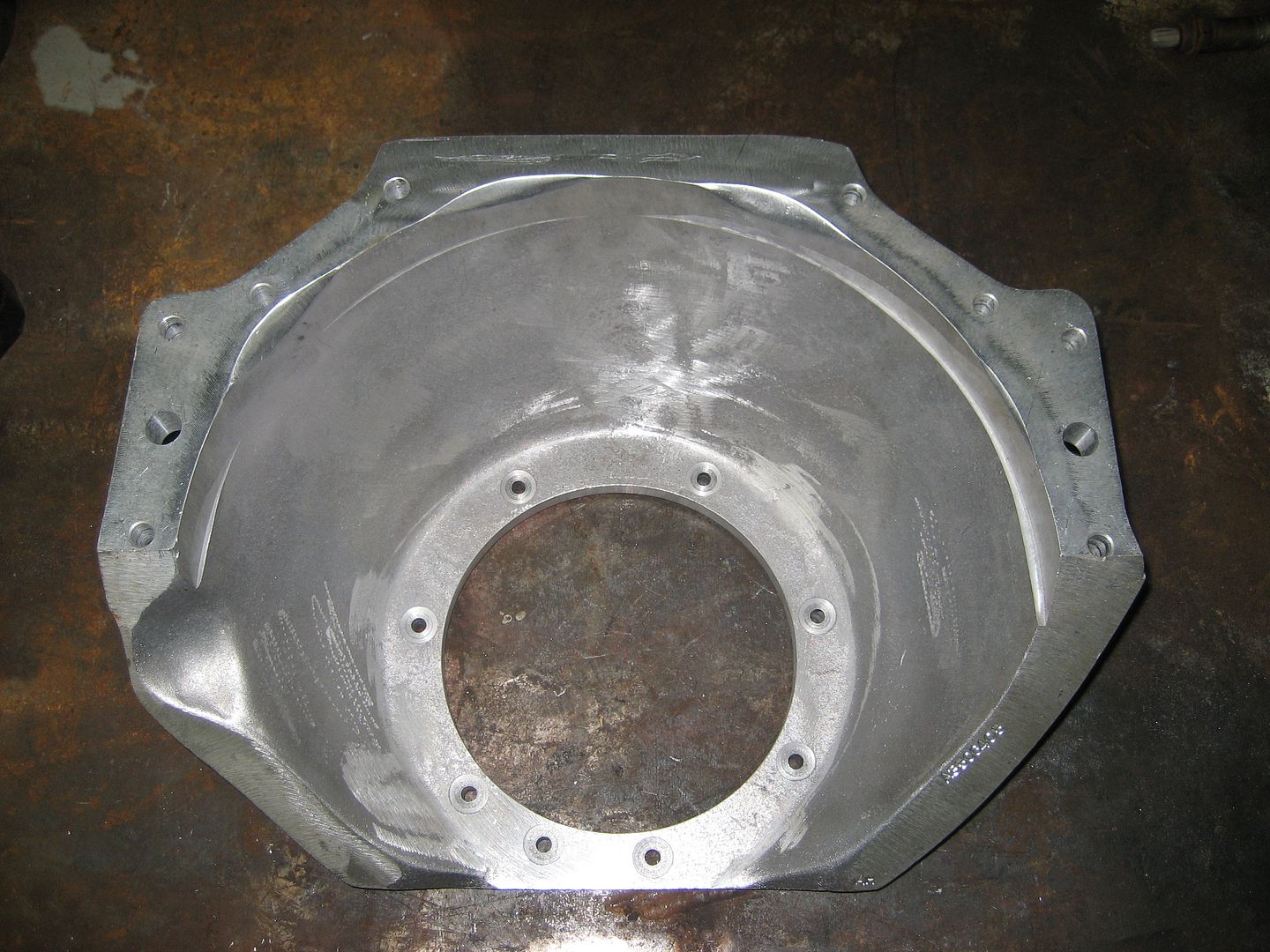

Had to notch three spots for the bolt heads to clear bellhousing.



10-15-2011031.jpg?t=1319342414

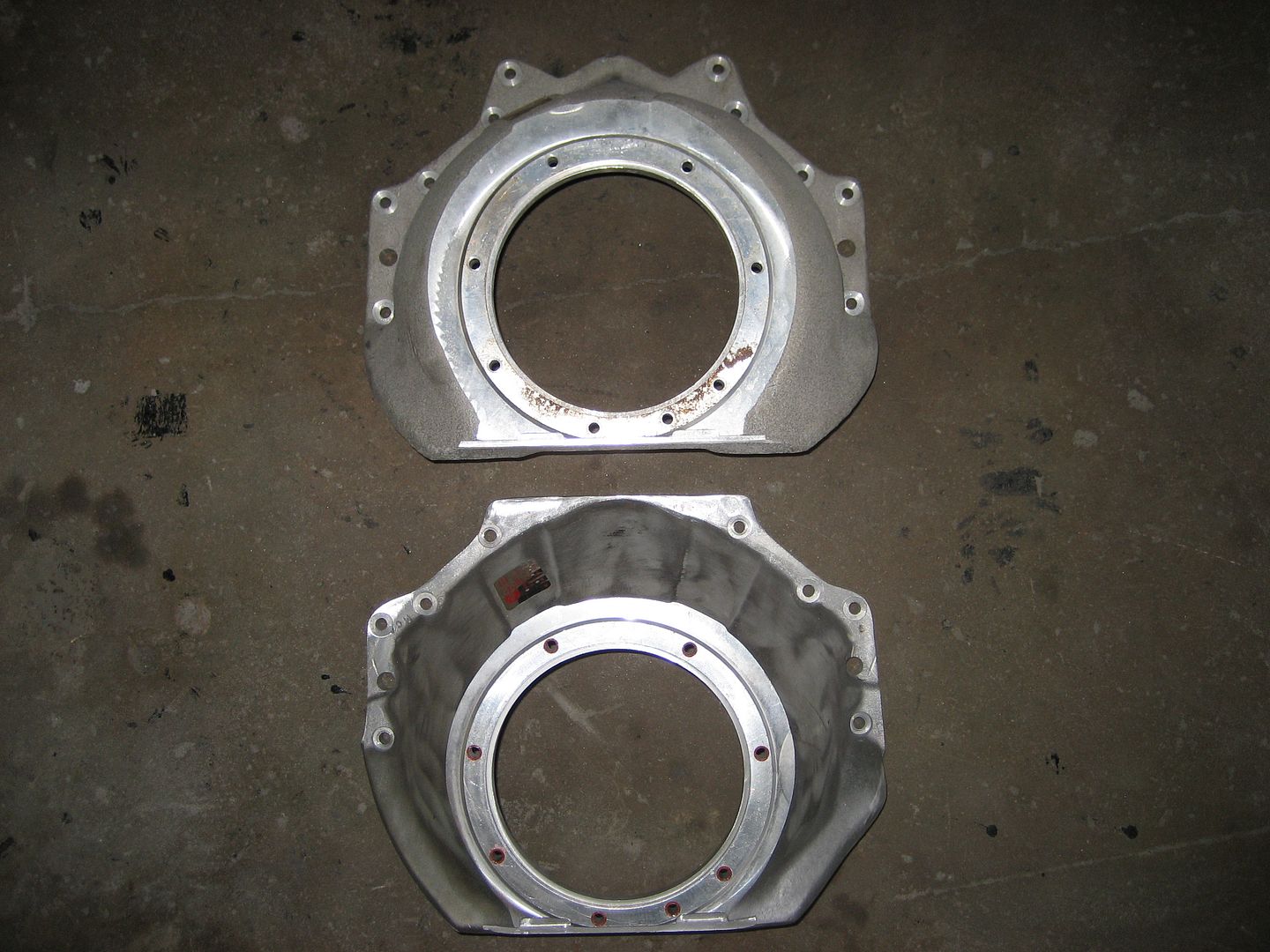

For some reason new Th350 bellhousing had some extra castings around two of the holes (around 10 and 2 o'clock) so I had to take care of those as well because they kept touching trans tunnel. My original Th400 bellhousing did not have much material around same area which is weird I tought that JW used same bellhousing for both to begin with?!



10-15-2011032.jpg?t=1319342399

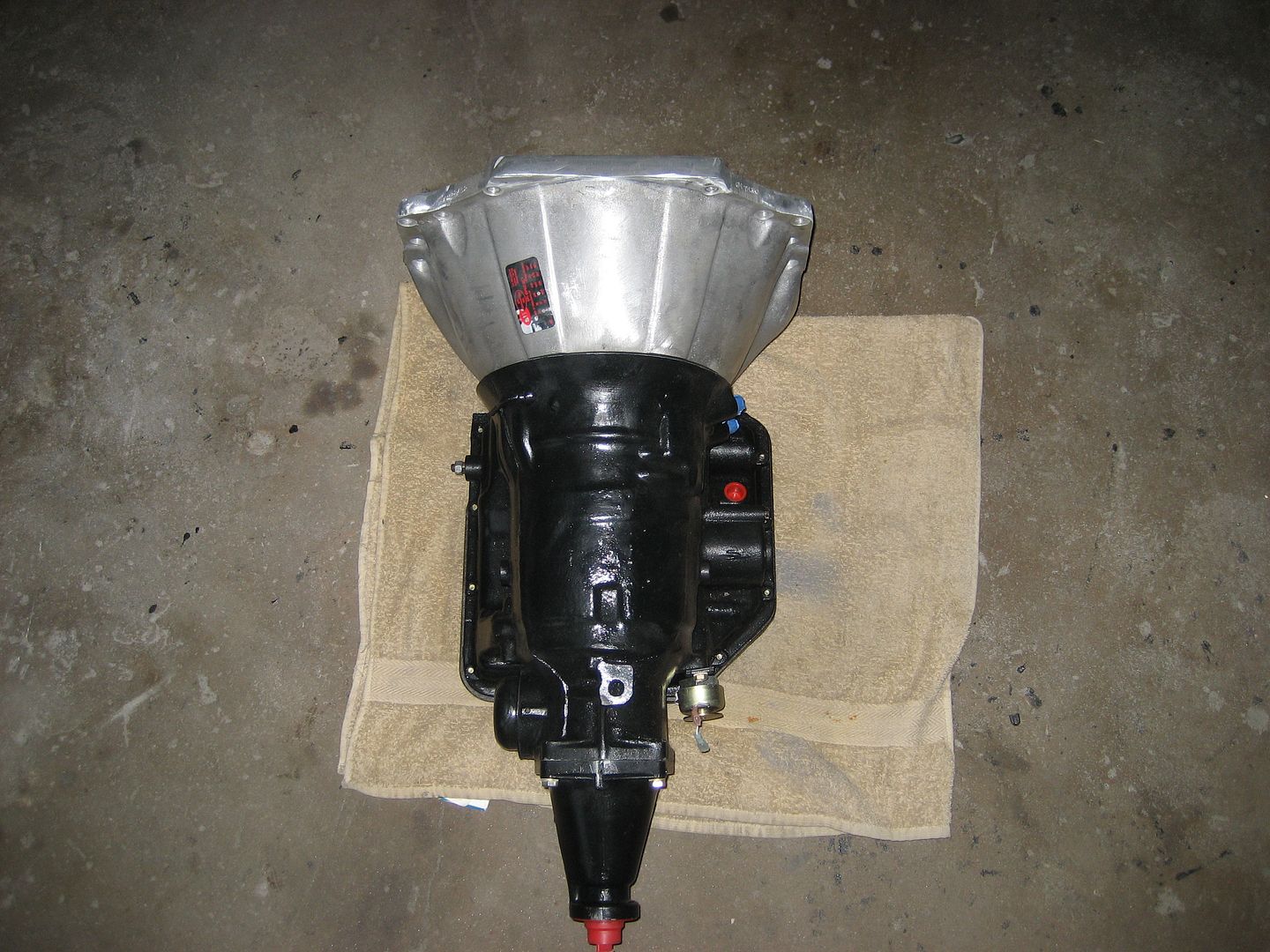

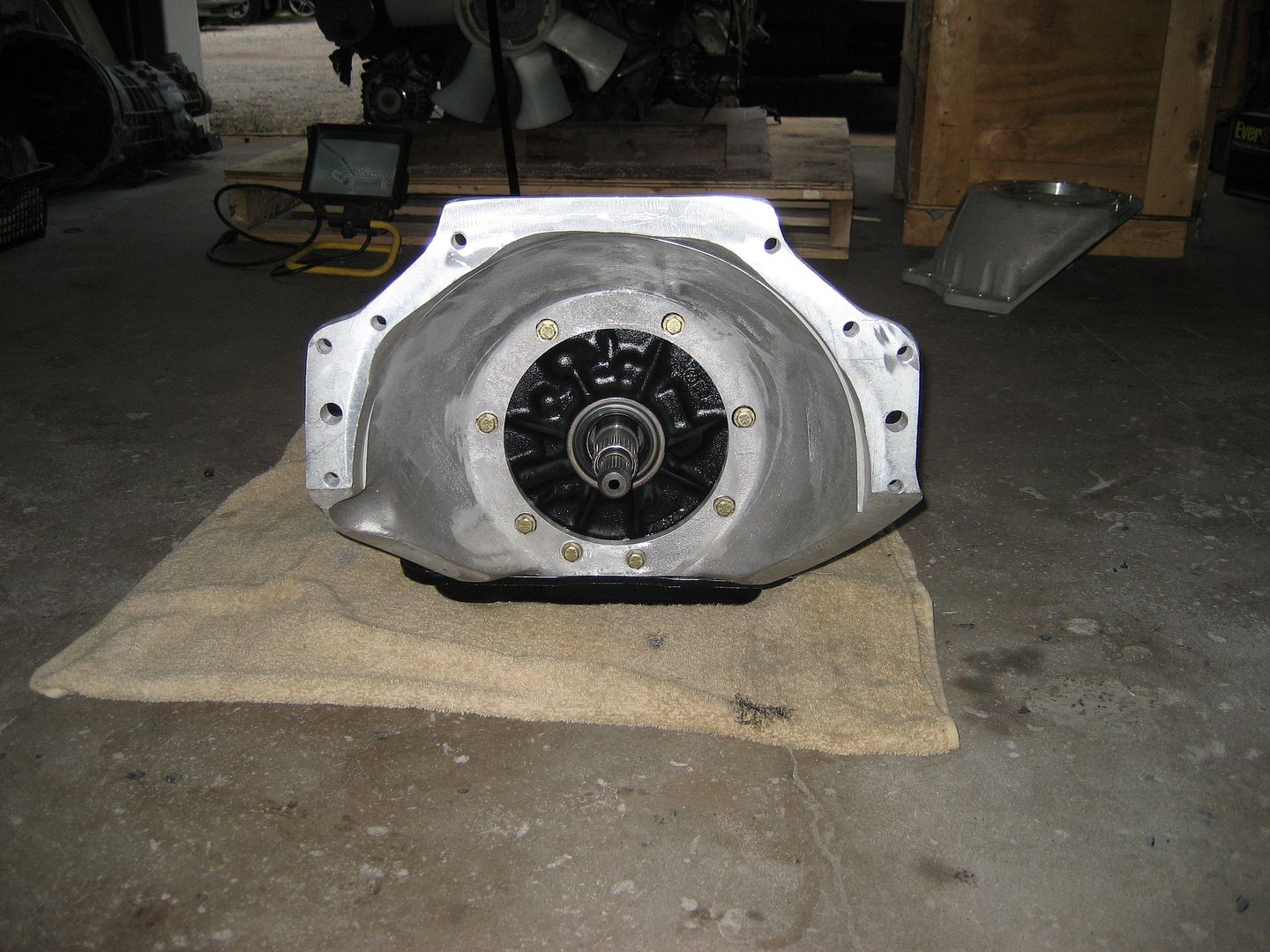

ATI built Th350 ready to go in.



10-15-2011039.jpg?t=1319342387



10-15-2011041.jpg?t=1319342377



Finally got the trans in the place so that I could find out that my crossmember will not work anymore. I mocked everything up with Th400 and later on got great deal on Th350. I figured that they used same crossmember location and once again I was wrong lol.



Here is how crossmember was for Th400.



5-15-2011007.jpg?t=1305507477



Now with the Th350 in the place whole damn thing was sitting back about 6-8"...poop...

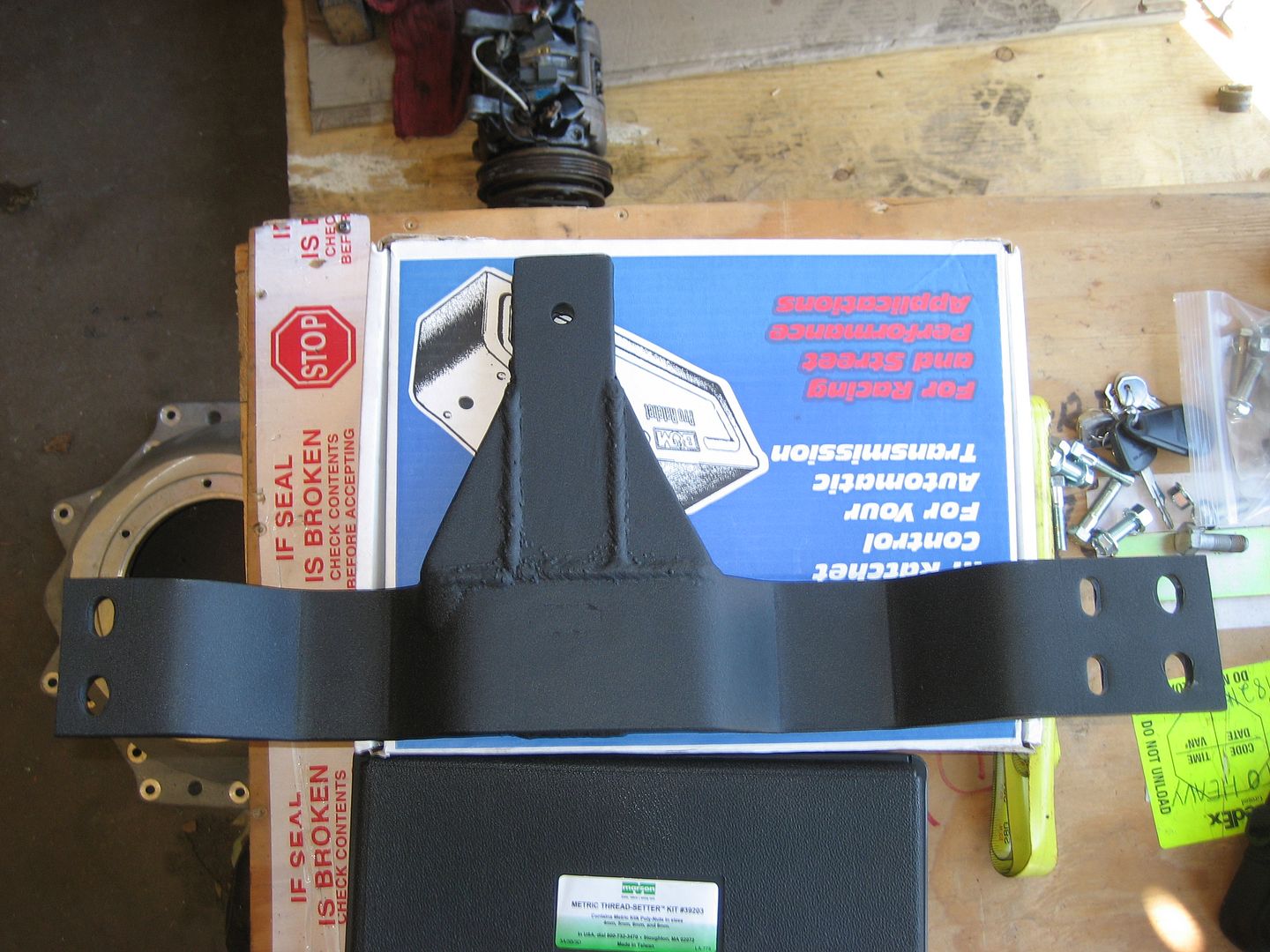

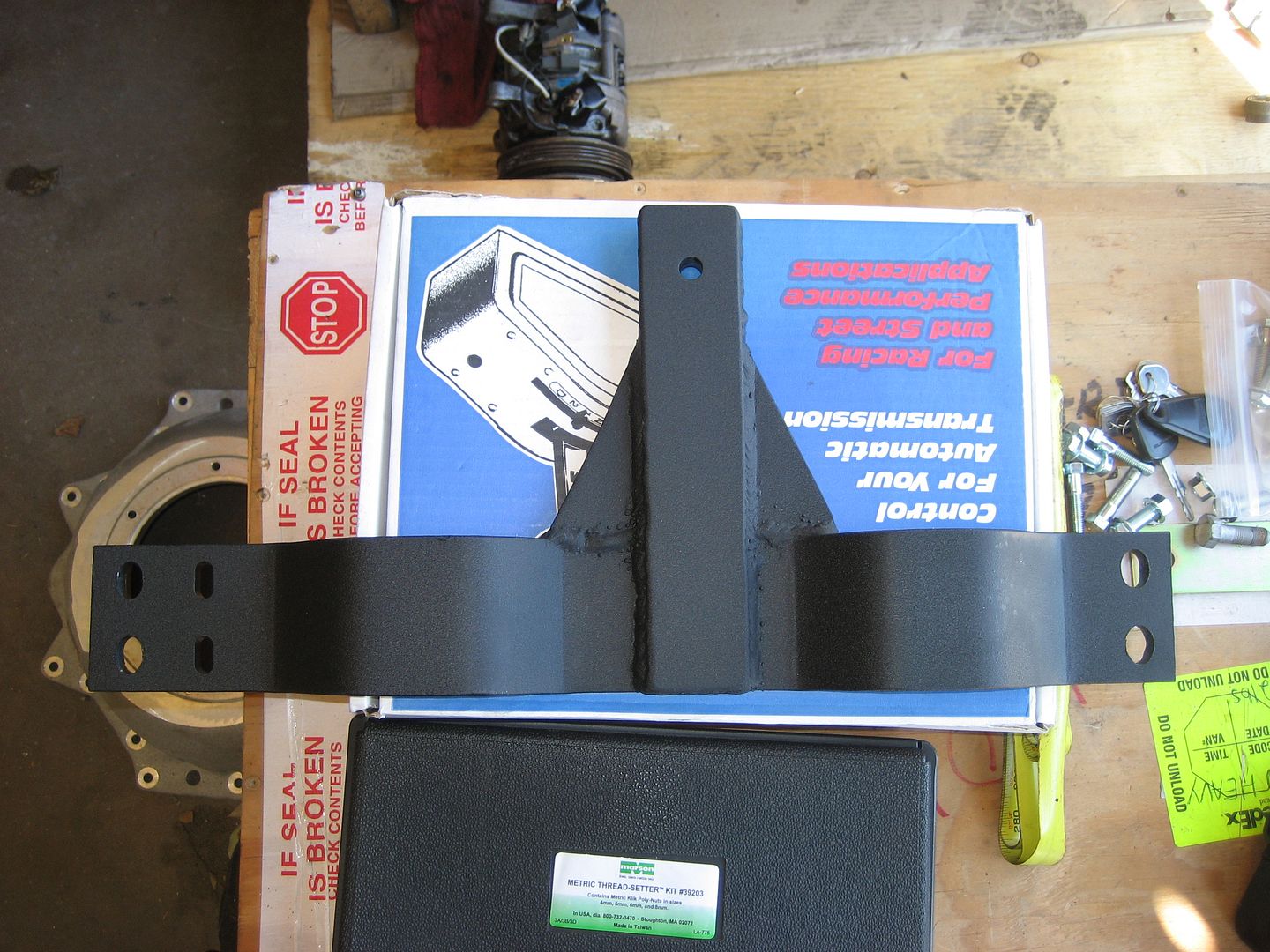

That thing pushed me another few days back. I ended up spending whole night redoing original crossmember and this is final product. I made it, JT welded it, and then Mike powdercoated it.



10-22-2011002.jpg?t=1319342262



10-22-2011003.jpg?t=1319342247

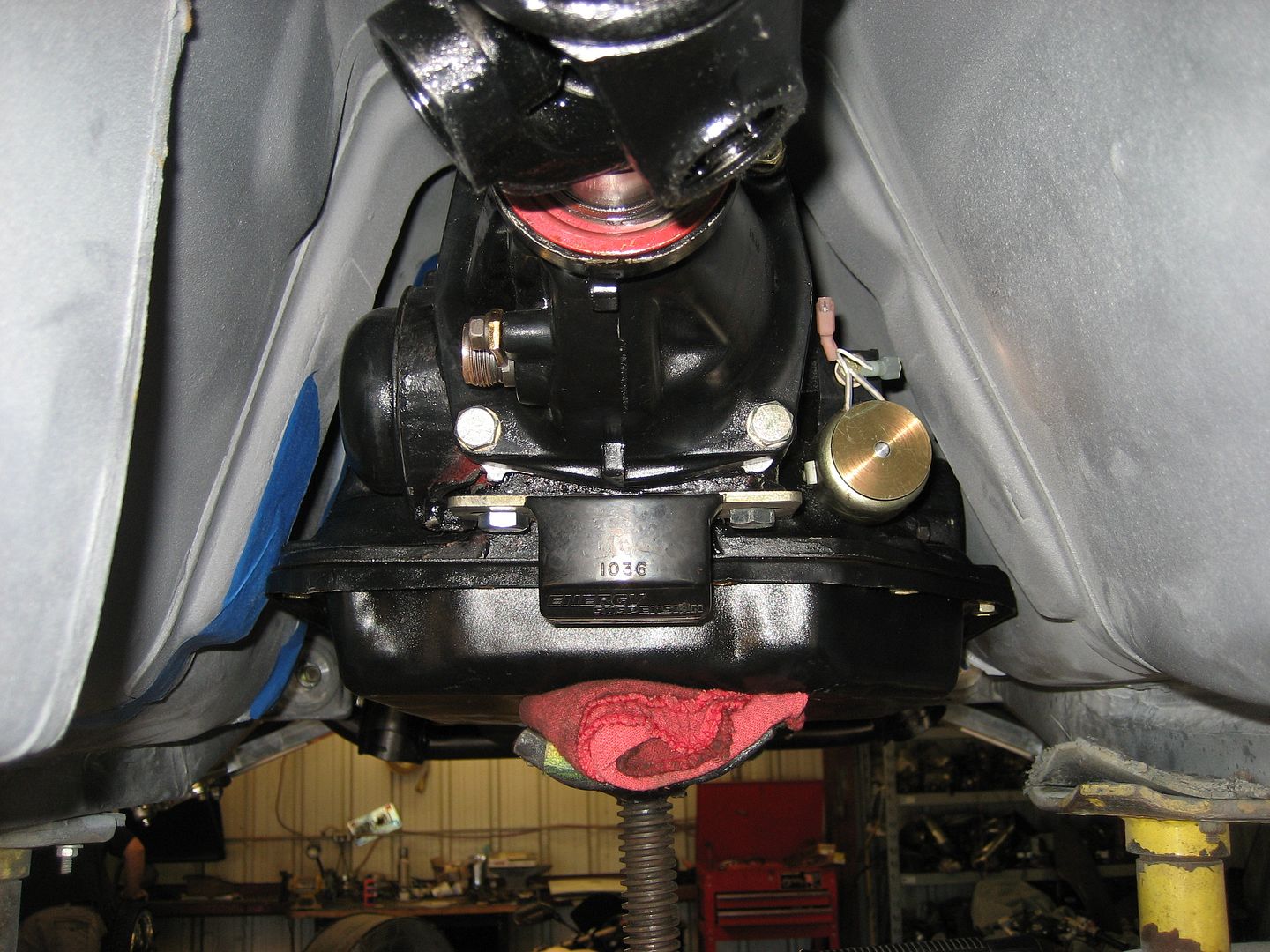

Tight fit but everything clears just fine.



10-22-2011010.jpg?t=1319342234

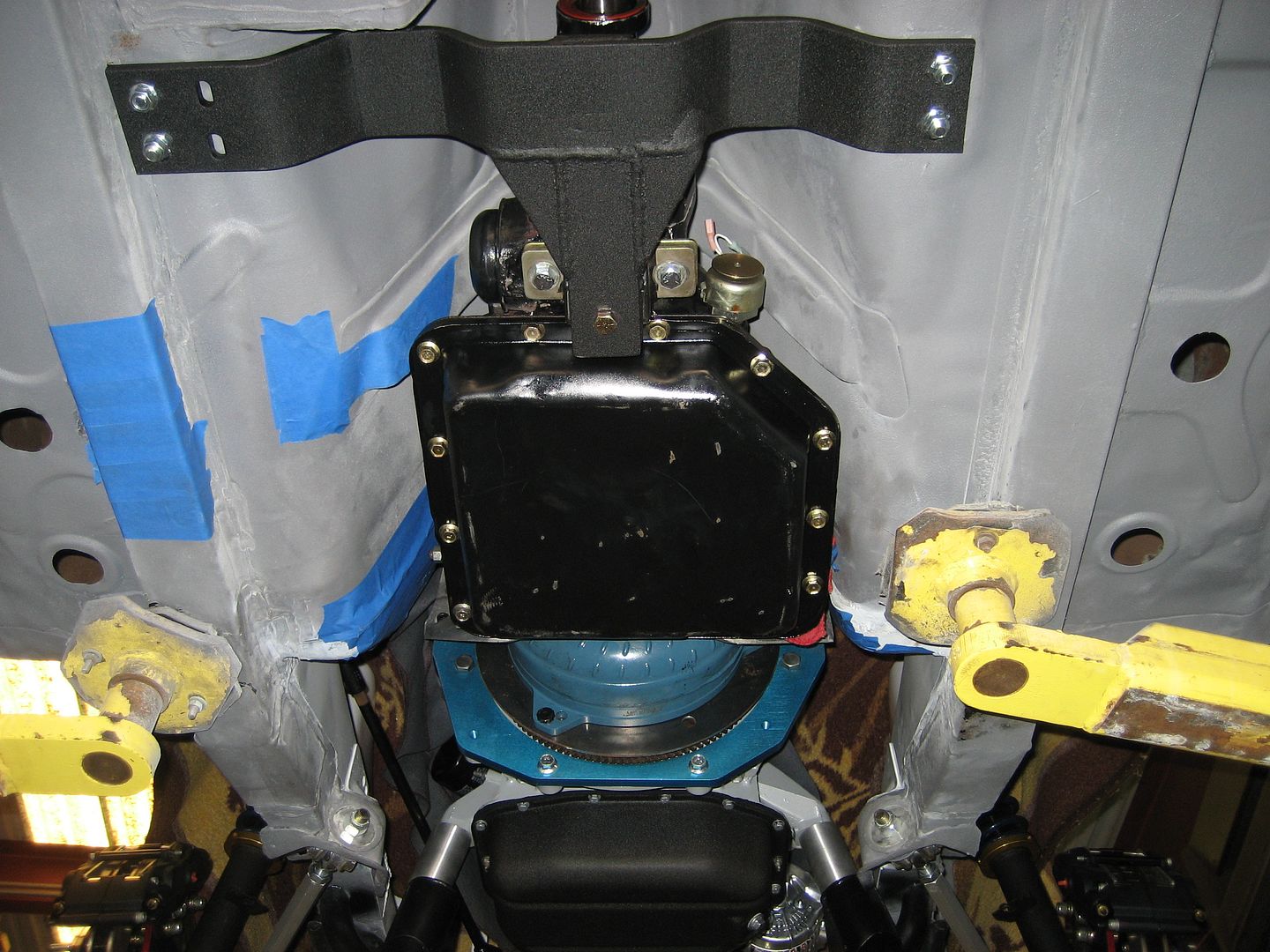

Why in the world does $2000 trans come with stock oil pan?!?! I will have to orded nice cast aluminum one to replace that hunk of junk.



10-22-2011015.jpg?t=1319342221

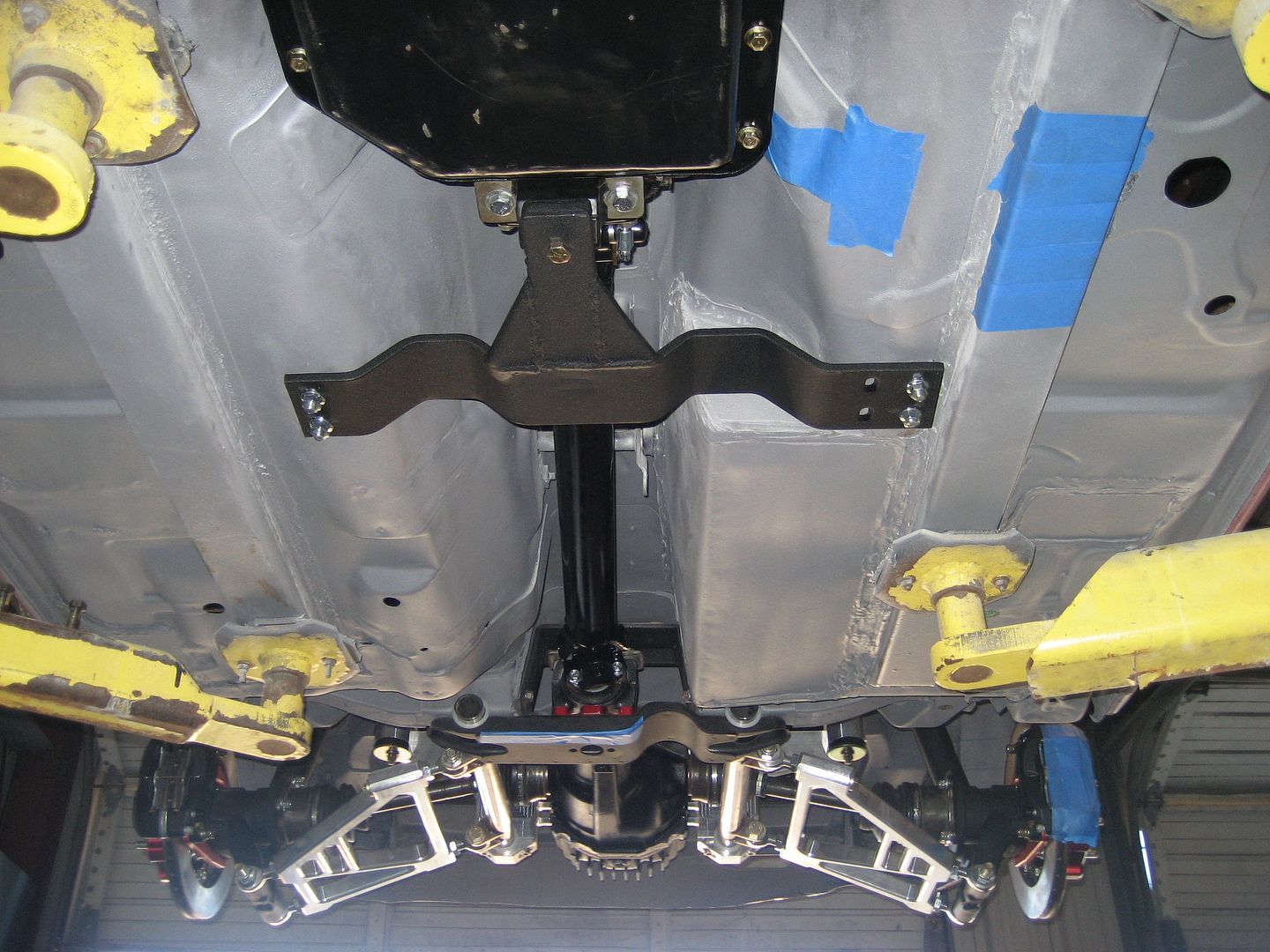

Weird how crossmember looks crooked in this picture when its not.



10-22-2011019.jpg?t=1319342207

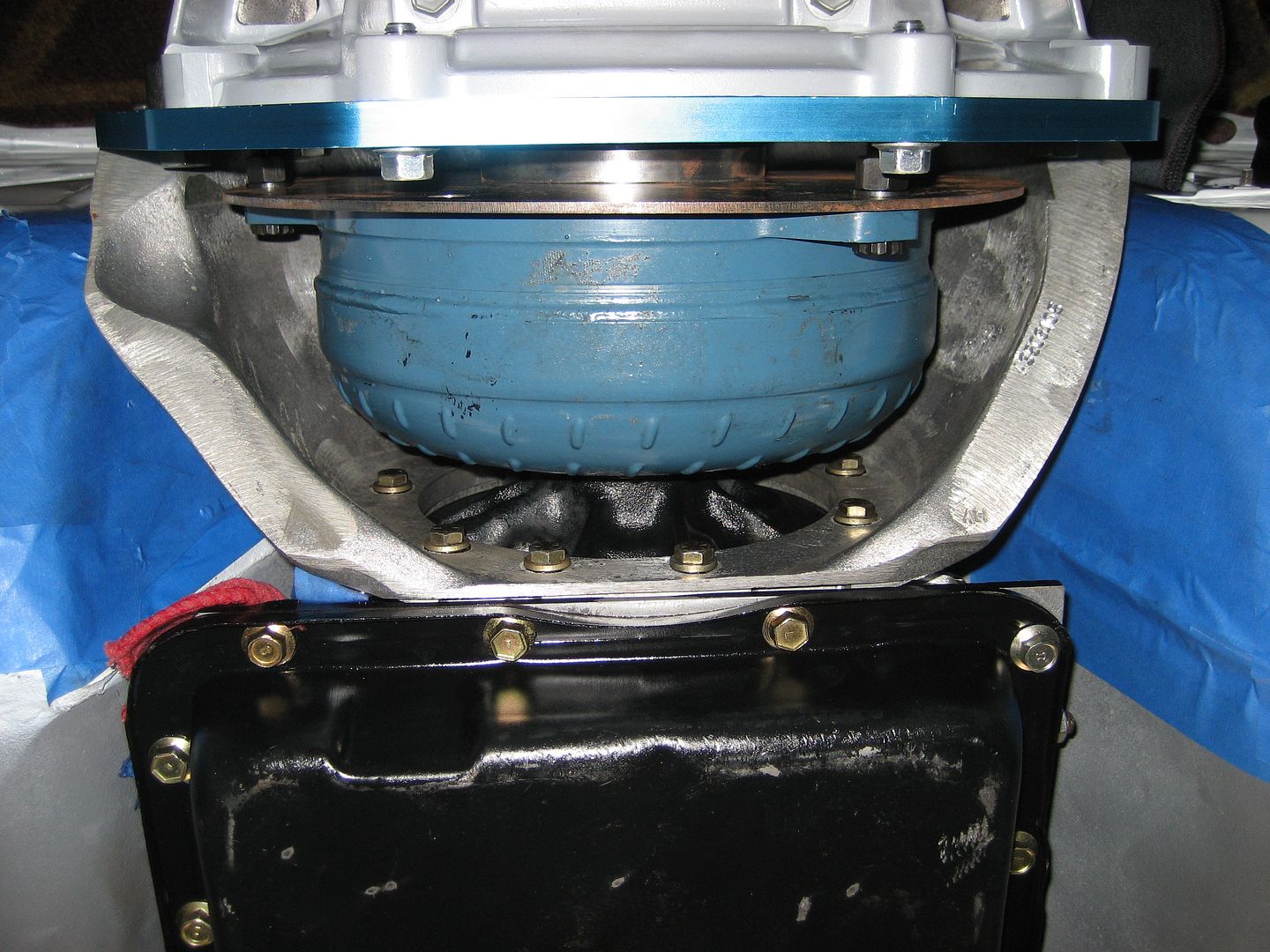

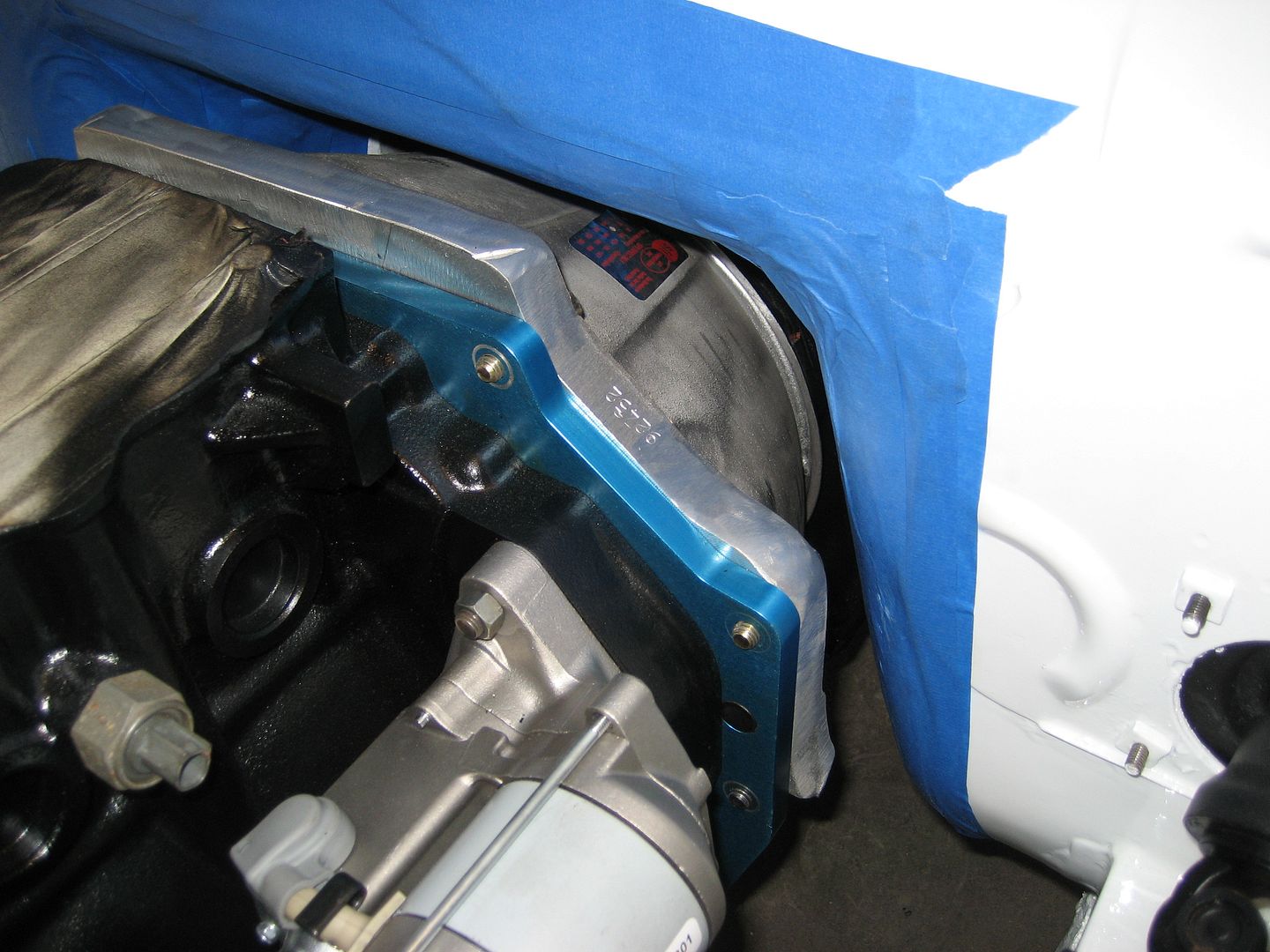

Neil Chance convertor with Booswerx adapter installed.



10-22-2011020.jpg?t=1319342190

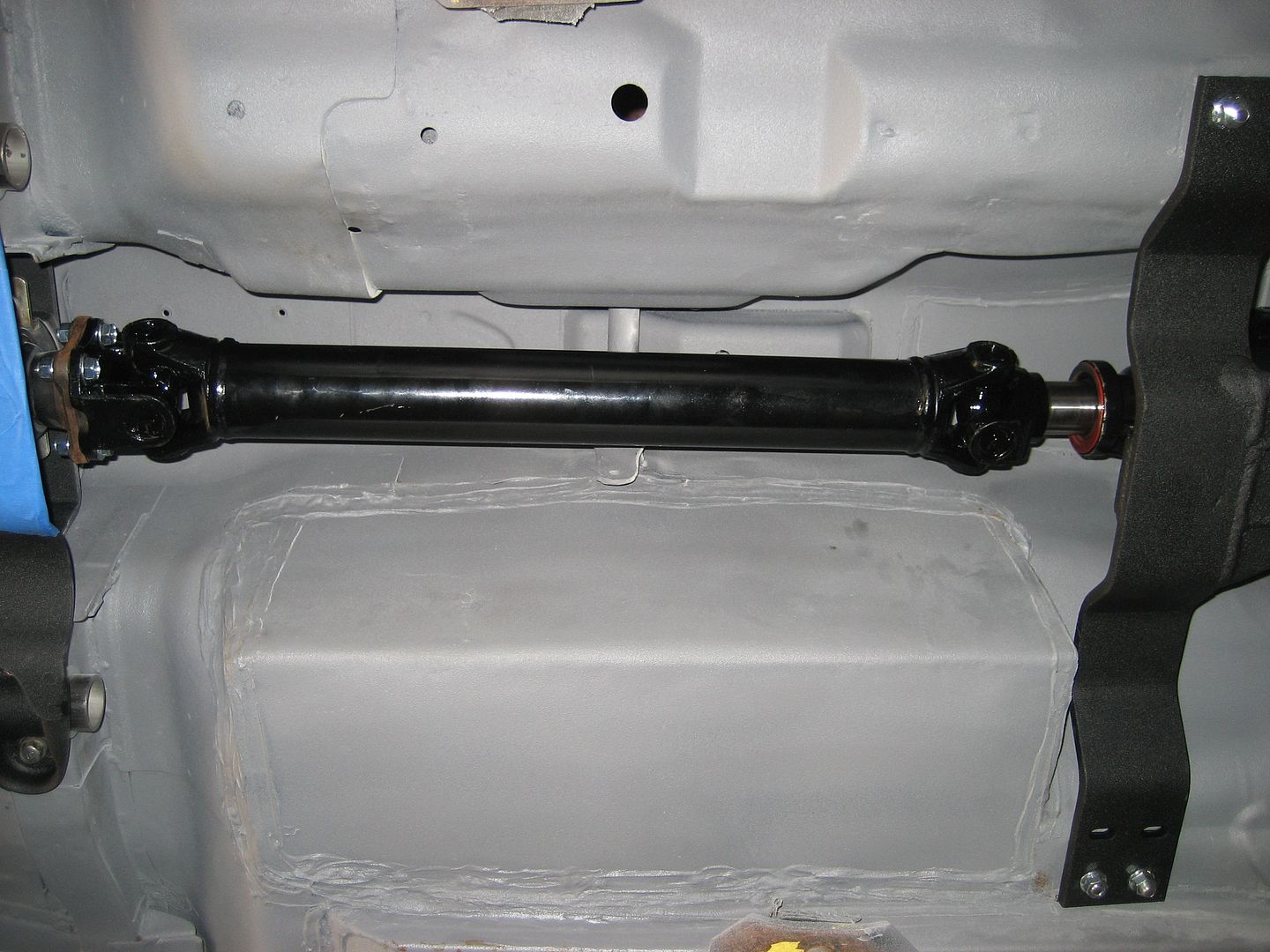

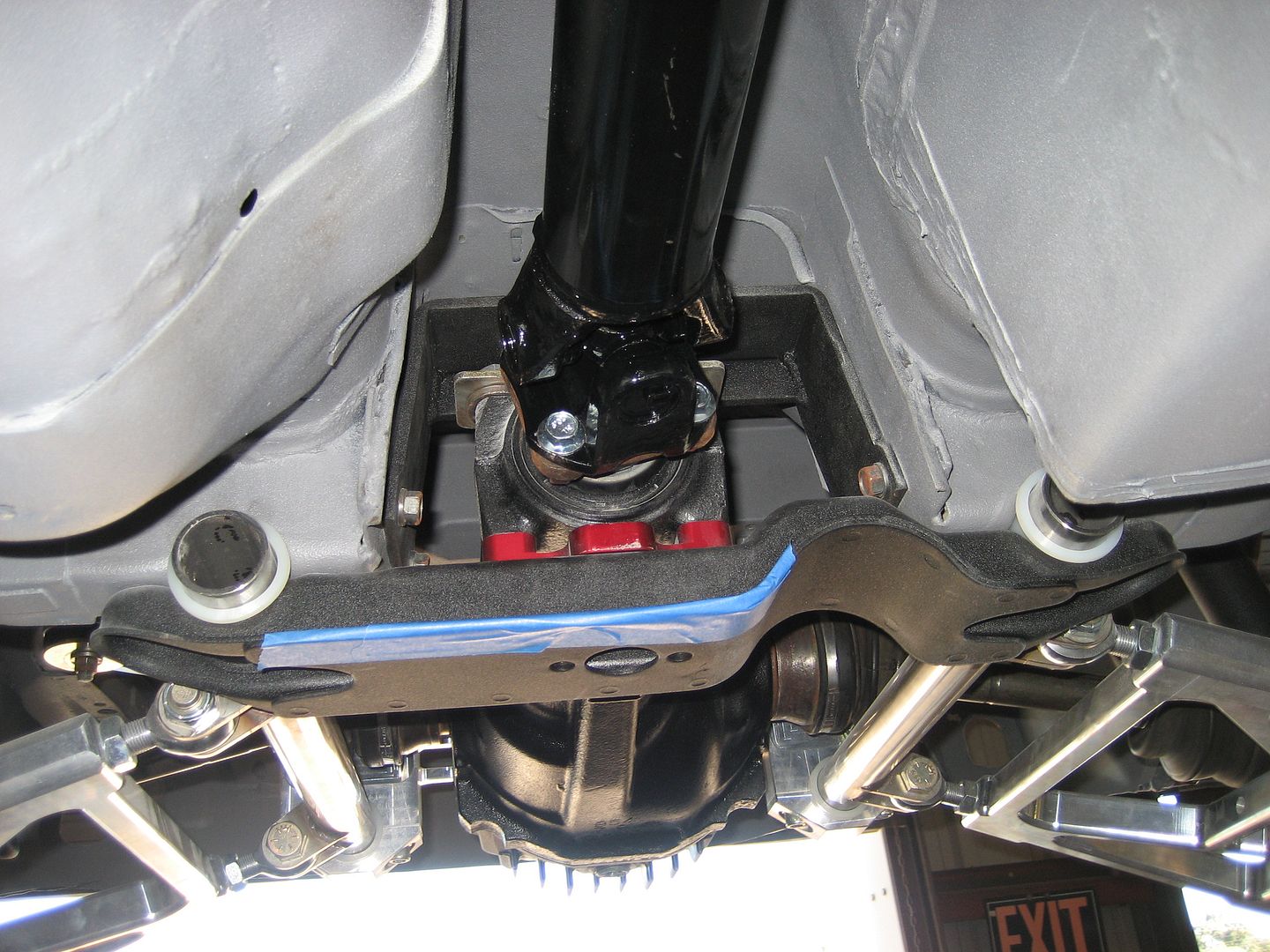

Driveshaft I had made by Clutch and Drivetrain Products with all Spicer u-joints and flanges.



10-22-2011022.jpg?t=1319342176



10-22-2011023.jpg?t=1319342163

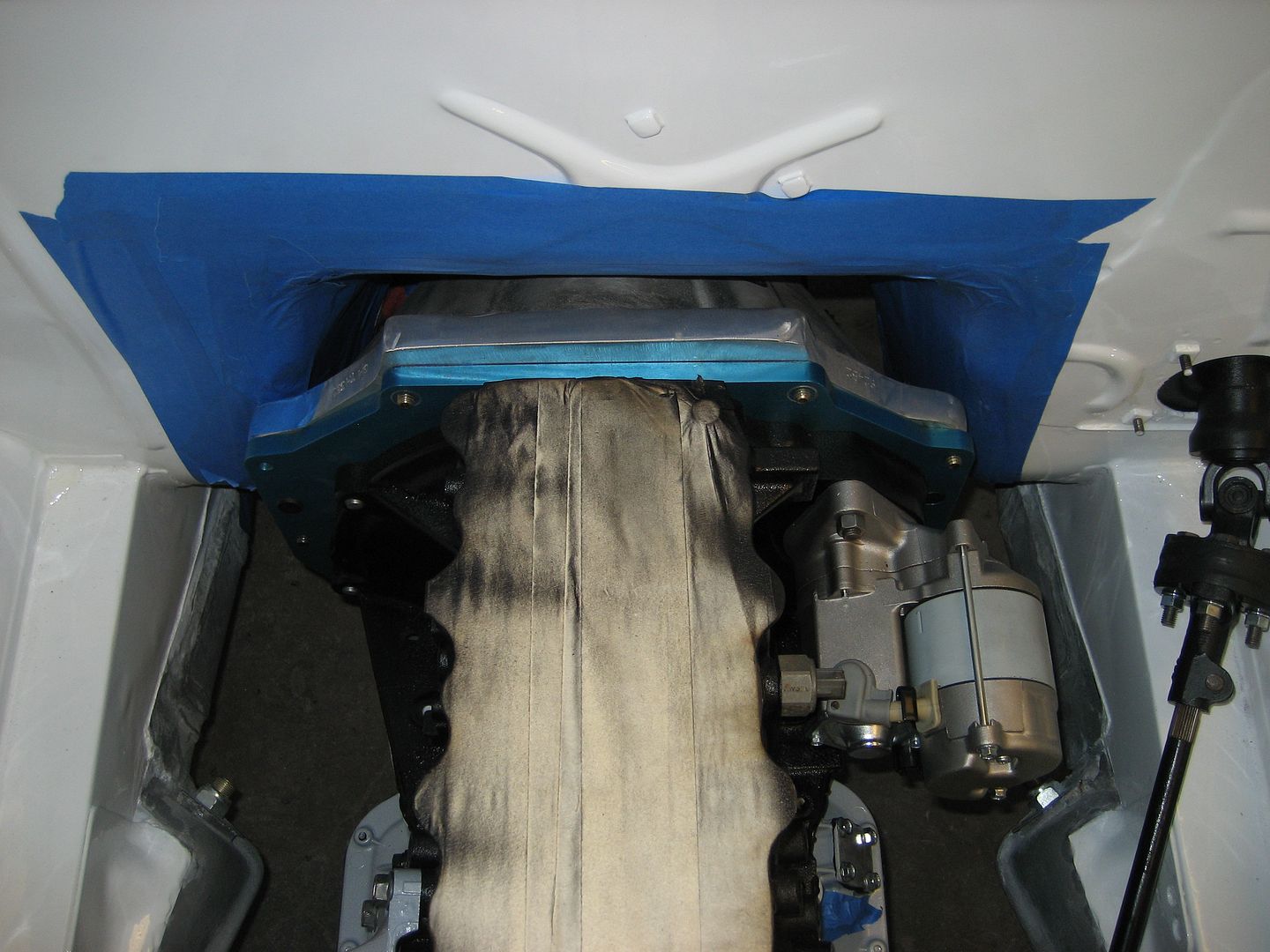

Good clearance all the way around (that blue tape is almost 1/16" thick in tight spots).



10-22-2011027.jpg?t=1319342145



10-22-2011028.jpg?t=1319342134

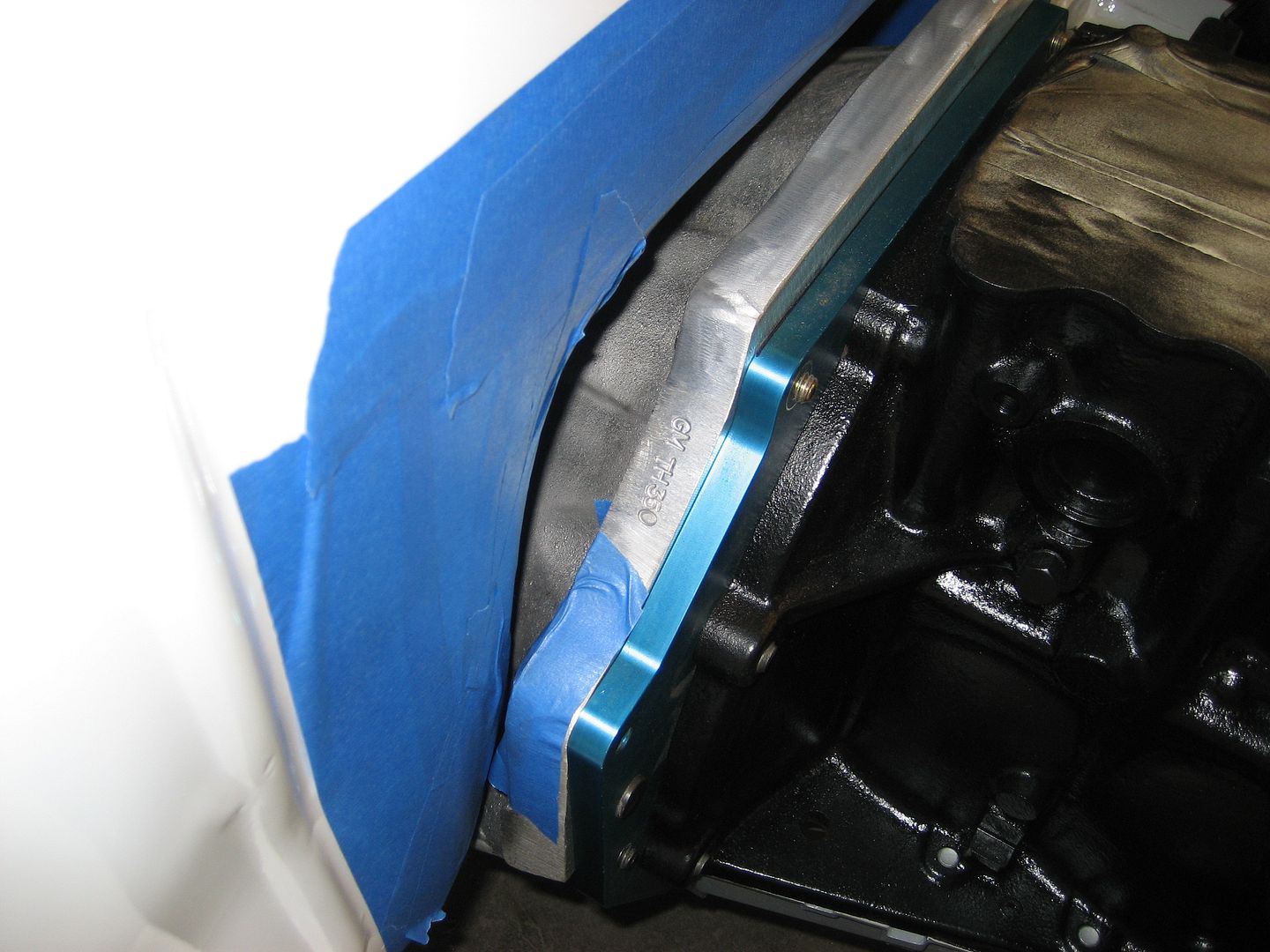

10-22-2011029.jpg?t=1319342118

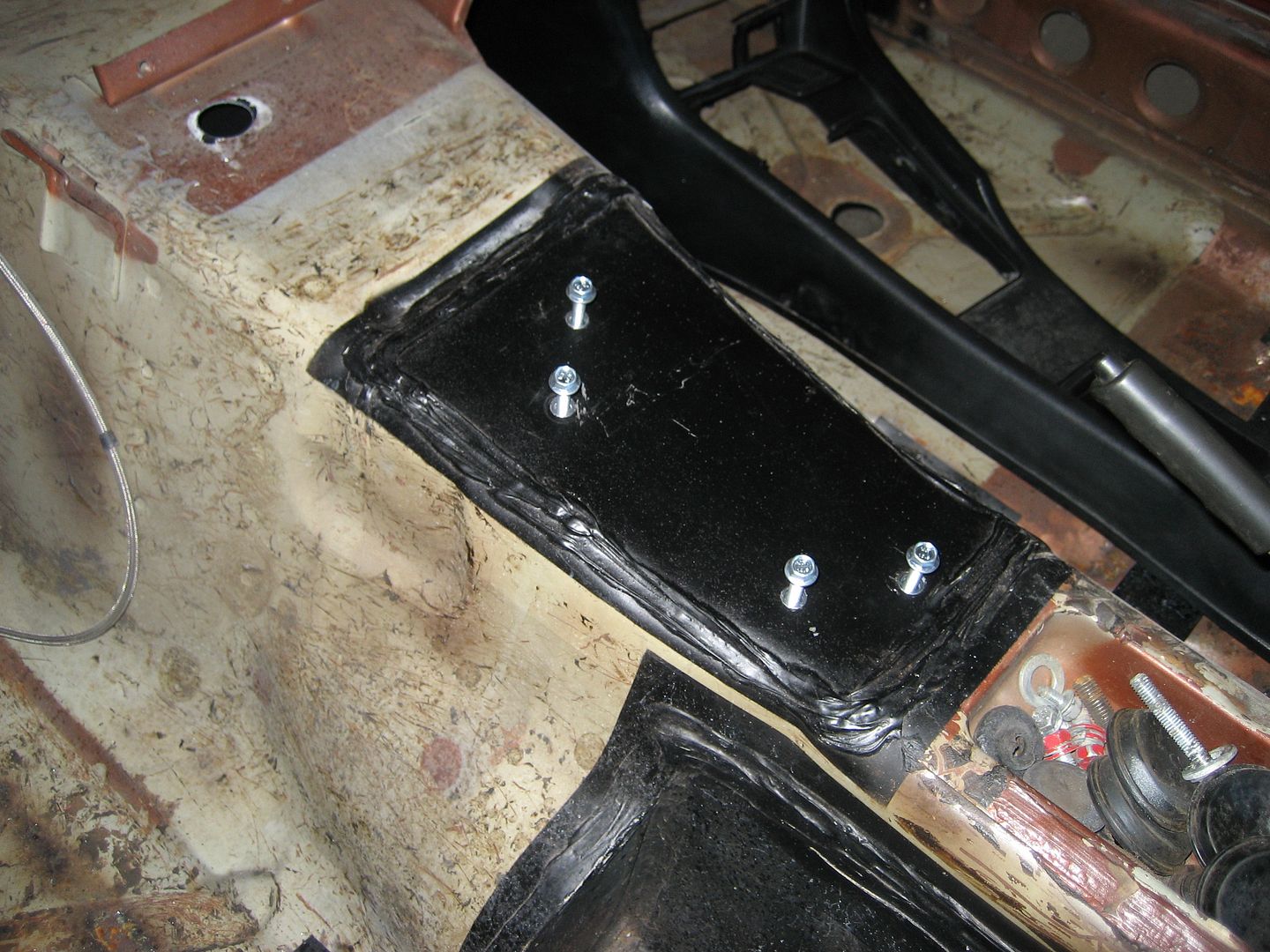

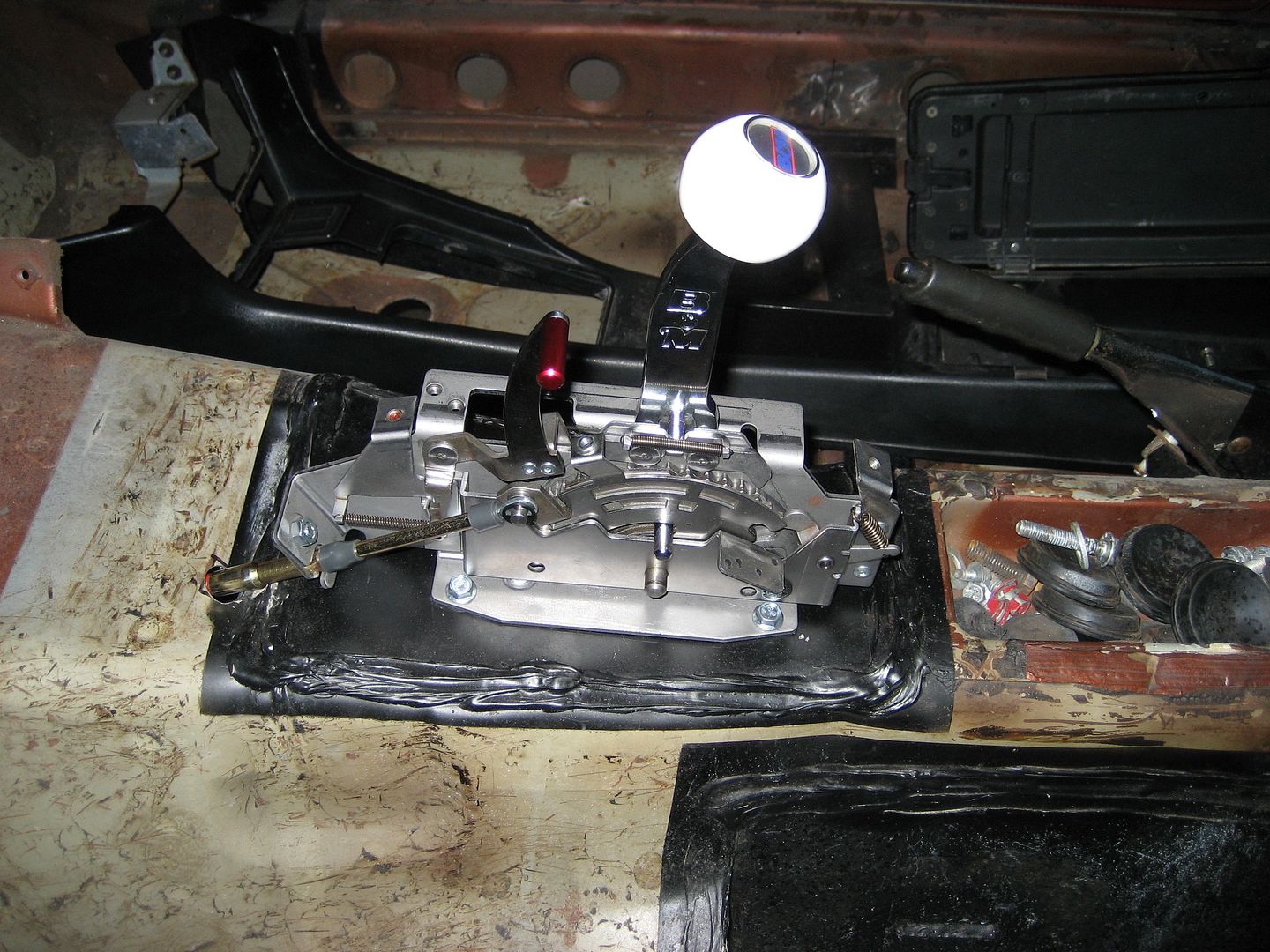

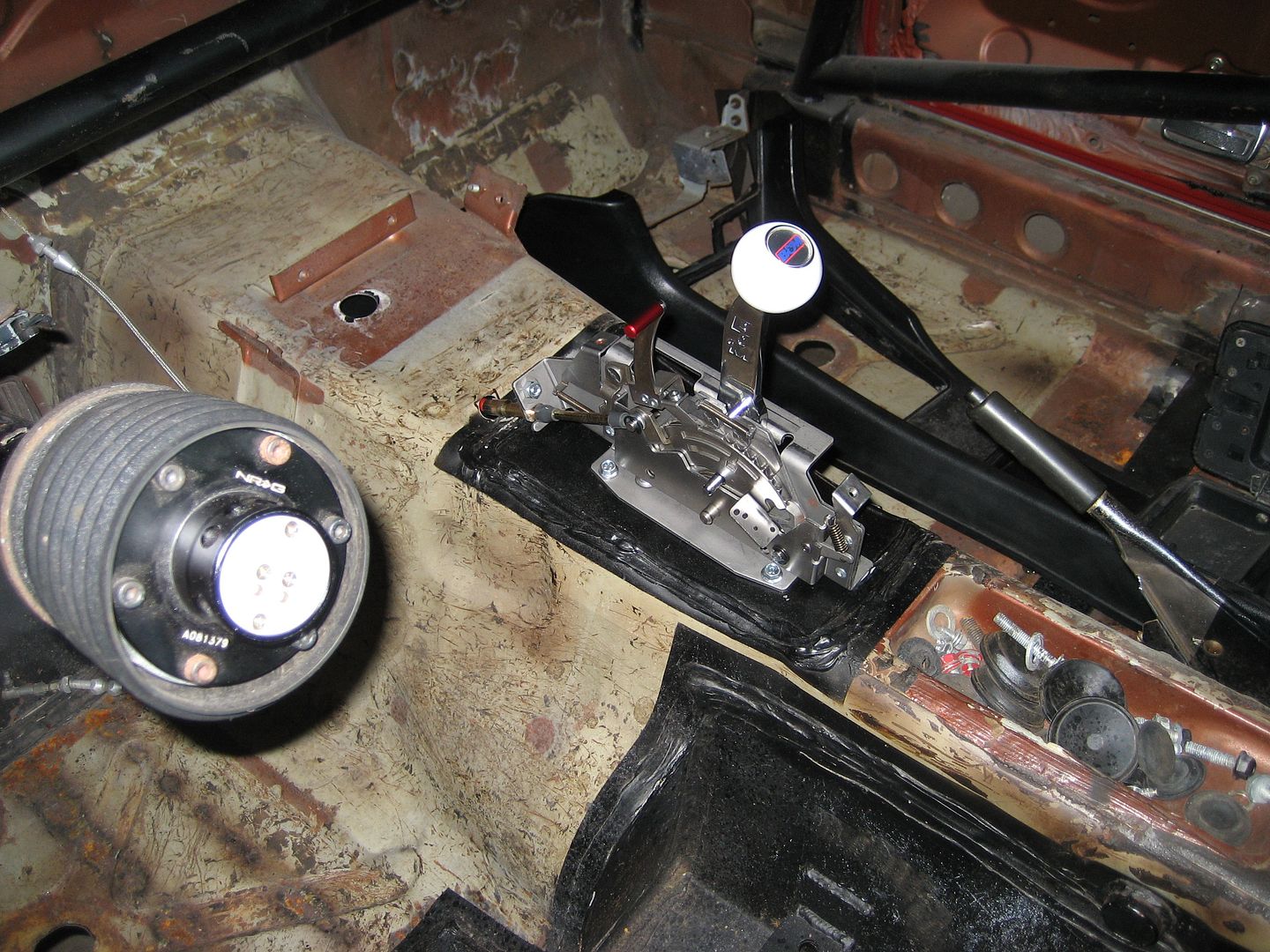

Rivnuts nutserts installed for the shifter.



10-22-2011030.jpg?t=1319342108



10-22-2011033.jpg?t=1319342094



10-22-2011036.jpg?t=1319342077

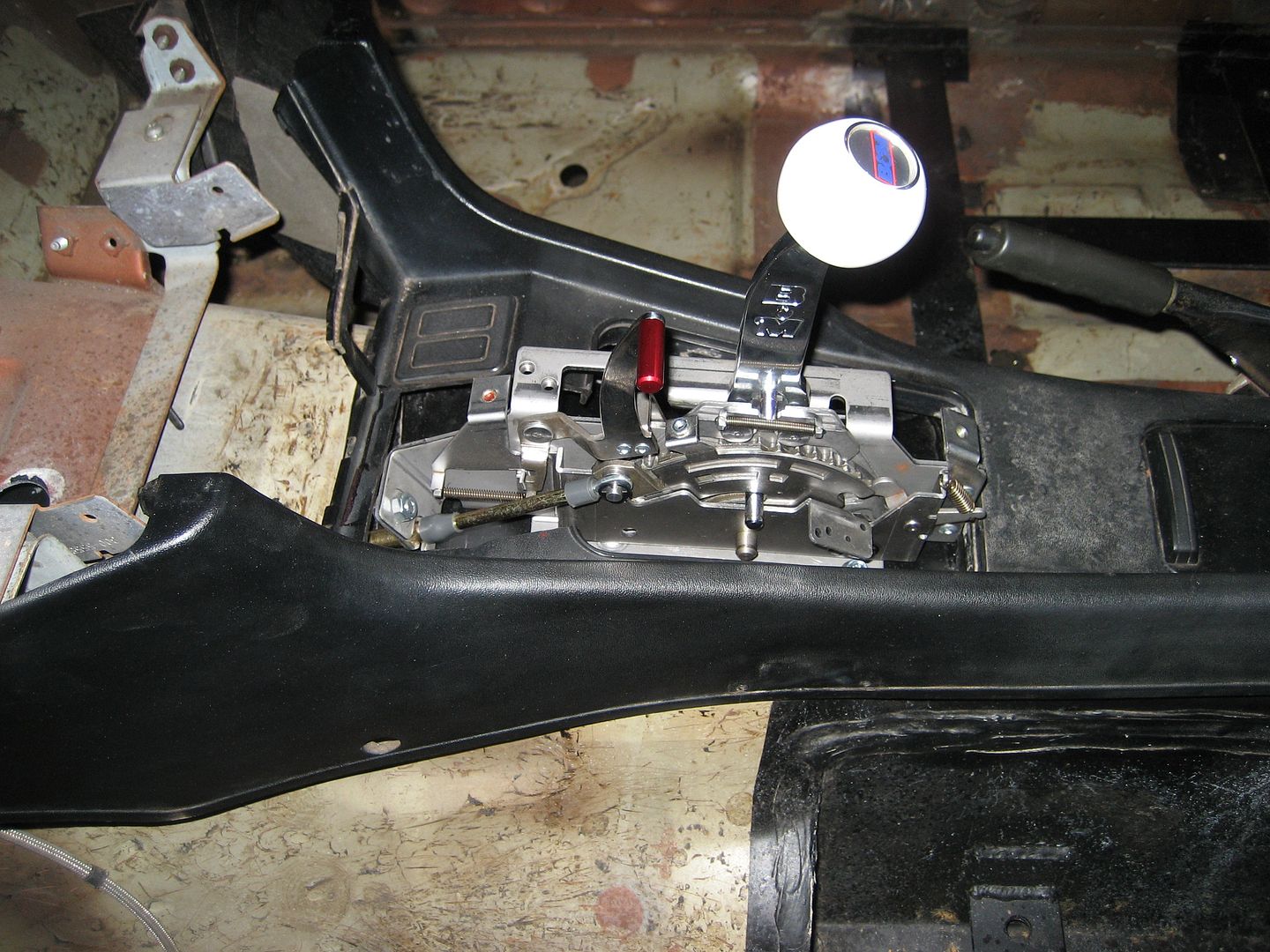

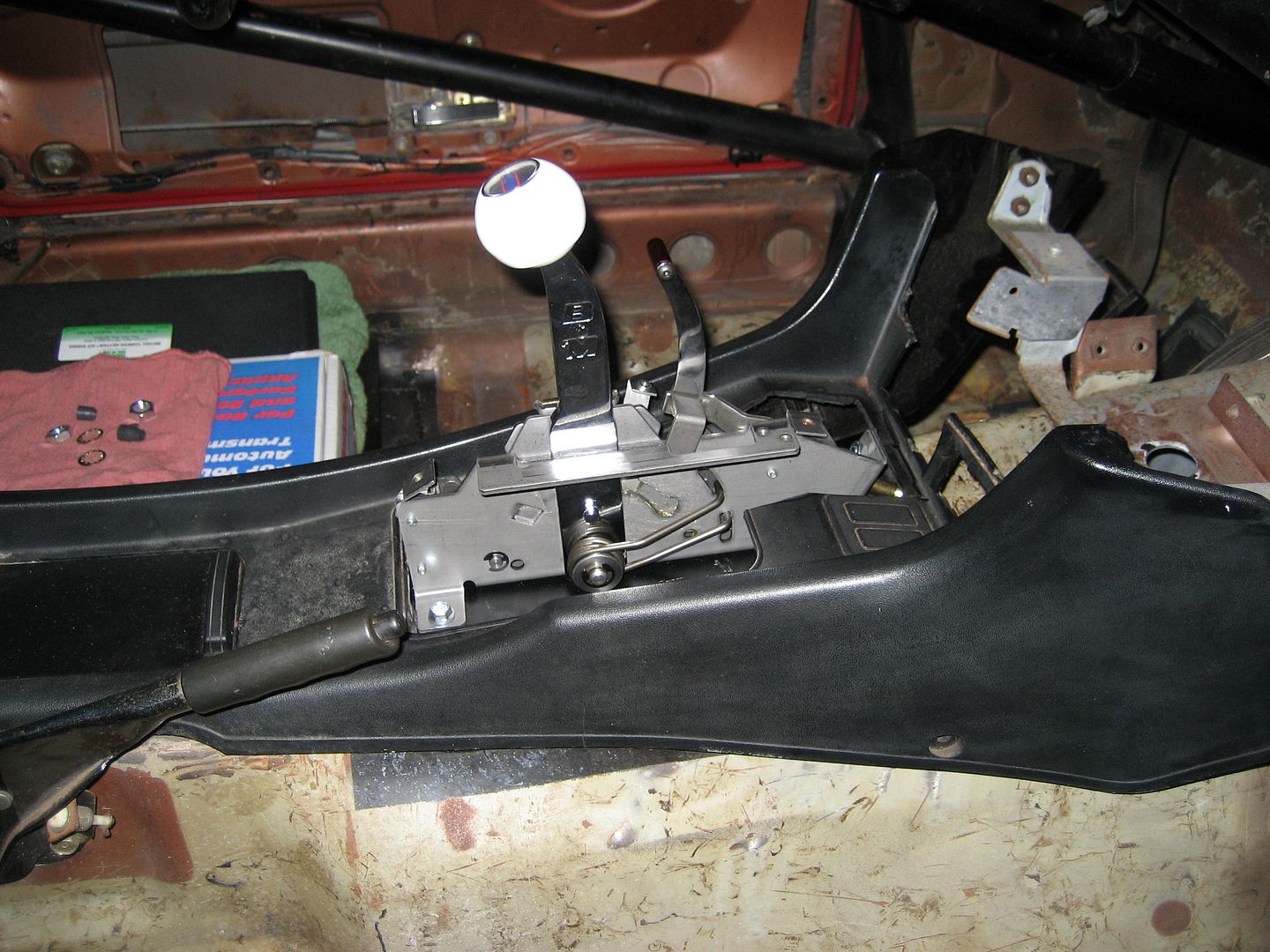

Old center console that I am using for mockup. I will have to get new console later on since this one is complete crap.



10-22-2011037.jpg?t=1319342063



10-22-2011044.jpg?t=1319342036

Edited by Ivan280zt
Link to comment
Share on other sites

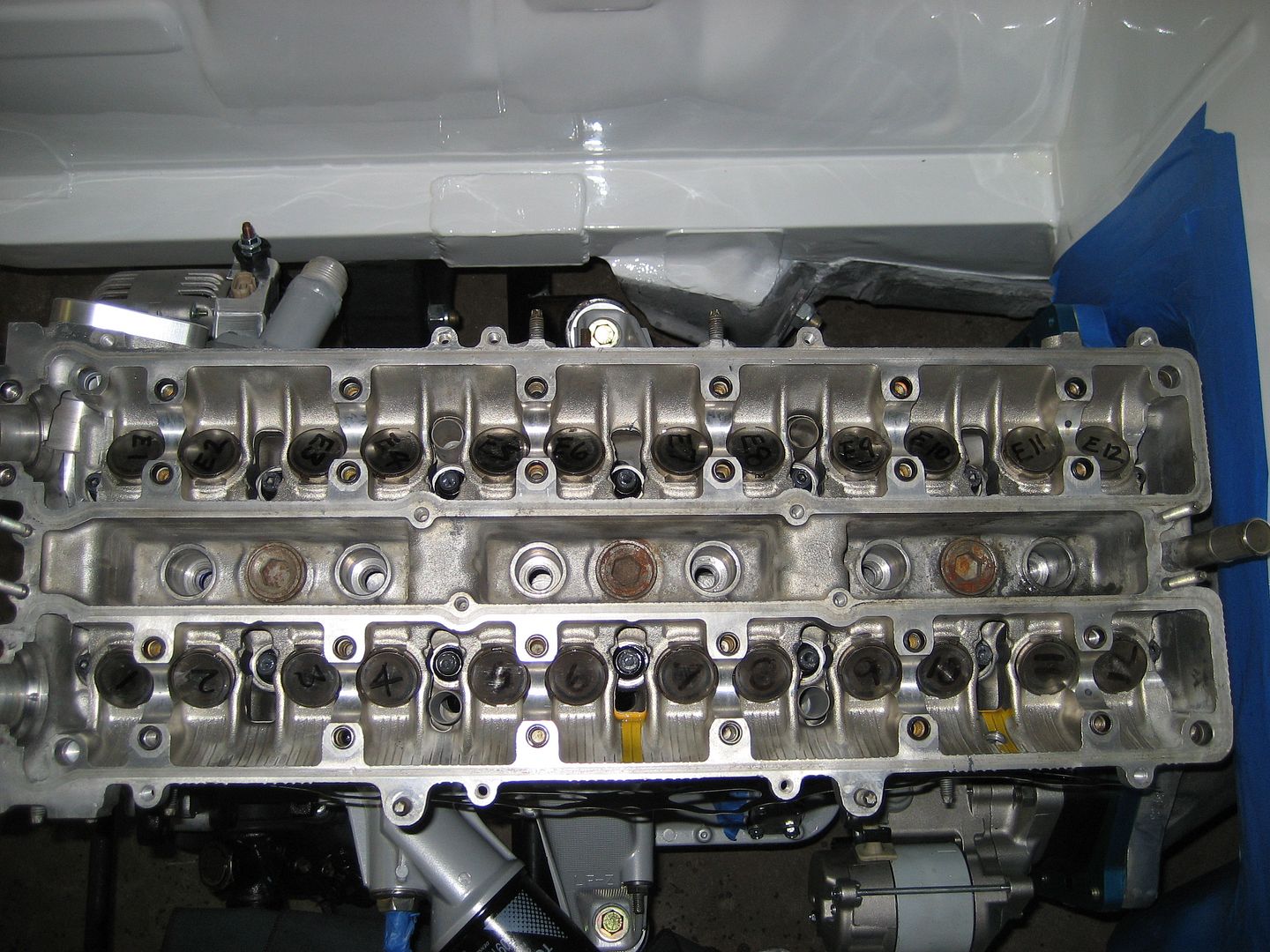

Got my head back from Competiton Head and it looks really promising. Guy that did the work on it is the owner of the shop (in his 60's). He used to grind Toyota cams and build 22r race heads so I know he is good at what he does. His shop also does all of our Lexus/Toyota heads and we have had good luck with his work. This is what all he did: ported intake/exhaust ports, competition valve job, knife edged intake ports, polished combustion chambers, decked head surface, installed GSC beehive springs,installed Ferrea stock size valves, and shimmed my GSC cams to spec.



10-25-2011005.jpg?t=1319596431

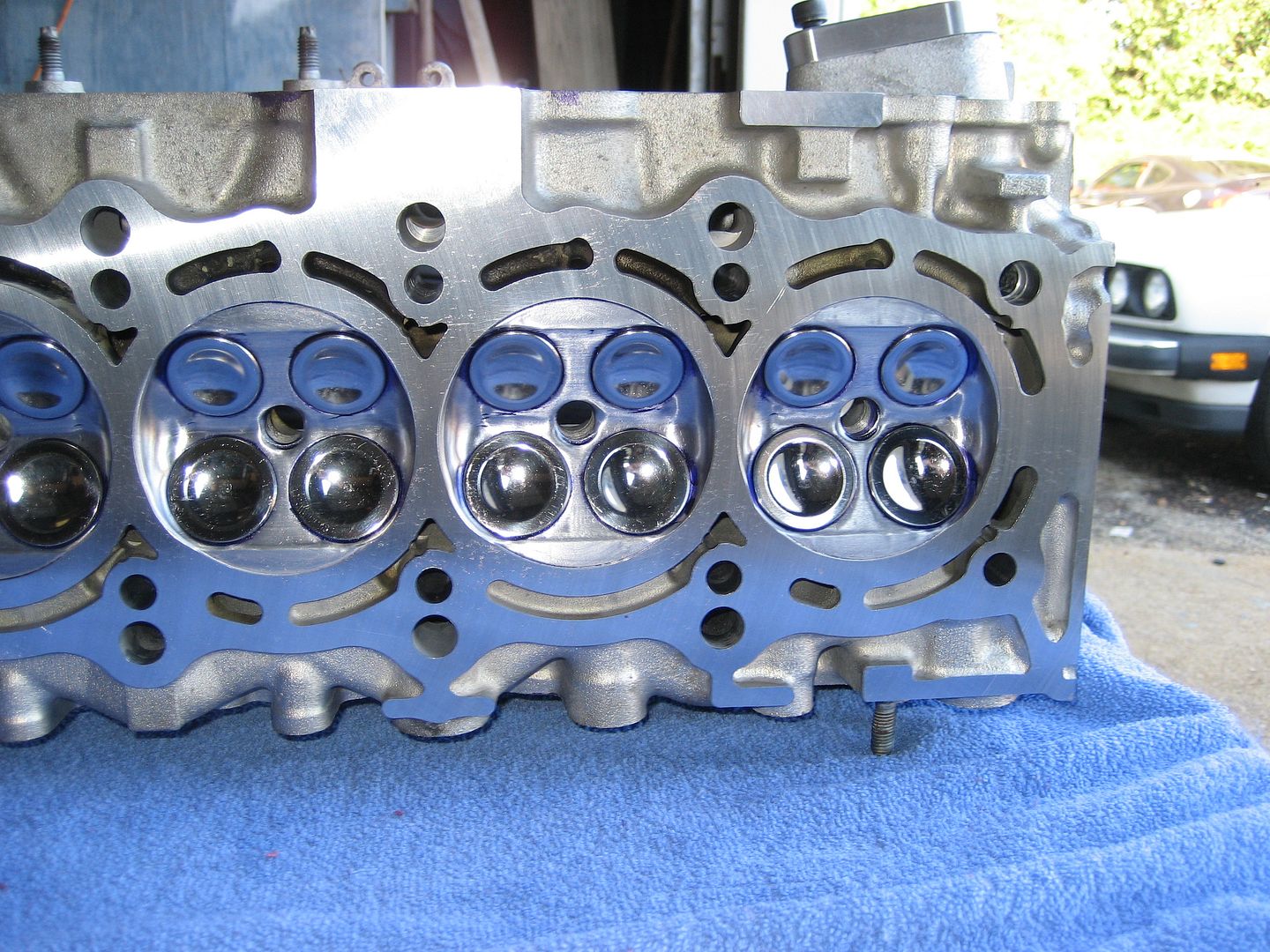

Valves look like they are scratched but its just crap from shop rag that I used to wipe off that blue paint residue that machine shop had left behind.



10-25-2011004.jpg?t=1319596447



10-25-2011006.jpg?t=1319596415

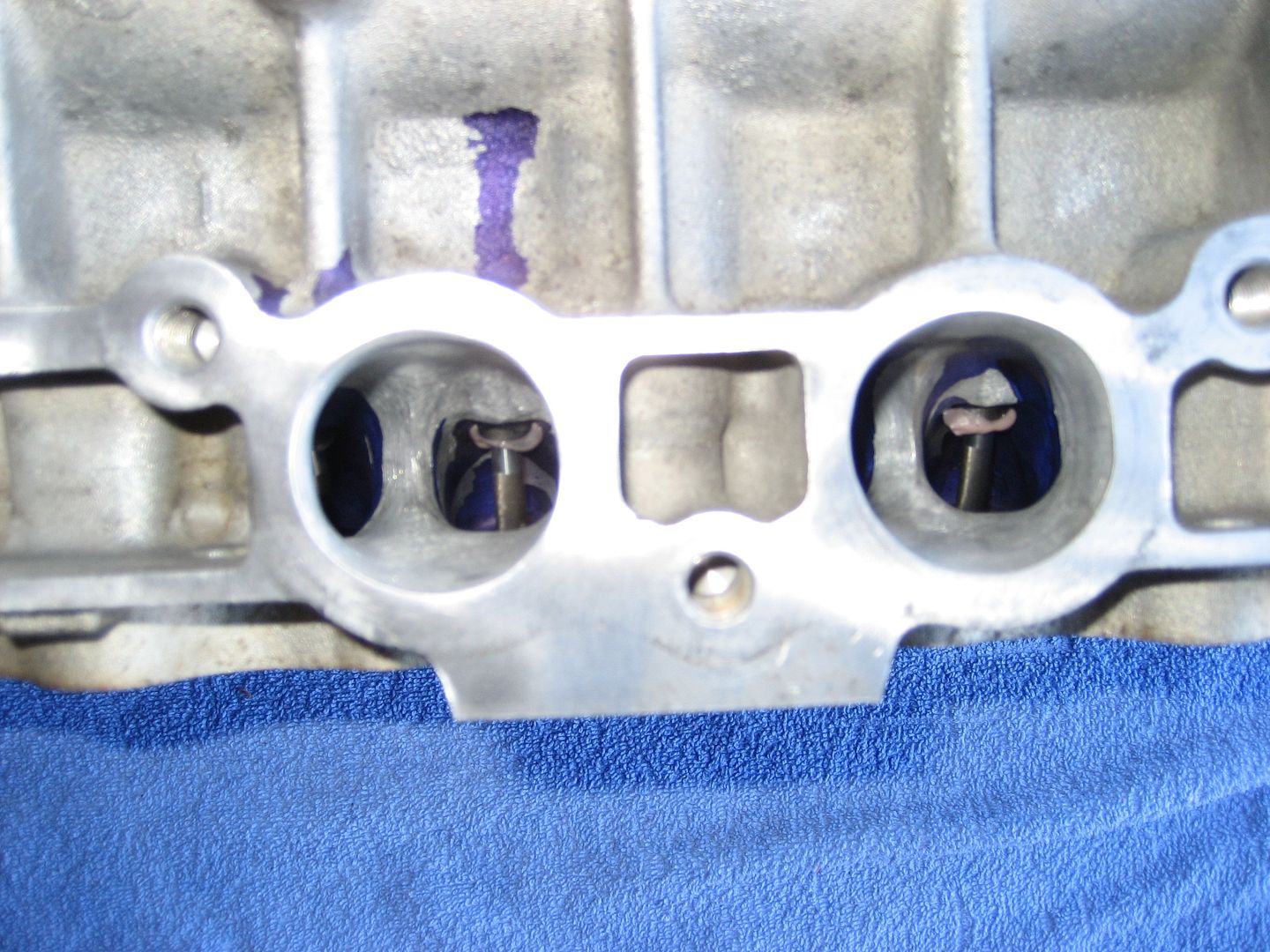

10-25-2011008.jpg?t=1319596399



10-25-2011013.jpg?t=1319596388

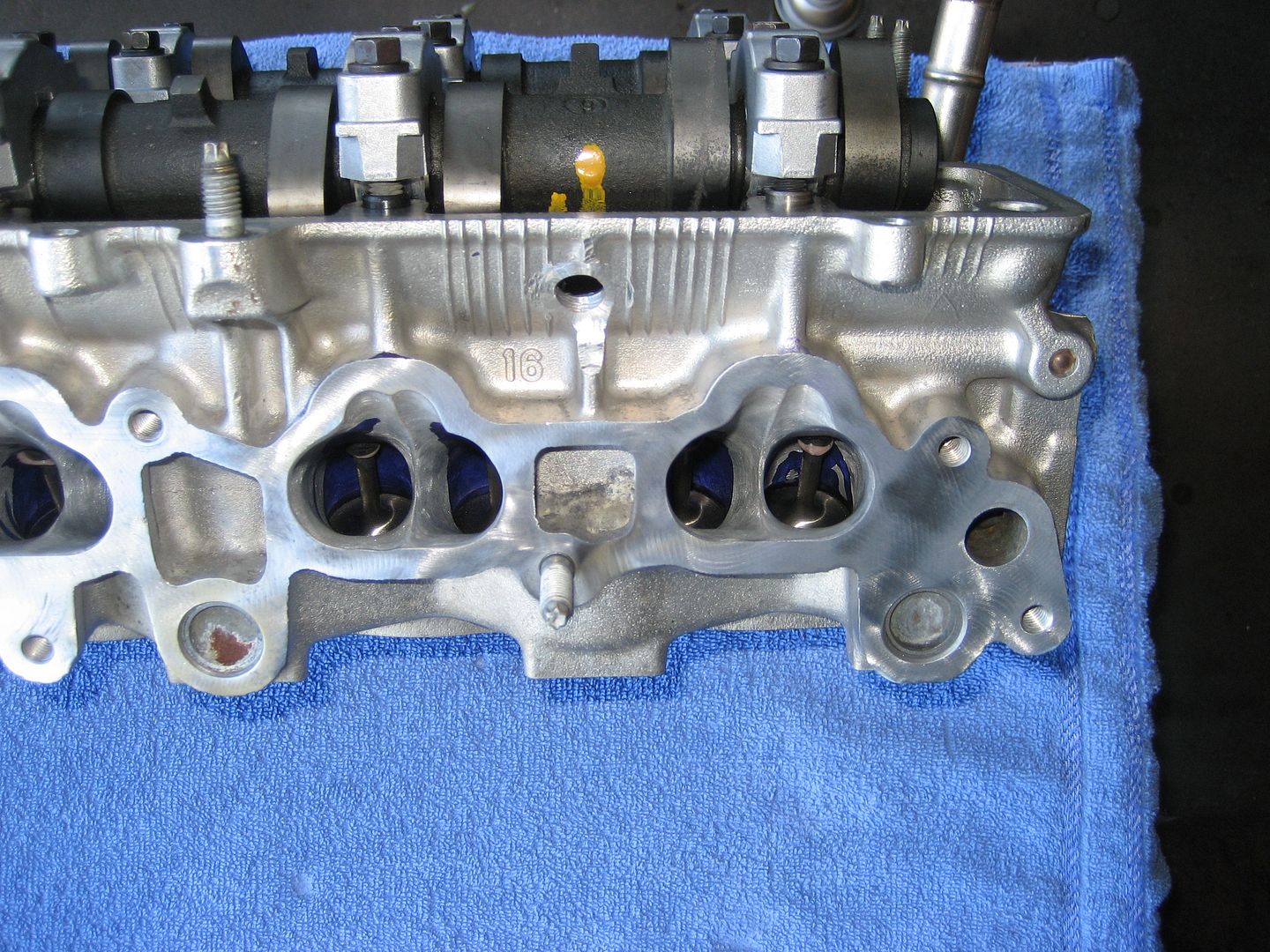

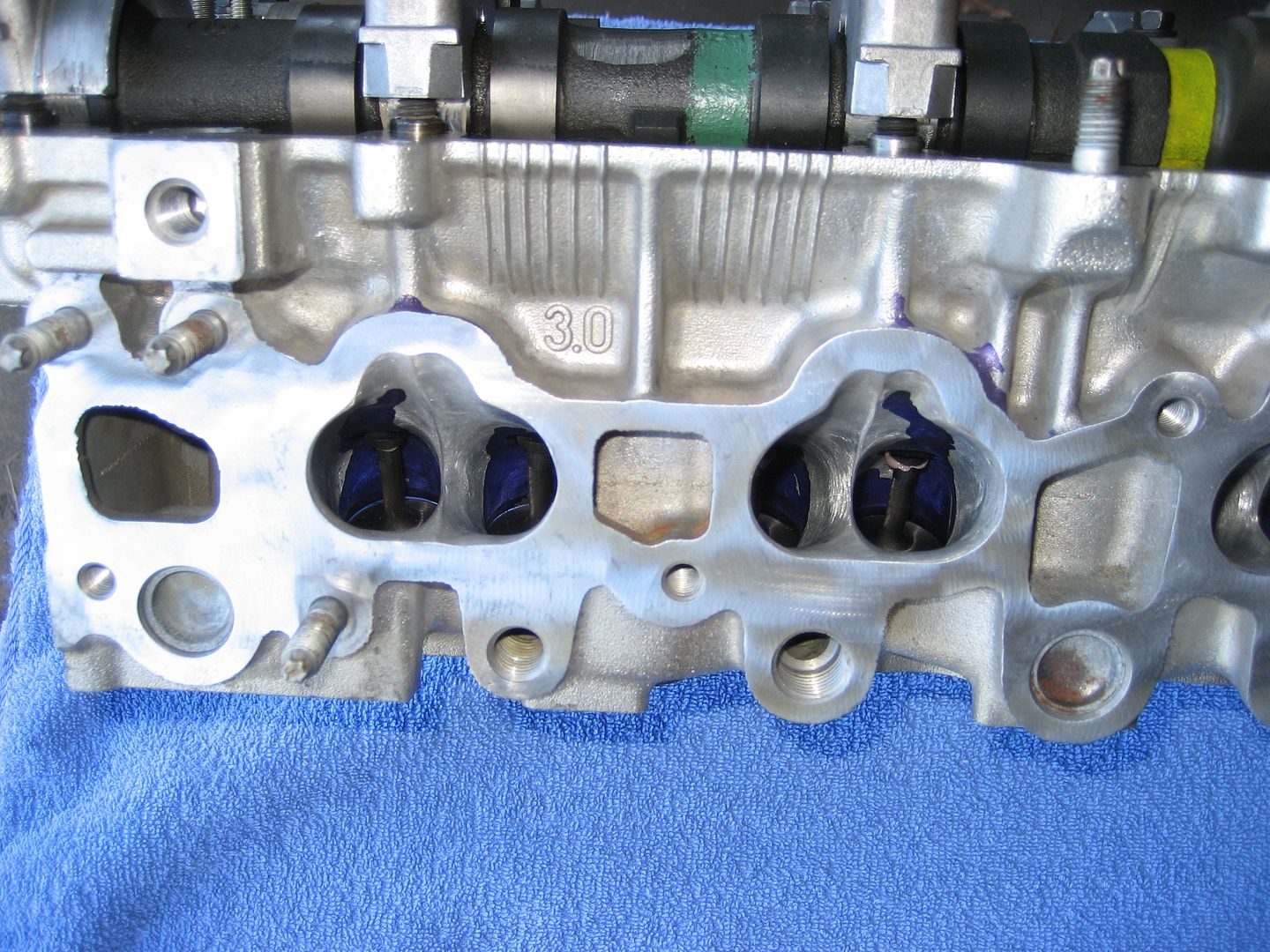

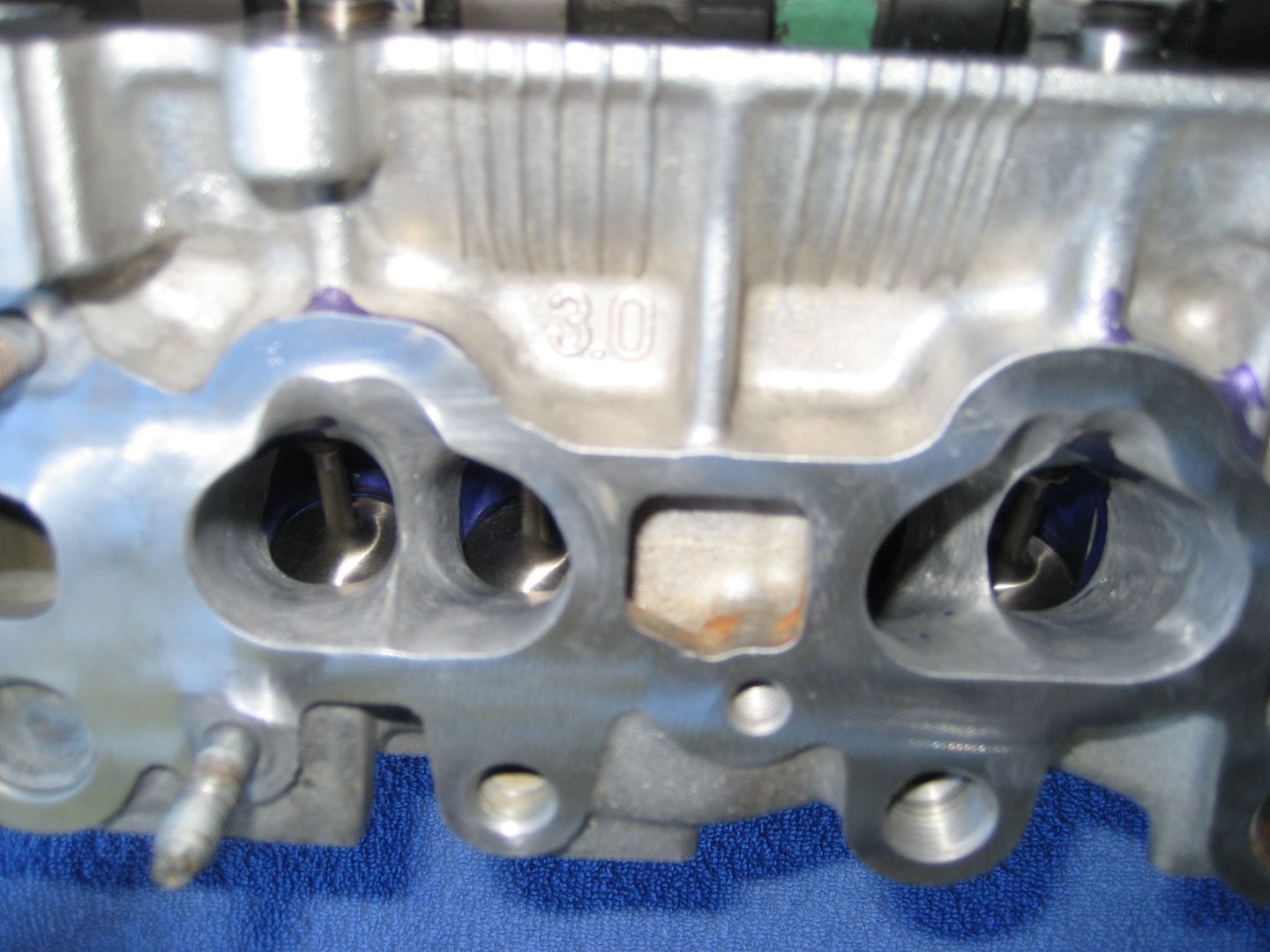

Hole above the two of the intake ports is for my cam hall sensor.



10-25-2011015.jpg?t=1319596374



10-25-2011016.jpg?t=1319596360



No more Egr for me...



10-25-2011018.jpg?t=1319596348



10-25-2011020.jpg?t=1319596335

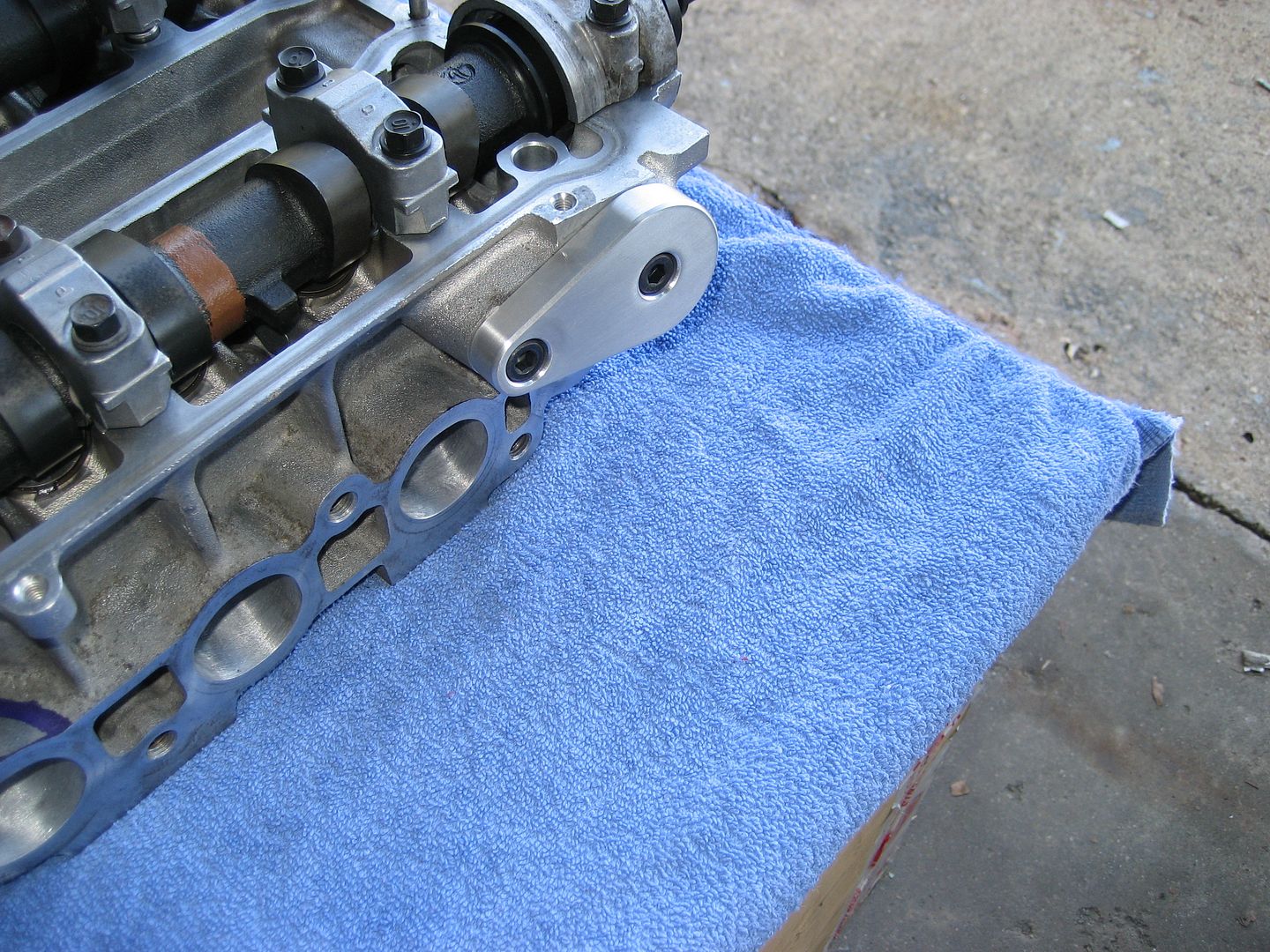

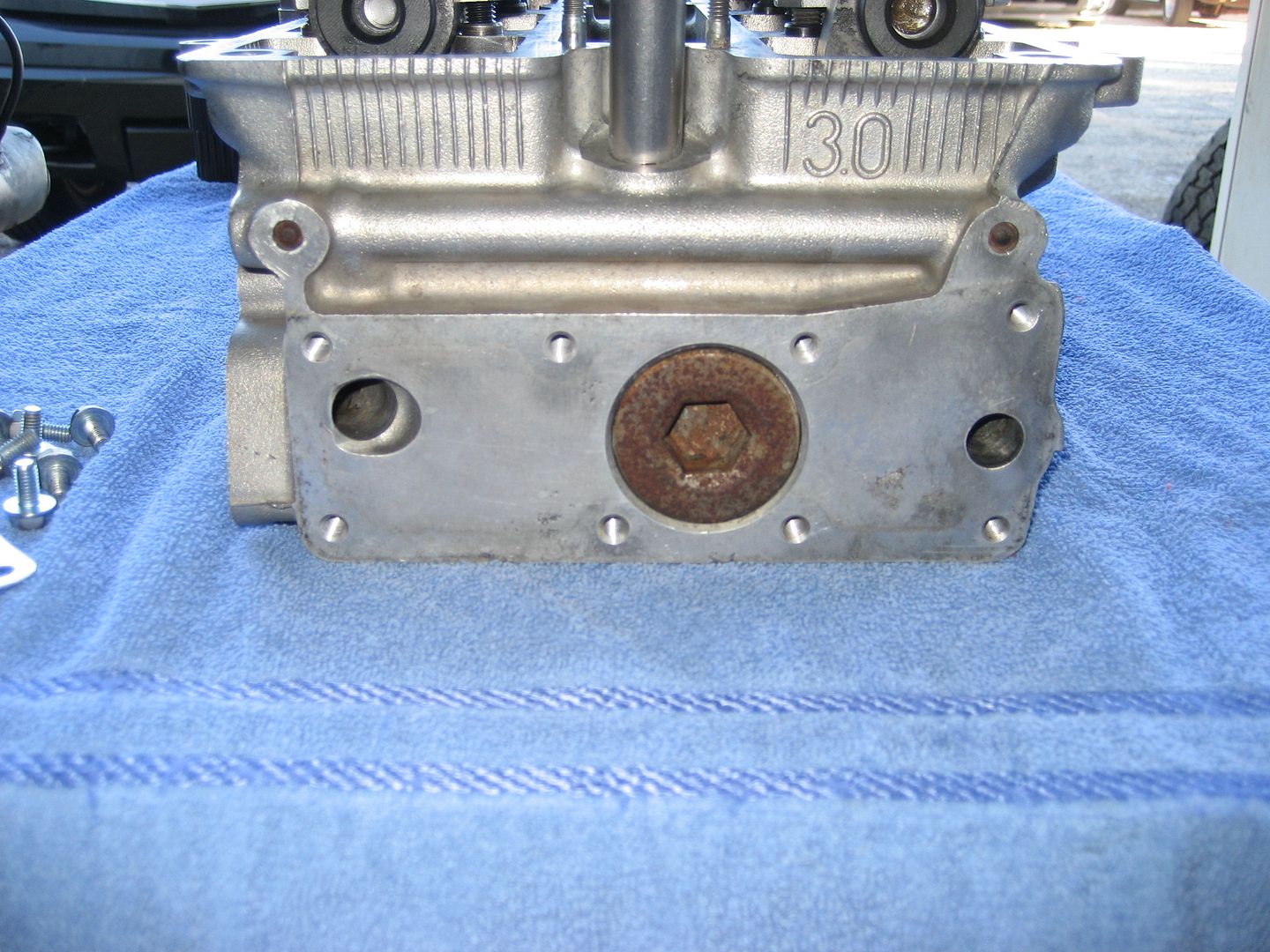

Nice exhaust ports and distributor block off contraption.



10-25-2011023.jpg?t=1319596315



10-25-2011025.jpg?t=1319596299



Paper thin GE headgasket...



10-25-2011029.jpg?t=1319596281



Arp headstuds installed.



10-25-2011036.jpg?t=1319596257



10-25-2011034.jpg?t=1319596270



Now just need to get valve covers powdercoated and cam gears then I can get timing gear buttoned up.
