pat1

No,it's the lack of cup holders. Lol

A little update. It's running great. I installed the hks 272/264 cams and it's a beast. The power is like a light switch. At 4k rpm the power comes on like mad and it revs like crazy. I bought a set of 550 injectors and resistor pack to install very soon. I also had to install a new bosch 044 fuel pump. My walbro started to whine bad. I also built a surge tank and installed it today. I was driving it a couple weeks ago and hit the brakes and it wouldn't stop,the ft brakes faded like crazy. It really scared me. I headed home and was on the internet looking to upgrade my brakes. I just installed the Toyota non vented calipers,brake lines and new rear shoes. All of it sucked ass. The ft pads were trash. I ordered a set of Axxis metal master ft brake pads and I was waiting for them to come in until I got on to Azc web site. AZC wilwoods caught my eye. At 1700.00 a set was alot of money but I said screw it and ordered front and rear Wilwoods. I installed them last week and I must say these things are badass. Holy brakes, It stops on a dime. I'll post some pics later

The z32 trans mount is the same as the 240sx mount.It will work both ways.

Pm me, I can build you a rear sump oil pan for your rb26

rb runs between 37-41 psi with vacuum line off the regulator.

I agree, Mckinney's mounts are very low. A couple washers won't hurt anything. I can't make the pan any shorter than that without hitting the engine girdle and cause crank splash and possible engine damage.

I had some a while ago and I couldn't give them away. I trashed them about 8 months ago

no problem Man. The ecu is ....... 100% series 2 rb25det

100% series 2 rb25

Did it have a igniter on top of the valley cover? If it did have a igniter it's a Series 1 If it did not its a series 2.

Yes it will,I have done it. I posted pics on hybridz. Check out my post history.

I build the ALL the RB oil pans for Enjuku racing. They arn't answering your calls or return your emails. I assure you that I would be happy to build you one. PM me and we will work out the details.

I don't know about you but that looks like every engine I pull the pan off. The engine looks clean to me.

Great work,your really moving now. It will be running in no time. I must say that is one great looking oil pan you have there.

I'm running the Taurus fan on my 1jz with a thermostat set @ 185 degrees and it's perfect. You might have other problems. My motor was full of so much crap I had to flush it several time to get it to cool. I'm also using a trd t-stat.

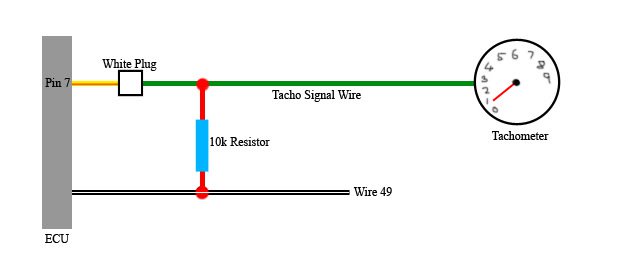

This is what I used. It's for a rb20 but the ignition signal is the same as a rb26.

You are correct. I was pondering the idea of a rb26 swap and decided on the 1jz because the parts being available and the cost of upgrading the 1jz. Plus not alot of people have the 1jz swap in my area. You can get 500 rwhp out of a 1jz with a bone stock bottom end, a set of cams, injectors and a nice size turbo. And you can use the stock ecu with a piggy back. 1jz engine swap. 2300.00 Injectors 550 out of a usdm 2jzgte 200.00 Nice turbo. I'm using a pt-61 that I got new for 500.00 Hks 274,264 cams 500.00 used Apexi neo 180.00 3680.00 plus the little stuff and get a stupid fast Z.

I would have to add it all up but I know I don't have anywhere near 5k in my 1jzgte. Check out my build thread. Search for the parts, I found my parts cheap.

looks right. Don't forget the small stuff. You could save some money and build your own mounts. Mine cost me less than 40.00 to make. I've seen the rear sump pans go for 250.00 and the flywheels go for 50.00 all day long unless you want to use a over priced alunimum flywheel. you can get the clutch kits for alot less than 575.00

yes I have a 1jz swap. I have a build thread on this page. You will need to change the thread. I welded a aluminum bung to my water neck.

nope they drop right in.

I'm using all autometer. I think the tach will work, it will be a couple hundred rpm off. I don't know if the temp gauge will work. The oil and volt meter will work.

5 inch tach/speedo and 2 5/8 temp, oil and whatever

Google rb20det wiring diagram And you get this http://www.google.com/search?q=rb20det+wiring+diagram&ie=UTF-8&oe=UTF-8&hl=en&client=safari

lt's the same oring found on the z32's (1990-1996 300zx)
