BurnoutZ Posted November 6, 2007 Share Posted November 6, 2007 Checking back. When is it scheduled for production? Quote Link to comment Share on other sites More sharing options...
grndfx Posted November 7, 2007 Share Posted November 7, 2007 OK - good news (at last) We were out at the production shop Monday and the new tooling appears to be working as hoped. Parts are now being made ..... hurray! We have a few sets ready to ship now and more coming in at the end of each week. Due to the nature of our carbonfiber production, only one set a day can be comfortably produced - to try and do more would compromise the quality. The final production part differs slightly from the prototype that was fitted to Aziza's Z - we now use a black edging trim around the light opening to give a nice 'finished' look. Aziza passed on a list to me that shows there are a lot of you interested in getting a set, but I am not going to use it as some kind of purchasing order list. We appreciate you 'putting your name down' but now that we are in a position to supply parts, we will send them out in the order we receive payments. Secondly I have to clarify what it is we have actually made, as there seems to be a little confusion here. The 240Z's (and I think the 260Z's) had a stamped metal panel that surrounded the rear lights, and was simply attached my a couple of 'poppers' at the top and then pushed into some clips at the bottom. Our CF panel is a direct replacement for this metal panel and will attach in the very same manner. It comes only as a left & right sided pair - no one piece part. For those asking about a 280Z application, unfortunately Datsun totally changed the rear lighting setup for this model and as such our CF panel is not designed fit. With regards Aziza's 280Z - in this situation, firstly we had to modify his car to allow for the fitment of the earlier 240Z lights so our CF panel could be used - but even so, the 280Z has no clips holding the bottom edge of the panel and it is currently just basically hanging there, held in place by the license plate. If some of you out there with 280Z's feel the conversion to 240Z lights is within your grasp, then our CF panel should not pose to much of an issue to install. But just to say once more, the CF panel has been designed specifically for the 240Z and its mounting. We don't currently have a website or any online store, so those that want to purchase a CF panel set here's what to do. Price has now be finalized at $275.00 plus shipping Send me an email to scr2004@pacbell.net with your mailing Zip Code (or Country if out of the US). I will then send you a Paypal request for funds that will include the shipping costs. Initially a Paypal payment is the easiest and quickest for us to process, but we will accept other forms of payment.. Cash or money orders can be mailed to the address indicated on the Paypal request - personal checks can also be sent but time will have to be allowed for these to clear. Parts will be shipped according to the order that payments are received (and cleared) . Please don't use this posting to order parts, PM me or send an email with your shipping info and I'll respond with the Paypal request. I think that's it for now. Thanks for the warm welcome to HybridZ and all the kind comments. Steve Quote Link to comment Share on other sites More sharing options...
torynich Posted November 7, 2007 Share Posted November 7, 2007 As what was mentioned at the first of the thread, will it be possible to get it in the un-cut version so we can choose which tail lights we want to use? Quote Link to comment Share on other sites More sharing options...
Guest Jconnellr Posted November 7, 2007 Share Posted November 7, 2007 Ill Buy One How much? Quote Link to comment Share on other sites More sharing options...
aziza z Posted November 7, 2007 Author Share Posted November 7, 2007 Ill Buy One How much? $275.00 plus shipping Quote Link to comment Share on other sites More sharing options...
grndfx Posted November 8, 2007 Share Posted November 8, 2007 'As what was mentioned at the first of the thread, will it be possible to get it in the un-cut version so we can choose which tail lights we want to use?' The tooling for the CF panels creates a solid part that then has to be trimmed and cut out for the taillights. Originally the carbon fiber cloth was laid over the area for the taillights in a nice presentable manner, but one of the changes we've made to reduce the production costs is to use this area as a kind of dumping ground - here the carbon is sliced apart and allowed to distort so that the surrounding area can be laid down evenly and cleanly. (the time-consuming aspect of carbon fiber is getting the cloth to lay down cleanly without distortion, and by using a 'trim out' area as a place to allow the cloth to distort means less time in messing with it - and therefore less cost.) It is possible that we could produce such a panel, but it would have to be a special order and costing would have to reflect the extra work time involved in laying it up. If its something that you really want drop me an email or PM and we can figure something out. Thanks Steve. Quote Link to comment Share on other sites More sharing options...
jknc90 Posted November 8, 2007 Share Posted November 8, 2007 thanks a lot for doing this guys. I will definently be buying one of these soon. Thanks again Quote Link to comment Share on other sites More sharing options...
jangholt Posted November 8, 2007 Share Posted November 8, 2007 Hi! I live in Sweden and I have 2 question! 1. How big is the package? 2. Can you lable the package as "gift"? Regards Christian Quote Link to comment Share on other sites More sharing options...
alexdeprat Posted November 8, 2007 Share Posted November 8, 2007 Greetings, Gents I Placed my order yesterday, all I can say is that Steve is a great guy to do business with. Thank you Aziza. Alex D. Quote Link to comment Share on other sites More sharing options...
BurnoutZ Posted November 10, 2007 Share Posted November 10, 2007 So, these installed will cover the taillight panel completely with carbon fiber? Just curious because when aziza posted pics on page 2 it showed the panal as 1 complete panel, recently it has been posted as two seperate panels that join together? Quote Link to comment Share on other sites More sharing options...
grndfx Posted November 10, 2007 Share Posted November 10, 2007 The panels are carbon fiber replacements for the steel panels that the factory use to trim around the taillights on the 240Z. You remove the steel pieces and put the carbon ones in their place. The picture that Aziza posted showing a one piece panel was just a picture of the lay-up as it comes out the mold, before it is cut and trimmed - this seems to be confusing some people as to what is being offered. So to clarify once more - it is two separate panels that replace the steel panels - there do not join together or do anything that the steel panels did not do. If you look closely at a 240Z, the taillight surrounds are two separate panels that go behind the license plate and stop. The gap between them is hardly seen or noticed with the license plate in place Hope this helps Steve. Quote Link to comment Share on other sites More sharing options...

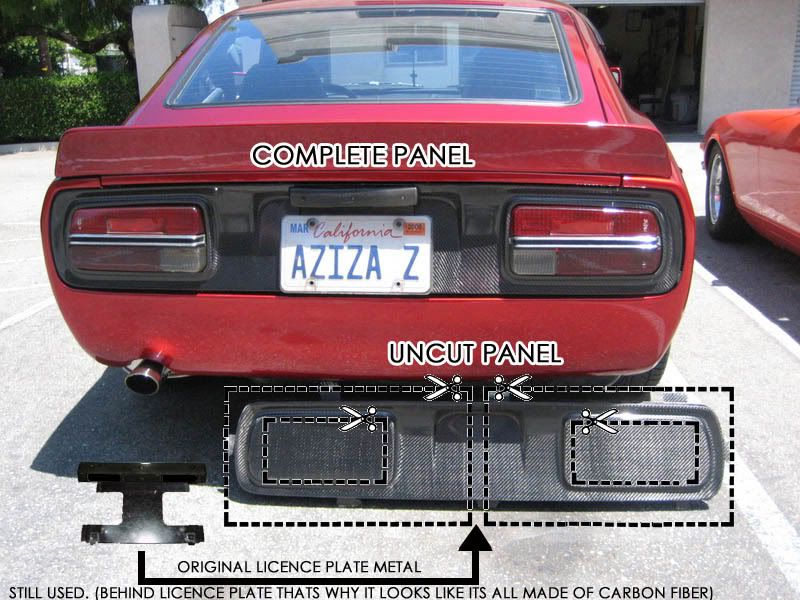

aziza z Posted November 10, 2007 Author Share Posted November 10, 2007 maybe this will help with that pic people are getting confused with. forgive my ghetto photoshop. original picture Quote Link to comment Share on other sites More sharing options...
alexdeprat Posted November 10, 2007 Share Posted November 10, 2007 maybe this will help with that pic people are getting confused with. forgive my ghetto photoshop. original picture It does not get any more clear than that Quote Link to comment Share on other sites More sharing options...
Careless Posted November 10, 2007 Share Posted November 10, 2007 The panels are carbon fiber replacements for the steel panels that the factory use to trim around the taillights on the 240Z. Hi Steve, Any chances of a 280z set comin' up? Quote Link to comment Share on other sites More sharing options...
grndfx Posted November 10, 2007 Share Posted November 10, 2007 Our initial examination the 280Z showed us that Datsun decided to switch to a molded plastic surround, which then attached to the bodywork in a completely different manner than the 240Z - the thin steel panels of the 240Z and our thin carbon fiber replacements meant mounting was a snap and nothing complicated to replicate. The 280Z on the other hand appears a lot more complex to reproduce, so initially we will hold off on producing these. I'd like to ask the members of HybridZ about the rear lights of the 260Z, as we've had several inquiries about using the CF panels on this model. Did the 260Z use the same lights and steel surrounds as the 240Z, or is there a difference? Although the rear of the S30 cars have basically the same depression in the bodywork for the rear lighting, I know the 280Z'z had a panel across the back with different cut-outs for the light housings - what about the 260Z's or the 2+2's ? Any help with regards the 260Z rear lighting would be very much appreciated - as I'd like to say for sure if our Carbon Fiber panels would be compatible. Thanks again for all you support Steve. Quote Link to comment Share on other sites More sharing options...
niceguy678us Posted November 11, 2007 Share Posted November 11, 2007 The 260z and 280z shared the same tailights. The 2+2 models of both the 260z and 280z shared the same tailights as the regular two seater, but the "panel" is longer than the coupe versions. Visually you can identify the 2+2 from the coupe panels by the two vertical "lines/ridges" towards the inside (closest to the license plate) of the panels. Someone might post a pic for you of the two panels. Quote Link to comment Share on other sites More sharing options...
mcmike280z Posted November 11, 2007 Share Posted November 11, 2007 Looks sweet... would have saved me allot of glass work on mine. Quote Link to comment Share on other sites More sharing options...
RB26powered74zcar Posted November 11, 2007 Share Posted November 11, 2007 actually the late 260 & 280 shared the same tail lights [the late 260 can be distinguished by the fat or thick 280 style bumpers] and the early 260 & 240 shared lights [the early 260 is id'd by it's skinny or thin 240 style bumpers-although the 260 skinnies were set away from the body a tad more than the 240]. they changed from early to late about mid year in 1974. niceguy678us is correct. How do I know? I have a early 74 260z, and it has the same exact tail lights as the 280z. 70 - 73 240 tail lights are the same. 74 260 - 78 280 are the same. Thats U.S. spec of course.... Quote Link to comment Share on other sites More sharing options...
1 tuff z Posted November 11, 2007 Share Posted November 11, 2007 j., i stand corrected, i was thinking of the bumpers not the lights-i think i posted it when i first woke up this morning. thanks for correcting it. Quote Link to comment Share on other sites More sharing options...
janaka Posted November 11, 2007 Share Posted November 11, 2007 this makes me wish i had a 240z... awesome work and IMO a fair price too. If I get a 240 I'll be all over these Quote Link to comment Share on other sites More sharing options...
