Exposed

255/50/r16, R888

thread a bit old but I'll toss my instagram build thread on here. "alex240z"

I'll snap some pictures of the mounts later today, I'll warn you now they aren't pretty but they're working fine at the moment.

I personally haven't driven a car with a R154 in it but i'm interested to see what everyone has to say. For the shifter relocation on the CD009 you can probably fab something up if your interested in saving some cash if you decide to with the CD009. Ill try to dig up an old thread I found where they built there own shifter relocation for the CD009.

completely agree that technique is very important, I'm no welder but from what I've read the wrong electrode choice can affect your arc.

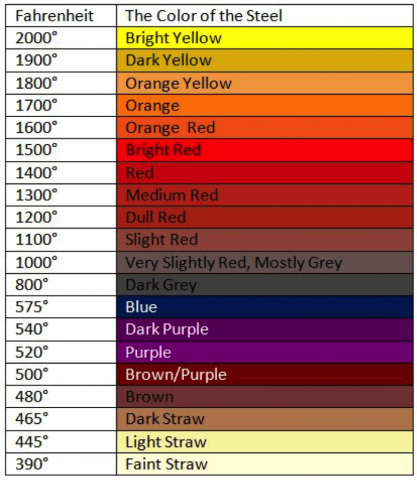

whenever I weld 16gauge 304SS I get this grey discoloration. I'm thinking I'm moving to slow and seems like my heat is to high based off this chart.

heres a good read if you haven't seen this site before, also has very helpful youtube videos. http://www.weldingtipsandtricks.com/tig-welding.html

@Geno750 That looks really good, do you find its easier to get good colouring and a good bead on thicker peices? What are your settings and what type of electrode are you using?

its shiny silver. I'll snap a couple pictures of it and toss them up.

what type of material are you going to be working on the most? Have you already thought about which electrodes youll be using?

Will hopefully be getting the car tuned in the next couple weeks just need to finish connecting some sensors, does anyone see anything that should be added to the list below? -Full of fuel -check for leaks -check tire condition -battery is charged -fresh oil and photo from one of last years meets.

I found him through instagram as well, as for tires I grabbed a pair of R888.....lol. I had been bouncing back and forth between them and a BFgoodrich but ended up going with the Toyo's because a local shop had rebates on them. From speaking to some of the local guys here they don't seem horrible, fingers crossed they perform well.

great suggestion, at the time I just did it quick and dirty so I could drive.

yes they are the stock mounting points as far as im aware, unless the PO switched something up.

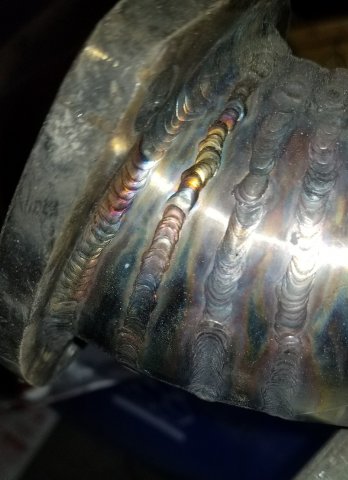

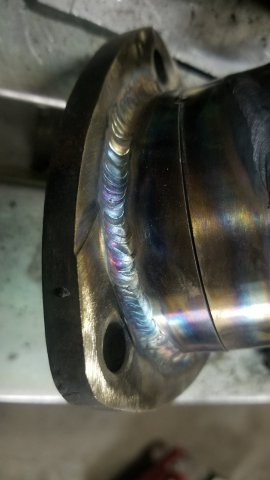

Long story short I have a tig that I've been practicing on for a little bit but cant seem to produce proper coloured welds, curious if anyone have any input. I'm welding up a SS304 3" round tubing (16ga), using 2% lanthanted electrode with 65 Amps, using a #12 cup with my argon flow set at about 20+/-. I dont have the tools to purge the inside of the tubing so I'm coating it in Solar Flux "b". My issue is whenever I weld the stainless it 95% of the time turns a grey color, after I'm done welding I leave the tig torch hovering over the welded area so it stays cover in argon. Is this just to much heat? I've tried lowering the amps but I seem to get the same results. I've attached a picture of one of my welds where I joined 16ga SS tubing welded to SS exhaust flange.

not the best pictures but i have about 3in of room of either side. the front of the transmission is about 4inch past the firewall. with the serial nine shifter it lines up almost perfectly. Im running an R200 with 3.54 diff, not to sure which one though was put in by the PO

I know where your coming from, I've been trying to prepare myself to cut the fenders up. I'm probably going about it all wrong though, I haven't committed and buying wheels like this.... That's also why I wanted to try making some metal flares and keeping it looking stockish

@softopz two of the wheels are 16x10 with 5" outer barrels the other two are 16x10.5 with 5.5" outer barrels. It leaves me with about 1.5"~2" of space from the coilovers. I can take exact measurements if you'd like.

I believe the person I dealt with was Tony, has a shop called Love20Bee. I checked the marugen flares out. Noticed they have a couple different styles the only thing is I cant seem to find any sizing on these. Will need to do some searching and post what I find out.

For the past little bit I was bouncing back and forth between the idea of cutting up the body and adding flares or leaving them as is. I had bought myself a set of diamond racing wheels but they ended up rubbing on the caliper after switching to wilwood calipers. So instead of running a little spacer I figured I'd just waste money on a proper set of shoes. Placed an order and the guys did a great job on the barrels and the refinish, the wheels came out amazing! now I just need to find or make a decent set of flares to go with it. And just when I thought winter was over, BAM a blizzard hits....

@jeeper42 were they just made poorly? Dont fit well? I've been trying to find a set of quality flares, thinking of trying my luck at making a set...

Yup I've definitely learned a lot with all the input from the community. Hopefully with all the mistakes I make and post no one will make the same ones.

one option depending on the application is to use white lithum grease for any two different metals touching.

fingers crossed I don't get a bad solenoid or I havent hooked it up incorrectly. I have my wide band, and oil pressure gauges hooked up just need to tidy up the set up and mount them properly. I was thinking of redoing my electrical panel and building a cover just to tidy everything up and make it look better. Anyone ever use or see someone use MDF for this? Bouncing back and forth between aluminum and mdf at the moment.

Started it up today! cant wait for the snow to disappear.
