Are the halfshafts still disconnected? If the car is up on stands, put the stub axles back in and put the transmission in gear. Crawl underneath, grab both stub axle flanges at the same time and see if you can turn them the same direction. It's sounding like you will be able to turn them and you have a problem with the splines or your spider gears. You may have broken somehtng when you were trying to pound the old twisted shafts in. The problem you're having in this thread is that you're reporting two contradictory things at the same time. You say the wheels turn when they're up, but they don't turn when they're loaded, on the ground. But you haven't confirmed that the driveshaft is turning when the wheels aren't. That's the key to knowing where to look. Is the main, center, driveshaft turning when the wheels (stub axles) aren't?

Grammar? You only have three topics and they're all unlocked. Must be someone else's thread.

They being ..... what? The stub axles or all three? You didn't say if the parking brake was on while it was on the stands. That would lock the wheels. You're trying to determine if the axles are mechanically attached, via the splines, to the spider gears. It's not clear what didn't turn while the car was on the ground. You said "they" instead of actually using the words. The wheels could turn just from viscous drag of the gear lube, that's why you need to lock the wheels with the parking brake. Look inside the diff holes and see the splines. They interlock with the splines on your new axles. The clips just stop the axles from sliding back out fo the hole. http://mech.sharif.ir/~durali/design/Shafting/details/Lecture%2020.pdf http://www.4x4abc.com/4WD101/diff.html

The driveshaft turns but neither wheel does? You're sure the stub axles are not turning? You didn't do something weird like forget to put the halfshaft flange bolts in? You can put the stub axles in the wrong sides but I think that just turns the LSD in to an open in the worst case, like with a VLSD. Not sure what it would do to the Subie CLSD. You have an odd problem if the main pinion shaft of the diff (connected to the driveshaft aka propeller shaft) turns but neither output shaft (stub axle) does. Could be that the splined section of your axles is too small and they're actually stuck in the diff by the seal area. I'm just making a WAG. Pull the axles and confirm that the inner splines turn is the next option.

What did you read? No use suggesting things you've already looked at.

Put it back on the jack stands, put the transmission in neutral, apply the parking brake, crawl underneath, grab the driveshaft and turn it. Does the drivehaft turn freely? If not, the problems on the front end, not the part you just worked on. Or just watch the driveshaft while you have it in gear with the engine running. If it's turning, the problems in the back, if it's not it's up front.

Should have put your "real question" in the title. Your car is not super low now and you want the same stance. So regular springs should put you in the middle of the coilover adjustment range. "Super low" means slammed.

I found some images of Nissan versus aftermarket lash pads and see that Nissan cut grooves inside the seat area for the tip. Aftermarket is flat. So the groove is just "normal" wear. Still kind of wondering how the rockers got on the engine. Is it a Rebello engine? He recommended used Nissan but went with reground used Nissan. Just seems inconsistent. Didn't offer to repair their error either. He's seen it before so knows about it. Seems like they should have owned it. Anyway, good luck with it.

Looks like the Paraut symbol. I just picked this image off the interweb. Paraut was/is, apparently, an indirect OEM for Nissan. Paraut/Atsugi/Nissan, something like that. http://www.elautoparts.com/item.wws?sku=A4040-51981&itempk=86615&mfr=Paraut&weight=0.20 The wear on the other end of the arm is interesting. Isn't the tip supposed to fit inside the lash pad? Shouldn't it be worn across the full face? Looks like it's sitting on top of something else and it's worn a groove.

Post #11 here has an interesting picture of a way to directly address the load transfer problem (I think it's from JMortensen's Diff thread). More discussion also, can't agree with all of it, about what is strong and what is levered. Not sure how the guy's two piece mount came out in the end. Notice that the thread's from 2006. Ten years of development work on the short nose problem. http://forums.hybridz.org/topic/50794-my-q45-diff-mount/

Here's a not-too-old thread with many of the same actors commenting on the same general topic. Started on page 4 with SUNNY Z's pictures, but there's 19 pages total, plus a vendor's forum or group buy thread out there somewhere . http://forums.hybridz.org/topic/117668-the-ultimate-irs-swap-for-s30s/page-4

You misunderstood me in the first example - the arm is the nose. Or the nose is the arm...the lever arm. That's the thing about levers, you have to pick the right side, for reference. I thought I was clear which side I was talking about, but may have left out a few words. I talked about both sides, separately. Another way to consider it is that the assembly has what is essentially a hinge in the middle, of what should be a rigid beam. Which is what one the Q45 guys saw in his mount. Hinging where the nose met the mount, nothing above it to stop the motion. The cradle idea is great for the short-nose R200 and Q45, because they have nowhere to mount anything. I like the nose extension because it allows you to leave the car alone. Make the diff look like a long nose and use the long nose mounts. Arizona Z Car used the LCA arms as the cradle. Anyway, Oz Boy is probably working up some new thoughts It'll be interesting to see where he ends up. The first draft looks well-made, but may just not be right for the application. Probably work awesomely with my 150 HP (what they say) L6.

I had it right, I believe. The mount or body is essentially trying to hold the nose of the diff down. If the nose is long, it's easier to hold down. Just like trying to stop a spinning wheel by grabbing the spokes near the hub or out by the tire. Much easier out by the tire. The body and mount is trying to stop the diff from spinning. The longer lever arm of the new mount also puts more load on those two small bolts in to the body. Not only more load, but more of a twisting, unequal load. As the nose of the diff pushes up on the new longer lever arm of the mount it either pivots around the back bolt levering down on the front bolt, or you can think of the front bolt as the fulcrum levering up on the back bolt. Pretty sure people have had those bolts tear out or twist the metal (I wrote this on impulse from the first few sentences, I see that you've addressed the weakness of the sheet metal). SUNNY Z maybe. The original design pulls up on both bolts but with a longer diff nose applying less load. These short nose designs all kind of introduce two new weaknesses. No offense, the work looks great. The end result is just weaker than the original design, to be used with a much stronger engine. More power through a weaker mount. I've though about just building a steel framework that "adds" a long nose to a short nose . Basically converts it to a long nose. The new "nose" would need to be stiff and strong. Then a person could use the original long-nose mount area, both top and bottom (the crossmember). This GM diff might be amenable to that because it has four mounting holes. The Q45's don't have the structure to do it easily, they're round and smooth. I feel bad criticizing hard work. Everyone has been stuck trying to work with those four small holes.

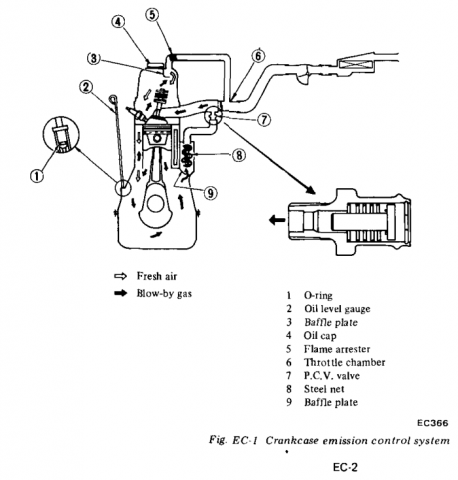

A little more help - the air space under the valve cover is the same air space that that breather tube connects to. The rocker area and the crankcase are the same space. If you're going to seal the bottom you need to seal the top also. Or just seal the intake manifold (where the PCV valve is and where that big tube ends up). You have a bunch of different problems to work on. Your 12% over-rate injectors are probably making up for the extra air. When you seal up the vacuum leak that you're working on, you'll have cut off that extra air. With no idle speed control the engine probably won't idle anymore. And you'll be running rich becuase the injector rates are higher.

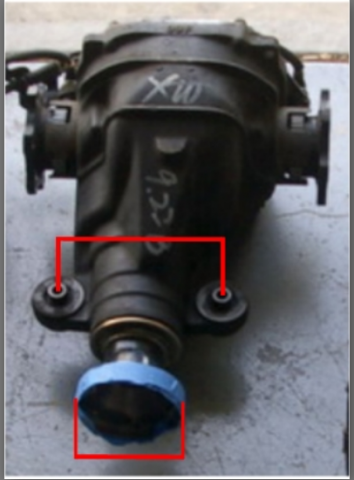

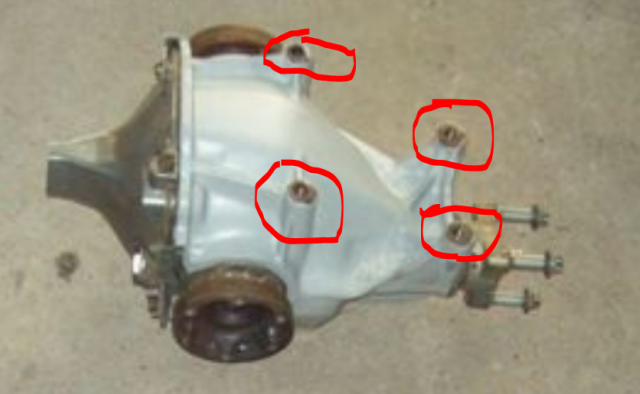

It's been noted over the years by several, how the bushings allow the rear wheels to move forward in the wheel well. As the LCA bushings compress. There's pictures out there. Many people have problems when they install a short nose diff behind a high torque engine. There are threads out there about the Q45 diff, and the short nose R200. Maybe the R230 also. Leverage is the key. The shorter the lever arm, the harder it is for the mount to hold it down.

Follow the arrows.

I'd get a video of the front mount and diff nose, just to know all of the facts. If the axle axes are static (which they seem to be in the video) and the back of the diff is dropping, then the front of the diff has to be rising. Just saying, that's the way it has to be. Might just be taking up the elasticity of the front urethane or there's more flexing happening. This is different from what I first proposed. The short nose diff has a lot of leverage on those two arms used to make the front mount.

Apply the thumb.

I remember that one. Good to see you're still back in action. In your video it's hard to see what the front of the diff is doing. But you have elastic mounts up there also, it's probably twisting up and back, not too solid as I proposed earlier. And the leverage problem that everyone has who uses a short nose diff with the original holes for the strap mount. The nose of the diff is pressing upon a fairly long lever arm against the screws in the body. You might even be flexing those two arms also. I think that the front is moving allowing the back twist downward. The whole diff is twisting around the axles. And the tube you used for the rear bar seems to be flexing. The guys that run the Q45 diff have the same leverage problem on the front. The suggestions in your other thread about mounting directly above the diff nose probably still are worth considering. Just opinions...

You were on here before, right, a short while ago? A whole discussion about PCV systems and vacuum leaks? Hard to keep track of who does these things. Did you block the PCV valve on the bottom of the manifold? If not, the big hole in the valve cover will be a problem. Stick your thumb over it while the engine's running and see if anything changes.

Well then, carry on with the clutch control system, from pedal to fork. If it worked before you should be able to make it work again.

What does that mean? "Back".

Regardless, without ECU controlled idle speed, he needs a throttle body or blade bypass. The 280Z's had the bypass in the TB, the ZX's went to a hose bypass with an inline valve. Hard to get a good vacuum reading if the engine is about to die. He needs idle speed control. Set the idle speed then tune the engine.

What kind of throttle body (TB) is that? The 76 TB has a screw to adjust idle RPM,letting air past the TB. You might need to add a ZX TB bypass hose/valve setup.

Did you do these two things at the same time? That would change everything.
