Miles

Why not post your photos here? Also, for old posts just edit the post and add the pictures you want.

CFM in = CFM out

Try a 280z hood. My 240z with SBC and headers creates high engine bay temps. With a 3000 cfm fan you can feel the hot air blasting past the driver's door while sitting at a light as air exits the hood vents. Some people have installed fans under the 280z hood vents.

Ztherapy.com

Tool Shed

Member since 01. New topics looks about the same.

Lots of info on Google.................. http://www.qualityautoparts.com/Nissan/240Z/Radiator-Core-Support

http://www.zcarsource.com/radiator-support-240z-260z-280z-280zx_8_56004.html

Some members here have fabricated radiator supports. Might try searching here and on Google as there are many Z sites. Craigs list?

Salvage yard.

Installed the pads about three weeks ago so can't advise on rotor wear yet.

Update: I have recently experimented with Carbotech AX6 pads. See: http://forums.hybridz.org/topic/127572-carbotech-ax6-pads-for-toyota-240sx-calipers/

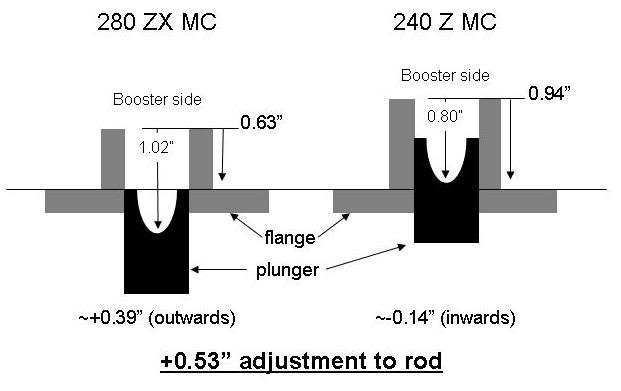

Ref: 1972 240Z daily driver Brake setup: Front: 1979 Toyota 4x4 pickup Calipers on solid 240z stock rotors Rear: 1989 240SX calipers on 300zx non-turbo rotors Master cylinder: 1979 15/16 280ZX Booster: 1977 280Z Since installing this brake system in 2009 I have been experimenting with brake pads: Porterfield R4S: Poor cold bite in traffic. Removed after about six months to try Hawk Blues. Hawk Blues: Poor bite at all temperatures. Removed after about one month to try Axxis ULT Axxis/PBR ULT Ceramic: Good cold bite on first stop and in traffic. Ok in traffic and mountain driving. Carbotech AX6: Excellent cold bite and bite gets better with each stop. After about four stops these pads grab hard. Carbotech AX6 pads: Very little pressure on the brake pedal is required with this brake setup. I have smoked the fronts and the car hauls down fast without a hint of brake fade after several hard stops. At this point I am leaving the Carbotech pads on. Contact Carbotech to purchase pads: Ask for club 5% discount. 1979 Toyota 4x4 pickup: CT137-AX6 $141.00 1989 240SX: CT272-AX6 131.00

Are you assuming that the driveshaft was cut and balanced correctly? I ask because I had a similar vibration and it turned out that the driveshaft shop welded the driveshaft off axis after they shortened it. Suggestion: Pull the shaft and take it too a quality driveshaft shop and have it checked out.

http://www.ztherapy.com/

After I got out of the Air Force, I worked in a brake shop for about a year. We would test drive the car and never bed the shoes/pads. My Nissan dealership does our brakes. They don't bed the new pads.

https://www.hollisterroad.com/products.php?cat=8 https://www.corvetteforum.com/forums/c3-tech-performance/1816636-markviii-vs-spal-duals.html

https://www.hollisterroad.com/products.php?cat=8 https://www.corvetteforum.com/forums/c3-tech-performance/1816636-markviii-vs-spal-duals.html

Did you see these posts? http://forums.hybridz.org/topic/118957-16-electric-fan-with-stock-shroud/ http://forums.hybridz.org/topic/108060-electric-fans/

Have you looked at Flex - A - Lite fans? I am currently using a 3000 cfm fan and Arizona Z Car radiator to cool a SBC 350. Runs cool in traffic here in central Cal on 100 + deg days. The 3000 cfm is what made the difference. https://www.flex-a-lite.com/electric-fans.html?cfm_range=10 http://forums.hybridz.org/topic/122990-arizona-z-cars-radiator/

Let us know how you solve this.

First, thanks for providing data with your question. Save yourself a lot of money, and wasted hours researching this, and go back to stock fan.

https://fiddlingwithzcars.wordpress.com/2012/12/04/turn-signal-repair/

Could be the contacts inside the TS switch. The contacts can become bent and/or coated with carbon.
