Hi all I've been working on this build for about a year now. This is my first build and I'm tackling it in my apartment one car garage. I figure it's about time I start documenting my build on here but there is quite a bit to catch up on so I'll just dive right in! 1974 Datsun 260z Running a 5.7 Alum Block Ls1 out of an 02 Camaro Fast Wilson intake Clevite rod bearings Total Seal piston rings Ls9 Cam Arp head studs Mcleod clutch (ARP hardware) T56 out of a 99 Camaro These are the upgrades I currently have. Much more to come and I'll do my best to update in real time. Here are some photos of the condition I purchased the car in.
-
Just bough this BEAUTIFUL 1971 240Z from Texas without even seeing the car in person. I'm amazed How clean this car is. Frame is straight and rust is extremely minimal. All the regular rust areas are clean! I have a rebuilt LT1 and 4l60e with zero miles, planning on selling the 4l60e and getting a T56. Anyway Here is the car, I started stripping it for paint. Will pull drive train tomorrow after I get my cherry picker back from my friend. He borrowed it 2 years ago -
I am selling my 1973 Datsun 240Z. Bought as roller without engine/trans in 2011/2012. Previous owner/s have changed the roof and various parts, so some of the stuff i pulled out was off a 260z/ 280z and there might still be some mixed parts on it. That and all the modifications pretty much eliminate this as a show car. Do not buy this thinking it can be restored to show car quality. It would take far more than would make economic sense. This is purely made to run quick/fast, not to look pretty. It's raw and needs muscle to be driven. It has manual brakes without booster and manual steering without power assistance. You need to be strong like bull. But it is rewarding! If you dare you can get 0-60 in just over 4 seconds, while carrying a passenger. I've never felt the need to put effort into it, but I am certain it'll crack the 4 second mark if you just lower the tire pressure... This is a great handling, light weight car with balls! Once you get used to its noise and raw roughness or like me, fall in love with it, this car is AWESOME! Took it to tracks and autocross events and thoroughly enjoyed the @#$% out of it every time i drove it, but I am almost done building me next racecar and I need the funds to focus and finish it up... Now to the great things about this car. I'm just going to list as much as I can and I'll save some details for when you come to see it: SOLID 1997 Pontiac Trans Am LT1 V8 with 310 hp at around 5250 rpm and a torque curve that starts well above 320 ft. lbs. from the word go all the way into the rev limiter. Max torque 340 ft. lbs. Stand-alone engine harness and Howell Engineering computer, tune-able, obviously T56 manual 6-speed transmission out of the same 1997 Pontiac Trans Am S1 Sequential Shifter that translates forward/ backward motion into the H-pattern - yeah, it's awesome! R200 rear diff with a fantastic Quaife ATB torque biased helical limited slip differential upgrade and 3.545 final drive ratio Nissan Armada CV jointed half shafts LED sealed beam replacement headlights with aero covers Both, front and back bumpers lightened (not good for crash resistance, so be aware) Fiberglass bumper covers, front and back, front with lower air dam Fiberglass fenders Fiberglass hood with vents and secured by lockable aerocatch latches Fiberglass cowl Fiberglass flares Wilwood brakes (almost 13" all around) with 6 piston front calipers and 4 piston rears - high temp fluid, track disks, track pads, biasing valve installed Complete Arizona Z car suspension kit with billet control arms etc pp, which keeps the rear control arms straight while the vehicle is lowered! 5-lug Rota wheels 17x9 front and 17x9.5 rear with Nitto NT01s in 255/40/17 fronts and 275/40/17 rears Autopower bolt in 10 point roll cage NRG hub and deep dish steering wheel with quick disconnect and lockable cover Custom light weight polycarbonate dash board Dakota Digital gauge cluster with 0-60 timer and 1/4 mile timer and couple neat functions Ignition activated dash cam with GPS Corbeau racing seats on sliders, forth and back adjustable! Schroth ASM harness belts Fuel-Safe bladder fuel tank with functioning level sensor and external high flow filter and Mallory pump Fiberglass deck lid spoiler American Autowire chassis harness Clean California title Made in 1973, this car is PRE-smog and does not have to go to smog inspection! Current registration Asking price $12,500.00 Located in San Diego
-
First post! Before the witch-hunt begins, I've become quite adept with the search function here. I bought a JTR-converted '75 280z with an SBC 350 out of a 1970 Chevrolet Bel Air about two years ago. Searching on this website has helped immensely in getting this thing up-and-running, and fixing the bungles the previous owner made. My Z initially had a TH350 automatic transmission which, while nice in a drag, was not sufficient for highway driving. And I'm not planning on doing any racing. So it's currently on my garage floor, where it belongs. I've been looking at manual transmission options, and it seems the best route is to look at other cars that had the 5.7L V8...such as Corvettes and Trans-Am's. I'm thinking about getting a flywheel, clutch kit, and T56 transmission from a '93-02 Trans Am. I'd like to hear any advice from folks who went this route. My biggest worry is, given the age of my engine (i.e. it is internally balanced and has the two-piece rear main seal, rather than the one-piece) the newer '93-02 parts won't match up. Any wisdom / advice? Thanks all! Happy motoring!
-
About me I don't want to go too in depth and bore anyone, so feel free to skip. lol My name is Kyle. I'm from Oregon City, Oregon. I'm in the USAF so that's why I am in CA. My current car is a 2008 Honda Accord V6 Manual 6 speed. It's a fantastic and very reliable car. Nice interior and sleek looking exterior. Just a good all around daily. And its the first car I have driven with a stick, and boy did I love it! I have spent a couple years with it, but after increasing its power steadily, I realized the limits and problems with a forward driven car. Not to mention the absolute BS that is California smog. I was at the point of either spend the money on a power adder, or a new car. I decided it wasn't worth pouring more money into a car that had such limitations. Especially in size and weight, she just wasn't very good in the twisties and back roads, so I decided I wanted a Rear driven pre- 1975 car. After a length of time searching, I couldn't believe what an awesome find a 240z was! A small, lightweight, Japanese car, pre- 75, endless parts, huge forum support, the list goes on! I was sold! The Car While on leave back in Oregon for a week, after 3 months of searching for a good deal on a 240z, one popped up for sale for $3,500. Super cheap! It was a 1972 240z with a Chevy small block V8, with a 3 speed automatic. A lot of people had interest, so decided I was done searching, and ready to start building; I bought her outright. Here is the AD: The Good -V8 Swap -The Trunk area, engine bay, and I (hope) under fenders were sprayed with bedliner -Body panels are straight -Badge and side marker light delete -Its a 240z The Bad (As I have quickly, or slowly discovered) -The paint is awful, and needs to be redone (Huge amount peeling) -The windshield wiper doesn't work -The heater doesn't work -The Air Blower doesn't work -The dash was cracked in multiple places -The passenger door was missing the interior panel -The engine, differential, and transmission were pissing oil -The hatch strut was blown -The lights were all extremely dim -The car got less than 8 MPG -Seats are cheap aftermarket ones. Fit nice though actually -You have to SLAM. And I mean SLAM the doors to get them to shut. I'm scared I'll shatter the glass! -The passenger window won't roll down -Probably a lot more I'm forgetting So yes, the car needed work. A lot of it. Was it awesome to drive and own a V8 car? Yes. Yes it was. I only had a few days of leave left, and I sadly realized I couldn't take her with me. Especially with the gas mileage at aircraft carrier fuel consumption rates. On the last night, I took my friend out for a spin, and very soon after leaving the driveway we could smell something burning. It was too foggy to drive fast, so we turned around and went home. I ended up leaving the car at my friends garage, which happens to live only a couple houses down from my dads. Here is the car next to his yellow V6 Mustang: We pulled the windshield wiper motor, the dashboard, the heater blower assembly, cut out random disconnected (and unsafe) wires and taped them up, and cleaned and vacuumed any debris. I loaded the dashboard and wire harness into my car to take back to Cali so I could be somewhat productive for the next 6+ months. Later my friend discovered that the wire harness caught fire in the engine bay! And the harness I had, was melted in multiple places. I decided to scrap it. I will need an entirely new wire harness. What I have been doing Research. Researching like a crazy person. I have also been buying parts like crazy and shipping them to Oregon. Since I'm stuck here, I: -Fixed the Dash Cracks / Sanded / Painted -New Vents -New glove box setup and badge -Autometer gauges -Realized the wire harness I had was hopeless after attempting repair My Friend has been inspecting parts that I send him, and tinkering on the car. -Sold Engine / Tranny / Radiator / exhaust for 750.00 -Sold Bumper -Sold Fuel tank Has a total of 1k. So the car as a roller was 2,500. Even cheaper! What Happens Now I am taking 30 days of leave starting on 20July2016. I plan to: -Sell the Honda -Engine Swap the Z to an LS motor. -Make the 240z my new DD. Here is the car as it is today. My friend installed the $420.00 Fender Mirrors, and there is the photo of the horrible quality Retro-Spec spoiler sitting on the hatch just to see what it looks like: That's it for now. Later I will post shots of my excel sheet of costs, future plans, ect.
-
Hey all! I'm planning out a V8 swap for my '82 280zx coupe. I'm planning on using a 6.0L LQ4 with a T56 6 speed manual out of a '98-'02 F-body. I decided to stay with the R200 differential so that I can keep my independent suspension. I'm looking for someone that has done this same swap that can tell me what the length of the drive shaft needs to be. I know there is a lot of support with this swap so I was hoping that there is a drive shaft out there that will work with that setup. Does anyone who did this same swap have a good set of measurements for their drive shaft? Or will I have to have one made? Thanks for any/all help, Ford
-
L26 engine with 4 speed manual. Engine ran well, unknown mileage, trans is stiff and would need reworked. Has SU carbs. I have a video of it running. $400 shipped. LS1 engine from a 2004 Vette with 43k miles. Comes with wiring harness and ECU $3000 T56 from a 1999 Camero with 77k miles. I purchased it from Hawkes 3rd Gen as one of their conversion kits. $2200 Straight headers from Hawkes 3rd Gen. $1000 Engine mounts for LS1 that work with the headers from Hawkes 3rd gen $200 Buy the LS1, T56, headers and engine mounts for $6000 and I pay for shipping. You must have a loading dock or a forklift to unload the pallets from the truck. -

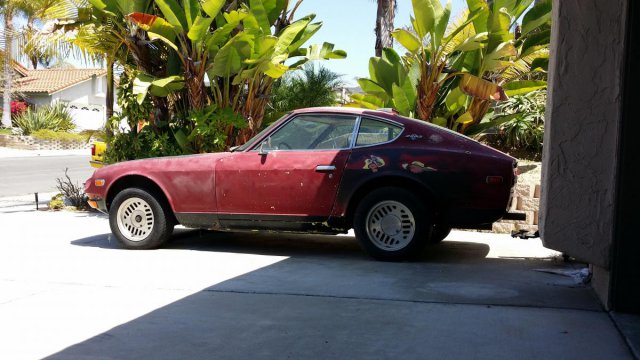

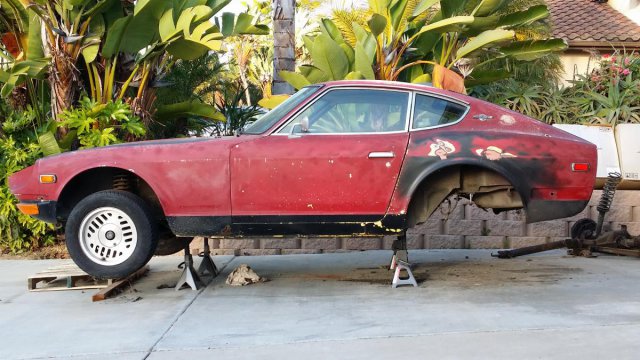

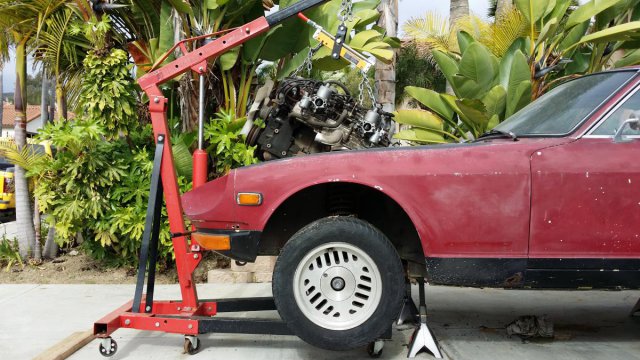

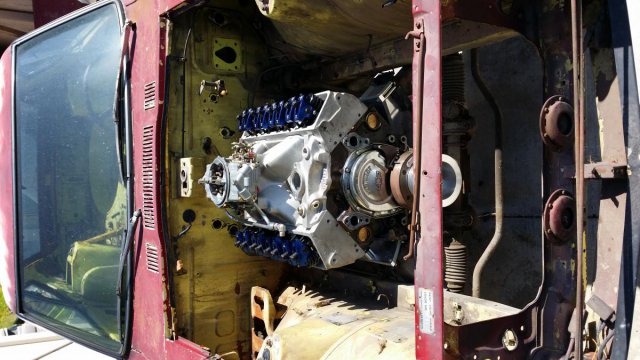

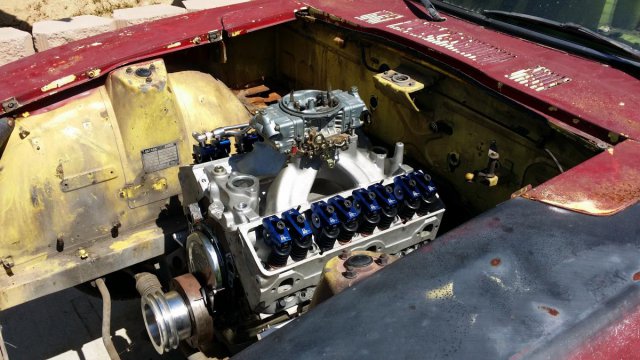

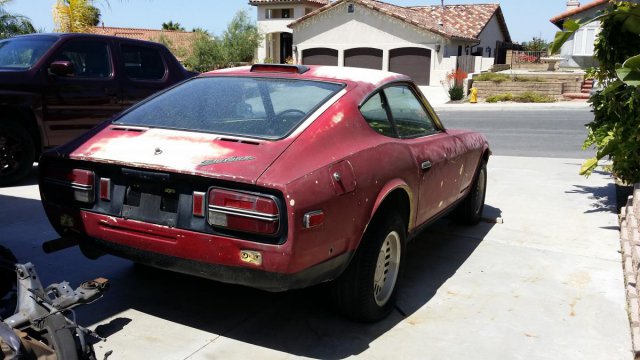

Hi everyone, I've been using this site for research along the way gearing up for my build. I just created an account, and this is my 1st post. I'm excited to interact and share my experience as I go with those I've mooched off of for so long! I've done a trial fit to check that the motor/oil pan/trans all lines up ok- so far so good! I'm now in the process of the final build on my 383, and about to pull the trigger on my suspension/brakes/hubs/axles etc. I figured I'd give up some info for critique from the experts (that's you guys!). I think I've ironed out most of the kinks of the build in my head, but maybe someone can catch me before I make stupid and expensive mistakes. 1st, a little history on the car/theme- I moved to san diego 5 years ago from Philadelphia, and I never knew such fun roads could exist! So I decided I needed a car that was more fun to drive, and after test driving a lot of cars, I bought an rx8. This was not even on my list of potential vehicles, but the salesman offered a fun test drive, so I bit. After driving such a light car, I can vow to never have a heavy "fun car" again! The rx8 was a hoot, but it didn't scratch my hot rod itch. After some digging, I came across the z cars. Amazingly lightweight, awesome weight distribution, ample underhood room, ginormous transmission tunnel, manual rack and pinion, strut suspension- I'm so in!!! Ok, now all I need to do is find one, being from philly, I've barely ever seen one- salty roads and weather wiped them all away long before my time. I figured I'd save up, and find a good specimen even if it took months. It took a day...I found a clean 69k mile, 1 owner, original orange county car for $1300 an hour from home- done! Ever since I've been reading and researching for the proper combination of parts that will satiate my "requirements" as a driver. It needs to be fast- stupid fast. It needs to handle- and not make me wish I had something else. It needs to look great- which Z's do!. It needs to be affordable- I'm not a "rich guy". (I could have bought a restored 63 corvette with a 9000rpm 302 or something if I were rich!) In all honesty, I'm really happy about the path I'm headed down with this car, and it really seems like a no compromise plan for not "classic muscle car" money, and it will be faster, handle better, and in my opinion, even look better. I can't decide if I really liked the 240 that much off the bat, or if I fell in love with it after staring and dreaming...I think it was both! Ok enough blabbering about why I'm doing this, and onto the technicals- This will be a street/strip car. Street because it would be a sin to build a drag car with the roads in san diego. Strip because theres no point of a car (imo) that you can't let fly. So the plan is as follows, 383, 11:1, brodix track1 heads, solid roller cam, single plane, holley 850hp carb (I build engines, that's the easy part). Should be about 550 horse on motor and pull to 7200 rpm, coming in around 2300rpm, trying to make it a canyon carver and a strip terror is tough for a cam designer, but my man says he has it covered... T56 6spd trans with aluminum flywheel and Ram powergrip hd clutch, good to 650hp as per Ram, and thats for a 3600lb car. R200 from q45, with techno toy tuning backing plates allowing q45 hubs, eliminating stub axles and flanges, while using q45 cv's with chromoly axles, and q45 brakes. Techno toy coilovers all around with tokico illiminas, 5 lug front hubs, and 300mm 4 piston brake kit. MSA sway bar kit, and quick ratio bump steer spacers. Possibly "zpowersteering's" electric steering assist kit. I have a shop on board to do the roll bar. For wheels I'm thinking 16x8, 5x4.5, 0 offset American Racing Torq Thrust II's polished. For tires, 225/50r16 front and 245/50r16 rear, maybe 45 series, not sure on that yet, need to do some measuring. I'm planning to use vintage air's system for AC, because the last thing I want is to get the car done, and loathe driving it because I don't want to stick the the seat. Soooo, what do you guys think??? I'd like to call out rebekahsz on this one, she always seems to have good input on stuff I've read before, plus the front tires are off the ground in the signature thumbnail Sorry that was so long winded everybody, I guess I've never had a chance to say all that to anyone that I thought would care before... please feel free to tell me if I'm barking up the wrong tree with any of the parts I've chosen, or if you have any better ideas, all I have so far is the motor, transmission, and car. The techno toy order is ready, and I'll probably order it next week after I build the car in my head 10 more times haha. (Ps- the body isn't as bad as it looks, just red paint flaking to the original yellow beneath. I think that's why I got it so cheap, in the craigslist ad, it looked like bondo everywhere!) Thanks to all who have any input or recommendations in advance. -
Still doing a lot of research here, but I am stuck on what is probably a dumb question. I have an LS7 (Picking it up from machine shop today!) that I will be swapping into my 75 280z. I am confused on which T56 Magnum I should buy. This isn't from a performance standpoint, but for which vehicle should I order the transmission (98-02 Camaro)? (planning on going Tick or RPM stage IV/V). Also, does anyone have any insight on which bellhousing will fit 1&3/4" longtubes the best? Thanks for the help.
-
like the title says im looking to buy a flywheel for a 2 piece rear main pre 86 SBC with a lt1 t56 transmission I've done my research and i know it takes a custom one like the fidanza /centerforce etc just wondering if anyone had one that they didn't need maybe from a project that took a different route if so let me know.. paypal is ready
-
I figured it was about time to start my thread on my 240Z that I've been building for a few years.... To start the background on the Z; I found it on ZCar.com in central Florida however it did live half it's life in Texas. Pictures looked pretty decent for a 72 and mostly unmolested. It had recent paint, classic hubcaps and upgraded 280Z block; 5spd and R200 diff transplant. After reviewing the pics and video, I made up my mind to commit to this one. The 175/70-14 donuts were so bad; they almost looked like original tires but what the hell, she was going to be a track car- right? I contacted the owner and found a flight on Jet Blue to Orlando for $99. I flew down on Saturday morning and my old boss picked me up at the Orlando airport and we drove over to check it out. Everything was as expected, nothing to make me fly back to Charlotte today. I did cut some of the fuel line and re-tighten some of the clamps just in case. Paid the guy and drove off to Charlotte. Car ran great up to Columbia where I stopped to see family and take a break from the drive. The biggest problem was the exhaust leak but with both windows down, wasn't too bad ~ Hit the house about midnight that night but she ran great and no issues. I drove her for about a year before the planning stages began. My last 240Z I built was 12:1 high compression L28 that I built back in 93 with forged pistons, floating pins; cam and all the fixins... L28's are pretty good but have limits and are still iron blocks. Looking at other alternatives; I started looking at RB swaps. The biggest issue I found was going to get parts for them, but wasn't a huge issue considering our global transportation system and JDM suppliers on the west coast. You can get a RB engine and wiring harness pretty decent price but then you want to get bigger turbo (s) and all the fixins...Some say the RB26 has too much power and RB25 is better...both can put out gobs of power and take your paycheck just as easy as making that power. There's some good suppliers of RB swaps these days too like McKinney. Then I started looking at VQ swaps like A Hoke. I like the idea of staying in the family but it wasn't that important- Weight and power were the main requirements. There were some VQ swaps out there that look pretty good but then I started looking at the power and decided no VQ35. Hmmm, what about VQ37? still pretty new and prices were still pretty high for a VQ37 with tranny and harness. I started to think about the old american love of sticking a V8 in a small foreign car like Carol Shelby. Why not? The SCARAB was our answer to this question. But the early generation small block engines were heavy and not what I was looking for in a car to track. After seeing Dave Palarmo's LS1 240Z at the 2008 ZCON @ mid-ohio I thought that was a nice setup. Doing some research on it; the LS engine is a few pounds different than the L28. Buying a LS1/T-56 combo was easy to come by but many of them have oil issues (lack of owner responsibilities in changing the oil) and ragged out / tranny issues with hard shifting over 80K+ miles on most of the combo's. Started looking at the various LS engines and options. The F-Body SS Camaro's and Firechickens were around and running car would cost about 4-6K depending on the condition. Better the condition the better the care I thought...THen started looking at wrecked GTO's for LS2 engines with lower miles. About the same in price. I put the word out and found an LS6 at the right price. A fellow track junkie and known around the circles; I was pleased to find this beast with about 4800 miles on it and already had a hot cam installed. So off to the rodeo I went. I started to strip down the Z and for the past three years- due to three crazy kids, wife and job...I'm "almost done!" kind of...at this point I'm just ready to get her started and shake out a few things- mainly what is left to do: Run brake lines (MC to wheels all aorund) Finish fuel lines (today?!?) Dash decision - Aluminum or stock (going twords aluminum to just do it...) wire it up Radiator Exhaust Battery wires THE LIST [Drivetrain] LS6 Engine - Fuel Injected with cable throttle body. T-56 Magnum- Enough to hold 600 HP. - Stock will not work (for long) Q45 / CV shafts. Driveshaft shop Aluminum driveshaft DXD dual friction clutch Interior Roll bar Auto-Meter guages Start switch Battery relocation / lighter battery Exterior ZG flares BRE spoiler [Chassis] Bad Dog Racing full frame rails New floor pans Stripped and painted underpan Stripped and painted front clip [Fuel] Fuel cell - 16 gal Summit circle track Russell Fittings Bosch 44 fuel pump Speedway LS conversion regulator For now- stock fuel rail [suspension] TTT rear lower control arms Coilovers - Koni Shocks Quick steering couplers / bump steer spacers TTT T/C rods TTT Lower Control Arms [brakes] AZC Wilwood on all 4 corners (6/4). Heavy Duty Rotors SS Lines all around Wilwood 1" MC 280Z Booster Pics attached... Thanks to Matt Isbel and Mike Kelly for inspiration as well as the countless hours on HYBRIDZ allowing me to second guess everything and upgrade upgrade upgrade... This is my first real track car so I'm sure I've screwed up somewhere- feel free to tell me -much of this has been a great learning experience from restoring cars since I was a kid helping my Dad to what I've built to date. So far I'm really happy and wish I could be ready for ZDAYZ but looks like that's out this year- Hope to get her to CMP this summer... Right now, I'd like feedback on the fuel setup - how much fuel starvation will I have and do I need to sump it? Any concerns with my setup like heat soak or fuel starvation issues I can avoid? Thanks in advance for the feedback
-
I'm new to the forum. Been looking for a t56 for a while now with no luck. Figured I try my luck on here. Get back to me if you got one. Thanks
-
Alright just a feeler here, exploring my options, etc Where to start. This car has been running and driving since March of 2012. Since that time it has had ~15K miles put on it. It has been daily drove since then as well, aside from riding my motorcycle to school. The only time it has ever broken down is when I broke a halfshaft, and that is a non-issue now. And when the washer holding the TC rod bushing, sheared over the rod, letting the wheel move back in the wheel well and hit the fender. The washer wasn't the correct one, so the lip it sits on just pushed through the middle. Pretty sure that is the only time the car has been on a trailer since I towed it home as a roller. I would drive it cross country and not think twice about it. The LS1/T56 were pulled out of my old 98 Firebird Formula that got totalled and bought back from insurance. I bought the Firebird with ~66k miles and it got totalled around 90k. So the LS1/T56 has around 105k miles on it being a bit generous. The LS1 is mostly stock. Stock bottom end, stock cam. The heads have been replaced with newer truck heads (799 Casting) that have been milled .035 for a compression of around 11.5:1 . It put down 348rwh/370rwtq when it was dyno'd last spring. The tune is not anywhere near perfect, buddy did some WOT tuning but never really got to the part throttle or anything. The T56 could use a rebuild. First gear synchros are trashed. When sitting still, the method to get into first is: Clutch in, go to second gear, go to first gear, clutch out. That avoids grinding 95% of the time. Almost impossible to downshift to first without a perfect rev match, I can do rolling stops in second just fine. Its been like that ever since I bought the firebird(Over 30k miles ago), and hasn't got much worse and its seen at least a couple hundred drag strip passes. The car has a custom 8.8 IRS swap. The swap by itself should be in its own thread, and it would have eventually, but I had planned on(And still will hopefully) reproducing the swap to sell. The differential is from an 02+ Explorer/Mountaineer. Try to follow this list from inside to out: - 8.8 IRS Housing/differential from 02+ Explorer/Mountaineer. Custom mustache bar for rear diff mount, and custom front mount. Currently has 3.55 gears and an open differential. Desperately needs an LSD which are pretty cheap for the 8.8s, just didn't have the money during the swap. - Stock differential stub axles cut off with a Porsche 930 CV joint flange welded on - Porsche 930 CV Joint - EMPI Chromoly 930 Axle bar - ~2000 F150 4WD Front outer cv joint. The 930 axle and the F150 joint us the same splines, effectively resulting in a really beefy outer cv joint for really cheap that you can pick up at your local parts store - ~2000 Dodge Intrepid front hub. The F150 CV joint splines into this hub. Uses a 33 spline stub that is incredibly beefy. Can be picked up from a local parts store for cheap. Comes with 5x4.5 bolt pattern, but I've redrilled for the 4x4.5 - Custom Strut tower/backing plate. The dodge hub bolts on with 3 bolts and is a sealed unit. The strut towers resemble the Techno Toy Tuning towers they sell for the R230 swap that uses the bolt on Z31/32 hubs. - ~2004 Honda S2000 rear rotors and calipers. Calipers have a built in Ebrake, but they ended up being really deep so the brackets were running into the inner wheel well, so the ebrake mechanism cant be used. - Coil over sleeves and springs sitting over the VW Bilstein struts. Sectioned an inch or so from stock length. Now as frankestein as that sounds, I will go out on a limb and say this is probably one of the best axle swap solutions I've seen. It eliminates every weak link, and replaces a lot of hard to find Nissan parts with off the shelf components that most parts stores have in stock. The axle bars from EMPI cost around 205 for a PAIR and fit without any modifications to length. The only custom part that is breakable is the inner stub axle that splines into the differential, and Driveshaft Shop sells fancy ones for 500 dollars a pair if it came down to needing better ones. Small list: - 1978 Datsun 280Z with lousy flat black paint with red plastidip over it that didn't cover completely(12 cans is not enough to do a car) - 98 LS1/T56 with around 105k miles. Mostly stock. 799 heads milled .035. Put down 348rwhp/370rwtq - Monster Stage 3 Clutch - Custom motor/trans mounts - Custom long tube headers. 3 inch into a 3.5inch Y pipe. 3.5 Cutout. Necks down to 3 inch and goes under the axle. Necks down to 2.5inch and goes into a stock Z31 muffler. Had an electric cutout on it but the motor locked up, so it just has the plate for now. Pretty quiet when you want it to be, could pass as not being a V8 car with the cutout closed up. - Speedhut gauges. Speedo, Tach, Oil, Water, Fuel. - Rota RBR 17x9.5 wheels with Cooper 275/40R17s on all 4 corners - ZG Flares - Custom 8.8 IRS Swap - Custom 3 inch steel driveshaft - Coil over springs on all 4 corners(225F/250R) - Tokico Blues in the front(Might be blown) - VW Bilsteins in the rear The body is in pretty decent shape. The passenger floor has some rust holes. The battery box was perfect until the battery got a hole melted in it and corroded it pretty good. The back area above the tail lights is rusted pretty good. Think the rocker panels have a bit in them as well. The spare tire well has been cut out but nothing else was ever done to it, so there is 3 pieces of matting/carpet laying down over it. Overall though, I think its a pretty decent chassis. I stripped the floor in the actual passenger compartment and put epoxy primer down on them the summer after I got it running. Ran out of time and never got to the back trunk area. The car is by no means perfect, I would say I have a high tolerance level so I put up with a lot dailying this car. There is no weather stripping on the doors, so it leaks like crazy. I completely rewired the car, but never got around to wiring up windsheild wipers, turn signals, high beams, and probably other things it needs to be "legal". Never could figure out a good switch setup for those so I never got around to it. I have drag raced the car on multiple occasions, probably 50+ passes. Never been towed home from the track, only thing I ever broke was a halfshaft and I always had spares. Always drove there and drove home(Sometimes 1.5 hour drive one way). Autocrossed the car over a dozen times, car handles pretty good considering the lack of front suspension. Recently got 2nd overall out of 70+ cars at the local autoX(Won't lie though, most of the usual fast crowd was gone). Car has gone a fastest of 12.15@118MPH in the 1/4 mile. That was with a 2.0x sixty foot though, at my local home track that is a 1000ft track, it regularly pulls 1.93s or so on the street tires. Has gone a 9.9x@108mph at the 1000ft track. Would go 11.xx at a good track. Street tire to street tire, this car will hold its own really well. Never got a chance to run it with slicks. RebekahZ brought me his old ones this summer that have a couple left on them, but I don't have any wheels and haven't had the time with school to get the ready and make some passes with slicks. Way too much to list about this car, and I think I've already wrote a book. Car does have issues and needs a lot of work. But if you are looking for a project with most of the hard stuff done, and a swap that has been proven, this is not a bad place to start. Paint, finishing some of the little things I never cared that much about, and some TLC, and this would be a nice car. Car gets a crazy amount of attention even looking like it does, always very popular at meets, shows, races, etc. I have a parts car, and lots of extra datsun parts. A deal can be worked out for some or all of those as well if interested. Car is located in Fayetteville, AR. Any questions you have feel free to post them on here since someone else probably has the same question. Will get some detailed pictures tomorrow since its 1AM right now. I have a lot of money(Never tried to add it up and don't want to) and even more time in this car. Going to set the price to: $10,000 OBO Feel free to post here, PM me, or call/text me at 5014728960 with any questions as I'm sure I left a lot out. I am a full time college student and work as well, so if I don't pick up or hang up after a couple rings I'll call back. -William Fritts
-
Now that I am finished building my 280Z I would like to share the build story with everyone. I work long hours so I can only work on my build a couple of hours each night and 12 hours on Saturdays and Sundays so I didn't have the time to share my build as I went along. I wanted to do a high end build that would be both beautiful (in my eyes) and a fast track car when finished. During the build the only help that I received was from my good friend Joseph Morrow who worked many hours welding things that I cut apart and jigged (he did not trust my welding for the monster that I was building). Aside from some laser cutting and radiator fab work the only service that I paid for was the exterior body paint, everything else was done by me. I searched the internet for engine choices, body kits, rear ends, induction systems, transmissions, cooling, brakes, suspension, fuel componets, headers, wheels, dash gages and everything that would be needed to do my conversion. I decided that I wanted to start with a rust free 280Z and install a LS3 CT525hp engine with a Harrop Hurricane 58mm ITB intake and a T56 Magnum 6 speed transmission turning a R230 differential. I will start with a few pictures of the finished car and then list the steps that I took to arrive at the finished product with details shuch as pictures, part, vendor info, price and description of task. 3-13-11 purchased a very clean 1977 280Z from Rodney Goodwin that he listed on E-Bay for $7,502. This Z was only driven for 4 years when the owner passed away. The wife left it parked in the garage in Arizona until she passed away in 2011. Rodney got it for a very good price from her estate sale with the intent to flip it on e-bay. This Z had only 47,437 miles and was an absolutely rust free. Z is silver with black interior 4 speed with air conditioning that still blows cold. 3-24-11 Purchased G-nose, ISMA wide body kit, front spoiler and G-nose hood hinges from Z Car Customs – JDM (www.ZCCJDM.com) for $2,750. I selected this body style after looking at several other body kits, front spoilers and, rear spoilers because it fit my taste for what I wanted to do to my Z. Kit arrived about 4 weeks later in 3 large boxes without any damage. Fiberglass work appears to be very well laid up, first rate work. 4-5-11 I started disassembling the Z. I am still amazed that all of the body panels and parts I remove are rust free and that the bolts still retain their original cad plating, after cleaning them they look like new. All parts that I remove are placed into boxes or plastic bags for storage and are labeled for future use. 4-11-11 purchased JDM style tail lights listed on e-bay for $160. I selected these lights since I like the look of the amber turn indicators versus the red turn indicators used for the USA market. Rear tail lights were in very good condition with only 1 plastic tab needing repair (this was mentioned in the e-bay listing). 4-25-11 purchased (4) weld in camber plates, (4) coil over strut kits, front roll center adjusters, front tension control rods, front lower control arms, rear lower control arms from Techno Toy Tuning 530.626.7334 for $1,874. I selected these suspension components after looking at several other offerings because I liked the look, form and function of these components better than what their competition was offering. Parts arrived well packed with no damage; TTT was very helpful and had very good customer service. 5-14-11 removed the drip rail molding by cutting it with a 5†cutoff wheel since I wanted to modernize the look of my 280Z. After cleaning it up my good friend Joseph Morrow welded the roof panel to the roof frame. 5-20-11 installed (4) adjustable camber plates from Techno Toy Tuning. Used scribe to layout cut line, then used grinder with cutoff wheel to cut out top of strut tower. Test fit camber plates then welded (top and bottom), ground and sanded the weld smooth and then painted to prevent rust until the car is painted blue. 5-22-11 modified strut housings to accept a shorter strut. Housing is cut through the weld for the spring perch (this will allow the spring perch to be removed from the upper piece of the housing). Cut 40mm (my application) from the piece that was removed, chamfered it ½ of the housing wall thickness (for weld penetration) and weld 100% (ensure that the 2 pieces of tube are straight before welding). Weld perch for coil over collar (threaded tube) per the height listed in the directions and clean up the weld so that strut housing exterior is smooth then epoxy the aluminum coil over collar (threaded tube) onto the strut housing. 5-23-11 purchased a 20 gallon fuel cell (with fuel safe open cell foam to control fuel sloshing) with a 0-90 ohm fuel sender from Summit Racing for $288 (including Cleco pliers and pins to fit the fiberglass panels). Parts arrived in 3 days without any damage, very good customer service. 5-25-11 purchased 240Z front turn signals listed on e-bay for $115. Needed 240Z turn signals for the G-nose since 280Z turn signals will not work in the G-nose. 5-28-11 purchased (4) Tokico adjustable struts from Sparktec Motorsports for $463. After several weeks I find out that the factory was relocated and that it would be several more weeks before I would receive the struts. In total the struts were delayed 16 weeks during which I was not able to work on my car since I had already sectioned my strut tubes (new struts are shorter) while waiting for my new struts and I could not put the Z on the ground to set the fiberglass panels. Very poor customer service from Sparktec, I will never use them again. 5-28-11 purchased flip down rear license plate bracket listed on e-bay for $31. I need this for my rear gas fill conversion that I am going to do. 5-29-11 cut out floor below rear hatch between the frame rails from strut towers to the tail light panel. 5-30-11 I designed a plate to hold the fuel tank between the frame rails without the tank hanging below the rear valance panel since I do not want it to be seen. 5-30-11 purchased Smoothy Hollywood style mirrors listed on e-bay for $55. I like the style and the cheapest that I could find them was $110, so this was a good deal. 5-31-11 purchased Cowl Induction Fiberglass Hood and vents from Reaction Research for $708. I selected this hood because I liked the narrower width of the raised cowl versus the other hoods on the market. I also like the two smaller raised cowl scoops that cover the ’77-’78 Z hood vents. Hood and vents arrived well packaged with no damage, very good quality requiring little finishing to fit. 6-5-11 fuel tank plate was laser cut by Campo Sheet Metal (Houston, TX) for $120. Plate fits perfectly between the frame rails. I cut and welded 1.5†square tube to the plate to frame the fuel cell. Since I did not want a side gas fill so I modified the rear tail light panel to accept the gas fill (from the Z) and flip down license plate bracket from a 1970 Camaro. I also had to add a fuel fill to the fuel cell. 7-8-11 purchased front (1.125†dia.) and rear (.875†dia.) sway bars (by Suspension Technique) from Kuruma Motoring for $320. 8-21-11 purchased original rear window louvers listed on e-bay for $125 since I like the look of the Z with louvers. 8-25-11 cut the rear wheel fenders and wheel wells to fit the 26†o.d. tires with the car lowered 1.5†while allowing for proper wheel travel. After cutting the rear fenders the outer sheet metal of the wheel wells were cut into tabs about 1†wide so that they could be bent and welded to the rear fenders as shown below. After tacking the tabs (from the wheel well) to the fenders the excess tab (sticking out from the wheel well) was cut off with a cutoff wheel then welded 100%. 8-30-11 purchased a 57†JDM 3D carbon fiber rear wing from Street Regulator listed on e-bay for $259. I like the drift style wings and since this car will see a lot of track time the extra 150lbs of down force created at 100mph should come in handy. The wing was originally $800 but since it has some very minor flaws (that are hard to notice) I got it for a very good price. 9-10-11 made metal fillers and welded the door handle area, vent holes, exhaust hole and rear bumper shock holes shut. The doors will be opened by remote controlled electric solenoids and poppers. 10-8-11 struts finally arrived from Sparktec Motorsports after about 18 weeks of waiting. 10-10-11 assembled struts into reworked strut tubes and assembled front and rear suspension (front roll center adjusters, front tension control rods, front lower control arms, rear lower control arms from Techno Toy Tuning) to the car. 10-12-11 with the suspension on the car I can mount the body panels and start fitting them. The front quarter panels are simply bolted on in place of the stock front quarter panels. The upper g-nose is then bolted to the quarter panels and the frame, since the g-nose is meant to be installed with factory fenders I had to cut the molded bumper flush with the headlight bucket flange, and the front lower edge of the quarter panels had to be shortened by about 3â€. I mounted the lower g-nose forward about 3†from its intended position since I wanted to alter the profile of the g-nose somewhat. I then mounted the front spoiler about 1†higher than its intended position to bring it forward about an 1†which will complement the g-nose profile that I want. When finished all 5 pieces of the front end will be fiber glassed together as 1 piece. 10-14-11 made mold from aluminum tape (about 4 layers works well and the epoxy will not stick to it) to make the spoiler to fender transition. I cut out the front turn signal light mounting area and relocated it back and angled to the center to make up for moving the lower g-nose panel forward. All panels were then glassed together and ground down smooth to arrive at the final shape. As seen in the last picture I added a 1†lip to the bottom of the spoiler and cut a rectangle hole to mount 2 sets of Audi driving lights for a unique look. 10-18-11 purchased (2) Sparco black with blue trim cloth racing seats listed on e-bay for $340. The black with blue trim will work with the planned blue exterior color of the car. 10-18-11 purchased NRG/JDM combo steering wheel and quick release with short hub with blue inserts listed on e-bay for $330. 10-19-11 purchased Shaved-40 door kit with door poppers from Spal USA for $211. I am going to eliminate the door handles so the electric door solenoids with the door poppers will be required to open the doors. 11-3-11 purchased rear differential support bracket from Z Parts (www.zparts.com) for $92. Eric Neyerlin has many Z cars so if you need that special part he probably has it, he is very knowledgeable and helpful with most things related to Z cars. I needed this additional bracket so that I can cut my bracket and this one in the center and re-weld them together so that I will have a double relief for dual exhaust. 11-7-11 purchased (2) 17†x 10†wide LM20 wheels and (2) 275/40-17 Michelin Pilot Sport tires for the front of the Z and (2) 17†x 13†wide LM20 wheels and (2) 335/35-17 Michelin Pilot Sport tires for the rear of the Z from Complete Custom Wheel (www.ccwheel.com) 386.258.0083 for $4,207 including the center caps, lug nuts, valve stems, mounting and balancing. CCW can make wheels from 5†to 16†wide with several different coating options. They are very helpful and their prices are much better than the competition. I took a tour of the facility when I picked up my wheels and I was impressed with the CNC equipment and the way that the wheel was produced from machining to assembly to polishing. I will definitely be buying my next set of wheels from CCW! 11-8-11 purchased the Competition 4 Wheel Brake Kit including new aluminum 5 lug front hubs, stainless steel flex lines and 5 lug adaptors for the rear wheels from Arizona Z Car (www.arizonazcar.com) 480.844.9677 for 2,265. Parts were very well boxed and arrived un-damaged. Machine work is first class! Dave is very helpful and will take the time to answer your questions. I am looking to purchase their aluminum radiator in the future. 11-20-11 assembled struts into reworked strut tubes and assembled front and rear suspension (front roll center adjusters, front tension control rods, front lower control arms, rear lower control arms from Techno Toy Tuning) to the car. At the same time the Willwood brakes and 5 lug hubs from Arizona Z Car were assembled to the suspension as well. There were no issues with the fitment of the new suspension and brake parts; everything went together as if it was designed by Nissan. 12-15-11 installed the rear fiberglass panels with Cleco clips since I want to mold inner fenders into the rear fiberglass fenders before I attach them permanently. I sprayed expanding foam onto the panel to form a base to work with. Then I cut the foam and coated it with clay to form the inner fender mold. After laying up the fiberglass the clay and foam mold was removed and the panels were bonded and riveted (with countersunk rivets) to the rear fenders which were painted to protect them from rust. After the fiberglass fenders were installed I laid fiberglass to the inner wheel well and the fiberglass inner fender and riveted the cured assembly to the wheel well. The rear fenders are now bonded and riveted around the entire perimeter and wheel well making for a very strong connection. 12-28-11 purchased 4 point roll cage made from 1.75†x .120 DOM tubing from i/o port Racing Supplies (www.ioportracing.com) 925.254.7223 for $605 with shipping. Fabrication and fit is first class with production taking 4 weeks. 1-6-12 now that car is on the ground and the ride height has been set it is time to modify the wheel openings in the fiberglass panels to fit the larger diameter tires. The position of the left front wheel opening in the fiberglass fender is off by 3â€â€¦ I guess the race car that it was pulled from had issues that a 100% non-damaged car doesn’t have. There was a lot of glass work to do to get the openings like I wanted. The left rear wheel opening had to be re-radiused and pulled out 1â€, while both front wheel openings had to be pulled out 1†and an early Corvette style rear fender flair added to control stones from hitting the front of the rear wheel opening. 1-15-12 using AutoCAD 2010 I designed a front air splitter and frame for the Z. 1-26-12 purchased (2) polished stainless steel mufflers (2.1†inlet dia. with dual 3.5†double wall outlet tips, Magnaflow knock offs from China) from Seven Saturdays 714.523.4357 for $100 and that included shipping! They arrived without damage and are very well made. Since I am writing this build after the car is completed I can tell you that these mufflers sound great! 1-26-12 Great Western Metals laser cut the splitter from my AutoCAD drawing out of 0.125†thick aluminum for $187. I used (56) countersunk rivets to attach the splitter to the light weight steel tube frame. Steel frame is bolted to the Z’s frame by utilizing the front tie down brackets and the front bumper shock mounting locations. 2-8-12 purchased a 300ZX Twin Turbo R230 viscous limited slip differential from e-bay for $250. I disassembled, cleaned painted and reassembled the diff with new seals and bearings. 3-6-12 filled the rear valence panel and sanded smooth to prepare it for fitting the mufflers. 3-8-12 drilled and cut oval openings for the dual tipped mufflers. 3-12-12 purchased g-nose headlight covers from Z Car Customs (www.ZCC.com) for $450. These covers are hard to find and ZCC was the only place that I could find them when I was looking… Since then I found a second source for g-nose headlight covers, Mark Clapp (mclapp1@att.net) 816-286-6982 has the proper mold and can produce a set in a very short period of time. His product is much less expensive and the quality is equal to if not better than the ZCC sourced headlight covers. 3-19-12 purchased (2) sets of 3†wide, 6 point, cam lock, blue, racing seatbelts from Wesco Performance for $288. 3-25-12 cost of all materials (for the entire build up to 10-10-12) to strip, prime, paint, undercoat, assemble the interior, assemble body rubber, seal body panels and reshape the body including fiberglass, fiberglass resin, 2 part epoxy, disposable brushes, clay (for mold making), aluminum tape, primer, undercoating, turpentine, acetone, lacquer thinner, sand paper, ready strip, weld bond adhesive, body filler, spot putty, dual mix applicator gun, super trim adhesive, nitrile gloves, tape, plastic and body sealers from various suppliers was $2,104. It really adds up if you keep track of all your receipts. 3-26-12 took my car to Rocky’s East End Frame and Body Shop for painting. Total cost of paint job was $3,100. I selected 2008 Proton Blue since I liked the color for the car. Up to this point all of the body work was done solely by me. Rocky’s will block sand and paint the exterior and door jams of the Z. When I get the car back I will remove the engine then strip and paint the engine compartment. While the Z is in the body shop I will purchase and assemble the drive train so that it is ready to be installed into the Z when It comes out of the body shop. 4-18-12 purchased GM Performance Parts CT 525hp LS3 Engine, Tremec T56 Magnum 6 Speed Transmission 700 ft/lbs, Quick Time Bell Housing, Ram Dual Disk Clutch with Flywheel, GM Performance Parts Polished Valve Covers, Ram Hydraulic Throw Out Bearing, Pilot Bearing and CSR Competition Starter from Jegs (www.jegs.com) for $12,629. Parts all arrived in a short time without any damage. Jegs like Summit have very good service. 4-18-12 purchased LS376/525hp Controller Kit With (throttle by wire) and LS Series Accessory Drive with A/C from Crate Engine Depot (www.crateenginedepot.com) for $2,089. 4-18-12 purchased front windshield, all window seals, all door seals, all felts and all light gaskets from Black Dragon (www.blackdragonauto.com) for $994. Everything arrived well packaged and without any damage. I will warn you that putting on the window gaskets by yourself (as I did) is not a job for a novice. Don’t be fooled by the quarter windows, putting the new gaskets on them is somewhat difficult as well. I had the windows tinted 15% before I put the gaskets on and assembled them to the car. 4-19-12 purchased a LS3 Hurricane Manifold from Harrop Engineering (www.harrop.com.au) (located in Australia) for $5,348. This intake has (8) 58mm throttle bodies that will wake up a LS motor! It was designed and fabricated very well, first class! I chose this intake for the horsepower gain and because it just looks so damn good! With only the addition of this intake the engine made an additional 45hp at the flywheel. When I changeover to 1.85 ratio rockers and better springs it will make even more horse power. 4-19-12 purchased VDO Vision Fuel, Water, Voltmeter and Oil Pressure gages, VDO Vision Speedometer, Tachometer, Clock and Temperature sending unit from Summit Racing for $487. Using Inventor 10 Pro I designed adaptors for the gages so that they would mount with the stock hardware. Larry at Dynamic Machine used 5†black nylon (UHMW) rod to make the adaptors. 4-19-12 purchased 280Z LSX Swap Kit from BullDawg Musclecars for $494. I like this kit better because of the transmission mount. The transmission mount incorporates the stiffened area of the transmission tunnel for mounting rather than the floor like other kits. 4-29-12 purchased coil relocation brackets from CBM Motorsports for $125. I wanted to clean up the engine so I decided to relocate the coils to the strut towers. 5-6-12 purchased (8) 52lb Bosch EV14 Fuel Injectors from e-bay for $434. 5-7-12 purchased LS3 2010 Camaro MAP Sensor from Auto Parts Cheaper (www.autopartscheaper.com) for $69. I can’t use a MAF sensor since I have (8) throttle bodies and no common air plenum since for MAF ALL air entering the engine MUST be measured. I will be using MAP since the manifold has a common plenum for the vacuum from each throttle body. ECU will be reprogramed for MAP. 5-8-12 purchased Mustache Bar, Drop Mounts, Dog Bone and Front Differential Mount from Techno Toy Tuning for $750. Parts came well packaged and without any damage, very nice looking components for the Z car. 5-18-12 purchased aluminum radiator from Arizona Z Car for $365. For the money this radiator cannot be beat, since I am writing this after I have driven the car, I can tell you that it will cool a 600hp engine on a 95° day in stop and go traffic without any problems. Note, I am using a full radiator shroud with (2) high performance 11†spall fans. 5-23-12 purchased a Derale Cooling Products Oil Cooler with fan from Summit Racing for $203. 5-23-12 purchased a Bosch 044 Inline Fuel Pump from High Flow Fuel Systems 818.574.3835 for $249. 5-24-12 purchased (2) VA03-AP90/LL-68A * 11"P/12V/PK4 (high performance fans) from SPAL (www.spalusa.com) for $442. 6-6-12 purchased (4) 1994 Infiniti Q45 CV Half Shaft Assemblies from RockAuto 866.762.5288 for $405. I know that I could have found these in a bone yard cheaper but I prefer to use new or a as a last resort rebuilt parts. I had to disassemble the shafts since the only part that I need is the inner CV joint that I will assemble to custom axles. 6-15-12 drove the Z home from the body shop today. I left the drive train intact so that I could move the car around while I was modifying the body. Body work turned out very good for what I paid but I was expecting a little better since I had the body in pretty good shape before the body shop started. 6-16-12 removed the engine, transmission, differential and half shafts along with all wiring and lines in the engine compartment, removed the brake booster / master cylinder, steering rack, steering column, clutch master cylinder and front suspension. After removing all of the components I ground off all mounting brackets since I want the engine compartment to be as smooth as possible. 6-30-12 set the engine and transmission in place so that I could design the cross member for the engine and determine what modifications would need to be done (if any) to the transmission mount I purchased from BullDawg Musclecars. After taking measurements the engine was removed so that I could modify / fabricate the engine crossmember. The transmission mount needs to be lengthened by 3.5†for the Tremec T56 Magnum 6 speed transmission. 7-4-12 purchased a set of Hex Vent Hood vents from Hines Performance Engineering for $363. When I came across these hood vents I decided that I like them better than the small cowl vents that I put on my hood so now I will cut off the cowl vents and install the Hex Vents. To finish the job properly I will have to grind down the hood slightly to make a flatter surface since the hood has a slight raised area where the hood vents are located. I will do this during December because the hood will have to be repainted. 7-7-12 modified the rear frame above the differential so that I could mount the larger R230 differential 1†higher than the stock mounting height of the R200. Techno Toy Tuning drilled the aluminum mustache bar to accept the R230 with a mounting 1†higher than the R200. This was done because the R230 is over 1†Taller than the R200 since the ring gear is 9†in dia. Compared to the 8†dia. ring gear in the R 200. After notching the frame (with a 5†cut off wheel) I cut a piece of 2â€x 2†x 1/8†angle to fit the notch (one leg is cut shorter than the other, see photos). After fitting the angle my good friend Joseph Morrow welded the angle to the frame for me (I owe him big time). 7-16-12 purchased a 1977 280Z Engine Crossmember from ZParts.com (www.zparts.com) 541.679.0791 for $238. I decided that a second engine crossmember (after being modified) mounted directly behind the original crossmember would work nicely to support the LS3 engine. 7-19-12 purchased LS1 shorty headers from Stealth Conversions (www.jagsthatrun.com) 925.462.3619 for $495. After receiving the crate motor I removed the four barrel carburetor intake, coil packs, valve covers, flex plate and exhaust manifolds and packed them away. I then masked off the engine, transmission, bell housing, disassembled and masked off the Harrop Hurricane manifold and painted everything with metallic copper VHT engine paint. I then removed the masking tape and reassembled the engine with new components listed above, set up the hydraulic bearing to the transmission and mounted the bell housing, starter and Transmission to the engine. I am very pleased with the result! 7-25-12using AutoCAD 2010 I designed rear wing brackets to hold the carbon fiber wing at the proper height and angle. I also designed and fabricated brackets that mount in the rear hatch to support the wing plus 250lbs of potential down force. 7-28-12 modified the crossmember that I received from zparts.com by cutting off the steering rack mounting tabs, and engine mounting brackets. I cut new engine mounting brackets (3 sided, similar to the stock ones) out of 1/8†thick flat bar and welded the pieces of flat bar to the crossmember. The modified crossmember was then welded to the frame and original crossmember and (4) 1â€x 1/8†angle braces were added to help carry the load of the engine since I removed the center of the crossmember. The transmission bracket needs to be modified for use with an LS3 and a Tremec T56 Magnum 6 speed transmission. The “U†shaped part of the bracket (made out of 1.5†x 0.125†wall tubing) must be cut where the “U†is welded to the steel angle and (2) pieces of 3.5†long (my car, yours may be different) 1.5†x 0.125†wall tube must be welded in to lengthen the “U†part of the bracket. Welding was done by my good friend Joseph Morrow. 7-30-12 worked on original engine compartment wiring harness. I removed all tape from the entire harness and removed all of the unnecessary wires (about 12 of them). I then wrapped the harness with vinyl tape. 7-31-12 worked on the interior wiring harness. I removed wires that I would no longer need and added wires that I would need to operate the reverse lockout switch in the transmission and wires for the inductive speed output to the VDO electronic speedometer. 8-11-12 set the engine and transmission in the body a second time to ensure that the new engine crossmember / engine mount and lengthened transmission mount were correct. Everything looked good so I removed the engine and transmission to prep the engine bay for painting. 8-13-12 Great Western Metals water cut (2) carbon fiber wing brackets from 0.375†thick aluminum for $160. 8-18-12 covered and masked off the car to protect the car while I am stripping it with Ready Strip Aircraft paint stripper. Care must be taken when stripping the engine bay on a painted car since you cannot splash the stripper onto the painted body, it will instantly attack the paint. After stripping the Z I am impressed with the excellent condition of the sheet metal and I am happy that I did not damage the paint job in any way. 8-19-12 purchased (2) coil extension wiring harnesses from e-bay for $75. I needed these harness extensions to relocate the coils. 8-20-12 purchased stainless steel GM F-body X-Pipe, (2) down pipes, (4) 90° bends, (8) 1†wide clamp and (2) hanger assemblies from Summit Racing for $517. 8-21-12 purchased an aluminum drive shaft assembly from Shaftmasters 313.383.6347 for $378. Very good people to work with, drive shaft came completely assembled and balanced in just a few days. 8-23-12 purchased radiator fittings and hose adaptors from Stealth Conversions (www.jagsthatrun.com) 925.462.3619 for $80. 8-25-11 Covered and masked off the car to prepare it for painting. I painted the engine bay with the same base coat clear coat that the body shop used. I am happy with my paint job it turned out very good. I had to crawl in and out from the underside of the car and I had to be extremely careful not to touch the body with any part of my body which was not an easy task since I am 6’2†tall, 230lbs and 56 years old. 9-1-12 installed the steering rack, steering column, brake master cylinder and booster, clutch master cylinder, engine and transmission today. Engine went in without any problems and the transmission mount fits perfect. 9-4-12 purchased Optima battery, cables and stainless steel hose from Summit Racing for $268. 9-5-12 designed custom radiator shroud to house (2) Spal high performance fans to fit radiator purchased from Arizona Z Car. 9-8-11 installed the fuse center, engine control unit and radiator today. My goal is to make the engine bay look like it came from the factory with an LS3. 9-10-12 installed the sound deadener. I replaced the sound deadener on the firewall, floors and transmission tunnel with aluminum backed jute backed with a sheet of butyl rubber material, bonded to an aluminum facing. I covered the rear of the car and the fuel cell with the butyl rubber material, bonded to an aluminum facing which has a very tacky adhesive on the butyl side. 9-13-12 Great Western Metals laser cut the pieces to make my custom fan shroud from 0.063†5052 aluminum for $85. Draggers Industries bent and welded the pieces together for $189 (a little high but what can I do I can’t weld aluminum). 9-14-12 installed seats, seatbelts, roll bar, console, interior trim and dash. 9-15-12 installed the remote oil filter, oil cooler and oil lines, remote coil harness, brackets and coil packs, and headers. Everything fit well and the engine bay although looking full still looks good. 9-18-12 total cost of all miscellaneous hardware (not already mentioned), fittings, oils, grease and fluids used during the build including, stainless steel braided hose, AN fittings, fuel filters, injector spacers, nuts, bolts, rivets, seals, bearings, angle, flat bar, steel tube, hose clamps, vacuum hose, radiator and heater hose, header wrap, spark plug wires, electrical tape, wire, connectors, relays and plastic conduit, brake line, Mobile 1 engine and transmission oils, Royal Purple differential fluid and brake fluid from various suppliers was $2,228. 9-22-12 installed the R230 rear end, half shafts with CV joints, drive shaft, drop mounts and dog bone, rear sway bar, lower control arms, front differential mount and bushings. Techno Toy Tuning parts look as good as they perform! Note fuel line shown was temporary it will be changed next week when I plumb the fuel to the engine. Test fit the exhaust system then removed it so that the muffler shop can weld and bend the pipes as required. 9-25-12 Meineke Car Care Center welded the O2 sensors onto the down tubes and bent them according to my directions for $70. I assembled the down tubes and x-pipe to the car and temporally held them up in place with rope. I fit the (4) 90° bends (had to cut 1 end from each bend) and tacked them together. I fit the mufflers and hangers to the 90° bends and tacked the hangers to the 90° bends. I took the 90° bends and hangers to a local muffler shop by work and they welded out everything for $20. When I got home I assembled the 90° bends, mufflers and hangers to the rest of the exhaust system and it turned out great. 9-27-12 installed exhaust system and fuel system. Everything fit well but I am going to remove the down tubes later this winter and adjust (bend) the down tubes slightly so that I can raise the exhaust about 3/4†more which will bring it level to the frame but about 3/4†lower than the frame. I am loading the car onto the trailer to take it to the tuner to have the ECU re-tuned. 9-29-12 just got back from www.LSXDTNO.com (the tuner) and I am very happy! Tune and dyno time was $600. The engine made 491hp and 451 ft/lbs of torque at the wheels which would equate to 565 hp and 518 ft/lbs torque at the flywheel. Not bad for a crate engine rated at 525 hp at the flywheel. The Harrop Hurricane intake is doing its job very well! I will change the rockers (to 1.85 ratio) and swap the valve springs with better valve springs for a gain 25hp or more (this is possible since the intake has the capacity to flow more than my engine can use. The tune will be tweaked some to address the double humps in the graph even though the engine runs well without any lurching or bucking when driving 65 mph in 6th gear (.50 over drive). The only issue that I have is air in the fuel when I turn fast so I am going to completely fill the fuel cell with fuel safe foam to keep the fuel from sloshing around. 10-4-12 took the Z to Gas Head Motorworks in Houston (www.gasheadmotorworks.com) 713.461.7575 to have it aligned and corner weighted for $438. This shop specializes in building Miata track cars from mild to LS powered terrors. Clint is very knowledgeable about building fast track cars and how to set them up correctly. 10-6-12 if you were adding up the cost of car, parts, supplies and services you would find that I spent about $60,461. I will admit that I spent a lot but I wanted a high end Z (spent 9 months just looking for a rust free untouched Z) so I planned and researched for months before I started my build and I knew that I would spend a minimum of $55,000 on my build. I am happy (along with my wife) that my build came in at $60,461 since the reason that my build went $5,000 over budget was that I found the Harrop Hurricane intake ($5,348) and I just had to have it, otherwise I would have been right on budget. The point that I am trying to make is that every Z conversion (or restoration) will be different but the one thing everyone should do is to think through what they want out of the conversion (or restoration) and how much they have to spend. Think about if you have the skills necessary to do the work or if you will have to pay for certain services and then factor in the cost of those services. Think about the time that it will take to undertake the project and if you have the tools necessary to do the job. You can rent tools from many places, did you know that you can rent many tools from AutoZone by paying for them and when you return them you get your money back, so you get to use things like a vacuum pump for free, now that is a sweet deal. If you take the time to really think about your project you will be happy with it when you are done. 10-8-12 cut and fit the g-nose covers to the g-nose headlight buckets. This takes a while since you do not want to scratch the cover or cut it too small. Mark the cover very carefully and check it twice, cut it with a jigsaw and file to final size. I used adhesive backed trim to hold the g-nose headlight covers in place. 10-12-12 took my Z to the local drag strip to see what she would do. I had a hard time hooking up the rear wheels with the 335/35-17 Michelin Pilot Sport tires but I was able to run 11.8’s all night long. I will try again next year after I change the tires for track rubber. I had a lot of fun at the track and I was impressed with the number of complements that my Z car received. On the way home I heard a faint clicking sound coming from the passenger side rear suspension so I jacked up the rear of the Z the next morning and found that 1 bolt on the inner CV joint (passenger side) was missing and 1 was a thread from falling out and the other 4 were backed out over 1/4". I was lucky that I didn’t make another run or I would have damaged something for sure. After replacing the missing bolt and torquing the bolts I checked all the other bolts and they were fine. I must have been interrupted when I was torquing the bolts since I missed 1 complete joint. -
I've been noticing a loud clunk when I let off or on the gas while driving. All my rear end components were brand new/refurbished, so I was suspecting it was a backlash issue (I had added a gear driven LSD to my R200). I just pulled the rear end and everything was in spec. Once the rear end was out, I tried rotating the driveline (still sticking out of the T56) with the car in gear, and I believe the clunk noise is coming from there. I get a fair amount of play when rotating it back and forth. Anyone else have a similar issue? This is a newly rebuilt T56 from a reputable source. Is this not an issue in f-bodies because they have better sound deadening?
-
Glad to finally meet you all! I have been a Datsun fan 240,260,280, (and current 370) fan forever! I have mostly been into early 70's muscle, but have always had a wondering eye for these beauties. As a certified car nut I am always scouring the internet, e-bay, and other sources for what's available then thinking about what I could turn it into. As luck would have it I found a member of Hybridz selling his 280z not very far from my house. After seeing it in person, and the fact that it had a 400 sbc backed by a t56, I bought it on the spot. I have now had the car three weeks and have dropped the open R200 with 3.54 gears and have purchased a LSD R200 with 3.90 gears from Whitehead Performance. The 400 sbc torque destroyed the carrier pin and beat the spider gears all to hell. I thought with my 6-speed and a taller gear, this will be the hot set-up. Let me tell you, Mike at Whitehead has got to be one of the nicest guys I have spoken to in quite some time. I should be getting delivery of the diff mid week. In the meantime I'll be dropping the rest of the rear suspension for powder-coating and getting me some space to POR15 the track side of the car. Since this is the first time I have posted or belonged to anything like this, please have mercy on me!! At the same token, from the three weeks of reading all of your stuff, I am certainly in good company. I will attempt to post my successes and failures to continue to contribute to this awesome website. Thanks all, D
